ns3::Icmpv6TimeExceeded Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <icmpv6-header.h>

+ Inheritance diagram for ns3::Icmpv6TimeExceeded:
+ Collaboration diagram for ns3::Icmpv6TimeExceeded:

Public Member Functions

 Icmpv6TimeExceeded ()
 Constructor. More...

virtual ~Icmpv6TimeExceeded ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

Ptr< Packet > GetPacket () const
 Get the incorrect packet. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size. More...

virtual void Print (std::ostream &os) const
 Print informations. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetPacket (Ptr< Packet > p)
 Set the incorrect packet. More...

- Public Member Functions inherited from ns3::Icmpv6Header
 Icmpv6Header ()
 Constructor. More...

virtual ~Icmpv6Header ()
 Destructor. More...

void CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
 Calculate pseudo header checksum for IPv6. More...

uint16_t GetChecksum () const
 Get the checksum. More...

uint8_t GetCode () const
 Get the code field. More...

uint8_t GetType () const
 Get the type field. More...

void SetChecksum (uint16_t checksum)
 Set the checksum. More...

void SetCode (uint8_t code)
 Set the code field. More...

void SetType (uint8_t type)
 Set the type. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Icmpv6Header
static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ptr< Packet > m_packet
 The incorrect packet. More...


Additional Inherited Members

- Public Types inherited from ns3::Icmpv6Header
enum  ErrorDestinationUnreachable_e {
  ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,
  ICMPV6_PORT_UNREACHABLE
}
 ICMPv6 error code : Destination Unreachable. More...

enum  ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
 ICMPv6 error code : Parameter Error. More...

enum  ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
 ICMPv6 error code : Time Exceeded. More...

enum  OptionType_e {
  ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,
  ICMPV6_OPT_MTU
}
 ICMPv6 Option type code. More...

enum  Type_e {
  ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,
  ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,
  ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,
  ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,
  ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,
  ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,
  ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY
}
 ICMPv6 type code. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::Icmpv6Header
bool m_calcChecksum
 Checksum enable or not. More...

uint16_t m_checksum
 The checksum. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.

ICMPv6 Error Time Exceeded header.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1201 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6TimeExceeded::Icmpv6TimeExceeded ( )

Constructor.

Definition at line 1270 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ERROR_TIME_EXCEEDED, NS_LOG_FUNCTION, and ns3::Icmpv6Header::SetType().

+ Here is the call graph for this function:

ns3::Icmpv6TimeExceeded::~Icmpv6TimeExceeded ( )
virtual

Destructor.

Definition at line 1277 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv6TimeExceeded::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 1333 of file icmpv6-header.cc.

References data, GetSerializedSize(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::m_checksum, m_packet, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

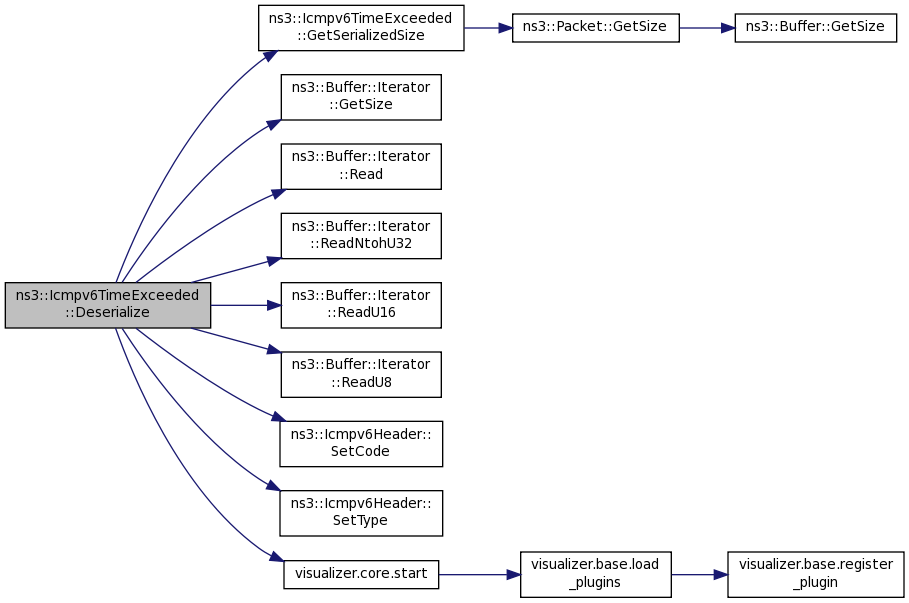

+ Here is the call graph for this function:

TypeId ns3::Icmpv6TimeExceeded::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 1264 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ptr< Packet > ns3::Icmpv6TimeExceeded::GetPacket ( ) const

Get the incorrect packet.

Returns
the incorrect packet

Definition at line 1282 of file icmpv6-header.cc.

References m_packet, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleTimeExceeded().

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6TimeExceeded::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 1301 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6TimeExceeded::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Definition at line 1255 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6TimeExceeded::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 1295 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6Header::GetType(), and NS_LOG_FUNCTION.

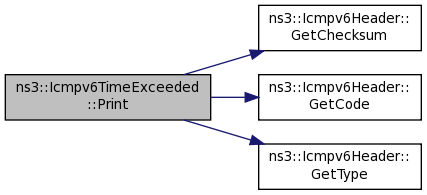

+ Here is the call graph for this function:

void ns3::Icmpv6TimeExceeded::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 1307 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Packet::CopyData(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Packet::GetSize(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), m_packet, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

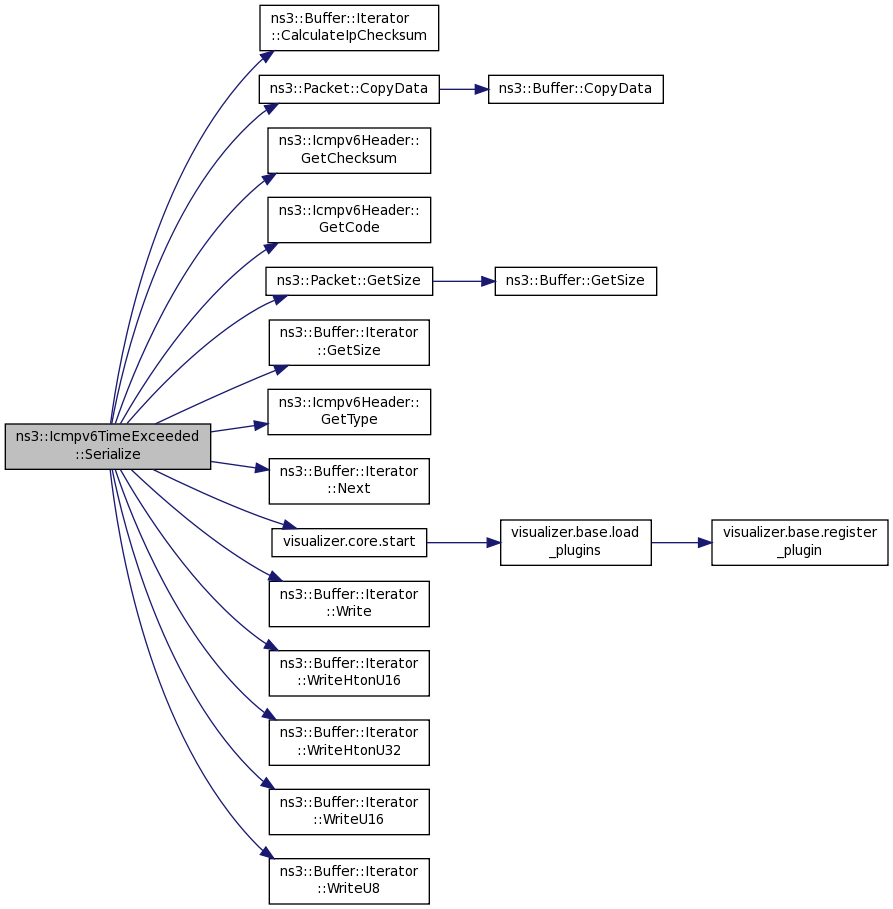

+ Here is the call graph for this function:

void ns3::Icmpv6TimeExceeded::SetPacket ( Ptr< Packet >  p)

Set the incorrect packet.

Parameters
pthe incorrect packet

Definition at line 1288 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::SendErrorTimeExceeded().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> ns3::Icmpv6TimeExceeded::m_packet
private

The incorrect packet.

Definition at line 1268 of file icmpv6-header.h.

Referenced by Deserialize(), GetPacket(), GetSerializedSize(), Serialize(), and SetPacket().

The documentation for this class was generated from the following files:
