Inheritance diagram for ns3::IdealHandoverCommandHeader:

Collaboration diagram for ns3::IdealHandoverCommandHeader:

Public Member Functions
virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const

uint32_t	GetMsgId ()

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetMsgId (uint32_t id)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_msgId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Definition at line 538 of file lte-rrc-protocol-ideal.cc.

Member Function Documentation

uint32_t ns3::IdealHandoverCommandHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 598 of file lte-rrc-protocol-ideal.cc.

References GetSerializedSize(), m_msgId, and ns3::Buffer::Iterator::ReadU32().

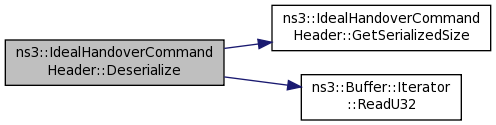

Here is the call graph for this function:

TypeId ns3::IdealHandoverCommandHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 578 of file lte-rrc-protocol-ideal.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::IdealHandoverCommandHeader::GetMsgId ( )

Definition at line 555 of file lte-rrc-protocol-ideal.cc.

References m_msgId.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoDecodeHandoverCommand().

Here is the caller graph for this function:

uint32_t ns3::IdealHandoverCommandHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 588 of file lte-rrc-protocol-ideal.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::IdealHandoverCommandHeader::GetTypeId ( void )

static

Definition at line 568 of file lte-rrc-protocol-ideal.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::IdealHandoverCommandHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 583 of file lte-rrc-protocol-ideal.cc.

References m_msgId.

void ns3::IdealHandoverCommandHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 593 of file lte-rrc-protocol-ideal.cc.

References m_msgId, and ns3::Buffer::Iterator::WriteU32().

Here is the call graph for this function:
