ns3::InetSocketAddress Class Reference

an Inet address class More...

#include <inet-socket-address.h>

Collaboration diagram for ns3::InetSocketAddress:

Public Member Functions
	InetSocketAddress (Ipv4Address ipv4, uint16_t port)
	InetSocketAddress (Ipv4Address ipv4)
	InetSocketAddress (uint16_t port)
	InetSocketAddress (const char *ipv4, uint16_t port)
	InetSocketAddress (const char *ipv4)
Ipv4Address	GetIpv4 (void) const
uint16_t	GetPort (void) const
	operator Address () const
void	SetIpv4 (Ipv4Address address)
void	SetPort (uint16_t port)

Static Public Member Functions
static InetSocketAddress	ConvertFrom (const Address &address)
static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
Ipv4Address	m_ipv4
uint16_t	m_port

Detailed Description

an Inet address class

This class is similar to inet_sockaddr in the BSD socket API. i.e., this class holds an Ipv4Address and a port number to form an ipv4 transport endpoint.

Definition at line 40 of file inet-socket-address.h.

Constructor & Destructor Documentation

ns3::InetSocketAddress::InetSocketAddress	(	Ipv4Address	ipv4,
		uint16_t	port
	)

Parameters

ipv4	the ipv4 address
port	the port number

Definition at line 29 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

Referenced by ConvertFrom().

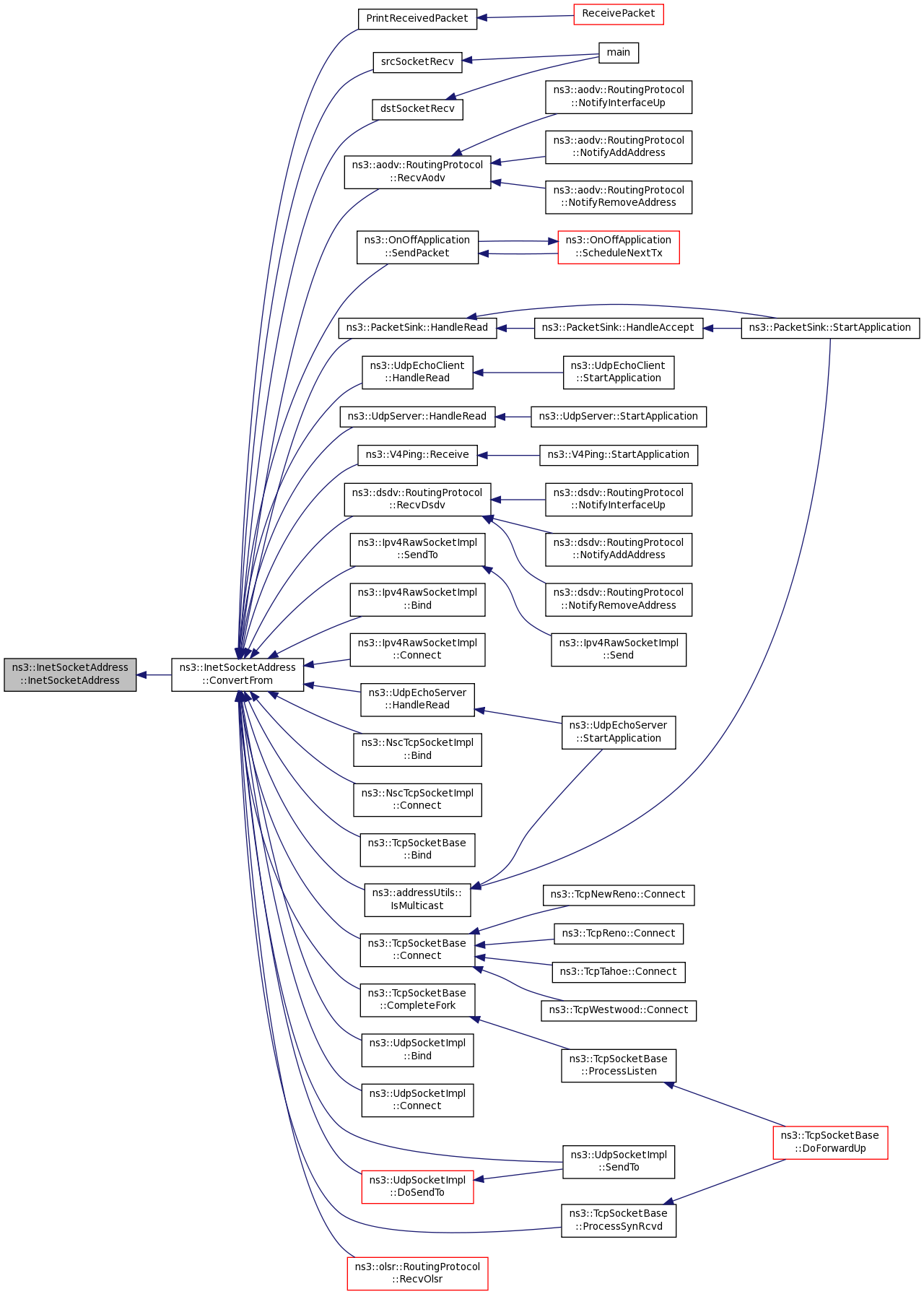

Here is the caller graph for this function:

ns3::InetSocketAddress::InetSocketAddress

(

Ipv4Address

ipv4

)

Parameters

ipv4	the ipv4 address

The port number is set to zero by default.

Definition at line 35 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

ns3::InetSocketAddress::InetSocketAddress

(

uint16_t

port

)

Parameters

port	the port number

The ipv4 address is set to the "Any" address by default.

Definition at line 53 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

ns3::InetSocketAddress::InetSocketAddress	(	const char *	ipv4,
		uint16_t	port
	)

Parameters

ipv4	string which represents an ipv4 address
port	the port number

Definition at line 41 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

ns3::InetSocketAddress::InetSocketAddress

(

const char *

ipv4

)

Parameters

ipv4	string which represents an ipv4 address

The port number is set to zero.

Definition at line 47 of file inet-socket-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

InetSocketAddress ns3::InetSocketAddress::ConvertFrom ( const Address &  address )

static

Parameters

address

the Address instance to convert from.

Returns an InetSocketAddress which corresponds to the input Address

Definition at line 108 of file inet-socket-address.cc.

References ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), ns3::Ipv4Address::Deserialize(), GetType(), InetSocketAddress(), NS_ASSERT, NS_LOG_FUNCTION, and port.

Referenced by ns3::Ipv4RawSocketImpl::Bind(), ns3::UdpSocketImpl::Bind(), ns3::NscTcpSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::Connect(), ns3::UdpSocketImpl::Connect(), ns3::NscTcpSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::DoSendTo(), dstSocketRecv(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::addressUtils::IsMulticast(), PrintReceivedPacket(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::V4Ping::Receive(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::OnOffApplication::SendPacket(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::UdpSocketImpl::SendTo(), and srcSocketRecv().

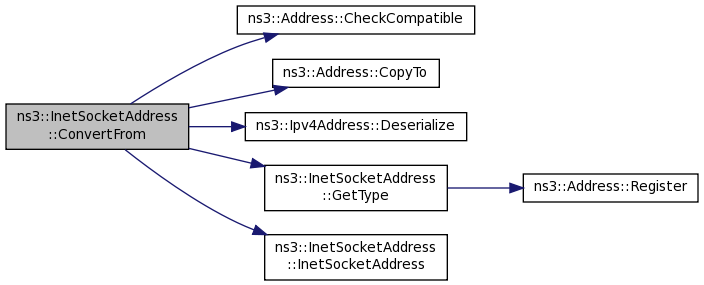

Here is the call graph for this function:

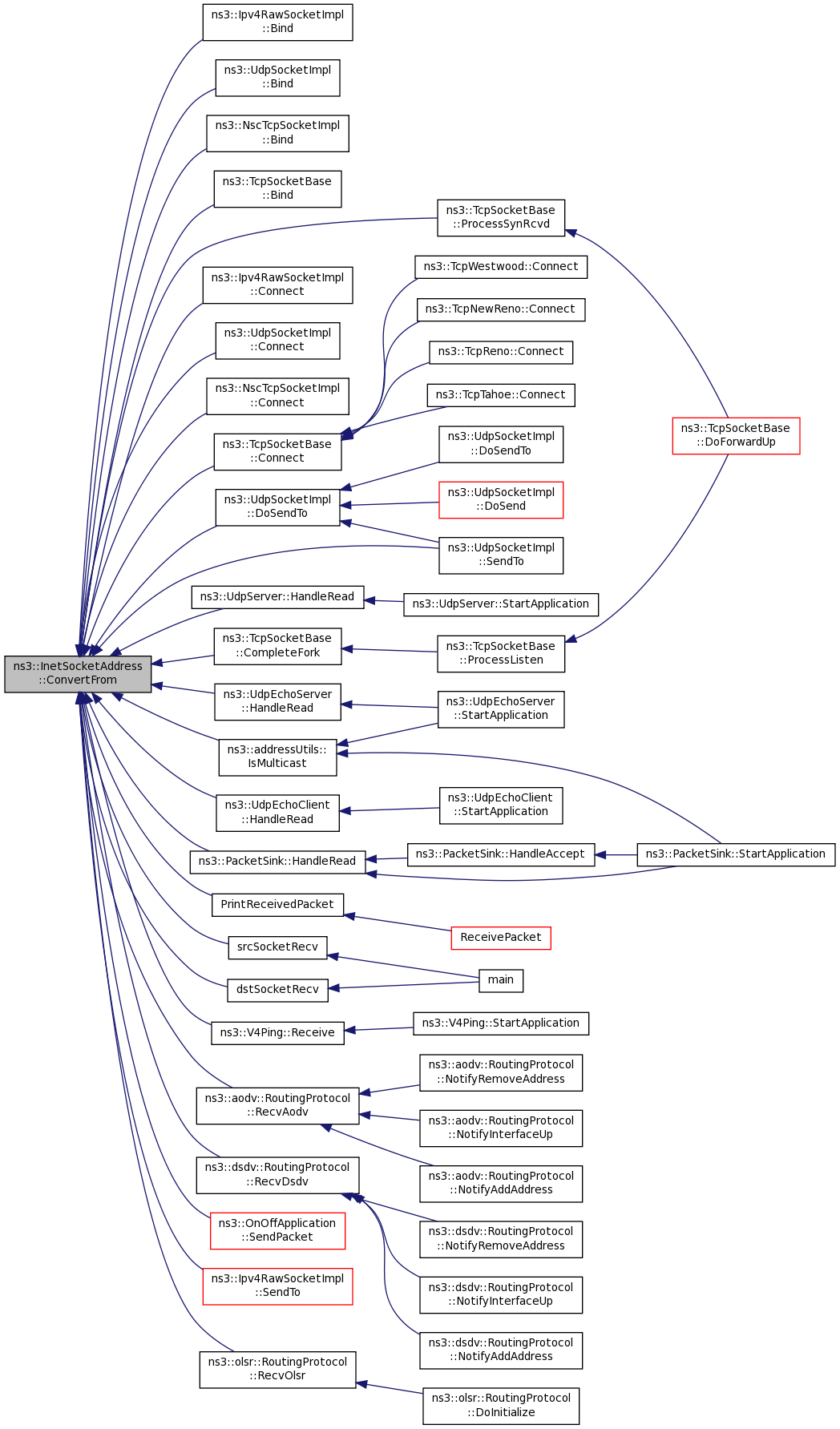

Here is the caller graph for this function:

Address ns3::InetSocketAddress::ConvertTo ( void  ) const

private

Definition at line 98 of file inet-socket-address.cc.

References GetType(), m_ipv4, m_port, NS_LOG_FUNCTION, and ns3::Ipv4Address::Serialize().

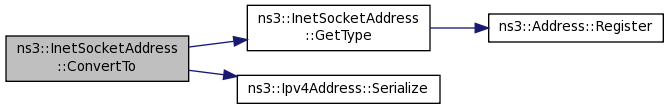

Here is the call graph for this function:

Ipv4Address ns3::InetSocketAddress::GetIpv4

(

void

)

const

Returns

the ipv4 address

Definition at line 66 of file inet-socket-address.cc.

References m_ipv4, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::Bind(), ns3::UdpSocketImpl::Bind(), ns3::NscTcpSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::Ipv4RawSocketImpl::Connect(), ns3::UdpSocketImpl::Connect(), ns3::NscTcpSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::DoSendTo(), dstSocketRecv(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::addressUtils::IsMulticast(), PrintReceivedPacket(), ns3::V4Ping::Receive(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::OnOffApplication::SendPacket(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::UdpSocketImpl::SendTo(), and srcSocketRecv().

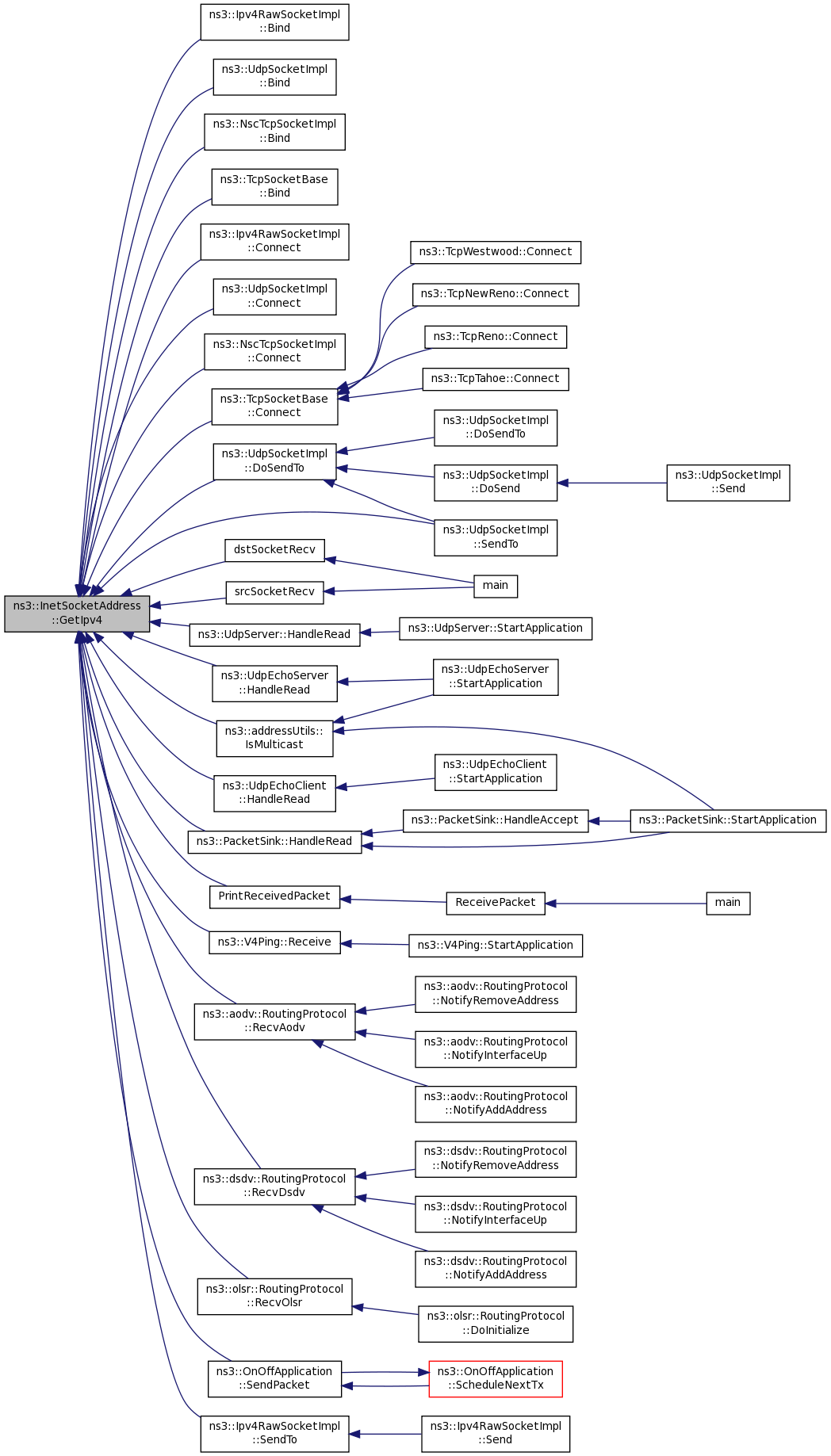

Here is the caller graph for this function:

uint16_t ns3::InetSocketAddress::GetPort

(

void

)

const

Returns

the port number

Definition at line 60 of file inet-socket-address.cc.

References m_port, and NS_LOG_FUNCTION.

Referenced by ns3::UdpSocketImpl::Bind(), ns3::NscTcpSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Connect(), ns3::NscTcpSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::DoSendTo(), dstSocketRecv(), ns3::UdpEchoServer::HandleRead(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), PrintReceivedPacket(), ns3::V4Ping::Receive(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::OnOffApplication::SendPacket(), and ns3::UdpSocketImpl::SendTo().

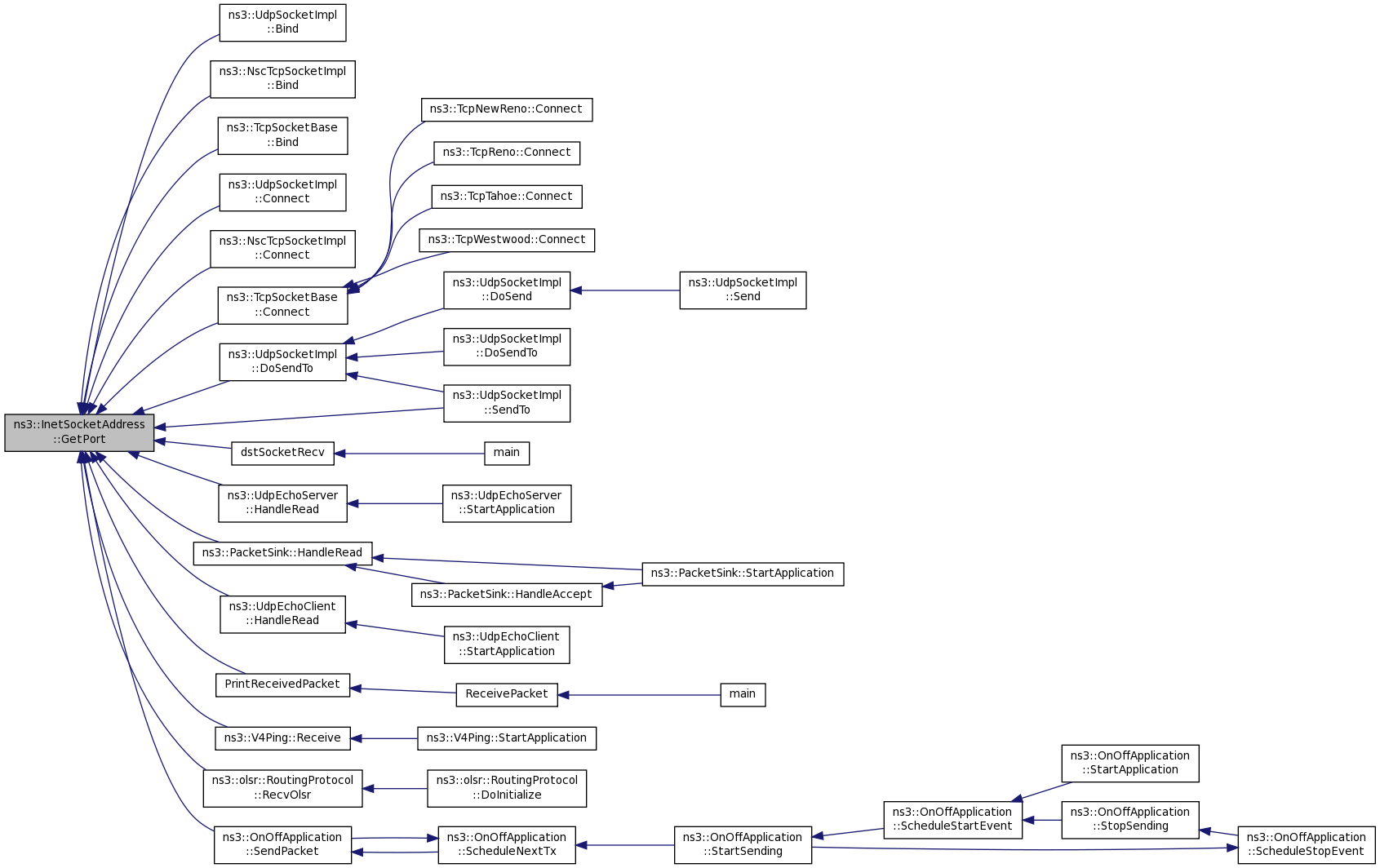

Here is the caller graph for this function:

uint8_t ns3::InetSocketAddress::GetType ( void  )

staticprivate

Definition at line 119 of file inet-socket-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

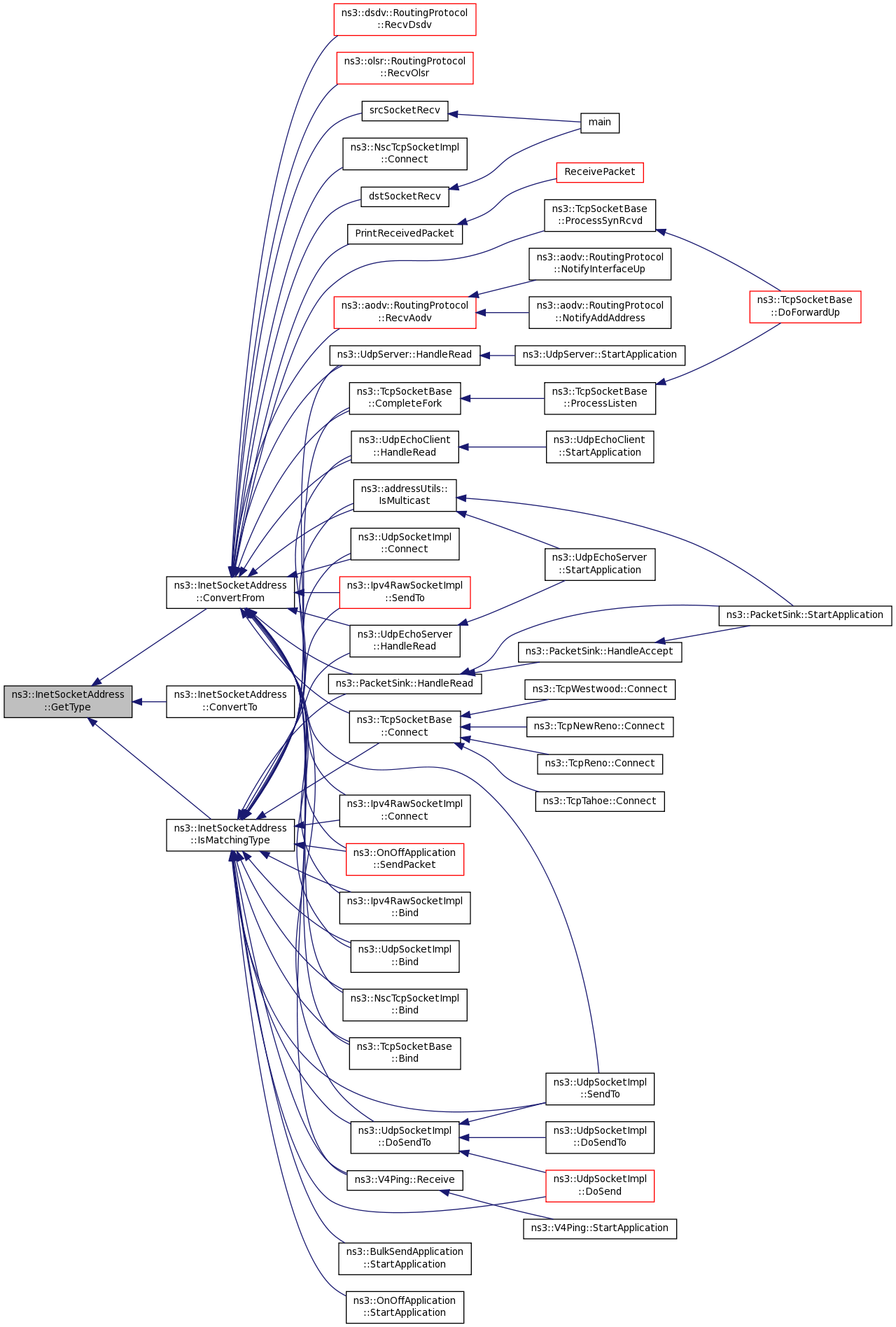

Here is the caller graph for this function:

bool ns3::InetSocketAddress::IsMatchingType ( const Address &  address )

static

Parameters

address

address to test

Returns

true if the address matches, false otherwise.

Definition at line 86 of file inet-socket-address.cc.

References ns3::Address::CheckCompatible(), GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::Bind(), ns3::UdpSocketImpl::Bind(), ns3::NscTcpSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::Connect(), ns3::UdpSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::DoSend(), ns3::UdpSocketImpl::DoSendTo(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::addressUtils::IsMulticast(), ns3::V4Ping::Receive(), ns3::OnOffApplication::SendPacket(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::UdpSocketImpl::SendTo(), ns3::BulkSendApplication::StartApplication(), and ns3::OnOffApplication::StartApplication().

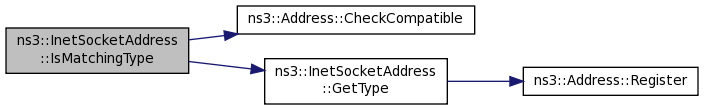

Here is the call graph for this function:

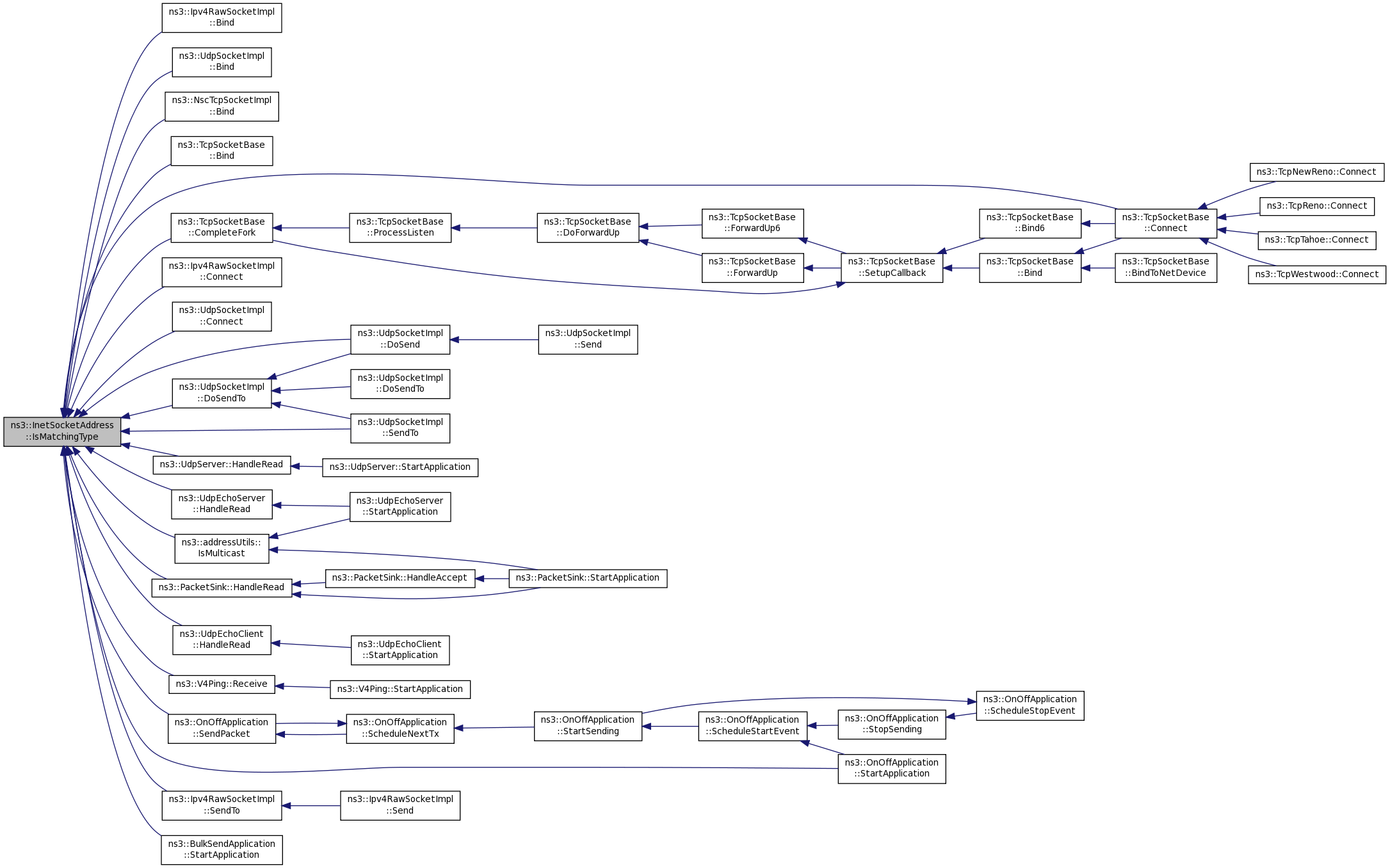

Here is the caller graph for this function:

ns3::InetSocketAddress::operator Address

(

)

const

Returns

an Address instance which represents this InetSocketAddress instance.

Definition at line 92 of file inet-socket-address.cc.

void ns3::InetSocketAddress::SetIpv4

(

Ipv4Address

address

)

Parameters

address

the new ipv4 address

Definition at line 79 of file inet-socket-address.cc.

References first::address, m_ipv4, and NS_LOG_FUNCTION.

void ns3::InetSocketAddress::SetPort

(

uint16_t

port

)

Parameters

port	the new port number.

Definition at line 73 of file inet-socket-address.cc.

References m_port, NS_LOG_FUNCTION, and port.

Member Data Documentation

Ipv4Address ns3::InetSocketAddress::m_ipv4

private

Definition at line 112 of file inet-socket-address.h.

Referenced by ConvertTo(), GetIpv4(), and SetIpv4().

uint16_t ns3::InetSocketAddress::m_port

private

Definition at line 113 of file inet-socket-address.h.

Referenced by ConvertTo(), GetPort(), and SetPort().

---

The documentation for this class was generated from the following files:

• src/network/utils/inet-socket-address.h
• src/network/utils/inet-socket-address.cc
