Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension-header.h>

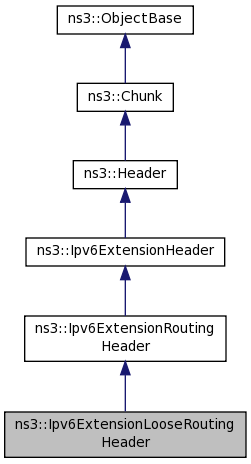

Inheritance diagram for ns3::Ipv6ExtensionLooseRoutingHeader:

Collaboration diagram for ns3::Ipv6ExtensionLooseRoutingHeader:

Public Member Functions
	Ipv6ExtensionLooseRoutingHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionLooseRoutingHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv6Address	GetRouterAddress (uint8_t index) const
	Get a Router IPv6 Address. More...

std::vector< Ipv6Address >	GetRoutersAddress () const
	Get the vector of routers' address. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetNumberAddress (uint8_t n)
	Set the number of routers' address. More...

void	SetRouterAddress (uint8_t index, Ipv6Address addr)
	Set a Router IPv6 Address. More...

void	SetRoutersAddress (std::vector< Ipv6Address > routersAddress)
	Set the vector of routers' address. More...

Public Member Functions inherited from ns3::Ipv6ExtensionRoutingHeader
	Ipv6ExtensionRoutingHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionRoutingHeader ()
	Destructor. More...

uint8_t	GetSegmentsLeft () const
	Get the field "Segments left". More...

uint8_t	GetTypeRouting () const
	Get the field "Type of Routing". More...

void	SetSegmentsLeft (uint8_t segmentsLeft)
	Set the "Segments left" field. More...

void	SetTypeRouting (uint8_t typeRouting)
	Set the "Type of Routing" field. More...

Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionHeader ()
	Destructor. More...

uint16_t	GetLength () const
	Get the length of the extension. More...

uint8_t	GetNextHeader () const
	Get the next header. More...

void	SetLength (uint16_t length)
	brief Set the length of the extension. More...

void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Ipv6ExtensionRoutingHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ipv6Address >	VectorIpv6Address_t
	A vector of IPv6 Address. More...

Private Attributes
VectorIpv6Address_t	m_routersAddress
	The vector of Routers' IPv6 Address. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Header of IPv6 Extension Routing : Type 0 (Loose Routing)

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 524 of file ipv6-extension-header.h.

Member Typedef Documentation

typedef std::vector<Ipv6Address> ns3::Ipv6ExtensionLooseRoutingHeader::VectorIpv6Address_t

private

A vector of IPv6 Address.

Definition at line 611 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionLooseRoutingHeader::Ipv6ExtensionLooseRoutingHeader ( )

Constructor.

Definition at line 507 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionLooseRoutingHeader::~Ipv6ExtensionLooseRoutingHeader ( )

virtual

Destructor.

Definition at line 512 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 578 of file ipv6-extension-header.cc.

References GetSerializedSize(), m_routersAddress, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft(), ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting(), and visualizer.core::start().

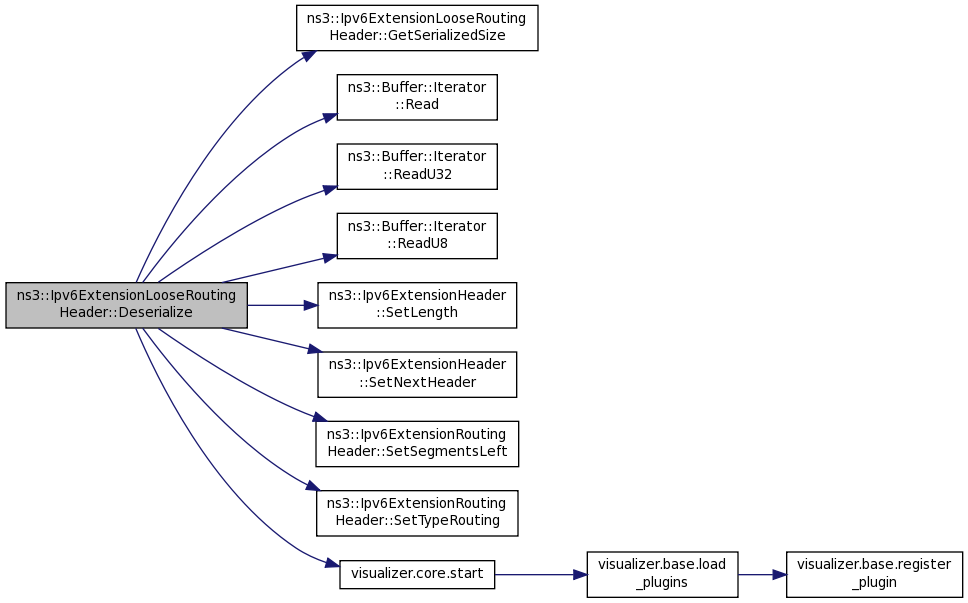

Here is the call graph for this function:

TypeId ns3::Ipv6ExtensionLooseRoutingHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 502 of file ipv6-extension-header.cc.

References GetTypeId().

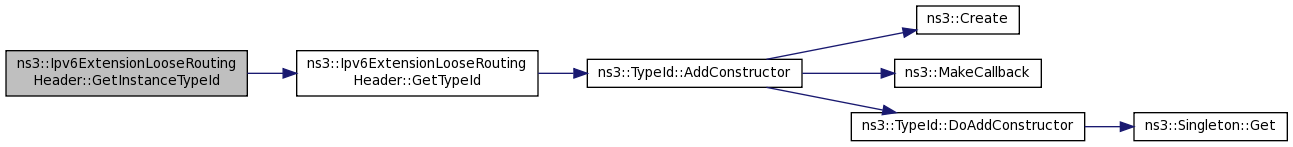

Here is the call graph for this function:

Ipv6Address ns3::Ipv6ExtensionLooseRoutingHeader::GetRouterAddress ( uint8_t index ) const

Get a Router IPv6 Address.

Parameters

index the index of the IPv6 Address

Returns: the router IPv6 Address

Definition at line 537 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

Here is the caller graph for this function:

std::vector< Ipv6Address > ns3::Ipv6ExtensionLooseRoutingHeader::GetRoutersAddress ( ) const

Get the vector of routers' address.

Returns: the vector of routers' address

Definition at line 527 of file ipv6-extension-header.cc.

References m_routersAddress.

uint32_t ns3::Ipv6ExtensionLooseRoutingHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 555 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by Deserialize(), and ns3::Ipv6ExtensionLooseRouting::Process().

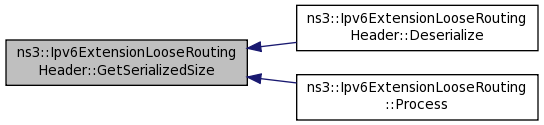

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionLooseRoutingHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 493 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

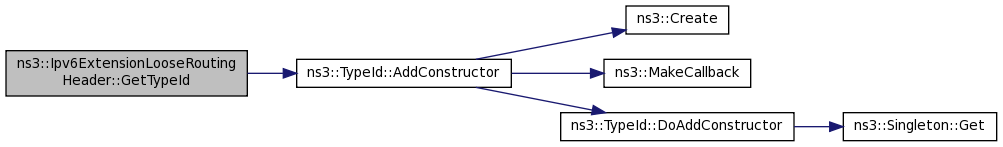

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 542 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft(), ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting(), and m_routersAddress.

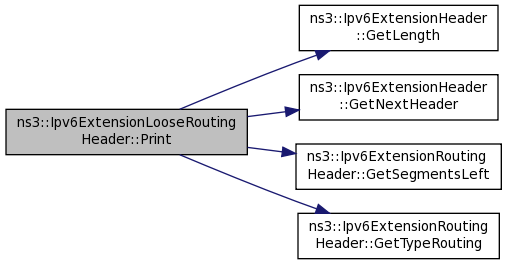

Here is the call graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 560 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft(), ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting(), m_routersAddress, visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

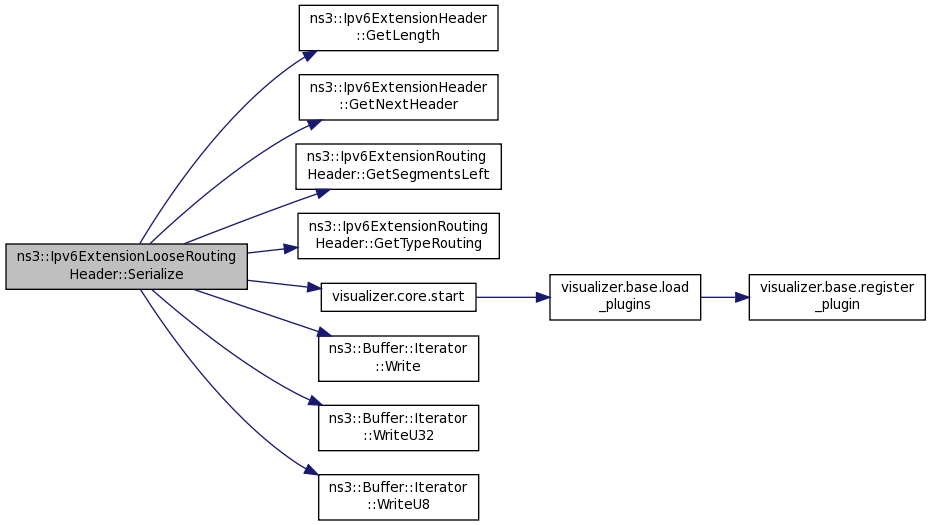

Here is the call graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::SetNumberAddress ( uint8_t n )

Set the number of routers' address.

Parameters

n	the number of routers' address

Definition at line 516 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments(), and ns3::Ipv6ExtensionLooseRouting::Process().

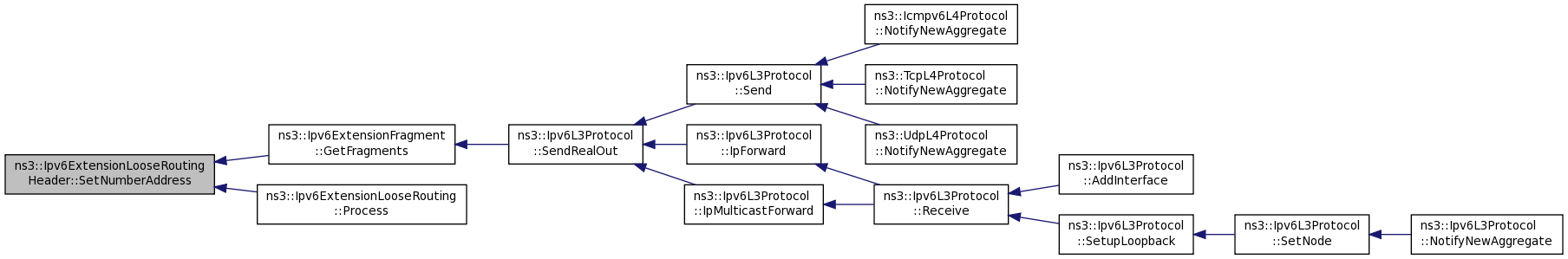

Here is the caller graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::SetRouterAddress	(	uint8_t	index,
		Ipv6Address	addr
	)

Set a Router IPv6 Address.

Parameters

index	the index of the IPv6 Address
addr	the new IPv6 Address

Definition at line 532 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

Here is the caller graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::SetRoutersAddress ( std::vector< Ipv6Address > routersAddress )

Set the vector of routers' address.

Parameters

routersAddress the vector of routers's address

Definition at line 522 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ping6::Send().

Here is the caller graph for this function:

Member Data Documentation

VectorIpv6Address_t ns3::Ipv6ExtensionLooseRoutingHeader::m_routersAddress

private

The vector of Routers' IPv6 Address.

Definition at line 616 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetRouterAddress(), GetRoutersAddress(), GetSerializedSize(), Print(), Serialize(), SetNumberAddress(), SetRouterAddress(), and SetRoutersAddress().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-header.h
src/internet/model/ipv6-extension-header.cc
