Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension-header.h>

Inheritance diagram for ns3::Ipv6ExtensionRoutingHeader:

Collaboration diagram for ns3::Ipv6ExtensionRoutingHeader:

Public Member Functions
	Ipv6ExtensionRoutingHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionRoutingHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

uint8_t	GetSegmentsLeft () const
	Get the field "Segments left". More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

uint8_t	GetTypeRouting () const
	Get the field "Type of Routing". More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetSegmentsLeft (uint8_t segmentsLeft)
	Set the "Segments left" field. More...

void	SetTypeRouting (uint8_t typeRouting)
	Set the "Type of Routing" field. More...

Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor. More...

virtual	~Ipv6ExtensionHeader ()
	Destructor. More...

uint16_t	GetLength () const
	Get the length of the extension. More...

uint8_t	GetNextHeader () const
	Get the next header. More...

void	SetLength (uint16_t length)
	brief Set the length of the extension. More...

void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_segmentsLeft
	Number of left segments. More...

uint8_t	m_typeRouting
	Type of routing. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Header of IPv6 Extension Routing.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 433 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingHeader::Ipv6ExtensionRoutingHeader ( )

Constructor.

Definition at line 427 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionRoutingHeader::~Ipv6ExtensionRoutingHeader ( )

virtual

Destructor.

Definition at line 433 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionRoutingHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 478 of file ipv6-extension-header.cc.

References GetSerializedSize(), m_segmentsLeft, m_typeRouting, ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

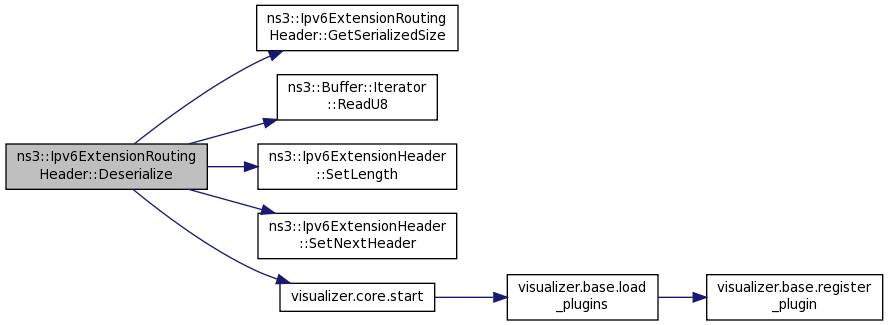

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionRoutingHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 422 of file ipv6-extension-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft ( ) const

Get the field "Segments left".

Returns: the number of segments left

Definition at line 452 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

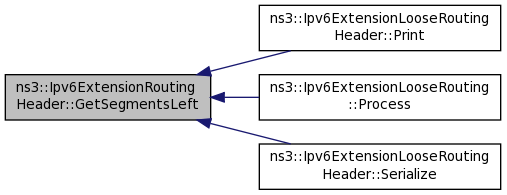

Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionRoutingHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 463 of file ipv6-extension-header.cc.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), and Deserialize().

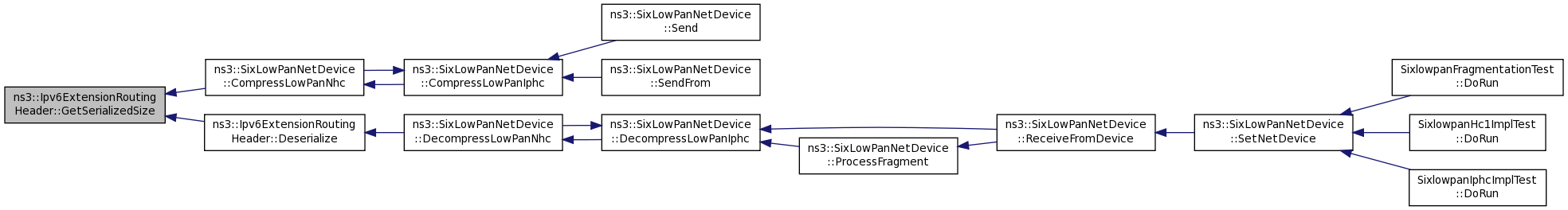

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionRoutingHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 413 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting ( ) const

Get the field "Type of Routing".

Returns: the type of routing

Definition at line 442 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

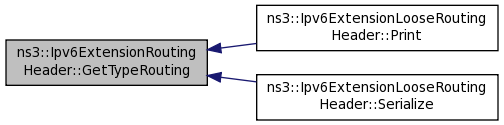

Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 457 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, and m_typeRouting.

Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 468 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, m_typeRouting, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc().

Here is the call graph for this function:

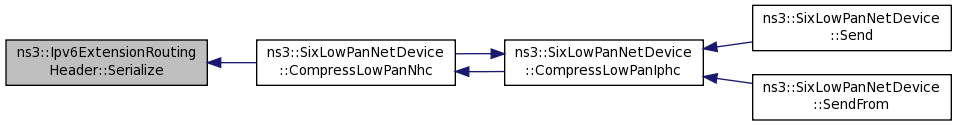

Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft ( uint8_t segmentsLeft )

Set the "Segments left" field.

Parameters

segmentsLeft the number of segments left

Definition at line 447 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ping6::Send().

Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting ( uint8_t typeRouting )

Set the "Type of Routing" field.

Parameters

typeRouting the type of routing

Definition at line 437 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), and ns3::Ping6::Send().

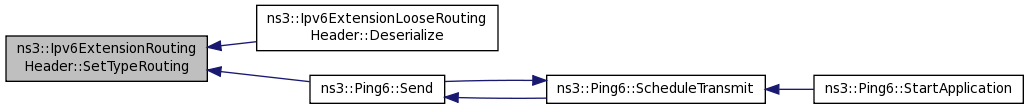

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_segmentsLeft

private

Number of left segments.

Definition at line 517 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetSegmentsLeft(), Print(), Serialize(), and SetSegmentsLeft().

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_typeRouting

private

Type of routing.

Definition at line 512 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetTypeRouting(), Print(), Serialize(), and SetTypeRouting().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-header.h
src/internet/model/ipv6-extension-header.cc
