ns3::Ipv6OptionJumbogramHeader Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-option-header.h>

Inheritance diagram for ns3::Ipv6OptionJumbogramHeader:

Collaboration diagram for ns3::Ipv6OptionJumbogramHeader:

Public Member Functions
	Ipv6OptionJumbogramHeader ()
	Constructor. More...
virtual	~Ipv6OptionJumbogramHeader ()
	Destructor. More...
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...
virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...
uint32_t	GetDataLength () const
	Get the data length. More...
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...
virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...
void	SetDataLength (uint32_t dataLength)
	Set the data length. More...
Public Member Functions inherited from ns3::Ipv6OptionHeader
	Ipv6OptionHeader ()
	Constructor. More...
virtual	~Ipv6OptionHeader ()
	Destructor. More...
uint8_t	GetLength () const
	Get the option length. More...
uint8_t	GetType () const
	Get the type of the option. More...
void	SetLength (uint8_t length)
	Set the option length. More...
void	SetType (uint8_t type)
	Set the type of the option. More...
Public Member Functions inherited from ns3::Header
virtual	~Header ()
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...
Static Public Member Functions inherited from ns3::Ipv6OptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_dataLength
	The data length. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Header of IPv6 Option Jumbogram.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 267 of file ipv6-option-header.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionJumbogramHeader::Ipv6OptionJumbogramHeader

(

)

Constructor.

Definition at line 251 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

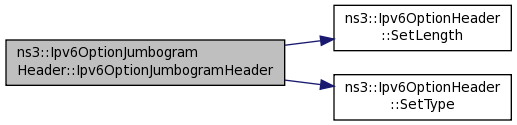

Here is the call graph for this function:

ns3::Ipv6OptionJumbogramHeader::~Ipv6OptionJumbogramHeader ( )

virtual

Destructor.

Definition at line 257 of file ipv6-option-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6OptionJumbogramHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 290 of file ipv6-option-header.cc.

References GetSerializedSize(), m_dataLength, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

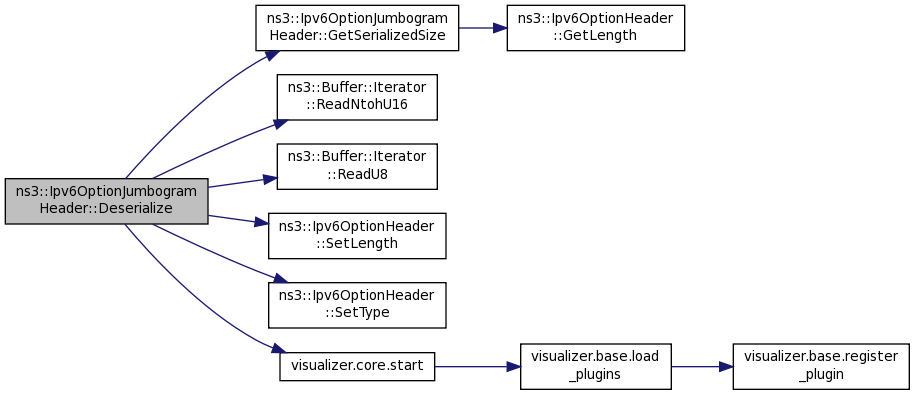

Here is the call graph for this function:

Ipv6OptionHeader::Alignment ns3::Ipv6OptionJumbogramHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns

The required alignment

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 301 of file ipv6-option-header.cc.

uint32_t ns3::Ipv6OptionJumbogramHeader::GetDataLength

(

)

const

Get the data length.

Returns

the data length

Definition at line 266 of file ipv6-option-header.cc.

References m_dataLength.

TypeId ns3::Ipv6OptionJumbogramHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 246 of file ipv6-option-header.cc.

References GetTypeId().

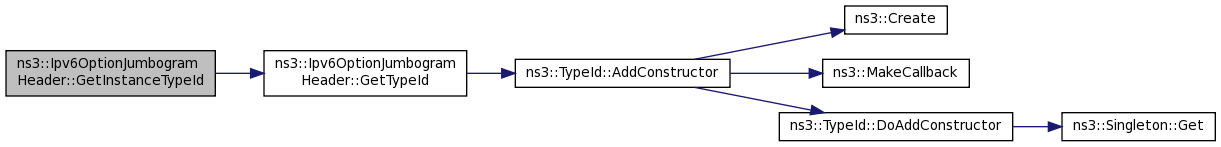

Here is the call graph for this function:

uint32_t ns3::Ipv6OptionJumbogramHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 276 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength().

Referenced by Deserialize(), and ns3::Ipv6OptionJumbogram::Process().

Here is the call graph for this function:

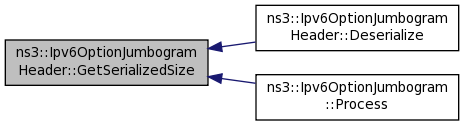

Here is the caller graph for this function:

TypeId ns3::Ipv6OptionJumbogramHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Definition at line 237 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

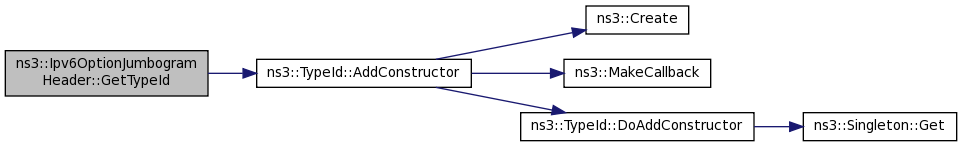

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6OptionJumbogramHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 271 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), and m_dataLength.

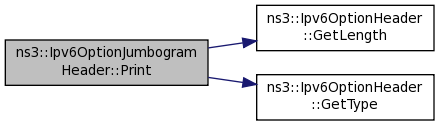

Here is the call graph for this function:

void ns3::Ipv6OptionJumbogramHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 281 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), m_dataLength, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

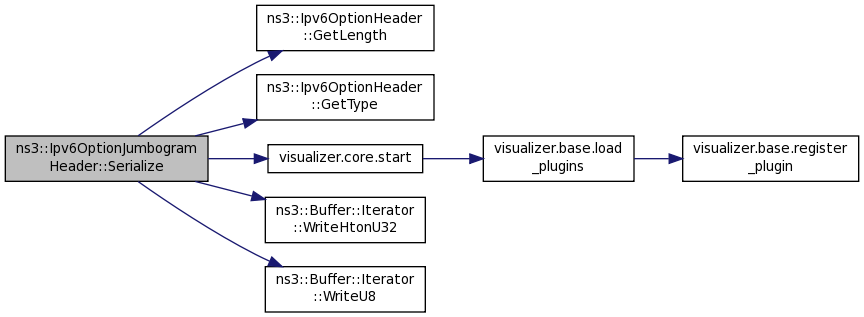

Here is the call graph for this function:

void ns3::Ipv6OptionJumbogramHeader::SetDataLength

(

uint32_t

dataLength

)

Set the data length.

Parameters

dataLength

the data length

Definition at line 261 of file ipv6-option-header.cc.

References m_dataLength.

Member Data Documentation

uint32_t ns3::Ipv6OptionJumbogramHeader::m_dataLength

private

The data length.

Definition at line 340 of file ipv6-option-header.h.

Referenced by Deserialize(), GetDataLength(), Print(), Serialize(), and SetDataLength().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option-header.h
• src/internet/model/ipv6-option-header.cc
