Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-option-header.h>

Inheritance diagram for ns3::Ipv6OptionHeader:

Collaboration diagram for ns3::Ipv6OptionHeader:

Classes
struct	Alignment
	represents the alignment requirements of an option header More...

Public Member Functions
	Ipv6OptionHeader ()
	Constructor. More...

virtual	~Ipv6OptionHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

uint8_t	GetLength () const
	Get the option length. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

uint8_t	GetType () const
	Get the type of the option. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Buffer	m_data
	The anonymous data of this option. More...

uint8_t	m_length
	The option length. More...

uint8_t	m_type
	The type of the option. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Header for IPv6 Option.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 35 of file ipv6-option-header.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionHeader::Ipv6OptionHeader ( )

Constructor.

Definition at line 49 of file ipv6-option-header.cc.

ns3::Ipv6OptionHeader::~Ipv6OptionHeader ( )

virtual

Destructor.

Definition at line 55 of file ipv6-option-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6OptionHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 99 of file ipv6-option-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), GetSerializedSize(), m_data, m_length, m_type, ns3::Buffer::Iterator::Next(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and ns3::Buffer::Iterator::Write().

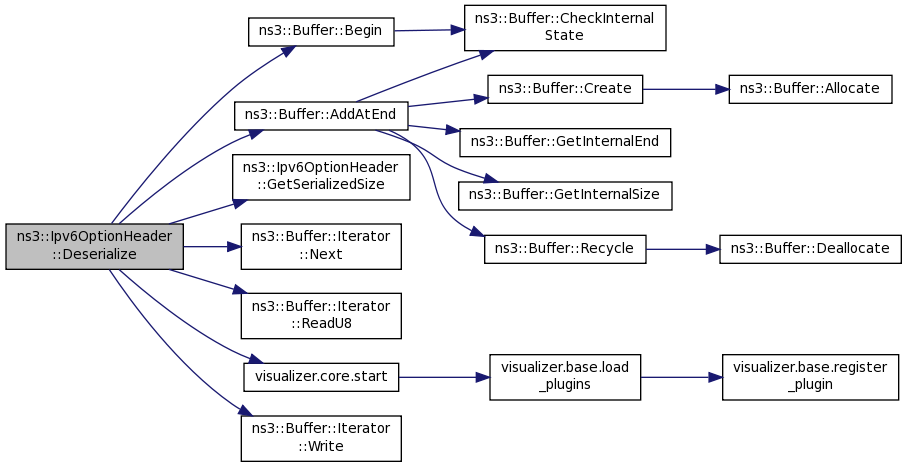

Here is the call graph for this function:

Ipv6OptionHeader::Alignment ns3::Ipv6OptionHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Subclasses should only implement this method, if special alignment is required. Default is no alignment (1n+0).

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, and OptionWithAlignmentHeader.

Definition at line 116 of file ipv6-option-header.cc.

Referenced by ns3::OptionField::AddOption().

Here is the caller graph for this function:

TypeId ns3::Ipv6OptionHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 44 of file ipv6-option-header.cc.

References GetTypeId().

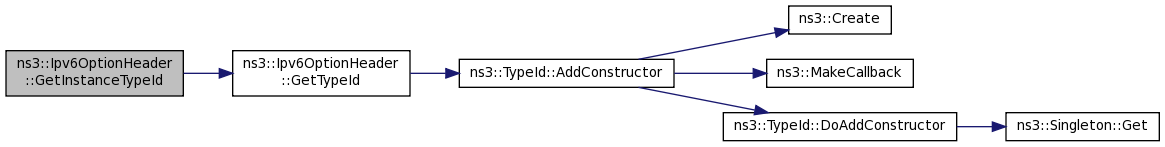

Here is the call graph for this function:

uint8_t ns3::Ipv6OptionHeader::GetLength ( ) const

Get the option length.

Returns: the option length

Definition at line 74 of file ipv6-option-header.cc.

References m_length.

Referenced by ns3::Ipv6OptionPadnHeader::GetSerializedSize(), ns3::Ipv6OptionJumbogramHeader::GetSerializedSize(), ns3::Ipv6OptionRouterAlertHeader::GetSerializedSize(), ns3::Ipv6OptionPadnHeader::Print(), ns3::Ipv6OptionJumbogramHeader::Print(), ns3::Ipv6OptionRouterAlertHeader::Print(), ns3::Ipv6OptionPadnHeader::Serialize(), ns3::Ipv6OptionJumbogramHeader::Serialize(), and ns3::Ipv6OptionRouterAlertHeader::Serialize().

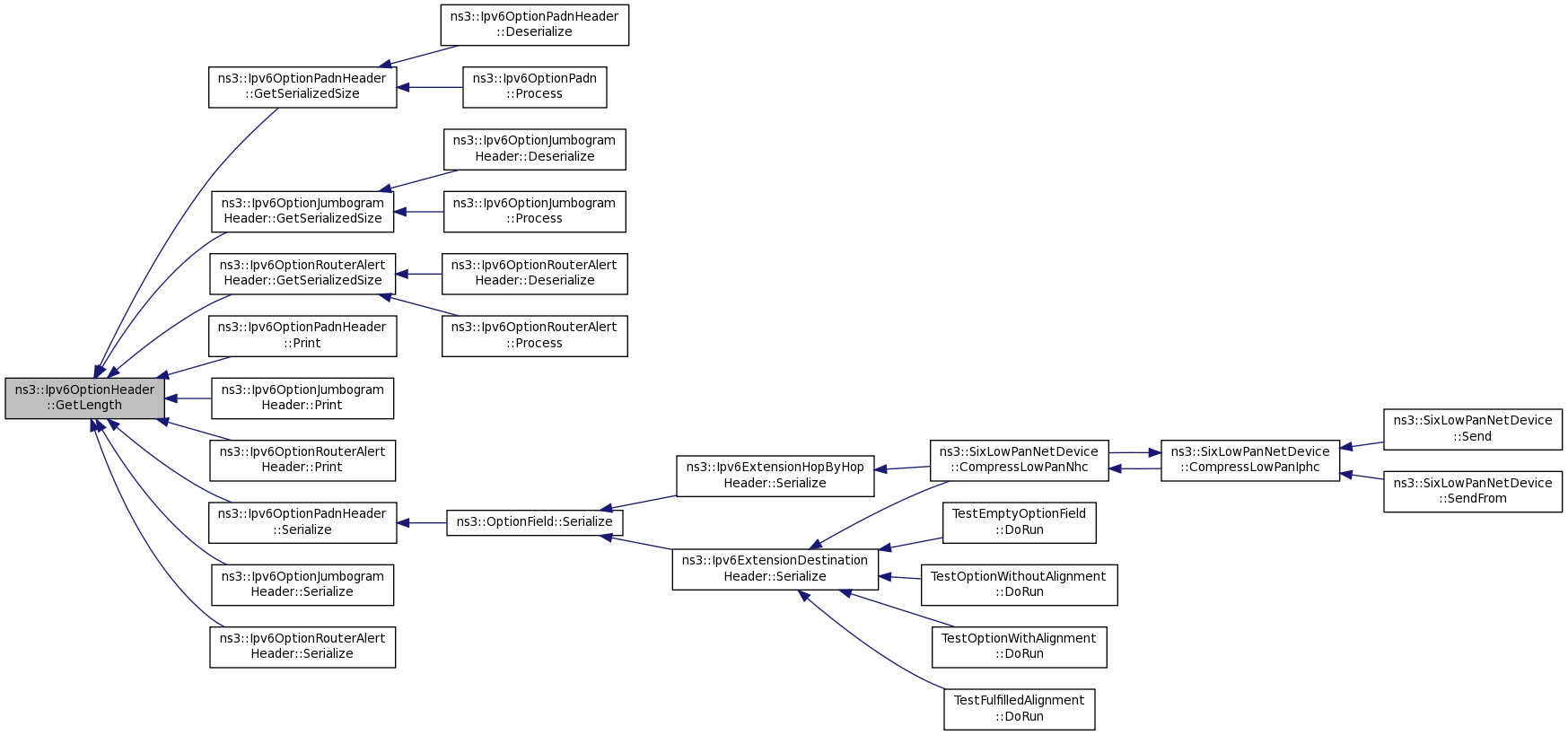

Here is the caller graph for this function:

uint32_t ns3::Ipv6OptionHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, ns3::Ipv6OptionPad1Header, OptionWithAlignmentHeader, and OptionWithoutAlignmentHeader.

Definition at line 84 of file ipv6-option-header.cc.

References m_length.

Referenced by ns3::OptionField::AddOption(), and Deserialize().

Here is the caller graph for this function:

uint8_t ns3::Ipv6OptionHeader::GetType ( void ) const

Get the type of the option.

Returns: the type of the option

Definition at line 64 of file ipv6-option-header.cc.

References m_type.

Referenced by TestOptionWithAlignment::DoRun(), TestFulfilledAlignment::DoRun(), ns3::Ipv6OptionPad1Header::Print(), ns3::Ipv6OptionPadnHeader::Print(), ns3::Ipv6OptionJumbogramHeader::Print(), ns3::Ipv6OptionRouterAlertHeader::Print(), ns3::Ipv6OptionPad1Header::Serialize(), ns3::Ipv6OptionPadnHeader::Serialize(), ns3::Ipv6OptionJumbogramHeader::Serialize(), and ns3::Ipv6OptionRouterAlertHeader::Serialize().

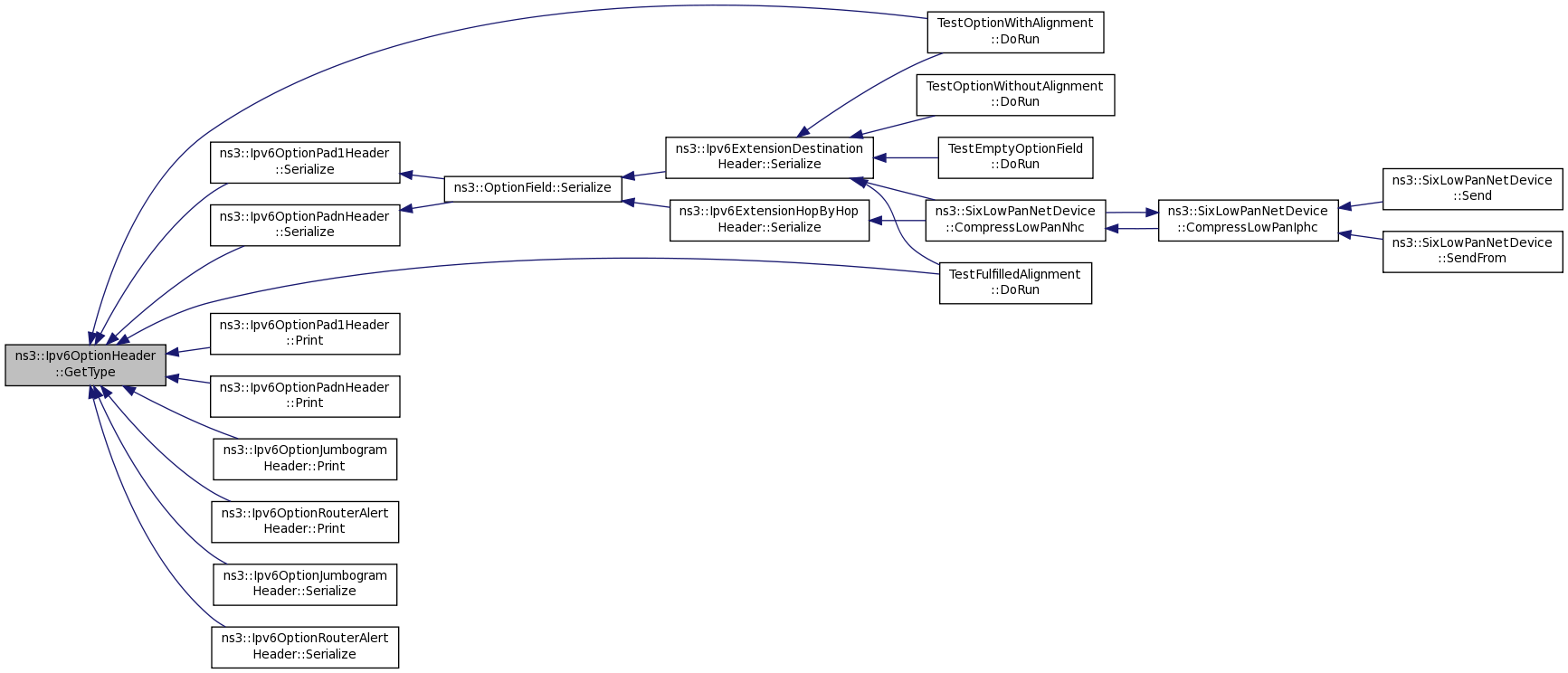

Here is the caller graph for this function:

TypeId ns3::Ipv6OptionHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 35 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

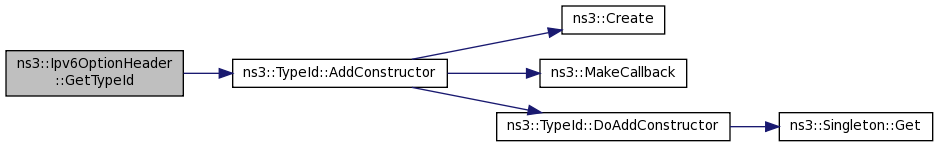

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6OptionHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Implements ns3::Header.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 79 of file ipv6-option-header.cc.

References m_type.

void ns3::Ipv6OptionHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, ns3::Ipv6OptionPad1Header, OptionWithAlignmentHeader, and OptionWithoutAlignmentHeader.

Definition at line 89 of file ipv6-option-header.cc.

References ns3::Buffer::Begin(), ns3::Buffer::End(), m_data, m_length, m_type, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::OptionField::AddOption().

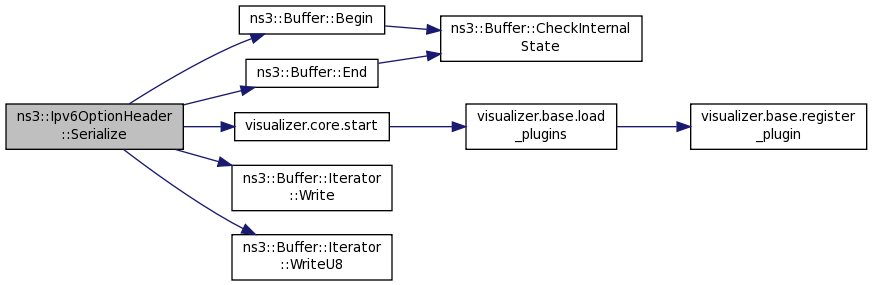

Here is the call graph for this function:

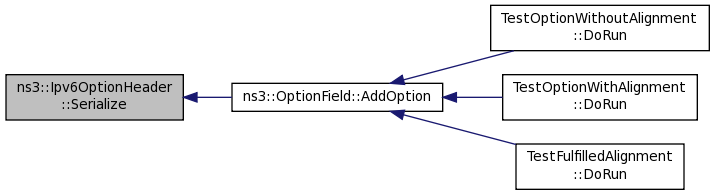

Here is the caller graph for this function:

void ns3::Ipv6OptionHeader::SetLength ( uint8_t length )

Set the option length.

Parameters

length the option length

Definition at line 69 of file ipv6-option-header.cc.

References m_length.

Referenced by ns3::Ipv6OptionPadnHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Deserialize(), ns3::Ipv6OptionRouterAlertHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Ipv6OptionJumbogramHeader(), ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader(), and ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader().

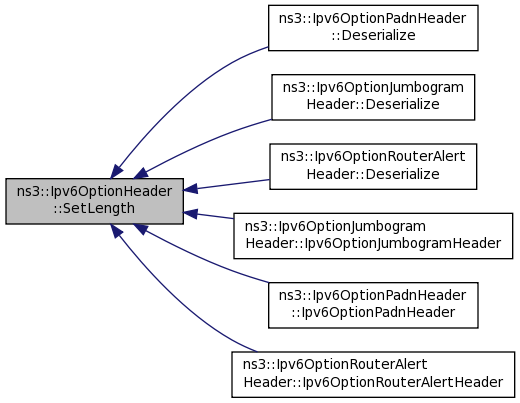

Here is the caller graph for this function:

void ns3::Ipv6OptionHeader::SetType ( uint8_t type )

Set the type of the option.

Parameters

type	the type of the option

Definition at line 59 of file ipv6-option-header.cc.

References m_type.

Referenced by ns3::Ipv6OptionPad1Header::Deserialize(), ns3::Ipv6OptionPadnHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Deserialize(), ns3::Ipv6OptionRouterAlertHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Ipv6OptionJumbogramHeader(), ns3::Ipv6OptionPad1Header::Ipv6OptionPad1Header(), ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader(), and ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader().

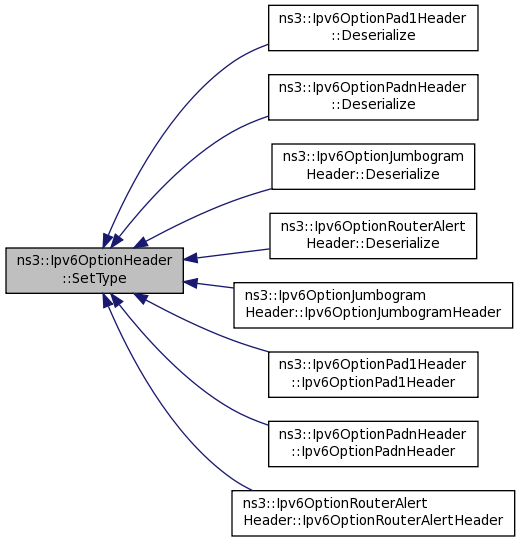

Here is the caller graph for this function:

Member Data Documentation

Buffer ns3::Ipv6OptionHeader::m_data

private

The anonymous data of this option.

Definition at line 147 of file ipv6-option-header.h.

Referenced by Deserialize(), and Serialize().

uint8_t ns3::Ipv6OptionHeader::m_length

private

The option length.

Definition at line 142 of file ipv6-option-header.h.

Referenced by Deserialize(), GetLength(), GetSerializedSize(), Serialize(), and SetLength().

uint8_t ns3::Ipv6OptionHeader::m_type

private

The type of the option.

Definition at line 137 of file ipv6-option-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-option-header.h
src/internet/model/ipv6-option-header.cc
