Doxygen introspection did not find any typical Config paths. More...
#include <ipv6-option-header.h>
Inheritance diagram for ns3::Ipv6OptionPadnHeader: Collaboration diagram for ns3::Ipv6OptionPadnHeader:Public Member Functions | |
| Ipv6OptionPadnHeader (uint32_t pad=2) | |
| Constructor. More... | |
| virtual | ~Ipv6OptionPadnHeader () |
| Destructor. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start) |
| Deserialize the packet. More... | |
| virtual TypeId | GetInstanceTypeId () const |
| Get the instance type ID. More... | |
| virtual uint32_t | GetSerializedSize () const |
| Get the serialized size of the packet. More... | |
| virtual void | Print (std::ostream &os) const |
| Print some informations about the packet. More... | |
| virtual void | Serialize (Buffer::Iterator start) const |
| Serialize the packet. More... | |
| Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| Ipv6OptionHeader () | |
| Constructor. More... | |
| virtual | ~Ipv6OptionHeader () |
| Destructor. More... | |
| virtual Alignment | GetAlignment () const |
| Get the Alignment requirement of this option header. More... | |
| uint8_t | GetLength () const |
| Get the option length. More... | |
| uint8_t | GetType () const |
| Get the type of the option. More... | |
| void | SetLength (uint8_t length) |
| Set the option length. More... | |
| void | SetType (uint8_t type) |
| Set the type of the option. More... | |
| Public Member Functions inherited from ns3::Header | |
| virtual | ~Header () |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| virtual void | NotifyConstructionCompleted (void) |
| This method is invoked once all member attributes have been initialized. More... | |
Doxygen introspection did not find any typical Config paths.
Header of IPv6 Option Padn.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 210 of file ipv6-option-header.h.

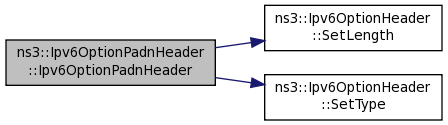

| ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader | ( | uint32_t | pad = 2 | ) |
Constructor.
| pad | Number of bytes to pad (>=2) |
Definition at line 190 of file ipv6-option-header.cc.
References NS_ASSERT_MSG, ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().
Here is the call graph for this function:
|
virtual |
Destructor.
Definition at line 197 of file ipv6-option-header.cc.
|
virtual |

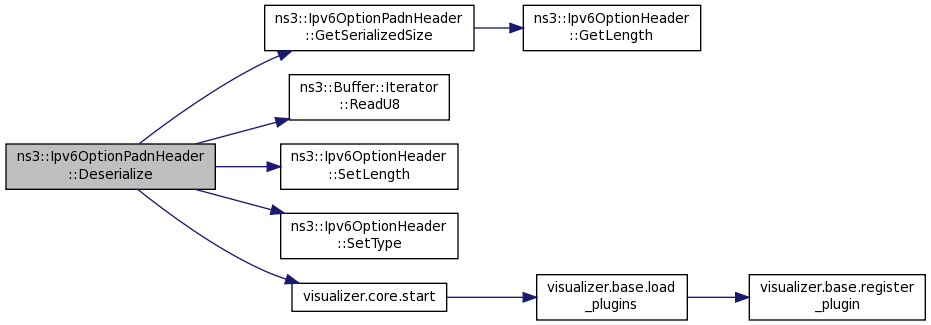

Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 224 of file ipv6-option-header.cc.
References GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().
Here is the call graph for this function:
|
virtual |

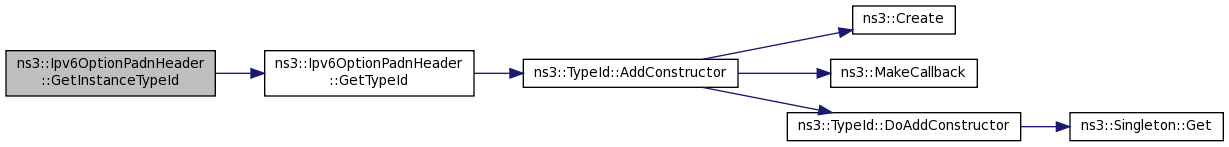

Get the instance type ID.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 185 of file ipv6-option-header.cc.
References GetTypeId().
Here is the call graph for this function:
|
virtual |

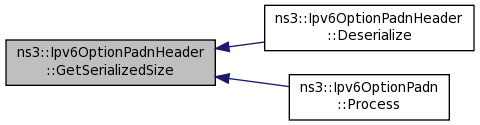

Get the serialized size of the packet.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 206 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength().
Referenced by Deserialize(), and ns3::Ipv6OptionPadn::Process().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |

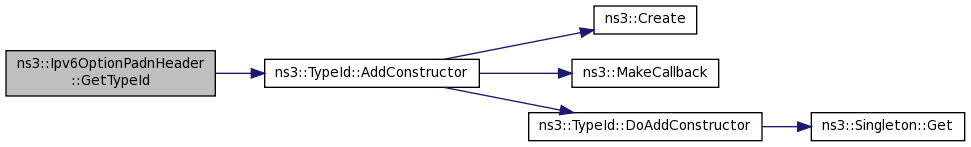

Get the type identificator.
Definition at line 176 of file ipv6-option-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |

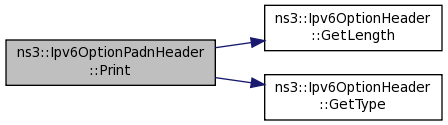

Print some informations about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 201 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), and ns3::Ipv6OptionHeader::GetType().
Here is the call graph for this function:
|
virtual |

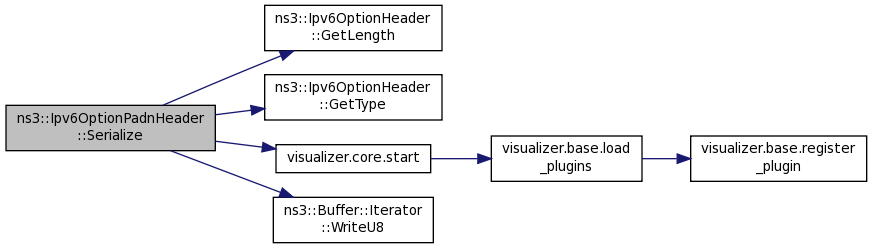

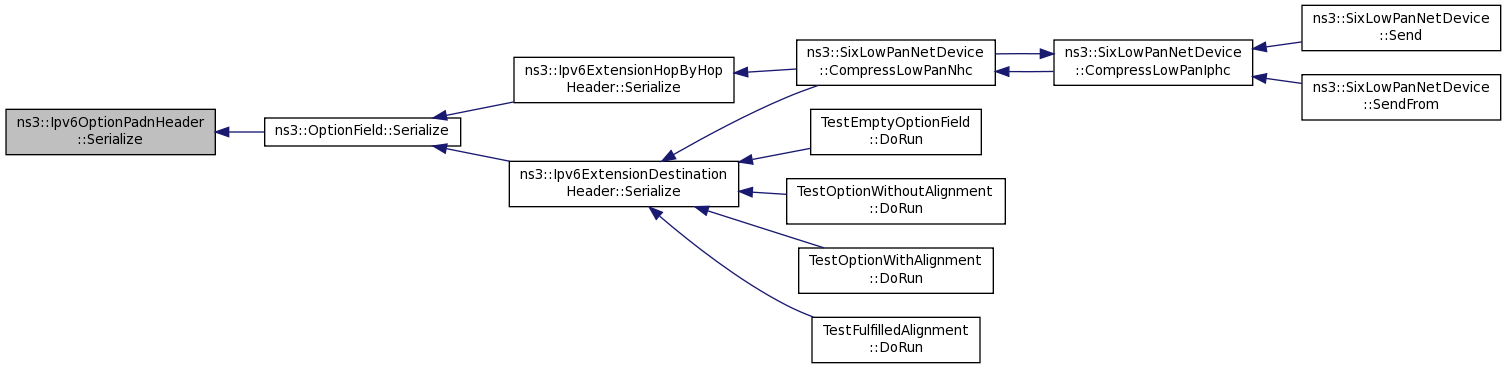

Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 211 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().
Referenced by ns3::OptionField::Serialize().
Here is the call graph for this function: Here is the caller graph for this function:
