This class implements a tag that carries socket ancillary data to the socket interface. More...

#include <ipv6-packet-info-tag.h>

Inheritance diagram for ns3::Ipv6PacketInfoTag:

Collaboration diagram for ns3::Ipv6PacketInfoTag:

Public Member Functions
	Ipv6PacketInfoTag ()

virtual void	Deserialize (TagBuffer i)

Ipv6Address	GetAddress (void) const
	Get the tag's address. More...

uint8_t	GetHoplimit (void) const
	Get the tag's Hop Limit. More...

virtual TypeId	GetInstanceTypeId (void) const

uint32_t	GetRecvIf (void) const
	Get the tag's receiving interface. More...

virtual uint32_t	GetSerializedSize (void) const

uint8_t	GetTrafficClass (void) const
	Get the tag's Traffic Class. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer i) const

void	SetAddress (Ipv6Address addr)
	Set the tag's address. More...

void	SetHoplimit (uint8_t ttl)
	Set the tag's Hop Limit. More...

void	SetRecvIf (uint32_t ifindex)
	Set the tag's receiving interface. More...

void	SetTrafficClass (uint8_t tclass)
	Set the tag's Traffic Class. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv6Address	m_addr
	the packet address (src or dst) More...

uint8_t	m_hoplimit
	the Hop Limit More...

uint8_t	m_ifindex
	the Interface index More...

uint8_t	m_tclass
	the Traffic Class More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements a tag that carries socket ancillary data to the socket interface.

This is used like socket option of IP_PKTINFO/IPV6_PKTINFO in RFC 3542

This tag in the send direction is presently not enabled but we would accept a patch along those lines in the future. To include the nexthop in the send direction would increase the size of the tag beyond 20 bytes, so in that case, we recommend that an additional tag be used to carry the IPv6 next hop address.

Definition at line 44 of file ipv6-packet-info-tag.h.

Constructor & Destructor Documentation

ns3::Ipv6PacketInfoTag::Ipv6PacketInfoTag ( )

Definition at line 28 of file ipv6-packet-info-tag.cc.

Member Function Documentation

void ns3::Ipv6PacketInfoTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 119 of file ipv6-packet-info-tag.cc.

References ns3::Ipv6Address::Deserialize(), m_addr, m_hoplimit, m_ifindex, m_tclass, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU8().

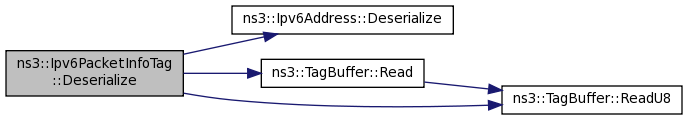

Here is the call graph for this function:

Ipv6Address ns3::Ipv6PacketInfoTag::GetAddress ( void ) const

Get the tag's address.

Returns: the address

Definition at line 43 of file ipv6-packet-info-tag.cc.

References m_addr.

uint8_t ns3::Ipv6PacketInfoTag::GetHoplimit ( void ) const

Get the tag's Hop Limit.

Returns: the Hop Limit

Definition at line 67 of file ipv6-packet-info-tag.cc.

References m_hoplimit.

TypeId ns3::Ipv6PacketInfoTag::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 95 of file ipv6-packet-info-tag.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Ipv6PacketInfoTag::GetRecvIf ( void ) const

Get the tag's receiving interface.

Returns: the interface index

Definition at line 55 of file ipv6-packet-info-tag.cc.

References m_ifindex.

uint32_t ns3::Ipv6PacketInfoTag::GetSerializedSize ( void ) const

virtual

Returns: the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 101 of file ipv6-packet-info-tag.cc.

uint8_t ns3::Ipv6PacketInfoTag::GetTrafficClass ( void ) const

Get the tag's Traffic Class.

Returns: the Traffic Class

Definition at line 79 of file ipv6-packet-info-tag.cc.

References m_tclass.

TypeId ns3::Ipv6PacketInfoTag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 86 of file ipv6-packet-info-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6PacketInfoTag::Print ( std::ostream & os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 129 of file ipv6-packet-info-tag.cc.

References m_addr, m_hoplimit, m_ifindex, and m_tclass.

void ns3::Ipv6PacketInfoTag::Serialize ( TagBuffer i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 109 of file ipv6-packet-info-tag.cc.

References m_addr, m_hoplimit, m_ifindex, m_tclass, ns3::Ipv6Address::Serialize(), ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU8().

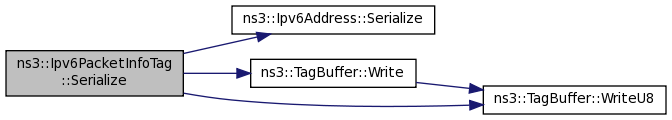

Here is the call graph for this function:

void ns3::Ipv6PacketInfoTag::SetAddress ( Ipv6Address addr )

Set the tag's address.

Parameters

addr	the address

Definition at line 37 of file ipv6-packet-info-tag.cc.

References m_addr.

void ns3::Ipv6PacketInfoTag::SetHoplimit ( uint8_t ttl )

Set the tag's Hop Limit.

Parameters

ttl	the hop limit

Definition at line 61 of file ipv6-packet-info-tag.cc.

References m_hoplimit.

void ns3::Ipv6PacketInfoTag::SetRecvIf ( uint32_t ifindex )

Set the tag's receiving interface.

Parameters

ifindex the interface index

Definition at line 49 of file ipv6-packet-info-tag.cc.

References m_ifindex.

Referenced by ns3::Ipv6RawSocketImpl::ForwardUp(), and ns3::UdpSocketImpl::ForwardUp6().

Here is the caller graph for this function:

void ns3::Ipv6PacketInfoTag::SetTrafficClass ( uint8_t tclass )

Set the tag's Traffic Class.

Parameters

tclass the Traffic Class

Definition at line 73 of file ipv6-packet-info-tag.cc.

References m_tclass.

Member Data Documentation

Ipv6Address ns3::Ipv6PacketInfoTag::m_addr

private

the packet address (src or dst)

Definition at line 134 of file ipv6-packet-info-tag.h.

Referenced by Deserialize(), GetAddress(), Print(), Serialize(), and SetAddress().

uint8_t ns3::Ipv6PacketInfoTag::m_hoplimit

private

the Hop Limit

Definition at line 136 of file ipv6-packet-info-tag.h.

Referenced by Deserialize(), GetHoplimit(), Print(), Serialize(), and SetHoplimit().

uint8_t ns3::Ipv6PacketInfoTag::m_ifindex

private

the Interface index

Definition at line 135 of file ipv6-packet-info-tag.h.

Referenced by Deserialize(), GetRecvIf(), Print(), Serialize(), and SetRecvIf().

uint8_t ns3::Ipv6PacketInfoTag::m_tclass

private

the Traffic Class

Definition at line 137 of file ipv6-packet-info-tag.h.

Referenced by Deserialize(), GetTrafficClass(), Print(), Serialize(), and SetTrafficClass().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-packet-info-tag.h
src/internet/model/ipv6-packet-info-tag.cc
