Helper class that adds ns3::Ipv6StaticRouting objects. More...

#include <ipv6-static-routing-helper.h>

Inheritance diagram for ns3::Ipv6StaticRoutingHelper:

Collaboration diagram for ns3::Ipv6StaticRoutingHelper:

Public Member Functions
	Ipv6StaticRoutingHelper ()
	Constructor. More...

	Ipv6StaticRoutingHelper (const Ipv6StaticRoutingHelper &)
	Construct an Ipv6ListRoutingHelper from another previously initialized instance (Copy Constructor). More...

void	AddMulticastRoute (Ptr< Node > n, Ipv6Address source, Ipv6Address group, Ptr< NetDevice > input, NetDeviceContainer output)
	Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice> More...

void	AddMulticastRoute (std::string n, Ipv6Address source, Ipv6Address group, Ptr< NetDevice > input, NetDeviceContainer output)
	Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice> More...

void	AddMulticastRoute (Ptr< Node > n, Ipv6Address source, Ipv6Address group, std::string inputName, NetDeviceContainer output)
	Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service. More...

void	AddMulticastRoute (std::string nName, Ipv6Address source, Ipv6Address group, std::string inputName, NetDeviceContainer output)
	Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service. More...

Ipv6StaticRoutingHelper *	Copy (void) const

virtual Ptr< Ipv6RoutingProtocol >	Create (Ptr< Node > node) const

Ptr< Ipv6StaticRouting >	GetStaticRouting (Ptr< Ipv6 > ipv6) const
	Get Ipv6StaticRouting pointer from IPv6 stack. More...

Public Member Functions inherited from ns3::Ipv6RoutingHelper
virtual	~Ipv6RoutingHelper ()
	Destroy an Ipv6 Ipv6RoutingHelper. More...

void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of all nodes at a particular time. More...

void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of all nodes at regular intervals specified by user. More...

void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at a particular time. More...

void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at regular intervals specified by user. More...

Private Member Functions
Ipv6StaticRoutingHelper &	operator= (const Ipv6StaticRoutingHelper &o)
	Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv6RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv6RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv6RoutingProtocol protocol. More...

Detailed Description

Helper class that adds ns3::Ipv6StaticRouting objects.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 41 of file ipv6-static-routing-helper.h.

Constructor & Destructor Documentation

ns3::Ipv6StaticRoutingHelper::Ipv6StaticRoutingHelper ( )

Constructor.

Definition at line 38 of file ipv6-static-routing-helper.cc.

Referenced by Copy().

Here is the caller graph for this function:

ns3::Ipv6StaticRoutingHelper::Ipv6StaticRoutingHelper ( const Ipv6StaticRoutingHelper & o )

Construct an Ipv6ListRoutingHelper from another previously initialized instance (Copy Constructor).

Definition at line 42 of file ipv6-static-routing-helper.cc.

Member Function Documentation

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	Ptr< Node >	n,
		Ipv6Address	source,
		Ipv6Address	group,
		Ptr< NetDevice >	input,
		NetDeviceContainer	output
	)

Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice>

Definition at line 89 of file ipv6-static-routing-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), ns3::Object::GetObject(), GetStaticRouting(), and NS_ASSERT_MSG.

Referenced by AddMulticastRoute().

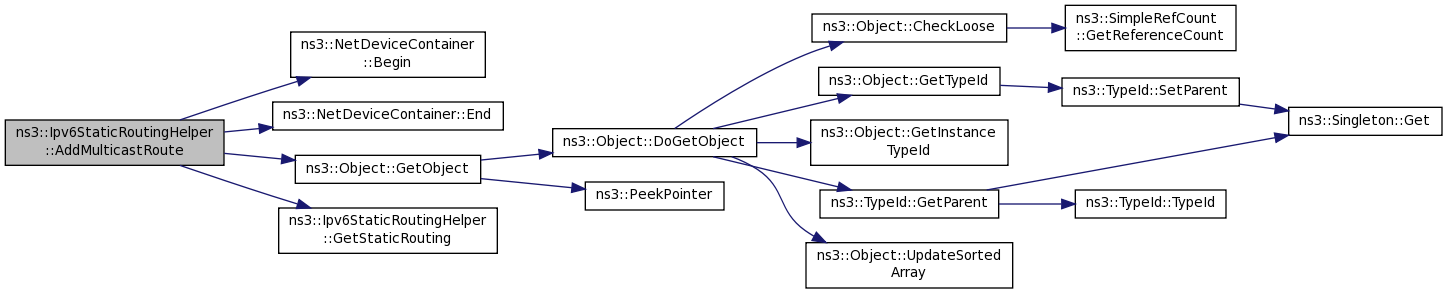

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	std::string	n,
		Ipv6Address	source,
		Ipv6Address	group,
		Ptr< NetDevice >	input,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice>

Definition at line 139 of file ipv6-static-routing-helper.cc.

References AddMulticastRoute().

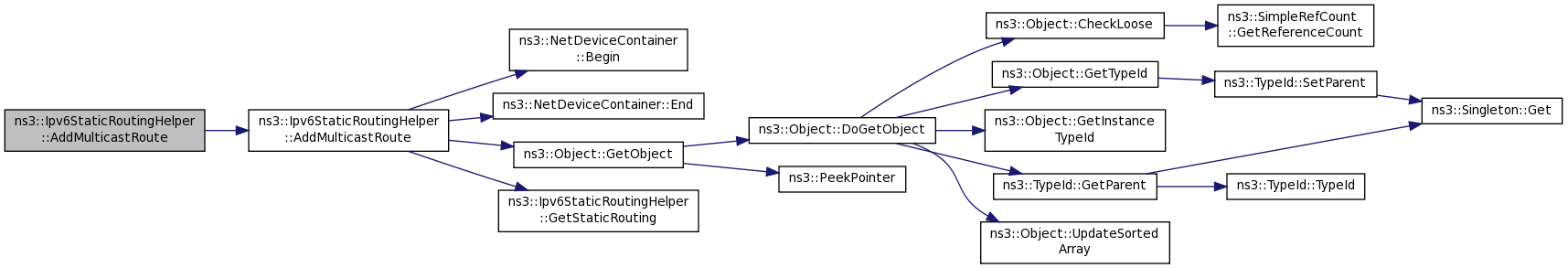

Here is the call graph for this function:

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	Ptr< Node >	n,
		Ipv6Address	source,
		Ipv6Address	group,
		std::string	inputName,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service.

Definition at line 127 of file ipv6-static-routing-helper.cc.

References AddMulticastRoute().

Here is the call graph for this function:

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	std::string	nName,
		Ipv6Address	source,
		Ipv6Address	group,
		std::string	inputName,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service.

Definition at line 151 of file ipv6-static-routing-helper.cc.

References AddMulticastRoute().

Here is the call graph for this function:

Ipv6StaticRoutingHelper * ns3::Ipv6StaticRoutingHelper::Copy ( void ) const

virtual

Internal:

Returns: pointer to clone of this Ipv6StaticRoutingHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv6RoutingHelper.

Definition at line 47 of file ipv6-static-routing-helper.cc.

References Ipv6StaticRoutingHelper().

Here is the call graph for this function:

Ptr< Ipv6RoutingProtocol > ns3::Ipv6StaticRoutingHelper::Create ( Ptr< Node > node ) const

virtual

Parameters

node	the node on which the routing protocol will run

Returns: a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv6RoutingHelper.

Definition at line 53 of file ipv6-static-routing-helper.cc.

Ptr< Ipv6StaticRouting > ns3::Ipv6StaticRoutingHelper::GetStaticRouting ( Ptr< Ipv6 > ipv6 ) const

Get Ipv6StaticRouting pointer from IPv6 stack.

Parameters

ipv6	Ipv6 pointer

Returns: Ipv6StaticRouting pointer or 0 if not found

Definition at line 59 of file ipv6-static-routing-helper.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by AddMulticastRoute(), main(), StackHelper::PrintRoutingTable(), ns3::Ipv6InterfaceContainer::SetDefaultRoute(), ns3::Ipv6InterfaceContainer::SetDefaultRouteInAllNodes(), and ns3::Ipv6InterfaceContainer::SetRouter().

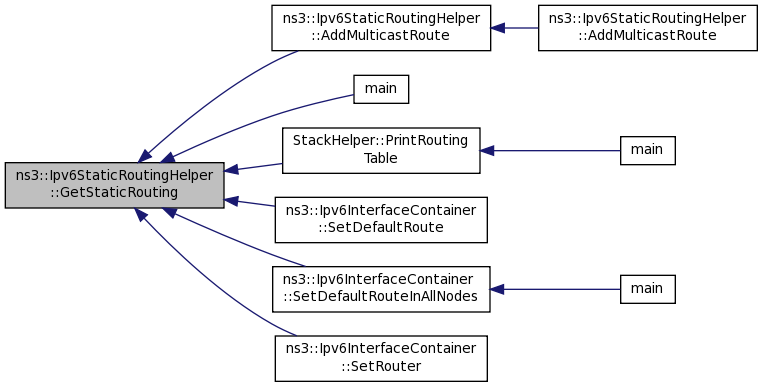

Here is the caller graph for this function:

Ipv6StaticRoutingHelper& ns3::Ipv6StaticRoutingHelper::operator= ( const Ipv6StaticRoutingHelper & o )

private

Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Internal:

Parameters

o	object to copy from

Returns: a reference to the new object

The documentation for this class was generated from the following files:

src/internet/helper/ipv6-static-routing-helper.h
src/internet/helper/ipv6-static-routing-helper.cc
