ns3::LteRlcSduStatusTag Class Reference

This class implements a tag that carries the status of a RLC SDU for the fragmentation process Status of RLC SDU. More...

#include <lte-rlc-sdu-status-tag.h>

Inheritance diagram for ns3::LteRlcSduStatusTag:

Collaboration diagram for ns3::LteRlcSduStatusTag:

Public Types
enum	SduStatus_t {   FULL_SDU = 1, FIRST_SEGMENT = 2, MIDDLE_SEGMENT = 3, LAST_SEGMENT = 4,   ANY_SEGMENT = 5 }

Public Member Functions
	LteRlcSduStatusTag ()
virtual void	Deserialize (TagBuffer i)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
uint8_t	GetStatus (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetStatus (uint8_t status)
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_sduStatus

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements a tag that carries the status of a RLC SDU for the fragmentation process Status of RLC SDU.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 34 of file lte-rlc-sdu-status-tag.h.

Member Enumeration Documentation

enum ns3::LteRlcSduStatusTag::SduStatus_t

Enumerator
FULL_SDU
FIRST_SEGMENT
MIDDLE_SEGMENT
LAST_SEGMENT
ANY_SEGMENT

Definition at line 49 of file lte-rlc-sdu-status-tag.h.

Constructor & Destructor Documentation

ns3::LteRlcSduStatusTag::LteRlcSduStatusTag

(

)

Definition at line 28 of file lte-rlc-sdu-status-tag.cc.

Member Function Documentation

void ns3::LteRlcSduStatusTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 70 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus, and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

TypeId ns3::LteRlcSduStatusTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 54 of file lte-rlc-sdu-status-tag.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::LteRlcSduStatusTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 60 of file lte-rlc-sdu-status-tag.cc.

uint8_t ns3::LteRlcSduStatusTag::GetStatus

(

void

)

const

Definition at line 39 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus.

Referenced by ns3::LteRlcUm::DoNotifyTxOpportunity(), and ns3::LteRlcAm::DoNotifyTxOpportunity().

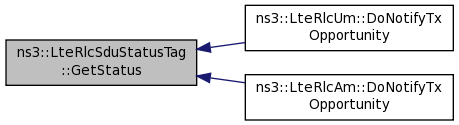

Here is the caller graph for this function:

TypeId ns3::LteRlcSduStatusTag::GetTypeId ( void  )

static

Definition at line 45 of file lte-rlc-sdu-status-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcSduStatusTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 75 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus.

void ns3::LteRlcSduStatusTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 65 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus, and ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

void ns3::LteRlcSduStatusTag::SetStatus

(

uint8_t

status

)

Definition at line 33 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus.

Referenced by ns3::LteRlcUm::DoTransmitPdcpPdu(), and ns3::LteRlcAm::DoTransmitPdcpPdu().

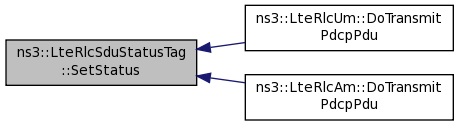

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::LteRlcSduStatusTag::m_sduStatus

private

Definition at line 56 of file lte-rlc-sdu-status-tag.h.

Referenced by Deserialize(), GetStatus(), Print(), Serialize(), and SetStatus().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rlc-sdu-status-tag.h
• src/lte/model/lte-rlc-sdu-status-tag.cc
