Manage pcap files for device models. More...

#include <trace-helper.h>

Public Types
enum	{ DLT_NULL = 0, DLT_EN10MB = 1, DLT_PPP = 9, DLT_RAW = 101, DLT_IEEE802_11 = 105, DLT_PRISM_HEADER = 119, DLT_IEEE802_11_RADIO = 127 }

Public Member Functions
	PcapHelper ()
	Create a pcap helper. More...

	~PcapHelper ()
	Destroy a pcap helper. More...

Ptr< PcapFileWrapper >	CreateFile (std::string filename, std::ios::openmode filemode, uint32_t dataLinkType, uint32_t snapLen=65535, int32_t tzCorrection=0)
	Create and initialize a pcap file. More...

std::string	GetFilenameFromDevice (std::string prefix, Ptr< NetDevice > device, bool useObjectNames=true)
	Let the pcap helper figure out a reasonable filename to use for a pcap file associated with a device. More...

std::string	GetFilenameFromInterfacePair (std::string prefix, Ptr< Object > object, uint32_t interface, bool useObjectNames=true)
	Let the pcap helper figure out a reasonable filename to use for the pcap file associated with a node. More...

template<typename T >
void	HookDefaultSink (Ptr< T > object, std::string traceName, Ptr< PcapFileWrapper > file)
	Hook a trace source to the default trace sink. More...

Static Private Member Functions
static void	DefaultSink (Ptr< PcapFileWrapper > file, Ptr< const Packet > p)

Detailed Description

Manage pcap files for device models.

Handling pcap files is a common operation for ns-3 devices. It is useful to provide a common base class for dealing with these ops.

Definition at line 38 of file trace-helper.h.

Member Enumeration Documentation

anonymous enum

Enumerator
DLT_NULL
DLT_EN10MB
DLT_PPP
DLT_RAW
DLT_IEEE802_11
DLT_PRISM_HEADER
DLT_IEEE802_11_RADIO

Definition at line 47 of file trace-helper.h.

Constructor & Destructor Documentation

ns3::PcapHelper::PcapHelper ( )

Create a pcap helper.

Definition at line 38 of file trace-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::PcapHelper::~PcapHelper ( )

Destroy a pcap helper.

Definition at line 43 of file trace-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

Ptr< PcapFileWrapper > ns3::PcapHelper::CreateFile	(	std::string	filename,
		std::ios::openmode	filemode,
		uint32_t	dataLinkType,
		uint32_t	snapLen = `65535`,
		int32_t	tzCorrection = `0`
	)

Create and initialize a pcap file.

Parameters

filename	file name
filemode	file mode
dataLinkType	data link type of packet data
snapLen	maximum length of packet data stored in records
tzCorrection	time zone correction to be applied to timestamps of packets

Definition at line 49 of file trace-helper.cc.

References NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by ns3::FdNetDeviceHelper::EnablePcapInternal(), ns3::EmuHelper::EnablePcapInternal(), ns3::PointToPointHelper::EnablePcapInternal(), ns3::CsmaHelper::EnablePcapInternal(), ns3::YansWifiPhyHelper::EnablePcapInternal(), ns3::WimaxHelper::EnablePcapInternal(), ns3::InternetStackHelper::EnablePcapIpv4Internal(), ns3::InternetStackHelper::EnablePcapIpv6Internal(), and main().

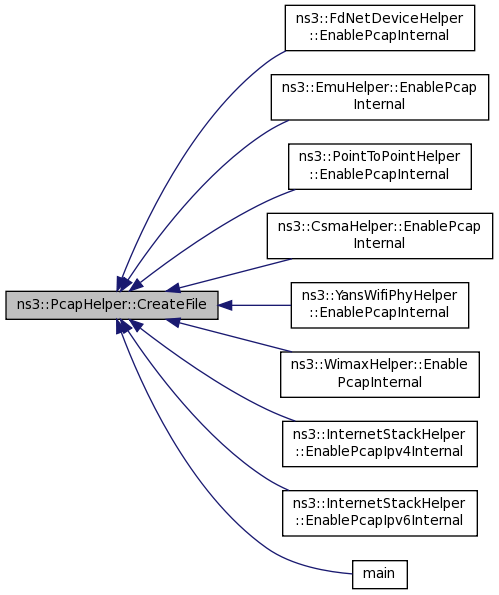

Here is the caller graph for this function:

void ns3::PcapHelper::DefaultSink	(	Ptr< PcapFileWrapper >	file,
		Ptr< const Packet >	p
	)

staticprivate

Definition at line 167 of file trace-helper.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by HookDefaultSink().

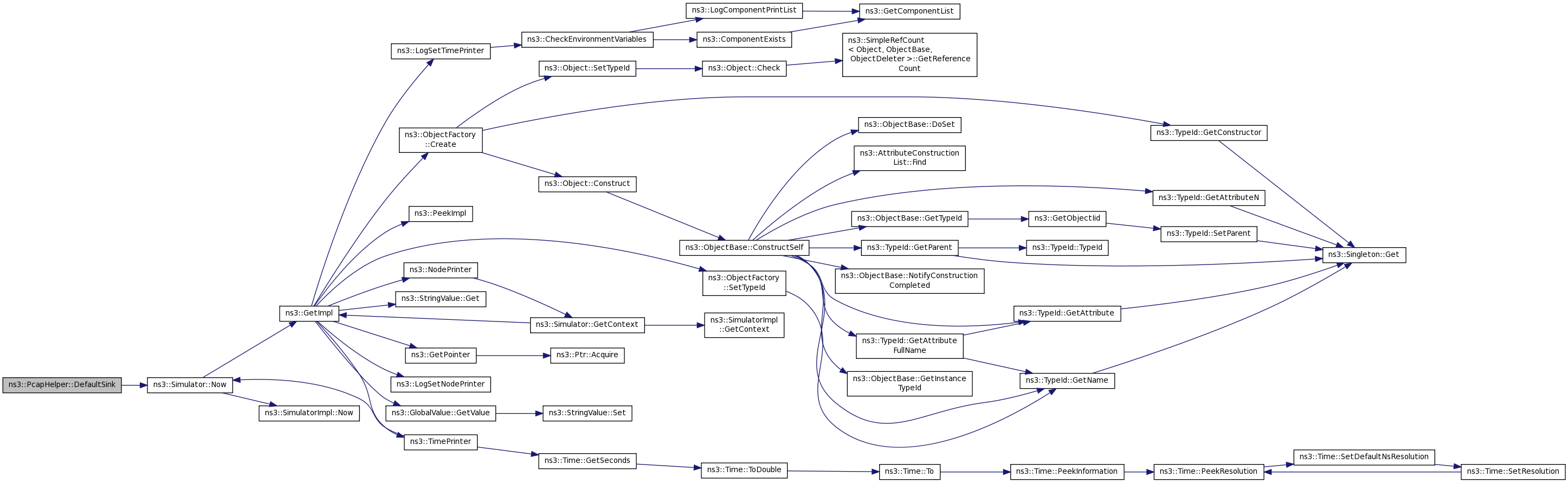

Here is the call graph for this function:

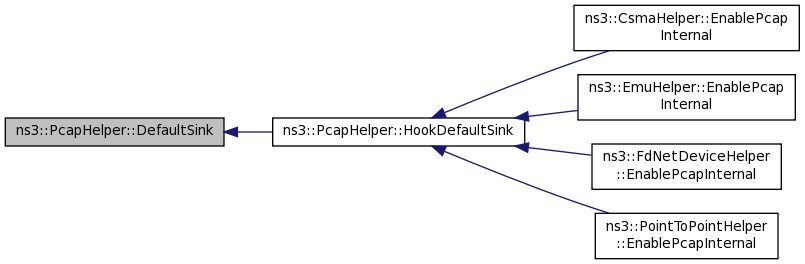

Here is the caller graph for this function:

std::string ns3::PcapHelper::GetFilenameFromDevice	(	std::string	prefix,
		Ptr< NetDevice >	device,
		bool	useObjectNames = `true`
	)

Let the pcap helper figure out a reasonable filename to use for a pcap file associated with a device.

Parameters

prefix	prefix string
device	NetDevice
useObjectNames	use node and device names instead of indexes

Definition at line 80 of file trace-helper.cc.

References ns3::Names::FindName(), ns3::Node::GetId(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION.

Referenced by ns3::FdNetDeviceHelper::EnablePcapInternal(), ns3::EmuHelper::EnablePcapInternal(), ns3::PointToPointHelper::EnablePcapInternal(), ns3::CsmaHelper::EnablePcapInternal(), ns3::YansWifiPhyHelper::EnablePcapInternal(), and ns3::WimaxHelper::EnablePcapInternal().

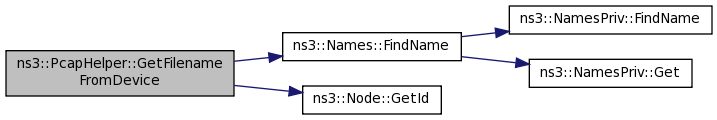

Here is the call graph for this function:

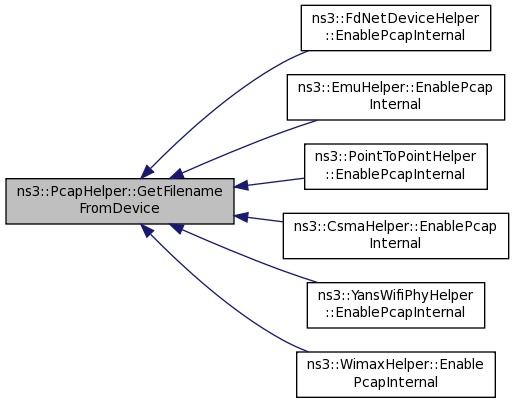

Here is the caller graph for this function:

std::string ns3::PcapHelper::GetFilenameFromInterfacePair	(	std::string	prefix,
		Ptr< Object >	object,
		uint32_t	interface,
		bool	useObjectNames = `true`
	)

Let the pcap helper figure out a reasonable filename to use for the pcap file associated with a node.

Parameters

prefix	prefix string
object	interface (such as Ipv4Interface or Ipv6Interface)
interface	interface id
useObjectNames	use node and device names instead of indexes
