A helper to make it easier to create a grid topology with p2p links. More...

#include <point-to-point-grid.h>

Collaboration diagram for ns3::PointToPointGridHelper:

Public Member Functions
	PointToPointGridHelper (uint32_t nRows, uint32_t nCols, PointToPointHelper pointToPoint)
	Create a PointToPointGridHelper in order to easily create grid topologies using p2p links. More...

	~PointToPointGridHelper ()

void	AssignIpv4Addresses (Ipv4AddressHelper rowIp, Ipv4AddressHelper colIp)
	Assigns Ipv4 addresses to all the row and column interfaces. More...

void	AssignIpv6Addresses (Ipv6Address network, Ipv6Prefix prefix)
	Assigns Ipv6 addresses to all the row and column interfaces. More...

void	BoundingBox (double ulx, double uly, double lrx, double lry)
	Sets up the node canvas locations for every node in the grid. More...

Ipv4Address	GetIpv4Address (uint32_t row, uint32_t col)
	This returns an Ipv4 address at the node specified by the (row, col) address. More...

Ipv6Address	GetIpv6Address (uint32_t row, uint32_t col)
	This returns an Ipv6 address at the node specified by the (row, col) address. More...

Ptr< Node >	GetNode (uint32_t row, uint32_t col)

void	InstallStack (InternetStackHelper stack)

Private Attributes
std::vector< NetDeviceContainer >	m_colDevices

std::vector < Ipv4InterfaceContainer >	m_colInterfaces

std::vector < Ipv6InterfaceContainer >	m_colInterfaces6

std::vector< NodeContainer >	m_nodes

std::vector< NetDeviceContainer >	m_rowDevices

std::vector < Ipv4InterfaceContainer >	m_rowInterfaces

std::vector < Ipv6InterfaceContainer >	m_rowInterfaces6

uint32_t	m_xSize

uint32_t	m_ySize

Detailed Description

A helper to make it easier to create a grid topology with p2p links.

Definition at line 40 of file point-to-point-grid.h.

Constructor & Destructor Documentation

ns3::PointToPointGridHelper::PointToPointGridHelper	(	uint32_t	nRows,
		uint32_t	nCols,
		PointToPointHelper	pointToPoint
	)

Create a PointToPointGridHelper in order to easily create grid topologies using p2p links.

Parameters

nRows	total number of rows in the grid
nCols	total number of colums in the grid
pointToPoint	the PointToPointHelper which is used to connect all of the nodes together in the grid

Definition at line 32 of file point-to-point-grid.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Create(), ns3::NodeContainer::Get(), m_colDevices, m_nodes, m_rowDevices, m_xSize, m_ySize, NS_FATAL_ERROR, first::stack, and sample-rng-plot::x.

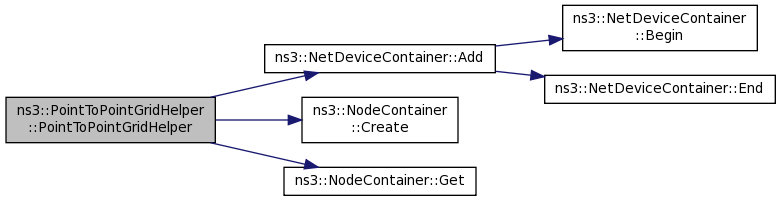

Here is the call graph for this function:

ns3::PointToPointGridHelper::~PointToPointGridHelper ( )

Definition at line 78 of file point-to-point-grid.cc.

Member Function Documentation

void ns3::PointToPointGridHelper::AssignIpv4Addresses	(	Ipv4AddressHelper	rowIp,
		Ipv4AddressHelper	colIp
	)

Assigns Ipv4 addresses to all the row and column interfaces.

Parameters

rowIp	the Ipv4AddressHelper used to assign Ipv4 addresses to all of the row interfaces in the grid
colIp	the Ipv4AddressHelper used to assign Ipv4 addresses to all of the row interfaces in the grid

Definition at line 96 of file point-to-point-grid.cc.

References ns3::Ipv4InterfaceContainer::Add(), ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NetDeviceContainer::GetN(), m_colDevices, m_colInterfaces, m_rowDevices, m_rowInterfaces, and ns3::Ipv4AddressHelper::NewNetwork().

Referenced by main().

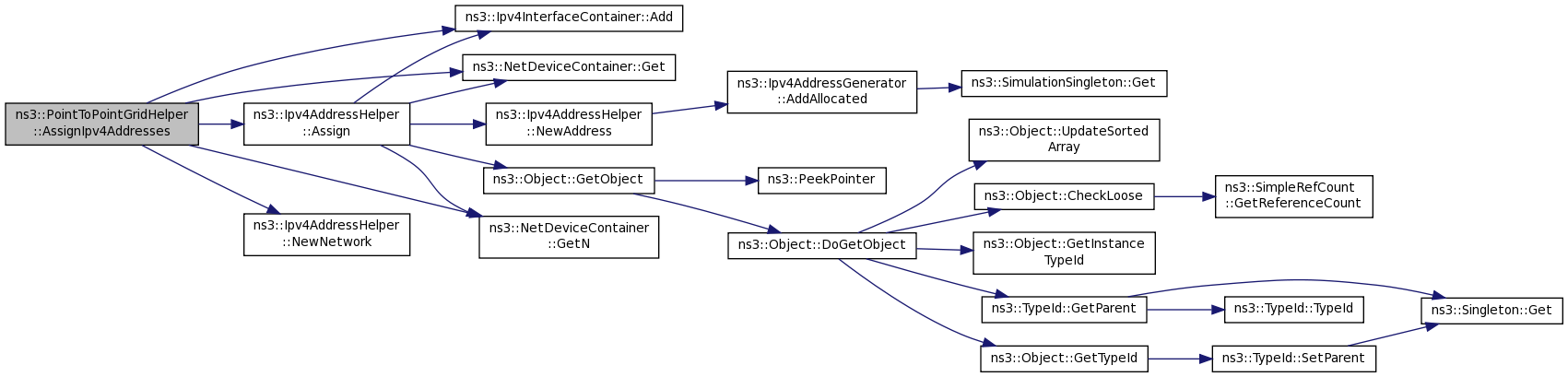

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointGridHelper::AssignIpv6Addresses	(	Ipv6Address	network,
		Ipv6Prefix	prefix
	)

Assigns Ipv6 addresses to all the row and column interfaces.

Parameters

network	an IPv6 address representing the network portion of the IPv6 Address
prefix	the prefix length

Definition at line 134 of file point-to-point-grid.cc.

References ns3::Ipv6InterfaceContainer::Add(), ns3::Ipv6AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::Ipv6AddressGenerator::GetNetwork(), ns3::Ipv6AddressGenerator::Init(), m_colDevices, m_colInterfaces6, m_rowDevices, m_rowInterfaces6, ns3::Ipv6AddressGenerator::NextNetwork(), and ns3::Ipv6AddressHelper::SetBase().

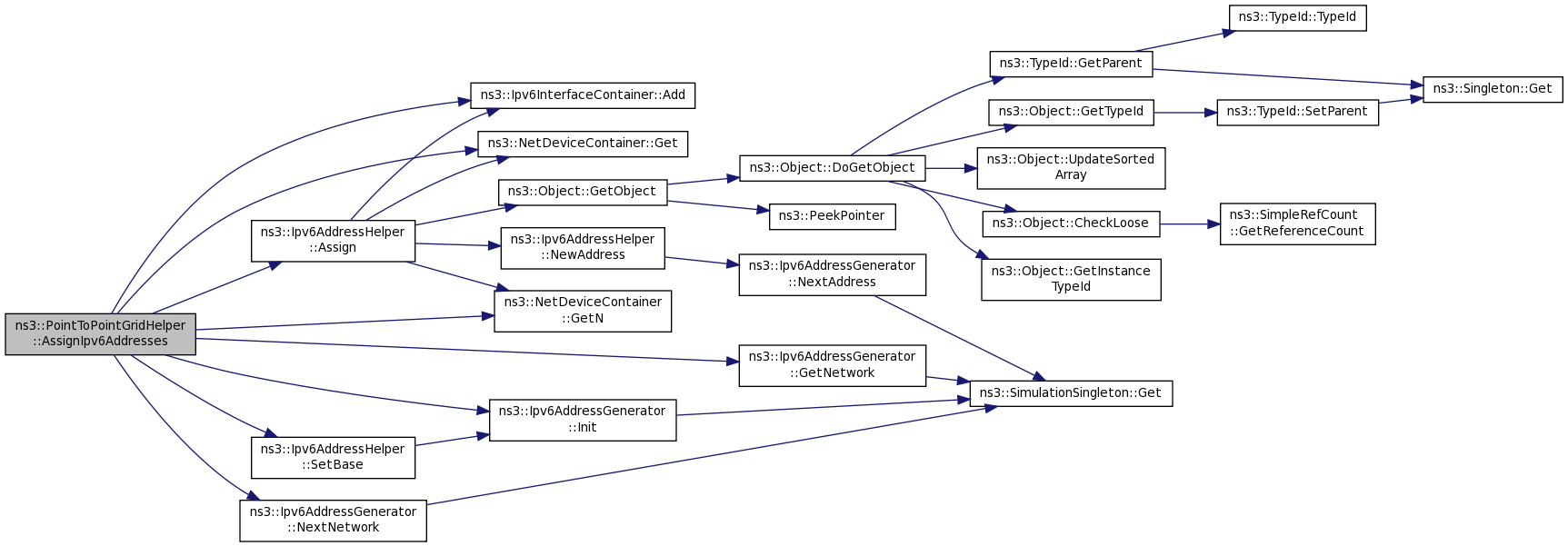

Here is the call graph for this function:

void ns3::PointToPointGridHelper::BoundingBox	(	double	ulx,
		double	uly,
		double	lrx,
		double	lry
	)

Sets up the node canvas locations for every node in the grid.

This is needed for use with the animation interface

Parameters

ulx	upper left x value
uly	upper left y value
lrx	lower right x value
lry	lower right y value

Definition at line 184 of file point-to-point-grid.cc.

References ns3::Object::AggregateObject(), GetNode(), ns3::Object::GetObject(), m_xSize, and m_ySize.

Referenced by main().

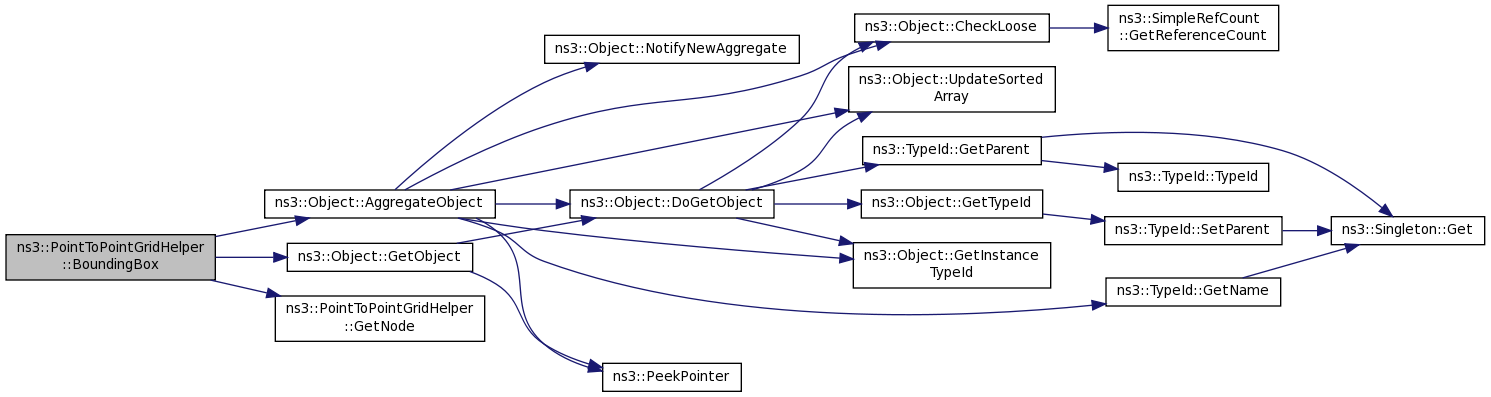

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::PointToPointGridHelper::GetIpv4Address	(	uint32_t	row,
		uint32_t	col
	)

This returns an Ipv4 address at the node specified by the (row, col) address.

Technically, a node will have multiple interfaces in the grid; therefore, it also has multiple Ipv4 addresses. This method only returns one of the addresses. If you picture the grid, the address returned is the left row device of all the nodes, except the left-most grid nodes, which returns the right row device.

Parameters

row	the row address of the node desired
col	the column address of the node desired

Returns: Ipv4Address of one of the interfaces of the node specified by the (row, col) address

Definition at line 242 of file point-to-point-grid.cc.

References m_nodes, m_rowInterfaces, and NS_FATAL_ERROR.

Referenced by main().

Here is the caller graph for this function:

Ipv6Address ns3::PointToPointGridHelper::GetIpv6Address	(	uint32_t	row,
		uint32_t	col
	)

This returns an Ipv6 address at the node specified by the (row, col) address.

Technically, a node will have multiple interfaces in the grid; therefore, it also has multiple Ipv6 addresses. This method only returns one of the addresses. If you picture the grid, the address returned is the left row device of all the nodes, except the left-most grid nodes, which returns the right row device.

Parameters
