ns3::PointToPointStarHelper Class Reference

A helper to make it easier to create a star topology with PointToPoint links. More...

#include <point-to-point-star.h>

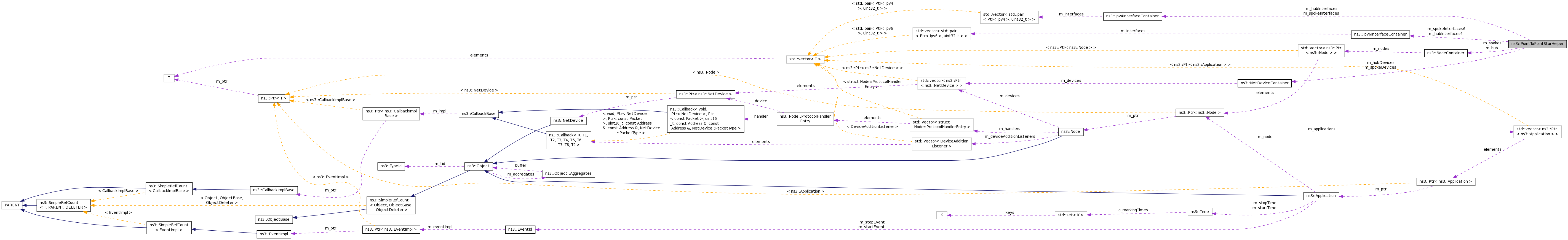

+ Collaboration diagram for ns3::PointToPointStarHelper:

Public Member Functions

 PointToPointStarHelper (uint32_t numSpokes, PointToPointHelper p2pHelper)
 Create a PointToPointStarHelper in order to easily create star topologies using p2p links. More...

 ~PointToPointStarHelper ()

void AssignIpv4Addresses (Ipv4AddressHelper address)

void AssignIpv6Addresses (Ipv6Address network, Ipv6Prefix prefix)

void BoundingBox (double ulx, double uly, double lrx, double lry)
 Sets up the node canvas locations for every node in the star. More...

Ptr< NodeGetHub () const

Ipv4Address GetHubIpv4Address (uint32_t i) const

Ipv6Address GetHubIpv6Address (uint32_t i) const

Ipv4Address GetSpokeIpv4Address (uint32_t i) const

Ipv6Address GetSpokeIpv6Address (uint32_t i) const

Ptr< NodeGetSpokeNode (uint32_t i) const

void InstallStack (InternetStackHelper stack)

uint32_t SpokeCount () const


Private Attributes

NodeContainer m_hub

NetDeviceContainer m_hubDevices

Ipv4InterfaceContainer m_hubInterfaces

Ipv6InterfaceContainer m_hubInterfaces6

NetDeviceContainer m_spokeDevices

Ipv4InterfaceContainer m_spokeInterfaces

Ipv6InterfaceContainer m_spokeInterfaces6

NodeContainer m_spokes


Detailed Description

A helper to make it easier to create a star topology with PointToPoint links.

Definition at line 44 of file point-to-point-star.h.

Constructor & Destructor Documentation

ns3::PointToPointStarHelper::PointToPointStarHelper ( uint32_t  numSpokes,
PointToPointHelper  p2pHelper
)

Create a PointToPointStarHelper in order to easily create star topologies using p2p links.

Parameters
numSpokesthe number of links attached to the hub node, creating a total of numSpokes + 1 nodes
p2pHelperthe link helper for p2p links, used to link nodes together

Definition at line 35 of file point-to-point-star.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::PointToPointHelper::Install(), m_hub, m_hubDevices, m_spokeDevices, and m_spokes.

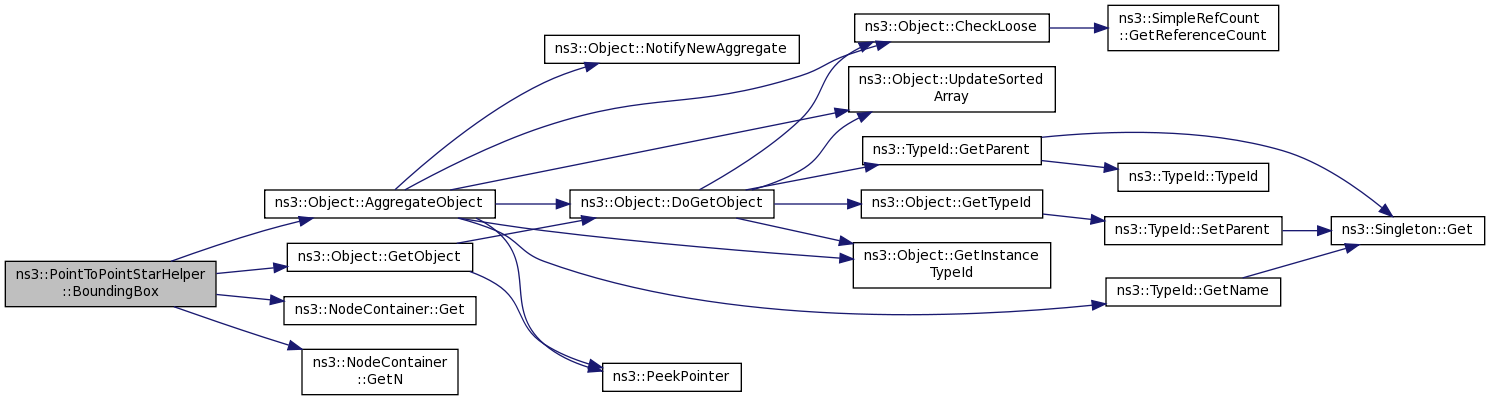

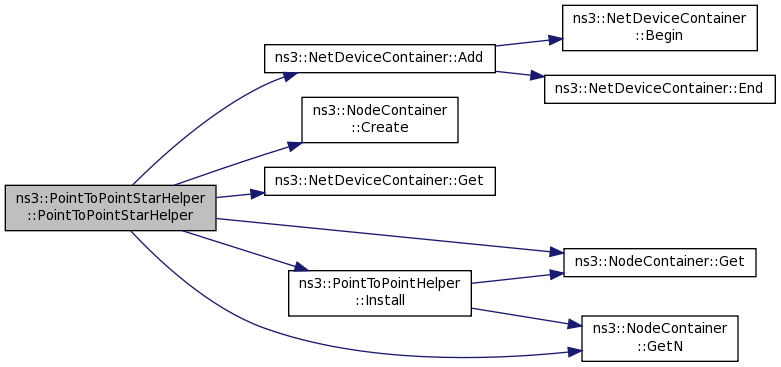

+ Here is the call graph for this function:

ns3::PointToPointStarHelper::~PointToPointStarHelper ( )

Definition at line 49 of file point-to-point-star.cc.

Member Function Documentation

void ns3::PointToPointStarHelper::AssignIpv4Addresses ( Ipv4AddressHelper  address)
Parameters
addressan Ipv4AddressHelper which is used to install Ipv4 addresses on all the node interfaces in the star

Definition at line 103 of file point-to-point-star.cc.

References ns3::Ipv4InterfaceContainer::Add(), ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::GetN(), m_hubDevices, m_hubInterfaces, m_spokeDevices, m_spokeInterfaces, m_spokes, and ns3::Ipv4AddressHelper::NewNetwork().

Referenced by main().

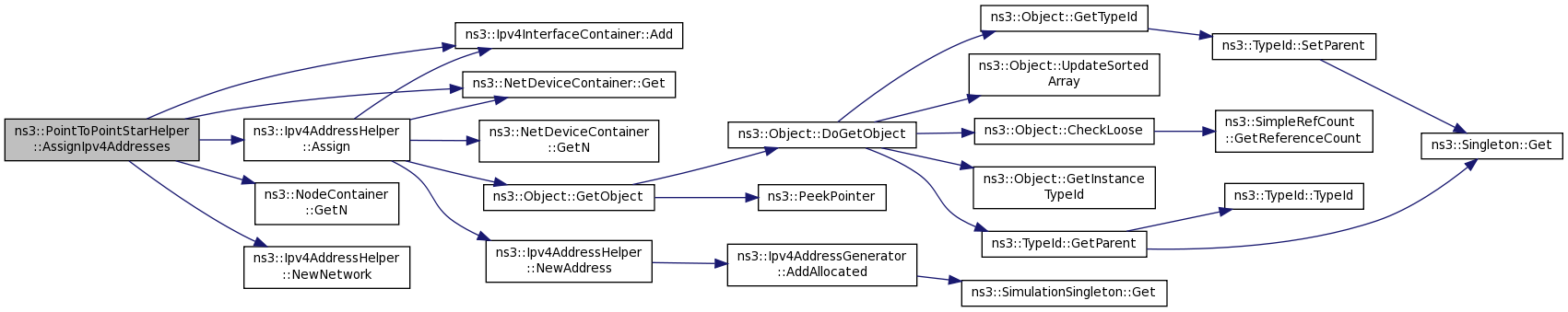

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::PointToPointStarHelper::AssignIpv6Addresses ( Ipv6Address  network,
Ipv6Prefix  prefix
)
Parameters
networkan IPv6 address representing the network portion of the IPv6 Address
prefixthe prefix length

Definition at line 114 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::Add(), ns3::Ipv6AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::GetN(), ns3::Ipv6AddressGenerator::GetNetwork(), ns3::Ipv6AddressGenerator::Init(), m_hubDevices, m_hubInterfaces6, m_spokeDevices, m_spokeInterfaces6, m_spokes, ns3::Ipv6AddressGenerator::NextNetwork(), and ns3::Ipv6AddressHelper::SetBase().

Referenced by main().

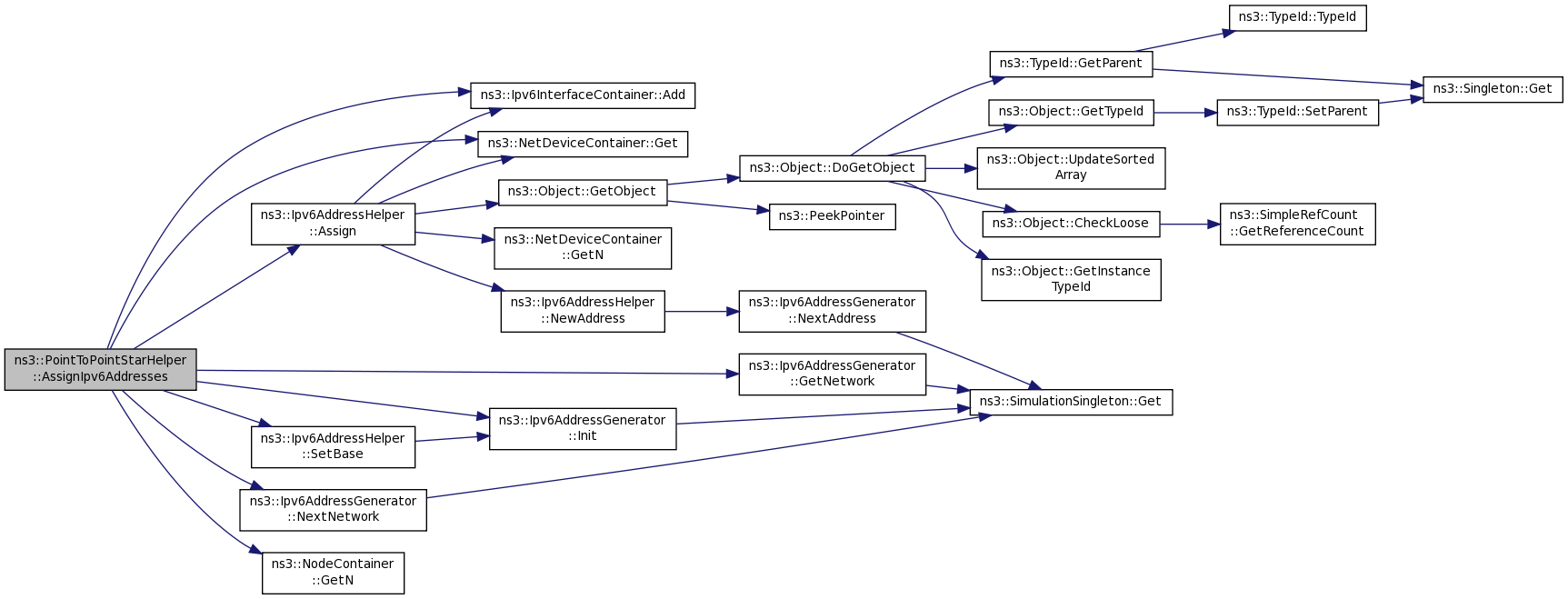

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::PointToPointStarHelper::BoundingBox ( double  ulx,
double  uly,
double  lrx,
double  lry
)

Sets up the node canvas locations for every node in the star.

This is needed for use with the animation interface

Parameters
ulxupper left x value
ulyupper left y value
lrxlower right x value
lrylower right y value

Definition at line 135 of file point-to-point-star.cc.

References ns3::Object::AggregateObject(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), m_hub, m_spokes, ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< Node > ns3::PointToPointStarHelper::GetHub ( ) const
Returns
a node pointer to the hub node in the star, i.e., the center node

Definition at line 54 of file point-to-point-star.cc.

References ns3::NodeContainer::Get(), and m_hub.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ipv4Address ns3::PointToPointStarHelper::GetHubIpv4Address ( uint32_t  i) const
Parameters
iindex into the hub interfaces
Returns
Ipv4Address according to indexed hub interface

Definition at line 66 of file point-to-point-star.cc.

References ns3::Ipv4InterfaceContainer::GetAddress(), and m_hubInterfaces.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ipv6Address ns3::PointToPointStarHelper::GetHubIpv6Address ( uint32_t  i) const
Parameters
iindex into the hub interfaces
Returns
Ipv6Address according to indexed hub interface

Definition at line 78 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::GetAddress(), and m_hubInterfaces6.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ipv4Address ns3::PointToPointStarHelper::GetSpokeIpv4Address ( uint32_t  i) const
Parameters
iindex into the spoke interfaces
Returns
Ipv4Address according to indexed spoke interface

Definition at line 72 of file point-to-point-star.cc.

References ns3::Ipv4InterfaceContainer::GetAddress(), and m_spokeInterfaces.

+ Here is the call graph for this function:

Ipv6Address ns3::PointToPointStarHelper::GetSpokeIpv6Address ( uint32_t  i) const
Parameters
iindex into the spoke interfaces
Returns
Ipv6Address according to indexed spoke interface

Definition at line 84 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::GetAddress(), and m_spokeInterfaces6.

+ Here is the call graph for this function:

Ptr< Node > ns3::PointToPointStarHelper::GetSpokeNode ( uint32_t  i) const
Parameters
ian index into the spokes of the star
Returns
a node pointer to the node at the indexed spoke

Definition at line 60 of file point-to-point-star.cc.

References ns3::NodeContainer::Get(), and m_spokes.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::PointToPointStarHelper::InstallStack ( InternetStackHelper  stack)
Parameters
stackan InternetStackHelper which is used to install on every node in the star

Definition at line 96 of file point-to-point-star.cc.

References ns3::InternetStackHelper::Install(), m_hub, and m_spokes.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::PointToPointStarHelper::SpokeCount ( ) const
Returns
the total number of spokes in the star

Definition at line 90 of file point-to-point-star.cc.

References ns3::NodeContainer::GetN(), and m_spokes.

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

NodeContainer ns3::PointToPointStarHelper::m_hub
private

Definition at line 142 of file point-to-point-star.h.

Referenced by BoundingBox(), GetHub(), InstallStack(), and PointToPointStarHelper().

NetDeviceContainer ns3::PointToPointStarHelper::m_hubDevices
private
Ipv4InterfaceContainer ns3::PointToPointStarHelper::m_hubInterfaces
private

Definition at line 146 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), and GetHubIpv4Address().

Ipv6InterfaceContainer ns3::PointToPointStarHelper::m_hubInterfaces6
private

Definition at line 148 of file point-to-point-star.h.

Referenced by AssignIpv6Addresses(), and GetHubIpv6Address().

NetDeviceContainer ns3::PointToPointStarHelper::m_spokeDevices
private
Ipv4InterfaceContainer ns3::PointToPointStarHelper::m_spokeInterfaces
private

Definition at line 147 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), and GetSpokeIpv4Address().

Ipv6InterfaceContainer ns3::PointToPointStarHelper::m_spokeInterfaces6
private

Definition at line 149 of file point-to-point-star.h.

Referenced by AssignIpv6Addresses(), and GetSpokeIpv6Address().

NodeContainer ns3::PointToPointStarHelper::m_spokes
private
