Doxygen introspection did not find any typical Config paths. More...

#include <seq-ts-header.h>

Inheritance diagram for ns3::SeqTsHeader:

Collaboration diagram for ns3::SeqTsHeader:

Public Member Functions
	SeqTsHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const

uint32_t	GetSeq (void) const

virtual uint32_t	GetSerializedSize (void) const

Time	GetTs (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

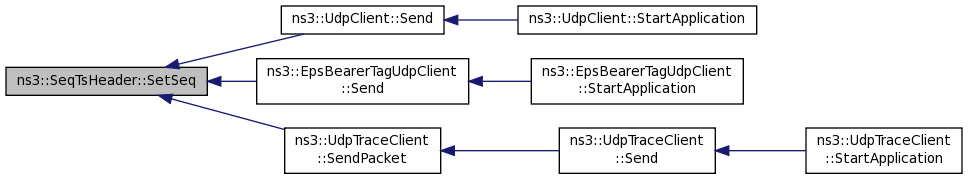

void	SetSeq (uint32_t seq)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_seq
	Sequence number. More...

uint64_t	m_ts
	Timestamp. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Packet header for UDP client/server application.

No Attributes are defined for this type.
No TraceSources are defined for this type.

The header is made of a 32bits sequence number followed by a 64bits time stamp.

Definition at line 36 of file seq-ts-header.h.

Constructor & Destructor Documentation

ns3::SeqTsHeader::SeqTsHeader ( )

Definition at line 34 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::SeqTsHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 97 of file seq-ts-header.cc.

References GetSerializedSize(), m_seq, m_ts, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), and visualizer.core::start().

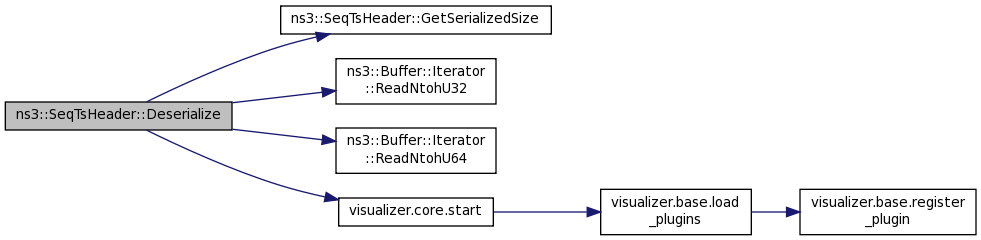

Here is the call graph for this function:

TypeId ns3::SeqTsHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 71 of file seq-ts-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::SeqTsHeader::GetSeq ( void ) const

Returns: the sequence number

Definition at line 48 of file seq-ts-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::UdpServer::HandleRead().

Here is the caller graph for this function:

uint32_t ns3::SeqTsHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 82 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

Time ns3::SeqTsHeader::GetTs ( void ) const

Returns: the time stamp

Definition at line 55 of file seq-ts-header.cc.

References m_ts, NS_LOG_FUNCTION, and ns3::TimeStep().

Referenced by ns3::UdpServer::HandleRead().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::SeqTsHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 62 of file seq-ts-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SeqTsHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 76 of file seq-ts-header.cc.

References ns3::Time::GetSeconds(), m_seq, m_ts, NS_LOG_FUNCTION, and ns3::TimeStep().

Here is the call graph for this function:

void ns3::SeqTsHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 89 of file seq-ts-header.cc.

References m_seq, m_ts, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteHtonU64().

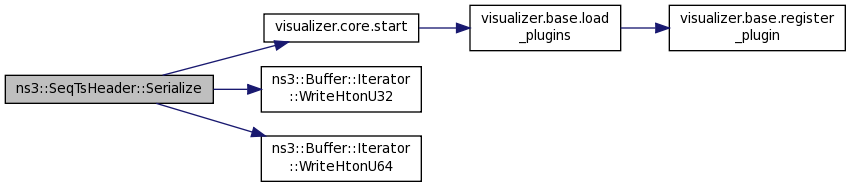

Here is the call graph for this function:
