This class implements a tag that carries an address of a packet across the socket interface. More...
#include <socket.h>
Inheritance diagram for ns3::SocketAddressTag: Collaboration diagram for ns3::SocketAddressTag:Public Member Functions | |
| SocketAddressTag () | |
| virtual void | Deserialize (TagBuffer i) |
| Address | GetAddress (void) const |
| Get the tag's address. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| virtual uint32_t | GetSerializedSize (void) const |
| virtual void | Print (std::ostream &os) const |
| virtual void | Serialize (TagBuffer i) const |
| void | SetAddress (Address addr) |
| Set the tag's address. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Tag | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| Address | m_address |
| the address carried by the tag More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| virtual void | NotifyConstructionCompleted (void) |
| This method is invoked once all member attributes have been initialized. More... | |
This class implements a tag that carries an address of a packet across the socket interface.
Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
| ns3::SocketAddressTag::SocketAddressTag | ( | ) |
Definition at line 517 of file socket.cc.
References NS_LOG_FUNCTION.
|
virtual |
| i | the buffer to read data from. |
Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 566 of file socket.cc.
References ns3::Address::Deserialize(), m_address, and NS_LOG_FUNCTION.
Here is the call graph for this function:| Address ns3::SocketAddressTag::GetAddress | ( | void | ) | const |
Get the tag's address.
Definition at line 530 of file socket.cc.
References m_address, and NS_LOG_FUNCTION.
Referenced by PrintReceivedPacket(), ns3::UdpSocketImpl::RecvFrom(), ns3::NscTcpSocketImpl::RecvFrom(), and ns3::PacketSocket::RecvFrom().

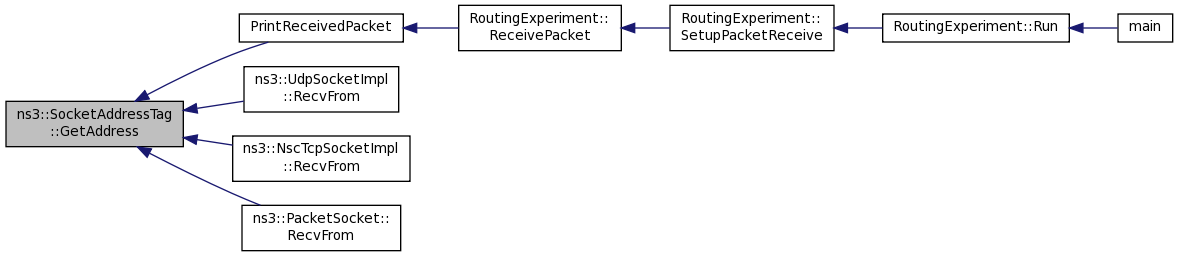

Here is the caller graph for this function:
|
virtual |
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 549 of file socket.cc.
References GetTypeId().
Here is the call graph for this function:
|
virtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 554 of file socket.cc.
References ns3::Address::GetSerializedSize(), m_address, and NS_LOG_FUNCTION.
Here is the call graph for this function:
|
static |
Get the type ID.
Definition at line 540 of file socket.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
| os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 572 of file socket.cc.
References m_address, and NS_LOG_FUNCTION.
|
virtual |
| i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 560 of file socket.cc.
References m_address, NS_LOG_FUNCTION, and ns3::Address::Serialize().
Here is the call graph for this function:| void ns3::SocketAddressTag::SetAddress | ( | Address | addr | ) |
Set the tag's address.
| addr | the address |
Definition at line 523 of file socket.cc.
References m_address, and NS_LOG_FUNCTION.
Referenced by ns3::PacketSocket::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp6(), ns3::NscTcpSocketImpl::ReadPendingData(), and ns3::TcpSocketBase::Recv().

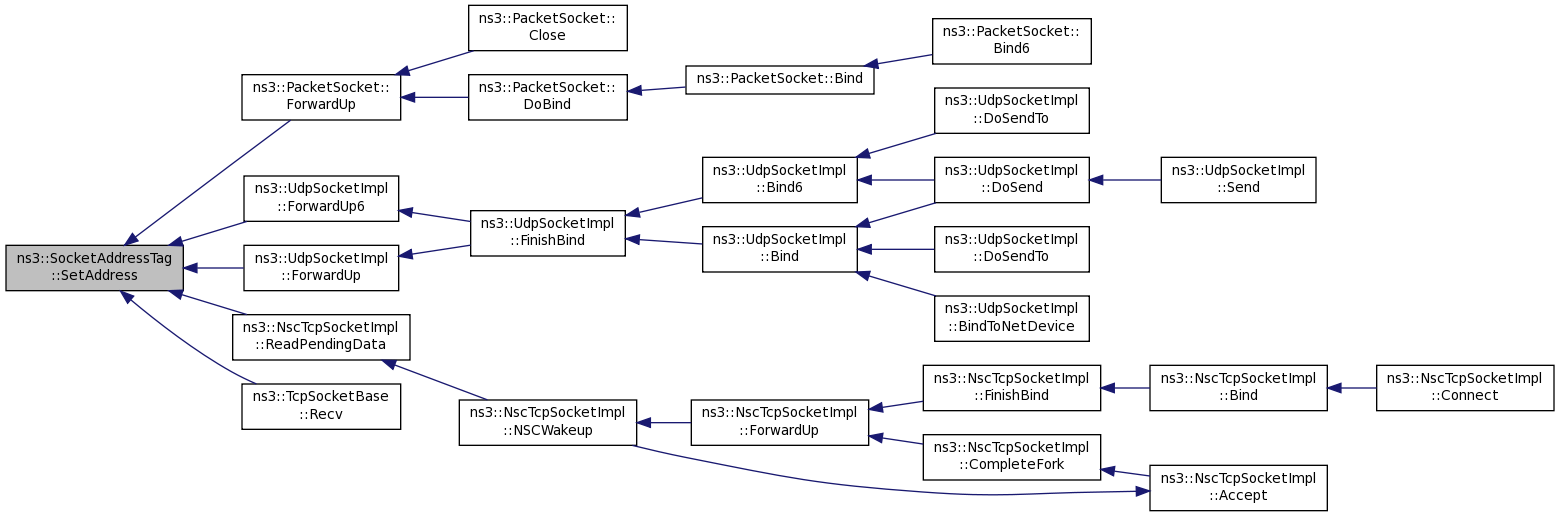

Here is the caller graph for this function:
|
private |
the address carried by the tag
Definition at line 989 of file socket.h.
Referenced by Deserialize(), GetAddress(), GetSerializedSize(), Print(), Serialize(), and SetAddress().
