ns3::SocketIpv6TclassTag Class Reference

indicates whether the socket has IPV6_TCLASS set. More...

#include <socket.h>

+ Inheritance diagram for ns3::SocketIpv6TclassTag:
+ Collaboration diagram for ns3::SocketIpv6TclassTag:

Public Member Functions

 SocketIpv6TclassTag ()

virtual void Deserialize (TagBuffer i)

virtual TypeId GetInstanceTypeId (void) const

virtual uint32_t GetSerializedSize (void) const

uint8_t GetTclass (void) const
 Get the tag's Tclass. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void SetTclass (uint8_t tclass)
 Set the tag's Tclass. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_ipv6Tclass
 the Tclass carried by the tag More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

indicates whether the socket has IPV6_TCLASS set.

This tag is for IPv6 socket.

Definition at line 1189 of file socket.h.

Constructor & Destructor Documentation

ns3::SocketIpv6TclassTag::SocketIpv6TclassTag ( )

Definition at line 816 of file socket.cc.

Member Function Documentation

void ns3::SocketIpv6TclassTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 861 of file socket.cc.

References m_ipv6Tclass, and ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

TypeId ns3::SocketIpv6TclassTag::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 843 of file socket.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::SocketIpv6TclassTag::GetSerializedSize ( void  ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 849 of file socket.cc.

uint8_t ns3::SocketIpv6TclassTag::GetTclass ( void  ) const

Get the tag's Tclass.

Returns
the Tclass

Definition at line 827 of file socket.cc.

References m_ipv6Tclass.

Referenced by ReceivePacket(), and ns3::Ipv6L3Protocol::Send().

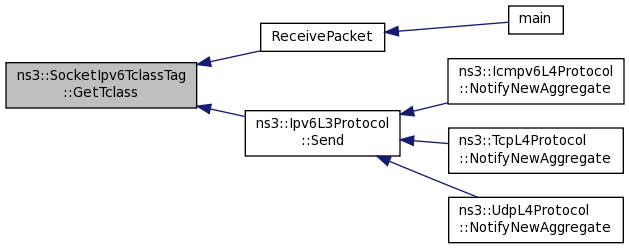

+ Here is the caller graph for this function:

TypeId ns3::SocketIpv6TclassTag::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 833 of file socket.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SocketIpv6TclassTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 866 of file socket.cc.

References m_ipv6Tclass.

void ns3::SocketIpv6TclassTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 855 of file socket.cc.

References m_ipv6Tclass, and ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

void ns3::SocketIpv6TclassTag::SetTclass ( uint8_t  tclass)

Set the tag's Tclass.

Parameters
tclassthe Tclass

Definition at line 821 of file socket.cc.

References m_ipv6Tclass.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::UdpSocketImpl::ForwardUp6(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), and ns3::UdpSocketImpl::SendTo().

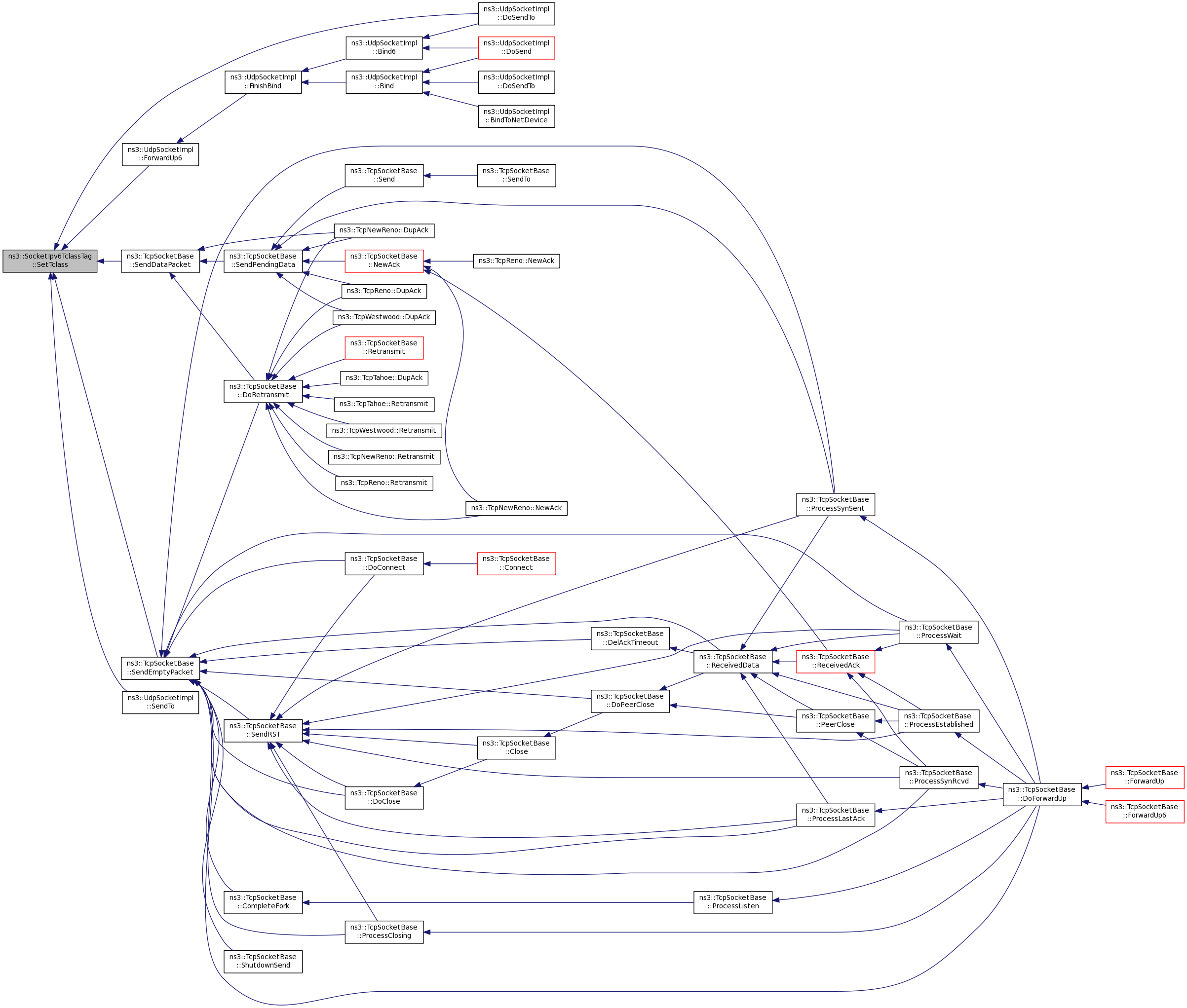

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::SocketIpv6TclassTag::m_ipv6Tclass
private

the Tclass carried by the tag

Definition at line 1229 of file socket.h.

Referenced by Deserialize(), GetTclass(), Print(), Serialize(), and SetTclass().

The documentation for this class was generated from the following files:
