Doxygen introspection did not find any typical Config paths. More...

#include <ul-mac-messages.h>

Inheritance diagram for ns3::UlMap:

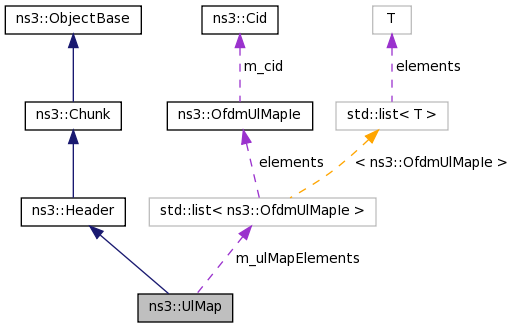

Collaboration diagram for ns3::UlMap:

Public Member Functions
	UlMap (void)
	This class implements the UL-MAP_IE message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.2 Compressed UL-MAP, page 404. More...

virtual	~UlMap (void)

void	AddUlMapElement (OfdmUlMapIe ulMapElement)

uint32_t	Deserialize (Buffer::Iterator start)

uint32_t	GetAllocationStartTime (void) const

virtual TypeId	GetInstanceTypeId (void) const

std::string	GetName (void) const

uint32_t	GetSerializedSize (void) const

uint8_t	GetUcdCount (void) const

std::list< OfdmUlMapIe >	GetUlMapElements (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetAllocationStartTime (uint32_t allocationStartTime)

void	SetUcdCount (uint8_t ucdCount)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_allocationStartTime

uint8_t	m_reserved

uint8_t	m_ucdCount

std::list< OfdmUlMapIe >	m_ulMapElements

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 315 of file ul-mac-messages.h.

Constructor & Destructor Documentation

ns3::UlMap::UlMap ( void )

This class implements the UL-MAP_IE message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.2 Compressed UL-MAP, page 404.

Definition at line 584 of file ul-mac-messages.cc.

ns3::UlMap::~UlMap ( void )

virtual

Definition at line 591 of file ul-mac-messages.cc.

Member Function Documentation

void ns3::UlMap::AddUlMapElement ( OfdmUlMapIe ulMapElement )

Definition at line 608 of file ul-mac-messages.cc.

References m_ulMapElements.

Referenced by ns3::BaseStationNetDevice::CreateUlMap(), and Deserialize().

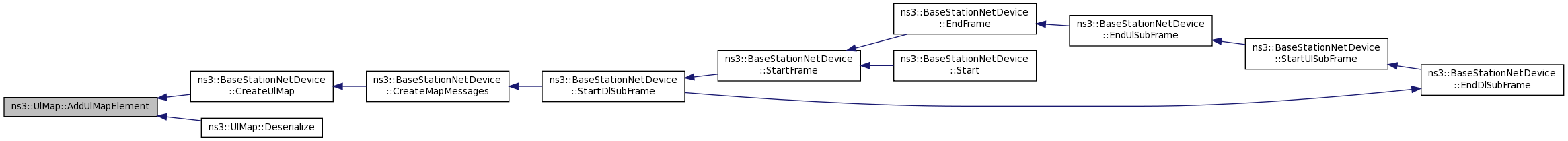

Here is the caller graph for this function:

uint32_t ns3::UlMap::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 692 of file ul-mac-messages.cc.

References AddUlMapElement(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::OfdmUlMapIe::GetUiuc(), m_allocationStartTime, m_reserved, m_ucdCount, m_ulMapElements, ns3::OfdmUlMapIe::Read(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

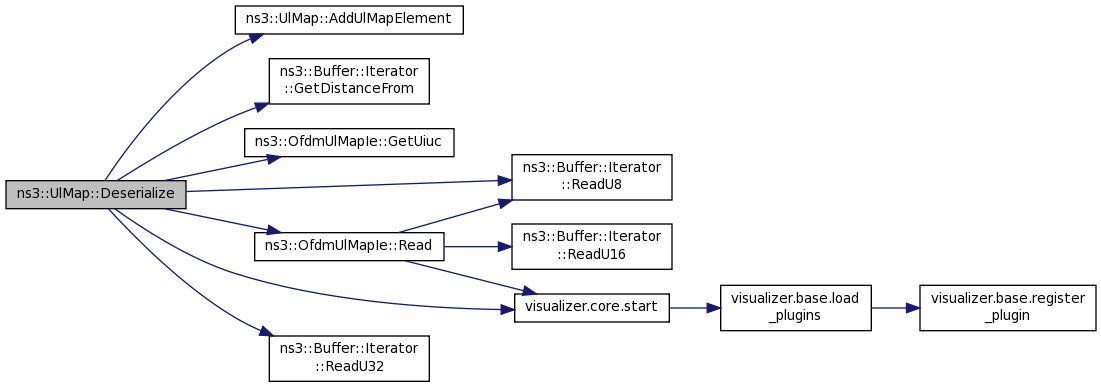

Here is the call graph for this function:

uint32_t ns3::UlMap::GetAllocationStartTime ( void ) const

Definition at line 620 of file ul-mac-messages.cc.

References m_allocationStartTime.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

TypeId ns3::UlMap::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 648 of file ul-mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::UlMap::GetName ( void ) const

Definition at line 632 of file ul-mac-messages.cc.

uint32_t ns3::UlMap::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 662 of file ul-mac-messages.cc.

References ns3::OfdmUlMapIe::GetSize(), and m_ulMapElements.

Here is the call graph for this function:

TypeId ns3::UlMap::GetTypeId ( void )

static

Definition at line 638 of file ul-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::UlMap::GetUcdCount ( void ) const

Definition at line 614 of file ul-mac-messages.cc.

References m_ucdCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

std::list< OfdmUlMapIe > ns3::UlMap::GetUlMapElements ( void ) const

Definition at line 626 of file ul-mac-messages.cc.

References m_ulMapElements.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

void ns3::UlMap::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 654 of file ul-mac-messages.cc.

References m_allocationStartTime, m_ucdCount, and m_ulMapElements.

void ns3::UlMap::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 676 of file ul-mac-messages.cc.

References m_allocationStartTime, m_reserved, m_ucdCount, m_ulMapElements, visualizer.core::start(), ns3::OfdmUlMapIe::Write(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

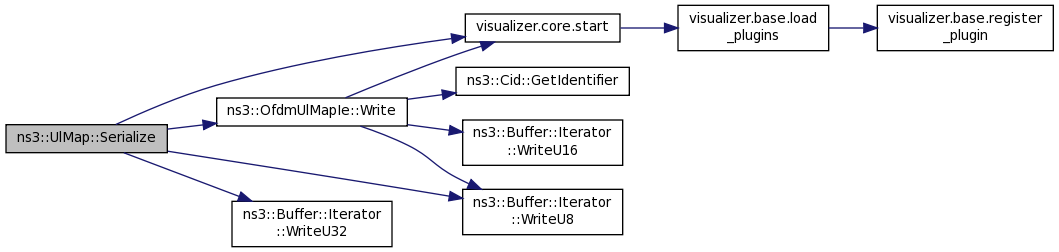

Here is the call graph for this function:
