AODV route request queue. More...

#include <aodv-rqueue.h>

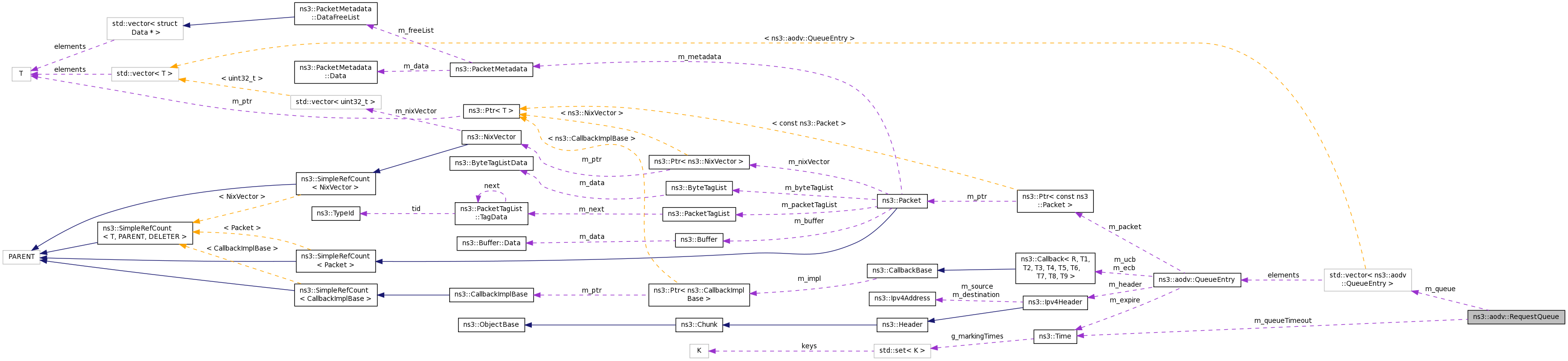

Collaboration diagram for ns3::aodv::RequestQueue:

Public Member Functions
	RequestQueue (uint32_t maxLen, Time routeToQueueTimeout)
	Default c-tor. More...

bool	Dequeue (Ipv4Address dst, QueueEntry &entry)
	Return first found (the earliest) entry for given destination. More...

void	DropPacketWithDst (Ipv4Address dst)
	Remove all packets with destination IP address dst. More...

bool	Enqueue (QueueEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

bool	Find (Ipv4Address dst)
	Finds whether a packet with destination dst exists in the queue. More...

uint32_t	GetSize ()
	Number of entries. More...

Fields
uint32_t	GetMaxQueueLen () const

void	SetMaxQueueLen (uint32_t len)

Time	GetQueueTimeout () const

void	SetQueueTimeout (Time t)

Private Member Functions
void	Drop (QueueEntry en, std::string reason)
	Notify that packet is dropped from queue by timeout. More...

void	Purge ()
	Remove all expired entries. More...

Static Private Member Functions
static bool	IsEqual (QueueEntry en, const Ipv4Address dst)

Private Attributes
uint32_t	m_maxLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

std::vector< QueueEntry >	m_queue

Time	m_queueTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds. More...

Detailed Description

AODV route request queue.

Since AODV is an on demand routing we queue requests while looking for route.

Definition at line 95 of file aodv-rqueue.h.

Constructor & Destructor Documentation

ns3::aodv::RequestQueue::RequestQueue	(	uint32_t	maxLen,
		Time	routeToQueueTimeout
	)

inline

Default c-tor.

Definition at line 99 of file aodv-rqueue.h.

Member Function Documentation

bool ns3::aodv::RequestQueue::Dequeue	(	Ipv4Address	dst,
		QueueEntry &	entry
	)

Return first found (the earliest) entry for given destination.

Definition at line 88 of file aodv-rqueue.cc.

References m_queue, and Purge().

Referenced by ns3::aodv::AodvRqueueTest::DoRun(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

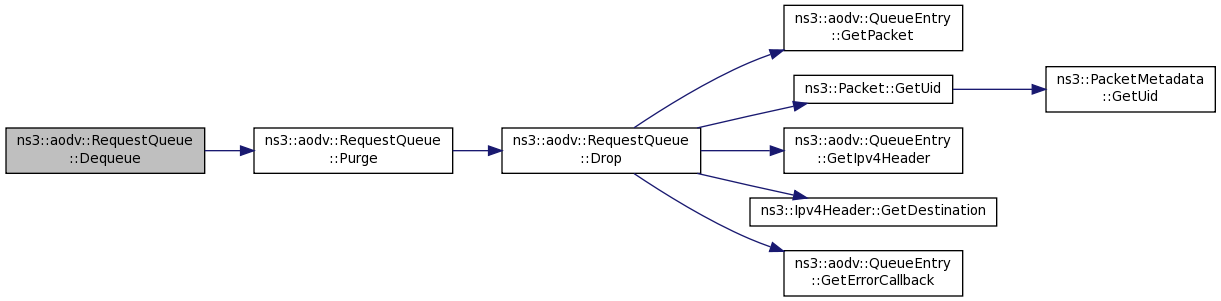

Here is the call graph for this function:

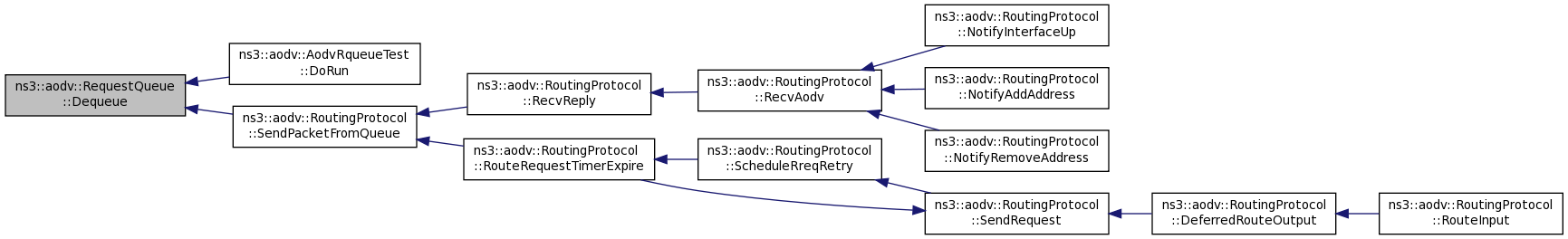

Here is the caller graph for this function:

void ns3::aodv::RequestQueue::Drop	(	QueueEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by timeout.

Definition at line 141 of file aodv-rqueue.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Header::GetDestination(), ns3::aodv::QueueEntry::GetErrorCallback(), ns3::aodv::QueueEntry::GetIpv4Header(), ns3::aodv::QueueEntry::GetPacket(), ns3::Packet::GetUid(), and NS_LOG_LOGIC.

Referenced by DropPacketWithDst(), Enqueue(), and Purge().

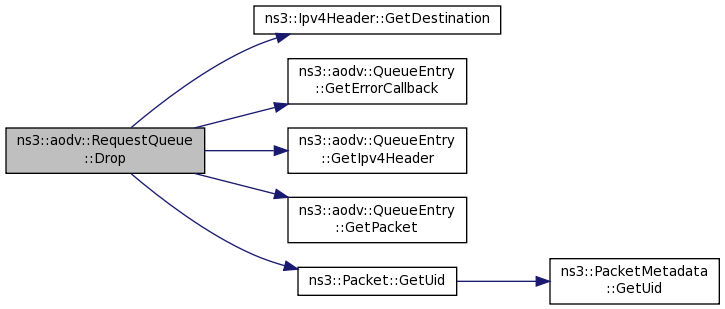

Here is the call graph for this function:

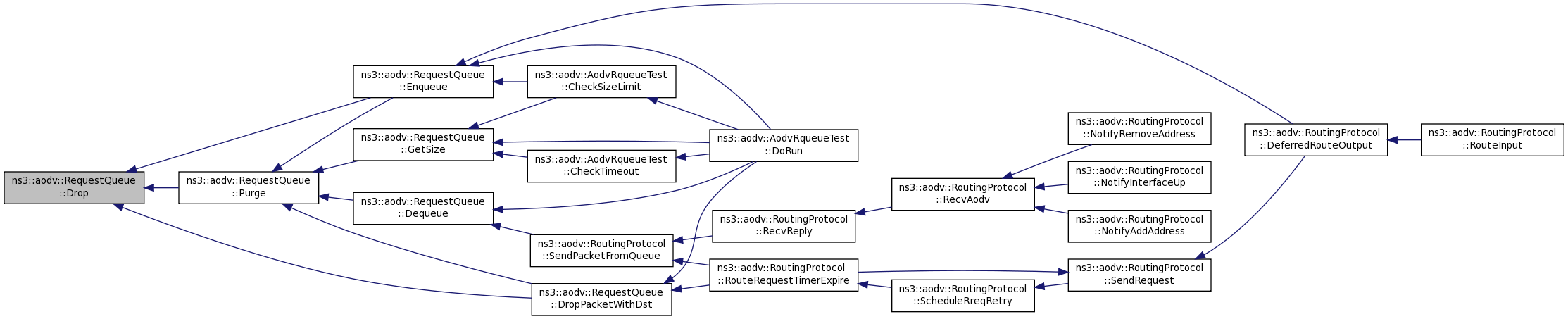

Here is the caller graph for this function:

void ns3::aodv::RequestQueue::DropPacketWithDst ( Ipv4Address dst )

Remove all packets with destination IP address dst.

Definition at line 71 of file aodv-rqueue.cc.

References Drop(), IsEqual(), m_queue, NS_LOG_FUNCTION, and Purge().

Referenced by ns3::aodv::AodvRqueueTest::DoRun(), and ns3::aodv::RoutingProtocol::RouteRequestTimerExpire().

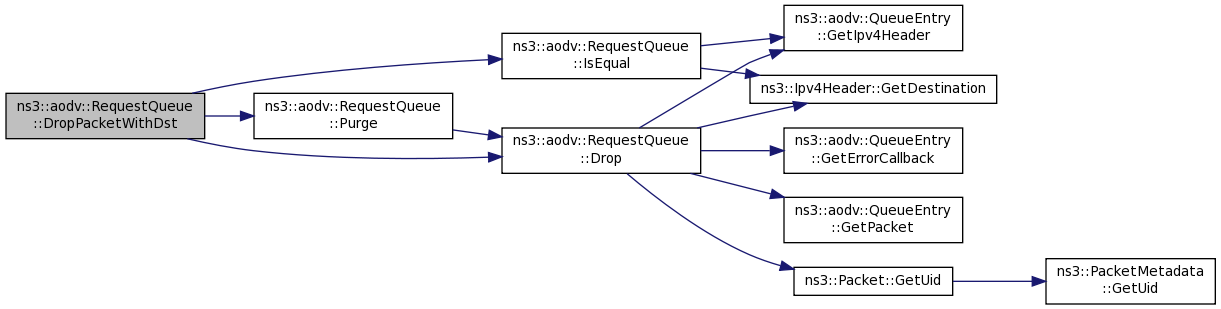

Here is the call graph for this function:

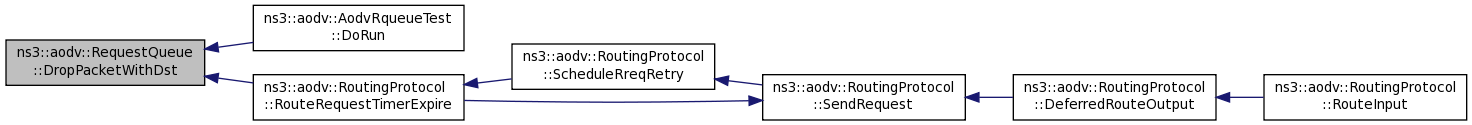

Here is the caller graph for this function:

bool ns3::aodv::RequestQueue::Enqueue ( QueueEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Definition at line 49 of file aodv-rqueue.cc.

References Drop(), ns3::Ipv4Header::GetDestination(), ns3::aodv::QueueEntry::GetIpv4Header(), ns3::aodv::QueueEntry::GetPacket(), ns3::Packet::GetUid(), m_maxLen, m_queue, m_queueTimeout, Purge(), and ns3::aodv::QueueEntry::SetExpireTime().

Referenced by ns3::aodv::AodvRqueueTest::CheckSizeLimit(), ns3::aodv::RoutingProtocol::DeferredRouteOutput(), and ns3::aodv::AodvRqueueTest::DoRun().

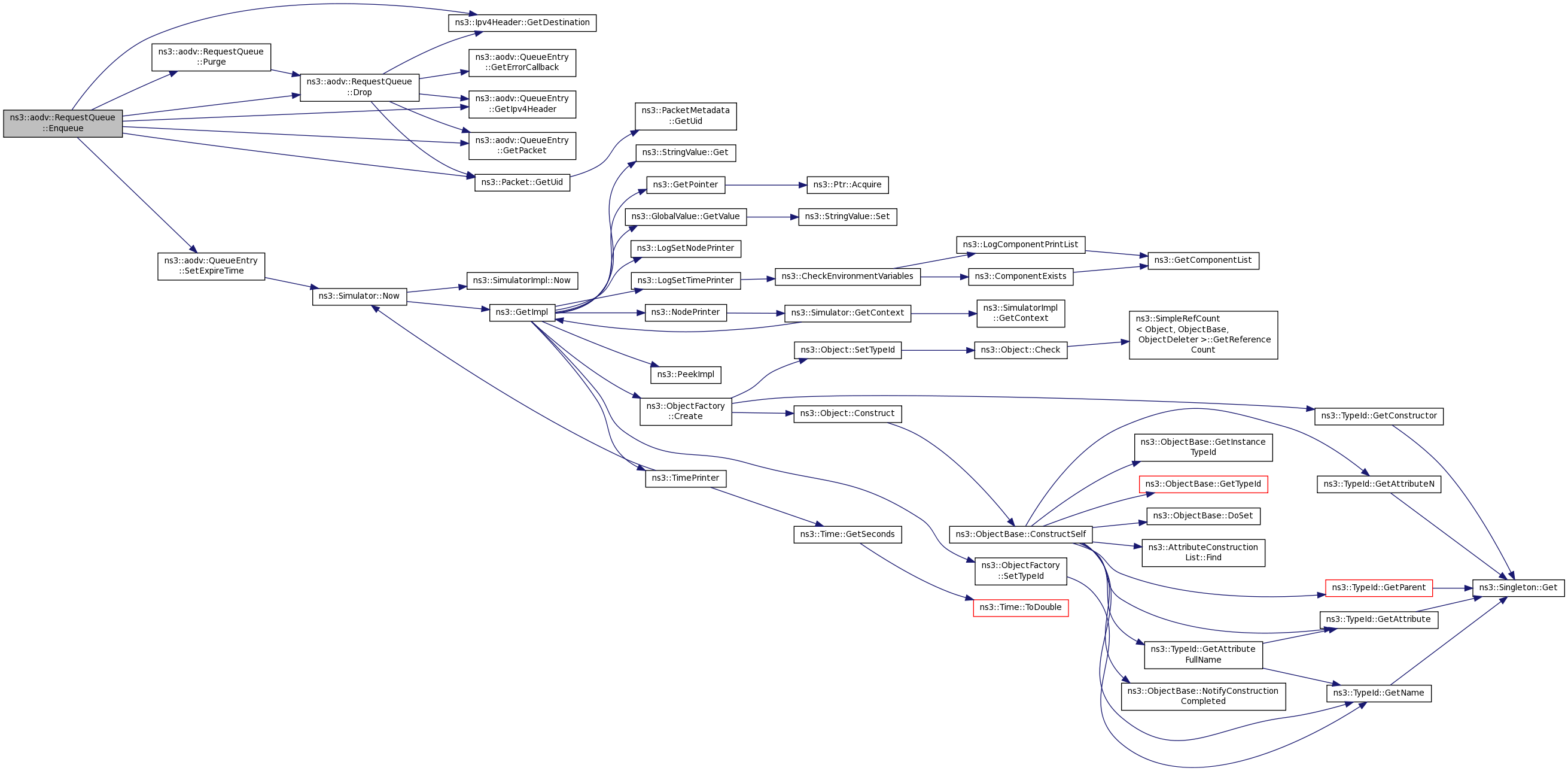

Here is the call graph for this function:

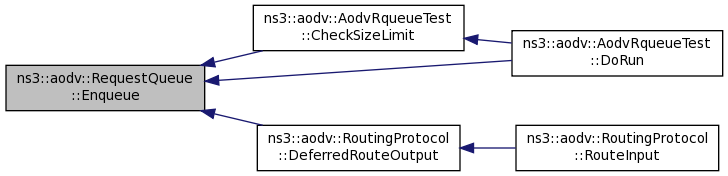

Here is the caller graph for this function:

bool ns3::aodv::RequestQueue::Find ( Ipv4Address dst )

Finds whether a packet with destination dst exists in the queue.

Definition at line 104 of file aodv-rqueue.cc.

References m_queue.

Referenced by ns3::aodv::AodvRqueueTest::DoRun().

Here is the caller graph for this function:

uint32_t ns3::aodv::RequestQueue::GetMaxQueueLen ( ) const

inline

Definition at line 115 of file aodv-rqueue.h.

References m_maxLen.

Referenced by ns3::aodv::AodvRqueueTest::CheckSizeLimit(), and ns3::aodv::AodvRqueueTest::DoRun().

Here is the caller graph for this function:

Time ns3::aodv::RequestQueue::GetQueueTimeout ( ) const

inline

Definition at line 117 of file aodv-rqueue.h.

References m_queueTimeout.

Referenced by ns3::aodv::AodvRqueueTest::DoRun().

Here is the caller graph for this function:

uint32_t ns3::aodv::RequestQueue::GetSize ( )

Number of entries.

Definition at line 42 of file aodv-rqueue.cc.

References m_queue, and Purge().

Referenced by ns3::aodv::AodvRqueueTest::CheckSizeLimit(), ns3::aodv::AodvRqueueTest::CheckTimeout(), and ns3::aodv::AodvRqueueTest::DoRun().

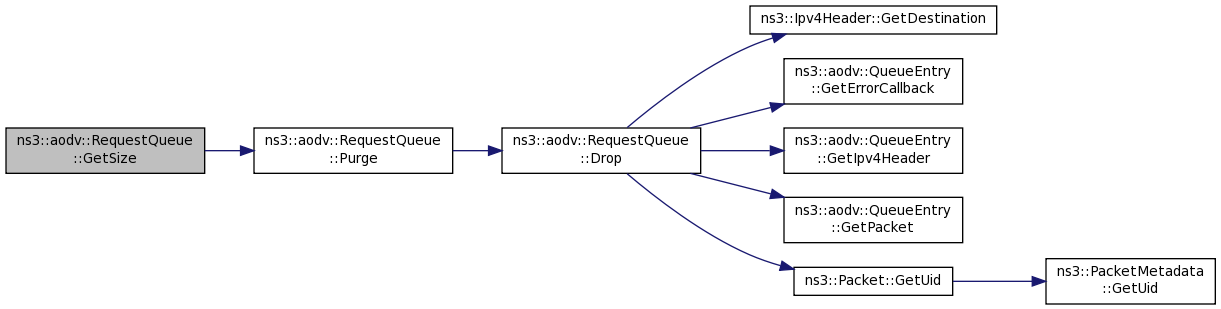

Here is the call graph for this function:

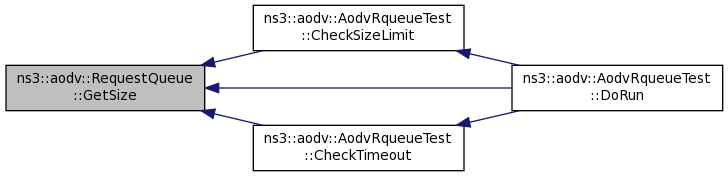

Here is the caller graph for this function:

static bool ns3::aodv::RequestQueue::IsEqual	(	QueueEntry	en,
		const Ipv4Address	dst
	)

inlinestaticprivate

Definition at line 131 of file aodv-rqueue.h.

References ns3::Ipv4Header::GetDestination(), and ns3::aodv::QueueEntry::GetIpv4Header().

Referenced by DropPacketWithDst().

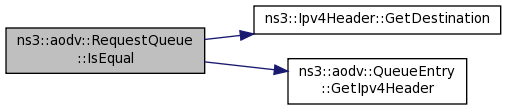

Here is the call graph for this function:

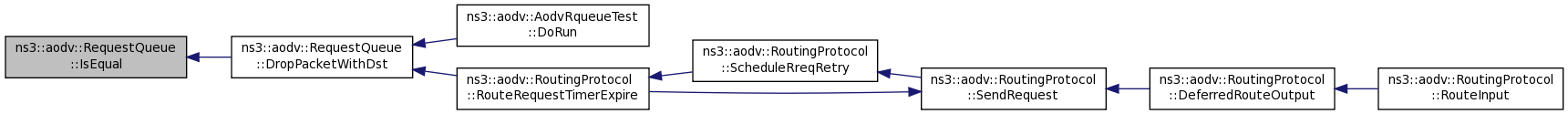

Here is the caller graph for this function:

void ns3::aodv::RequestQueue::Purge ( )

private

Remove all expired entries.

Definition at line 125 of file aodv-rqueue.cc.

References Drop(), and m_queue.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), and GetSize().

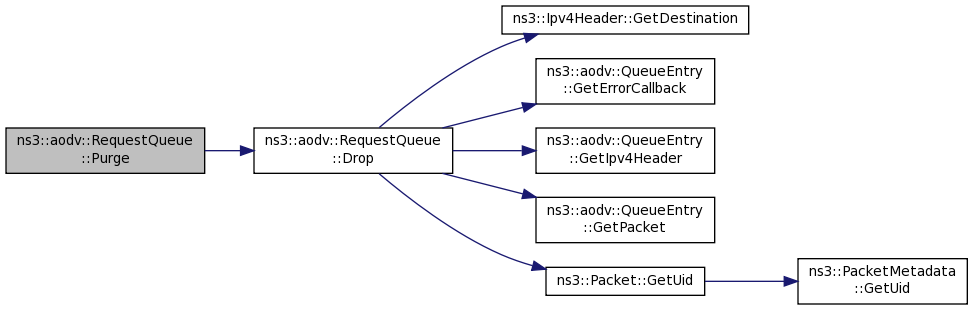

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RequestQueue::SetMaxQueueLen ( uint32_t len )

inline

Definition at line 116 of file aodv-rqueue.h.

References m_maxLen.

Referenced by ns3::aodv::AodvRqueueTest::DoRun(), and ns3::aodv::RoutingProtocol::SetMaxQueueLen().

Here is the caller graph for this function:

void ns3::aodv::RequestQueue::SetQueueTimeout ( Time t )

inline

Definition at line 118 of file aodv-rqueue.h.

References m_queueTimeout.

Referenced by ns3::aodv::AodvRqueueTest::DoRun(), and ns3::aodv::RoutingProtocol::SetMaxQueueTime().

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::aodv::RequestQueue::m_maxLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 128 of file aodv-rqueue.h.

Referenced by Enqueue(), GetMaxQueueLen(), and SetMaxQueueLen().

std::vector<QueueEntry> ns3::aodv::RequestQueue::m_queue

private

Definition at line 122 of file aodv-rqueue.h.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), Find(), GetSize(), and Purge().

Time ns3::aodv::RequestQueue::m_queueTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds.

Definition at line 130 of file aodv-rqueue.h.

Referenced by Enqueue(), GetQueueTimeout(), and SetQueueTimeout().

The documentation for this class was generated from the following files:

src/aodv/model/aodv-rqueue.h
src/aodv/model/aodv-rqueue.cc
