ns3::dot11s::HwmpTag Class Reference
IEEE 802.11s draft

Hwmp tag implements interaction between HWMP protocol and MeshWifiMac. More...

#include <hwmp-tag.h>

+ Inheritance diagram for ns3::dot11s::HwmpTag:
+ Collaboration diagram for ns3::dot11s::HwmpTag:

Public Member Functions

 HwmpTag ()

 ~HwmpTag ()

void DecrementTtl ()

virtual void Deserialize (TagBuffer i)

Mac48Address GetAddress ()

virtual TypeId GetInstanceTypeId () const

uint32_t GetMetric ()

uint32_t GetSeqno ()

virtual uint32_t GetSerializedSize () const

uint8_t GetTtl ()

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void SetAddress (Mac48Address retransmitter)

void SetMetric (uint32_t metric)

void SetSeqno (uint32_t seqno)

void SetTtl (uint8_t ttl)

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Mac48Address m_address

uint32_t m_metric

uint32_t m_seqno

uint8_t m_ttl


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Hwmp tag implements interaction between HWMP protocol and MeshWifiMac.

Doxygen introspection did not find any typical Config paths.

Hwmp tag keeps the following:

  1. When packet is passed from Hwmp to 11sMAC:
    • retransmitter address,
    • TTL value,
  2. When packet is passed to Hwmp from 11sMAC:
    • lasthop address,
    • TTL value,
    • metric value (metric of link is recalculated at each packet, but routing table stores metric obtained during path discovery procedure)


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 48 of file hwmp-tag.h.

Constructor & Destructor Documentation

ns3::dot11s::HwmpTag::HwmpTag ( )

Definition at line 30 of file hwmp-tag.cc.

ns3::dot11s::HwmpTag::~HwmpTag ( )

Definition at line 35 of file hwmp-tag.cc.

Member Function Documentation

void ns3::dot11s::HwmpTag::DecrementTtl ( )

Definition at line 148 of file hwmp-tag.cc.

References m_ttl.

Referenced by ns3::dot11s::HwmpProtocol::RequestRoute().

+ Here is the caller graph for this function:

void ns3::dot11s::HwmpTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 125 of file hwmp-tag.cc.

References first::address, ns3::Mac48Address::CopyFrom(), m_address, m_metric, m_seqno, m_ttl, ns3::TagBuffer::ReadU32(), and ns3::TagBuffer::ReadU8().

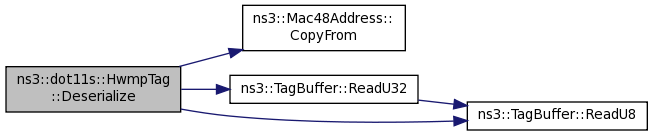

+ Here is the call graph for this function:

Mac48Address ns3::dot11s::HwmpTag::GetAddress ( void  )

Definition at line 46 of file hwmp-tag.cc.

References m_address.

Referenced by ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

+ Here is the caller graph for this function:

TypeId ns3::dot11s::HwmpTag::GetInstanceTypeId ( ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 95 of file hwmp-tag.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::dot11s::HwmpTag::GetMetric ( void  )

Definition at line 70 of file hwmp-tag.cc.

References m_metric.

uint32_t ns3::dot11s::HwmpTag::GetSeqno ( )

Definition at line 82 of file hwmp-tag.cc.

References m_seqno.

Referenced by ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

+ Here is the caller graph for this function:

uint32_t ns3::dot11s::HwmpTag::GetSerializedSize ( ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 101 of file hwmp-tag.cc.

uint8_t ns3::dot11s::HwmpTag::GetTtl ( void  )

Definition at line 58 of file hwmp-tag.cc.

References m_ttl.

Referenced by ns3::dot11s::HwmpProtocol::RequestRoute(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

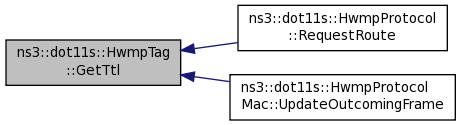

+ Here is the caller graph for this function:

TypeId ns3::dot11s::HwmpTag::GetTypeId ( void  )
static

Definition at line 88 of file hwmp-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::dot11s::HwmpTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 140 of file hwmp-tag.cc.

References m_address, m_metric, m_seqno, and m_ttl.

void ns3::dot11s::HwmpTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 110 of file hwmp-tag.cc.

References first::address, ns3::Mac48Address::CopyTo(), m_address, m_metric, m_seqno, m_ttl, ns3::TagBuffer::WriteU32(), and ns3::TagBuffer::WriteU8().

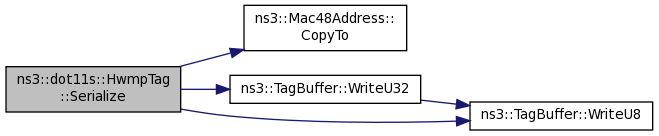

+ Here is the call graph for this function:

void ns3::dot11s::HwmpTag::SetAddress ( Mac48Address  retransmitter)

Definition at line 40 of file hwmp-tag.cc.

References m_address.

Referenced by ns3::dot11s::HwmpProtocol::ForwardUnicast(), ns3::dot11s::HwmpProtocol::ProactivePathResolved(), ns3::dot11s::HwmpProtocol::ReactivePathResolved(), and ns3::dot11s::HwmpProtocol::RequestRoute().

+ Here is the caller graph for this function:

void ns3::dot11s::HwmpTag::SetMetric ( uint32_t  metric)

Definition at line 64 of file hwmp-tag.cc.

References m_metric.

void ns3::dot11s::HwmpTag::SetSeqno ( uint32_t  seqno)

Definition at line 76 of file hwmp-tag.cc.

References m_seqno.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveData(), and ns3::dot11s::HwmpProtocol::RequestRoute().

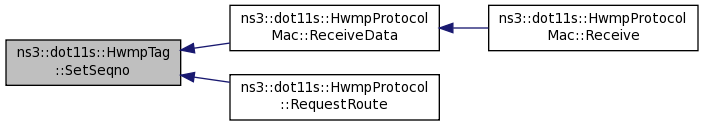

+ Here is the caller graph for this function:

void ns3::dot11s::HwmpTag::SetTtl ( uint8_t  ttl)

Definition at line 52 of file hwmp-tag.cc.

References m_ttl.

Referenced by ns3::dot11s::HwmpProtocol::ForwardUnicast(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), and ns3::dot11s::HwmpProtocol::RequestRoute().

+ Here is the caller graph for this function:

Member Data Documentation

Mac48Address ns3::dot11s::HwmpTag::m_address
private

Definition at line 70 of file hwmp-tag.h.

Referenced by Deserialize(), GetAddress(), Print(), Serialize(), and SetAddress().

uint32_t ns3::dot11s::HwmpTag::m_metric
private

Definition at line 72 of file hwmp-tag.h.

Referenced by Deserialize(), GetMetric(), Print(), Serialize(), and SetMetric().

uint32_t ns3::dot11s::HwmpTag::m_seqno
private

Definition at line 73 of file hwmp-tag.h.

Referenced by Deserialize(), GetSeqno(), Print(), Serialize(), and SetSeqno().

uint8_t ns3::dot11s::HwmpTag::m_ttl
private

Definition at line 71 of file hwmp-tag.h.

Referenced by DecrementTtl(), Deserialize(), GetTtl(), Print(), Serialize(), and SetTtl().

The documentation for this class was generated from the following files:
