Mesh Control field, see IEEE 802.11s draft 3.0 section 7.1.3.5b. More...

#include <dot11s-mac-header.h>

Inheritance diagram for ns3::dot11s::MeshHeader:

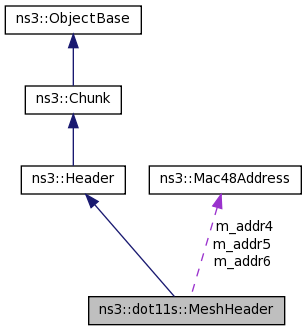

Collaboration diagram for ns3::dot11s::MeshHeader:

Public Member Functions
	MeshHeader ()

	~MeshHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

Mac48Address	GetAddr4 () const

Mac48Address	GetAddr5 () const

Mac48Address	GetAddr6 () const

uint8_t	GetAddressExt () const

virtual TypeId	GetInstanceTypeId () const

uint32_t	GetMeshSeqno () const

uint8_t	GetMeshTtl () const

virtual uint32_t	GetSerializedSize () const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetAddr4 (Mac48Address address)

void	SetAddr5 (Mac48Address address)

void	SetAddr6 (Mac48Address address)

void	SetAddressExt (uint8_t num_of_addresses)

void	SetMeshSeqno (uint32_t seqno)

void	SetMeshTtl (uint8_t TTL)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Mac48Address	m_addr4

Mac48Address	m_addr5

Mac48Address	m_addr6

uint8_t	m_meshFlags

uint32_t	m_meshSeqno

uint8_t	m_meshTtl

Friends
bool	operator== (const MeshHeader &a, const MeshHeader &b)

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Mesh Control field, see IEEE 802.11s draft 3.0 section 7.1.3.5b.

Definition at line 37 of file dot11s-mac-header.h.

Constructor & Destructor Documentation

ns3::dot11s::MeshHeader::MeshHeader ( )

Definition at line 39 of file dot11s-mac-header.cc.

ns3::dot11s::MeshHeader::~MeshHeader ( )

Definition at line 44 of file dot11s-mac-header.cc.

Member Function Documentation

uint32_t ns3::dot11s::MeshHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 141 of file dot11s-mac-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, m_meshTtl, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

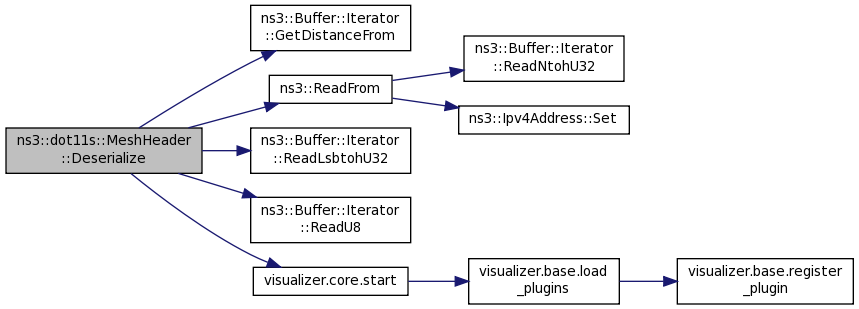

Here is the call graph for this function:

Mac48Address ns3::dot11s::MeshHeader::GetAddr4 ( ) const

Definition at line 68 of file dot11s-mac-header.cc.

References m_addr4.

Mac48Address ns3::dot11s::MeshHeader::GetAddr5 ( ) const

Definition at line 73 of file dot11s-mac-header.cc.

References m_addr5.

Mac48Address ns3::dot11s::MeshHeader::GetAddr6 ( ) const

Definition at line 78 of file dot11s-mac-header.cc.

References m_addr6.

uint8_t ns3::dot11s::MeshHeader::GetAddressExt ( ) const

Definition at line 109 of file dot11s-mac-header.cc.

References m_meshFlags.

Referenced by GetSerializedSize(), and Serialize().

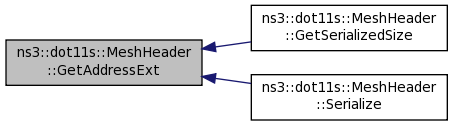

Here is the caller graph for this function:

TypeId ns3::dot11s::MeshHeader::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 48 of file dot11s-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::dot11s::MeshHeader::GetMeshSeqno ( ) const

Definition at line 88 of file dot11s-mac-header.cc.

References m_meshSeqno.

uint8_t ns3::dot11s::MeshHeader::GetMeshTtl ( ) const

Definition at line 98 of file dot11s-mac-header.cc.

References m_meshTtl.

uint32_t ns3::dot11s::MeshHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 114 of file dot11s-mac-header.cc.

References GetAddressExt().

Here is the call graph for this function:

TypeId ns3::dot11s::MeshHeader::GetTypeId ( void )

static

Definition at line 32 of file dot11s-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::MeshHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 164 of file dot11s-mac-header.cc.

References m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, and m_meshTtl.

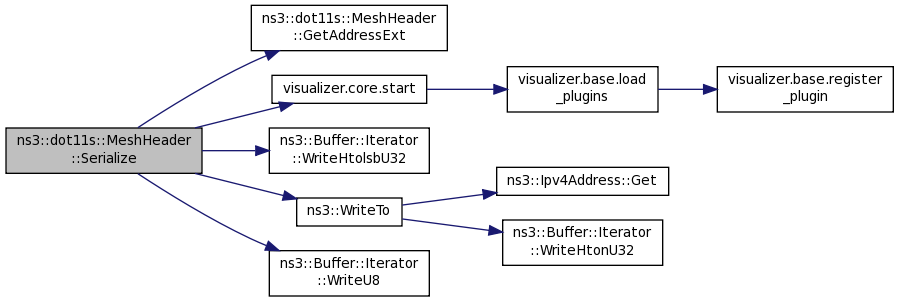

void ns3::dot11s::MeshHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 119 of file dot11s-mac-header.cc.

References GetAddressExt(), m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, m_meshTtl, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
