Acknowledgement (ACK) Message Format. More...

#include <dsr-option-header.h>

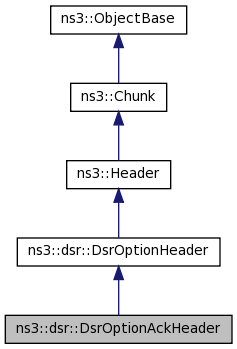

Inheritance diagram for ns3::dsr::DsrOptionAckHeader:

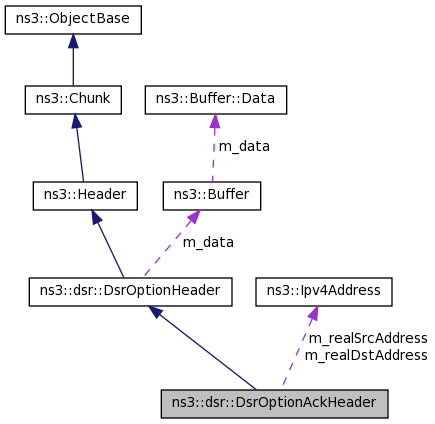

Collaboration diagram for ns3::dsr::DsrOptionAckHeader:

Public Member Functions
	DsrOptionAckHeader ()
	Constructor. More...

virtual	~DsrOptionAckHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

uint16_t	GetAckId () const
	Set the Ack id number. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv4Address	GetRealDst () const
	Get Error source ip address. More...

Ipv4Address	GetRealSrc () const
	Get Error source ip address. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetAckId (uint16_t identification)
	Set the Ack id number. More...

void	SetRealDst (Ipv4Address realDstAddress)
	Set Error source ip address. More...

void	SetRealSrc (Ipv4Address realSrcAddress)
	Set Error source ip address. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_identification
	identification field More...

Ipv4Address	m_realDstAddress
	ack destination address More...

Ipv4Address	m_realSrcAddress
	ack source address More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Acknowledgement (ACK) Message Format.

Header of Dsr Option ack.

Doxygen introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |         Identification         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                        ACK Source Address                     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                     ACK Destination Address                   |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1243 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionAckHeader::DsrOptionAckHeader ( )

Constructor.

Definition at line 1130 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

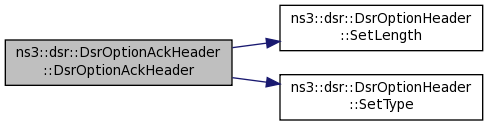

Here is the call graph for this function:

ns3::dsr::DsrOptionAckHeader::~DsrOptionAckHeader ( )

virtual

Destructor.

Definition at line 1137 of file dsr-option-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrOptionAckHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1195 of file dsr-option-header.cc.

References GetSerializedSize(), m_identification, m_realDstAddress, m_realSrcAddress, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

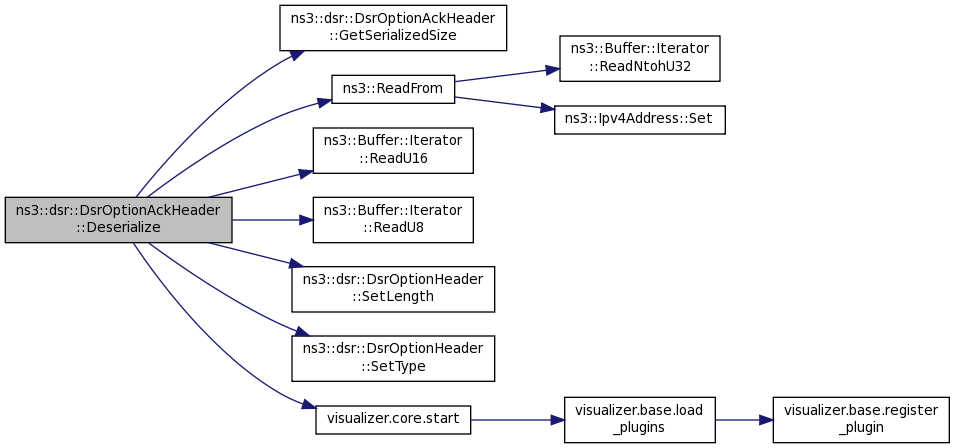

Here is the call graph for this function:

uint16_t ns3::dsr::DsrOptionAckHeader::GetAckId ( ) const

Set the Ack id number.

Returns: request id number

Definition at line 1146 of file dsr-option-header.cc.

References m_identification.

Referenced by ns3::dsr::DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrOptionAck::Process().

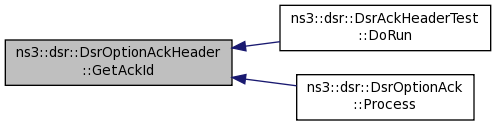

Here is the caller graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionAckHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1208 of file dsr-option-header.cc.

TypeId ns3::dsr::DsrOptionAckHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1125 of file dsr-option-header.cc.

References GetTypeId().

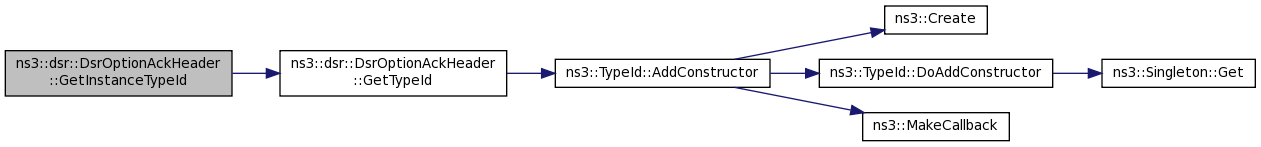

Here is the call graph for this function:

Ipv4Address ns3::dsr::DsrOptionAckHeader::GetRealDst ( ) const

Get Error source ip address.

Returns: The real dst address

Definition at line 1166 of file dsr-option-header.cc.

References m_realDstAddress.

Referenced by ns3::dsr::DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrOptionAck::Process().

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrOptionAckHeader::GetRealSrc ( ) const

Get Error source ip address.

Returns: The real source address

Definition at line 1156 of file dsr-option-header.cc.

References m_realSrcAddress.

Referenced by ns3::dsr::DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrOptionAck::Process().

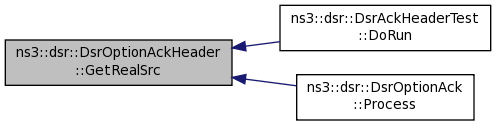

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptionAckHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1179 of file dsr-option-header.cc.

Referenced by Deserialize(), and ns3::dsr::DsrOptionAck::Process().

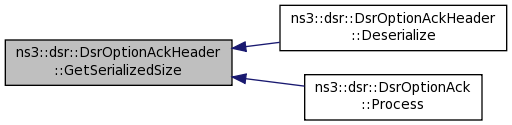

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionAckHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 1116 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

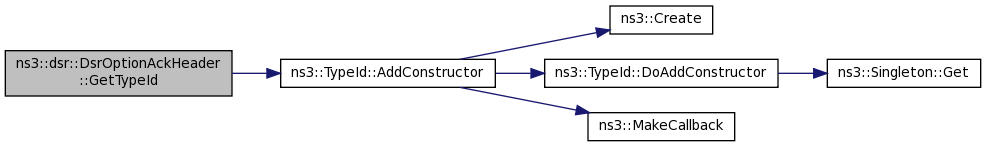

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionAckHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1171 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_identification, m_realDstAddress, and m_realSrcAddress.

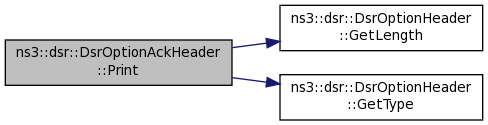

Here is the call graph for this function:

void ns3::dsr::DsrOptionAckHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1184 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_identification, m_realDstAddress, m_realSrcAddress, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

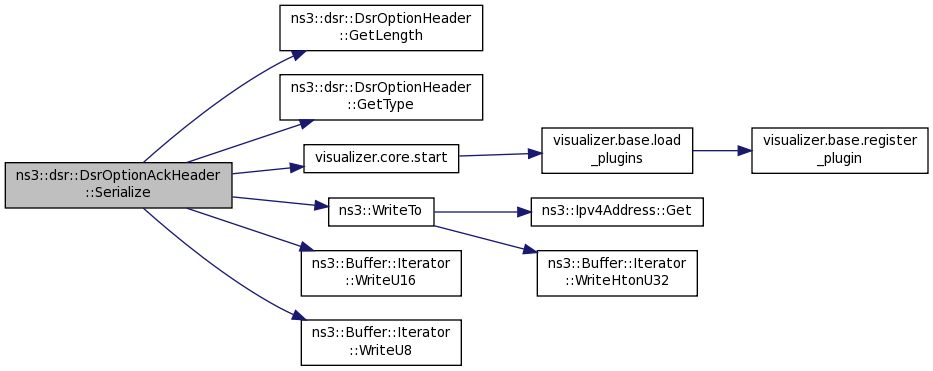

Here is the call graph for this function:

void ns3::dsr::DsrOptionAckHeader::SetAckId ( uint16_t identification )

Set the Ack id number.

Parameters

identification the identification number

Definition at line 1141 of file dsr-option-header.cc.

References m_identification.

Referenced by ns3::dsr::DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendAck().

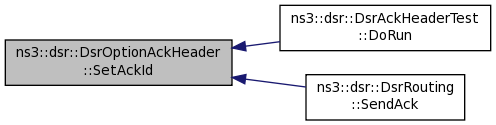

Here is the caller graph for this function:

void ns3::dsr::DsrOptionAckHeader::SetRealDst ( Ipv4Address realDstAddress )

Set Error source ip address.

Parameters

realDstAddress The real dst address

Definition at line 1161 of file dsr-option-header.cc.

References m_realDstAddress.

Referenced by ns3::dsr::DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendAck().

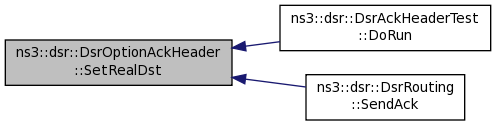

Here is the caller graph for this function:

void ns3::dsr::DsrOptionAckHeader::SetRealSrc ( Ipv4Address realSrcAddress )

Set Error source ip address.

Parameters

realSrcAddress The real source address

Definition at line 1151 of file dsr-option-header.cc.

References m_realSrcAddress.

Referenced by ns3::dsr::DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendAck().

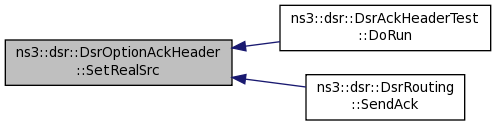

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::dsr::DsrOptionAckHeader::m_identification

private

identification field

Definition at line 1326 of file dsr-option-header.h.

Referenced by Deserialize(), GetAckId(), Print(), Serialize(), and SetAckId().

Ipv4Address ns3::dsr::DsrOptionAckHeader::m_realDstAddress

private

ack destination address

Definition at line 1334 of file dsr-option-header.h.

Referenced by Deserialize(), GetRealDst(), Print(), Serialize(), and SetRealDst().

Ipv4Address ns3::dsr::DsrOptionAckHeader::m_realSrcAddress

private

ack source address

Definition at line 1330 of file dsr-option-header.h.

Referenced by Deserialize(), GetRealSrc(), Print(), Serialize(), and SetRealSrc().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc
