Route Reply (RREP) Message Format. More...

#include <dsr-option-header.h>

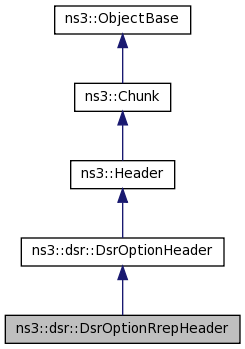

Inheritance diagram for ns3::dsr::DsrOptionRrepHeader:

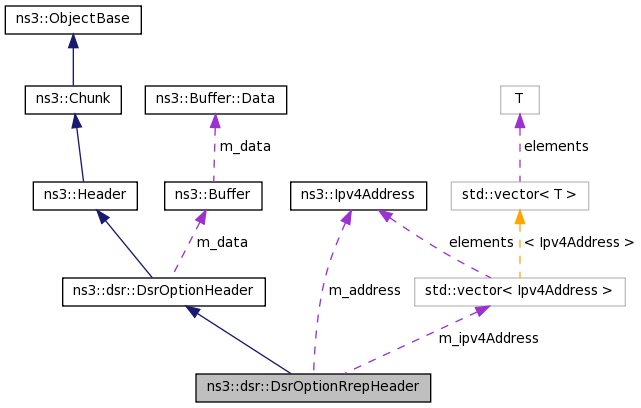

Collaboration diagram for ns3::dsr::DsrOptionRrepHeader:

Public Member Functions
	DsrOptionRrepHeader ()
	Constructor. More...

virtual	~DsrOptionRrepHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv4Address	GetNodeAddress (uint8_t index) const
	Get a Node IPv4 Address. More...

std::vector< Ipv4Address >	GetNodesAddress () const
	Get the vector of ipv4 address. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

Ipv4Address	GetTargetAddress (std::vector< Ipv4Address > ipv4Address) const

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetNodeAddress (uint8_t index, Ipv4Address addr)
	Set a Node IPv4 Address. More...

void	SetNodesAddress (std::vector< Ipv4Address > ipv4Address)
	Set the vector of ipv4 address. More...

void	SetNumberAddress (uint8_t n)
	Set the number of ipv4 address. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ipv4Address >	VectorIpv4Address_t
	type def A vector of IPv4 Address. More...

Private Attributes
Ipv4Address	m_address

VectorIpv4Address_t	m_ipv4Address
	The vector of Nodes' IPv4 Address. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Route Reply (RREP) Message Format.

Header of Dsr Option Route Reply.

Doxygen introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
                -+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
                |  Option Type  |  Opt Data Len |L|   Reserved   |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Route Reply (RREP) Message Format

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type  |  Opt Data Len |L|   Reserved   |   Reserved   |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 448 of file dsr-option-header.h.

Member Typedef Documentation

typedef std::vector<Ipv4Address> ns3::dsr::DsrOptionRrepHeader::VectorIpv4Address_t

private

type def A vector of IPv4 Address.

Definition at line 537 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionRrepHeader::DsrOptionRrepHeader ( )

Constructor.

Definition at line 412 of file dsr-option-header.cc.

References m_ipv4Address, ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

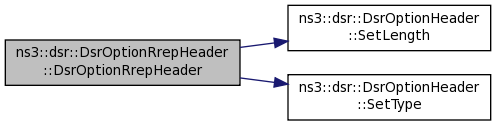

Here is the call graph for this function:

ns3::dsr::DsrOptionRrepHeader::~DsrOptionRrepHeader ( )

virtual

Destructor.

Definition at line 419 of file dsr-option-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrOptionRrepHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 489 of file dsr-option-header.cc.

References ns3::Ipv4Address::Deserialize(), GetSerializedSize(), m_address, m_ipv4Address, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), SetNodeAddress(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

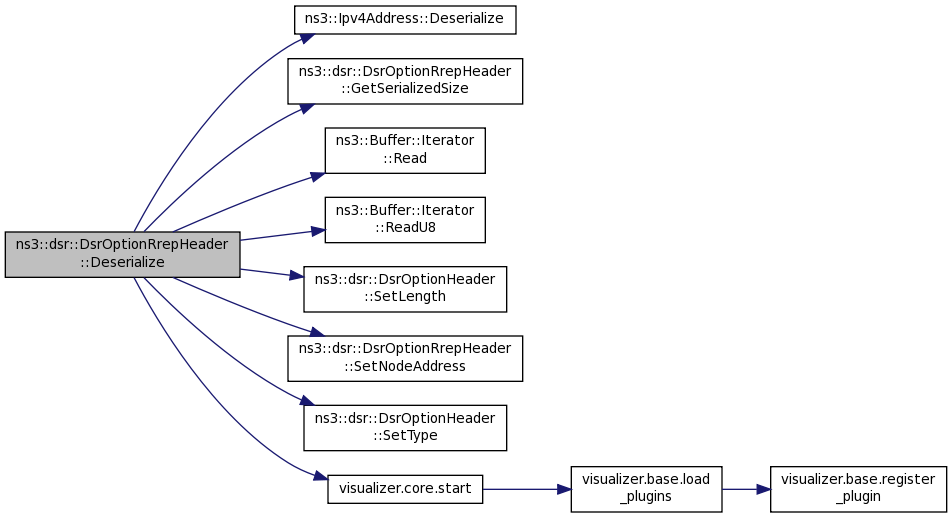

Here is the call graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionRrepHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 511 of file dsr-option-header.cc.

TypeId ns3::dsr::DsrOptionRrepHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 407 of file dsr-option-header.cc.

References GetTypeId().

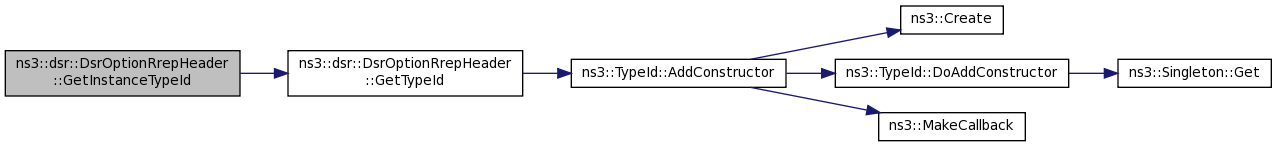

Here is the call graph for this function:

Ipv4Address ns3::dsr::DsrOptionRrepHeader::GetNodeAddress ( uint8_t index ) const

Get a Node IPv4 Address.

Parameters

index the index of the IPv4 Address

Returns: the router IPv4 Address

Definition at line 445 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrRrepHeaderTest::DoRun().

Here is the caller graph for this function:

std::vector< Ipv4Address > ns3::dsr::DsrOptionRrepHeader::GetNodesAddress ( ) const

Get the vector of ipv4 address.

Returns: the vector of ipv4 address

Definition at line 435 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrOptionRrep::Process().

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptionRrepHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 467 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize(), and ns3::dsr::DsrOptionRrep::Process().

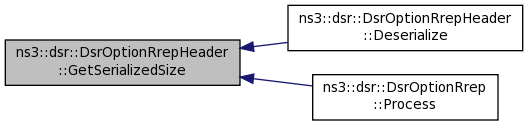

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrOptionRrepHeader::GetTargetAddress ( std::vector< Ipv4Address > ipv4Address ) const

Definition at line 450 of file dsr-option-header.cc.

References m_ipv4Address.

TypeId ns3::dsr::DsrOptionRrepHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 398 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

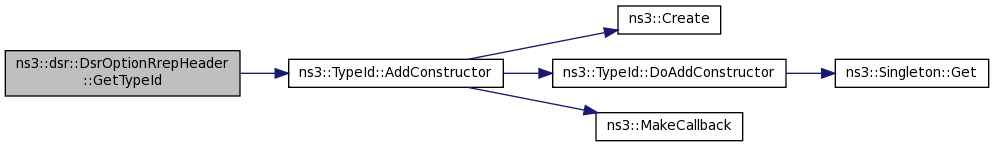

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRrepHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 455 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), and m_ipv4Address.

Here is the call graph for this function:

void ns3::dsr::DsrOptionRrepHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 472 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_ipv4Address, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::dsr::DsrOptionRrepHeader::SetNodeAddress	(	uint8_t	index,
		Ipv4Address	addr
	)

Set a Node IPv4 Address.

Parameters

index	the index of the IPv4 Address
addr	the new IPv4 Address

Definition at line 440 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRrepHeader::SetNodesAddress ( std::vector< Ipv4Address > ipv4Address )

Set the vector of ipv4 address.

Parameters

ipv4Address the vector of ipv4 address

Definition at line 429 of file dsr-option-header.cc.

References m_ipv4Address, and ns3::dsr::DsrOptionHeader::SetLength().

Referenced by ns3::dsr::DsrRrepHeaderTest::DoRun(), ns3::dsr::DsrOptionRreq::Process(), and ns3::dsr::DsrRouting::SendGratuitousReply().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRrepHeader::SetNumberAddress ( uint8_t n )

Set the number of ipv4 address.

Parameters

n	the number of ipv4 address

Definition at line 423 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrRrepHeaderTest::DoRun(), and ns3::dsr::DsrOptionRrep::Process().

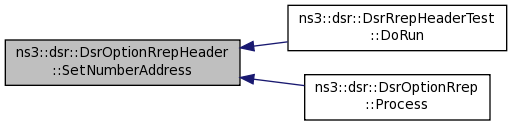

Here is the caller graph for this function:

Member Data Documentation

Ipv4Address ns3::dsr::DsrOptionRrepHeader::m_address

private

Definition at line 533 of file dsr-option-header.h.

Referenced by Deserialize().

VectorIpv4Address_t ns3::dsr::DsrOptionRrepHeader::m_ipv4Address

private

The vector of Nodes' IPv4 Address.

Definition at line 541 of file dsr-option-header.h.

Referenced by Deserialize(), DsrOptionRrepHeader(), GetNodeAddress(), GetNodesAddress(), GetSerializedSize(), GetTargetAddress(), Print(), Serialize(), SetNodeAddress(), SetNodesAddress(), and SetNumberAddress().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc
