ns3::flame::FlameTag Class Reference

Transmitter and receiver addresses. More...

#include <flame-protocol.h>

Inheritance diagram for ns3::flame::FlameTag:

Collaboration diagram for ns3::flame::FlameTag:

Public Member Functions
	FlameTag (Mac48Address a=Mac48Address())
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Public Attributes
Mac48Address	receiver
	Receiver of the packet: More...
Mac48Address	transmitter
	transmitter for incoming: More...

Inherited from Tag
TypeId	GetInstanceTypeId () const
uint32_t	GetSerializedSize () const
void	Serialize (TagBuffer i) const
void	Deserialize (TagBuffer i)
void	Print (std::ostream &os) const
static TypeId	GetTypeId ()

Additional Inherited Members
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Transmitter and receiver addresses.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 54 of file flame-protocol.h.

Constructor & Destructor Documentation

ns3::flame::FlameTag::FlameTag ( Mac48Address  a = Mac48Address () )

inline

Definition at line 62 of file flame-protocol.h.

Member Function Documentation

void ns3::flame::FlameTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 83 of file flame-protocol.cc.

References ns3::Mac48Address::CopyFrom(), ns3::TagBuffer::ReadU8(), receiver, and transmitter.

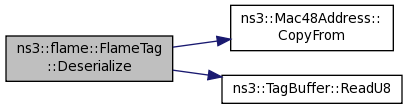

Here is the call graph for this function:

TypeId ns3::flame::FlameTag::GetInstanceTypeId ( ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 54 of file flame-protocol.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::flame::FlameTag::GetSerializedSize ( ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 60 of file flame-protocol.cc.

TypeId ns3::flame::FlameTag::GetTypeId ( void  )

static

Definition at line 47 of file flame-protocol.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::flame::FlameTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 100 of file flame-protocol.cc.

References receiver, and transmitter.

void ns3::flame::FlameTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 66 of file flame-protocol.cc.

References ns3::Mac48Address::CopyTo(), receiver, transmitter, and ns3::TagBuffer::WriteU8().

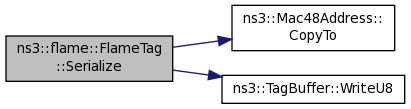

Here is the call graph for this function:

Member Data Documentation

Mac48Address ns3::flame::FlameTag::receiver

Receiver of the packet:

Definition at line 60 of file flame-protocol.h.

Referenced by Deserialize(), Print(), ns3::flame::FlameProtocolMac::Receive(), ns3::flame::FlameProtocol::RequestRoute(), Serialize(), and ns3::flame::FlameProtocolMac::UpdateOutcomingFrame().

Mac48Address ns3::flame::FlameTag::transmitter

transmitter for incoming:

Definition at line 58 of file flame-protocol.h.

Referenced by Deserialize(), Print(), ns3::flame::FlameProtocolMac::Receive(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), ns3::flame::FlameProtocol::RequestRoute(), and Serialize().

---

The documentation for this class was generated from the following files:

• src/mesh/model/flame/flame-protocol.h
• src/mesh/model/flame/flame-protocol.cc
