dsr-option-header.h File Reference

#include <ostream>
#include <algorithm>
#include "ns3/header.h"
#include "ns3/ipv4-address.h"
#include "ns3/simulator.h"

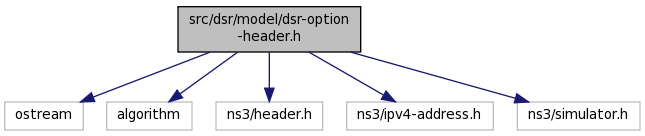

Include dependency graph for dsr-option-header.h:

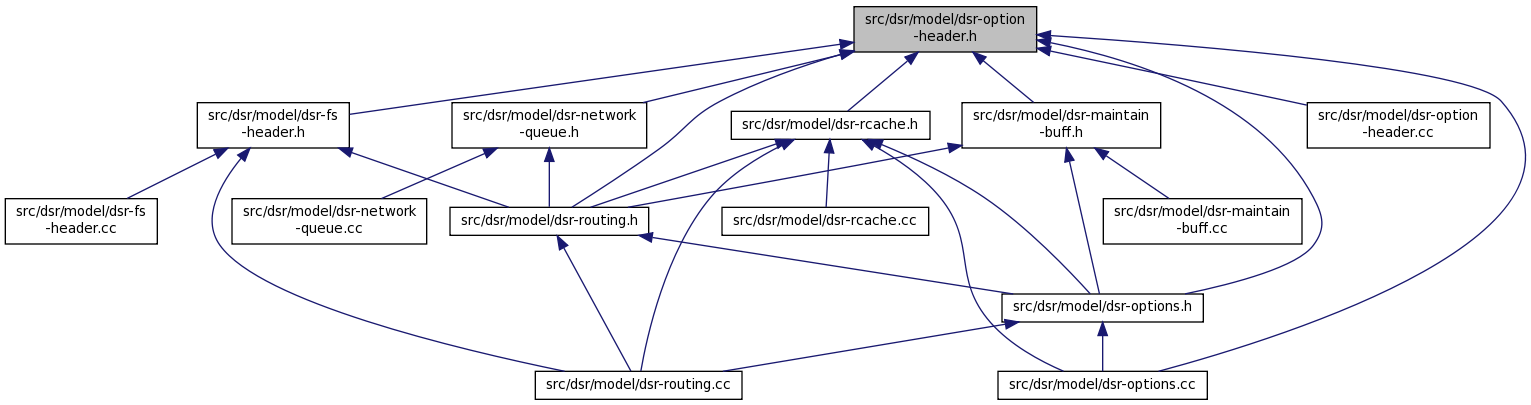

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::dsr::DsrOptionHeader::Alignment
	represents the alignment requirements of an option header More...
class	ns3::dsr::DsrOptionAckHeader
	Acknowledgement (ACK) Message Format. More...
class	ns3::dsr::DsrOptionAckReqHeader
	Acknowledgement Request (ACK_RREQ) Message Format. More...
class	ns3::dsr::DsrOptionHeader
	Doxygen introspection did not find any typical Config paths. More...
class	ns3::dsr::DsrOptionPad1Header
	Doxygen introspection did not find any typical Config paths. More...
class	ns3::dsr::DsrOptionPadnHeader
	Doxygen introspection did not find any typical Config paths. More...
class	ns3::dsr::DsrOptionRerrHeader
	Doxygen introspection did not find any typical Config paths. More...
class	ns3::dsr::DsrOptionRerrUnreachHeader
	Route Error (RERR) Unreachable node address option Message Format. More...
class	ns3::dsr::DsrOptionRerrUnsupportHeader
	Route Error (RERR) Unsupported option Message Format. More...
class	ns3::dsr::DsrOptionRrepHeader
	Route Reply (RREP) Message Format. More...
class	ns3::dsr::DsrOptionRreqHeader
	Route Request (RREQ) Message Format. More...
class	ns3::dsr::DsrOptionSRHeader
	Source Route (SR) Message Format. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
	ns3::dsr

Enumerations
enum	ns3::dsr::ErrorType { ns3::dsr::NODE_UNREACHABLE = 1, ns3::dsr::FLOW_STATE_NOT_SUPPORTED = 2, ns3::dsr::OPTION_NOT_SUPPORTED = 3 }
	Route Error (RERR) Message Format. More...

Functions
static std::ostream &	ns3::dsr::operator<< (std::ostream &os, const DsrOptionSRHeader &sr)
