lte-spectrum-phy.h File Reference

#include <ns3/event-id.h>
#include <ns3/spectrum-value.h>
#include <ns3/mobility-model.h>
#include <ns3/packet.h>
#include <ns3/nstime.h>
#include <ns3/net-device.h>
#include <ns3/spectrum-phy.h>
#include <ns3/spectrum-channel.h>
#include <ns3/spectrum-interference.h>
#include <ns3/data-rate.h>
#include <ns3/generic-phy.h>
#include <ns3/packet-burst.h>
#include <ns3/lte-interference.h>
#include "ns3/random-variable-stream.h"
#include <map>
#include <ns3/ff-mac-common.h>
#include <ns3/lte-harq-phy.h>
#include <ns3/lte-common.h>

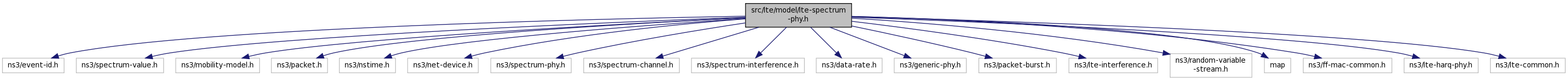

Include dependency graph for lte-spectrum-phy.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::LteSpectrumPhy
	The LteSpectrumPhy models the physical layer of LTE. More...
struct	ns3::TbId_t
struct	ns3::tbInfo_t

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
typedef std::map< TbId_t, tbInfo_t >	ns3::expectedTbs_t
typedef Callback< void, DlInfoListElement_s >	ns3::LtePhyDlHarqFeedbackCallback
	This method is used by the LteSpectrumPhy to notify the PHY about the status of a certain DL HARQ process. More...
typedef Callback< void >	ns3::LtePhyRxCtrlEndErrorCallback
	This method is used by the LteSpectrumPhy to notify the PHY that a previously started RX of a control frame attempt has terminated without success. More...
typedef Callback< void, std::list< Ptr < LteControlMessage > > >	ns3::LtePhyRxCtrlEndOkCallback
	This method is used by the LteSpectrumPhy to notify the PHY that a previously started RX of a control frame attempt has been successfully completed. More...
typedef Callback< void >	ns3::LtePhyRxDataEndErrorCallback
	This method is used by the LteSpectrumPhy to notify the PHY that a previously started RX attempt has terminated without success. More...
typedef Callback< void, Ptr < Packet > >	ns3::LtePhyRxDataEndOkCallback
	This method is used by the LteSpectrumPhy to notify the PHY that a previously started RX attempt has been successfully completed. More...
typedef Callback< void, uint16_t, Ptr< SpectrumValue > >	ns3::LtePhyRxPssCallback
	This method is used by the LteSpectrumPhy to notify the UE PHY that a PSS has been received. More...
typedef Callback< void, Ptr < const Packet > >	ns3::LtePhyTxEndCallback
	this method is invoked by the LteSpectrumPhy to notify the PHY that the transmission of a given packet has been completed. More...
typedef Callback< void, UlInfoListElement_s >	ns3::LtePhyUlHarqFeedbackCallback
	This method is used by the LteSpectrumPhy to notify the PHY about the status of a certain UL HARQ process. More...
