socket-bound-static-routing.cc File Reference

#include <iostream>
#include <fstream>
#include <string>
#include <cassert>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/ipv4-static-routing-helper.h"
#include "ns3/ipv4-list-routing-helper.h"

Include dependency graph for socket-bound-static-routing.cc:

Go to the source code of this file.

Functions
void	BindSock (Ptr< Socket > sock, Ptr< NetDevice > netdev)
void	dstSocketRecv (Ptr< Socket > socket)
int	main (int argc, char *argv[])
	NS_LOG_COMPONENT_DEFINE ("SocketBoundRoutingExample")
void	SendStuff (Ptr< Socket > sock, Ipv4Address dstaddr, uint16_t port)
void	srcSocketRecv (Ptr< Socket > socket)

Function Documentation

void BindSock	(	Ptr< Socket >	sock,
		Ptr< NetDevice >	netdev
	)

Definition at line 183 of file socket-bound-static-routing.cc.

References ns3::Socket::BindToNetDevice().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void dstSocketRecv

(

Ptr< Socket >

socket

)

Definition at line 208 of file socket-bound-static-routing.cc.

References first::address, ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Packet::GetSize(), NS_LOG_INFO, ns3::Socket::RecvFrom(), ns3::Packet::RemoveAllByteTags(), ns3::Packet::RemoveAllPacketTags(), and SendStuff().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 55 of file socket-bound-static-routing.cc.

References ns3::Ipv4StaticRouting::AddHostRouteTo(), ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), BindSock(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::Socket::CreateSocket(), ns3::Simulator::Destroy(), dstSocketRecv(), ns3::AsciiTraceHelperForDevice::EnableAsciiAll(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NetDeviceContainer::Get(), ns3::Object::GetObject(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::Install(), ns3::LOG_LEVEL_INFO, ns3::LOG_PREFIX_TIME, ns3::LogComponentEnable(), ns3::LogComponentEnableAll(), ns3::TypeId::LookupByName(), ns3::MakeCallback(), ns3::CommandLine::Parse(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), SendStuff(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::Socket::SetRecvCallback(), and srcSocketRecv().

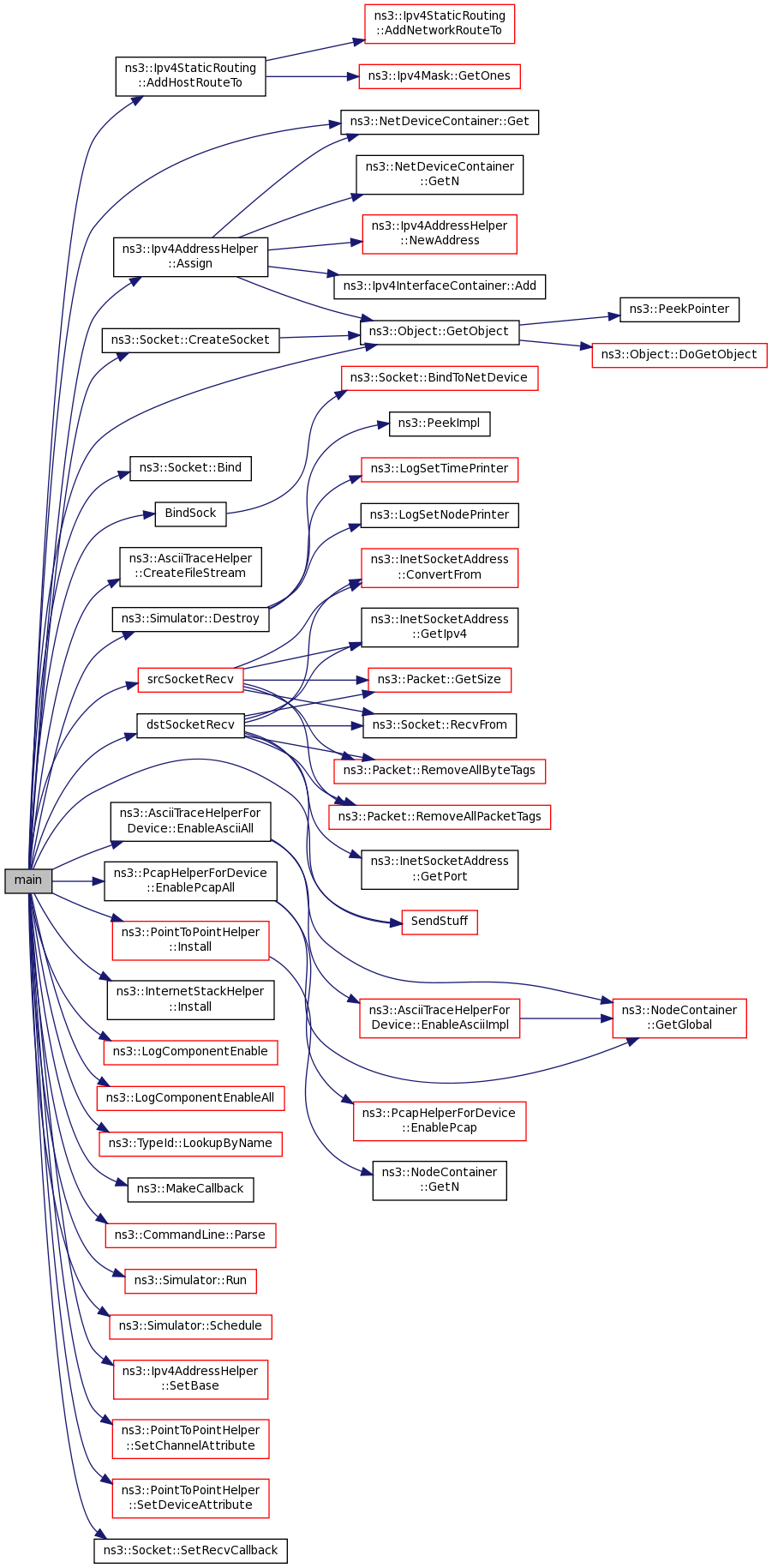

Here is the call graph for this function:

NS_LOG_COMPONENT_DEFINE

(

"SocketBoundRoutingExample"

)

void SendStuff	(	Ptr< Socket >	sock,
		Ipv4Address	dstaddr,
		uint16_t	port
	)

Definition at line 175 of file socket-bound-static-routing.cc.

References ns3::Packet::AddPaddingAtEnd(), and ns3::Socket::SendTo().

Referenced by dstSocketRecv(), and main().

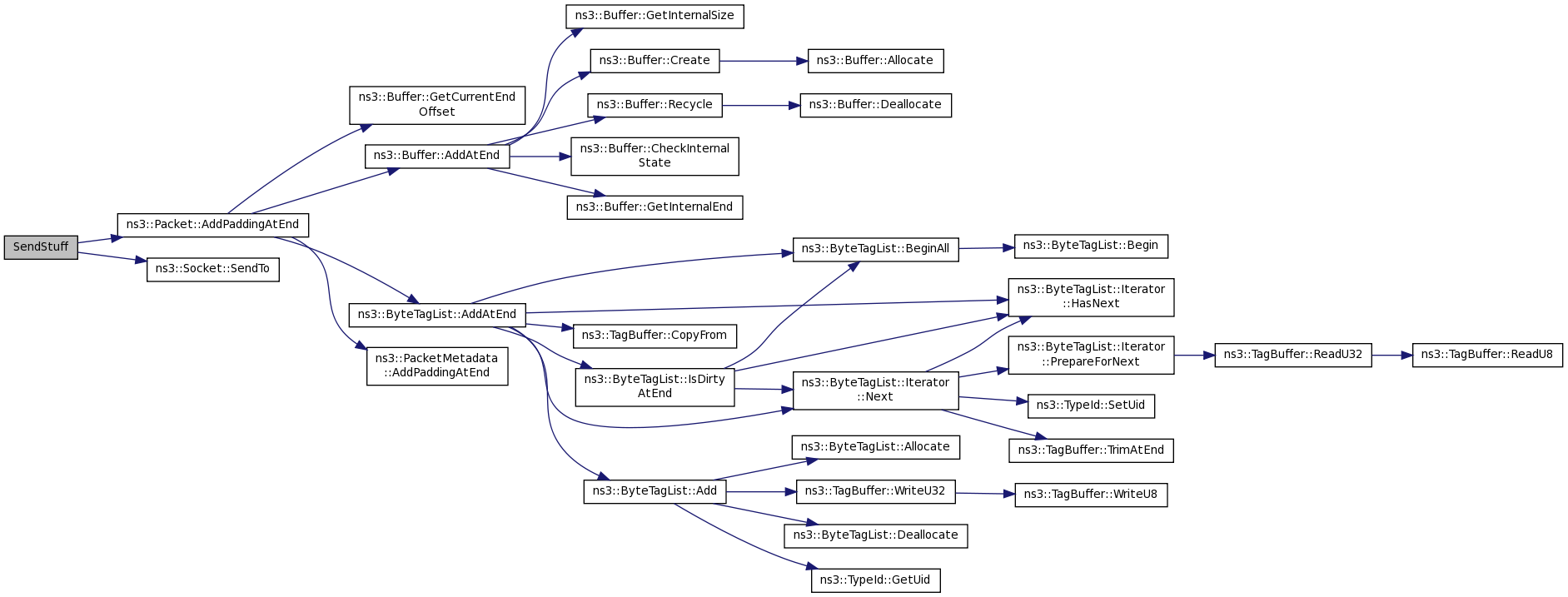

Here is the call graph for this function:

Here is the caller graph for this function:

void srcSocketRecv

(

Ptr< Socket >

socket

)

Definition at line 190 of file socket-bound-static-routing.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::GetBoundNetDevice(), ns3::InetSocketAddress::GetIpv4(), ns3::Packet::GetSize(), NS_LOG_INFO, ns3::Socket::RecvFrom(), ns3::Packet::RemoveAllByteTags(), and ns3::Packet::RemoveAllPacketTags().

Referenced by main().

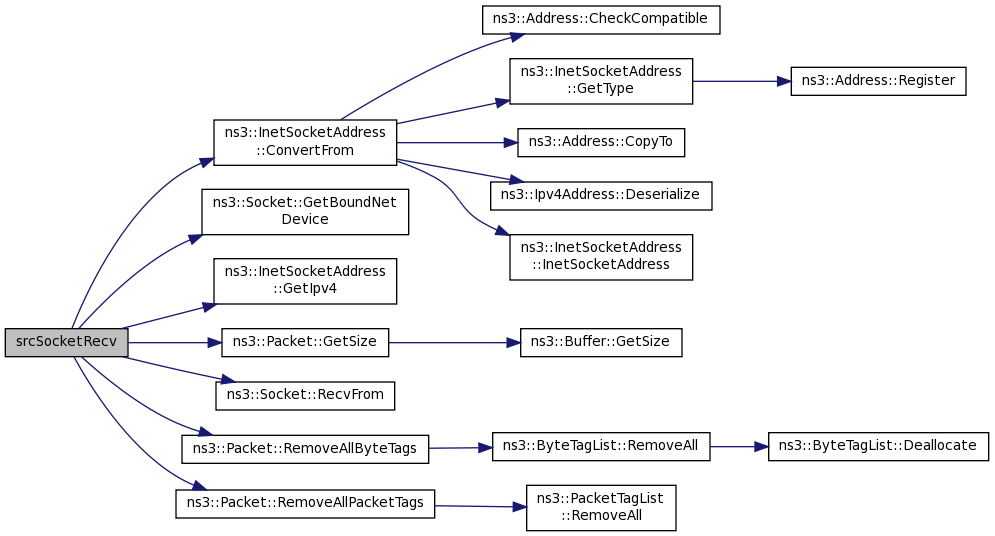

Here is the call graph for this function:

Here is the caller graph for this function:
