assign positions and mobility models to nodes. More...

#include <mobility-helper.h>

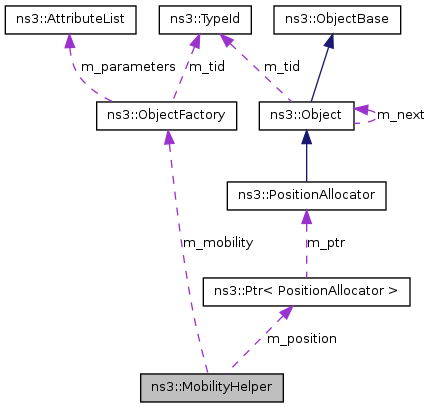

Collaboration diagram for ns3::MobilityHelper:

Public Member Functions
void	SetPositionAllocator (Ptr< PositionAllocator > allocator)
void	SetPositionAllocator (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
void	SetMobilityModel (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
void	PushReferenceMobilityModel (Ptr< Object > reference)
void	PopReferenceMobilityModel (void)
std::string	GetMobilityModelType (void) const
void	Install (NodeContainer container)
void	InstallAll (void)
Static Public Member Functions
static void	EnableAscii (std::ostream &os, uint32_t nodeid)
static void	EnableAscii (std::ostream &os, NodeContainer n)
static void	EnableAsciiAll (std::ostream &os)

Detailed Description

assign positions and mobility models to nodes.

MobilityHelper::Install is the most important method here.

Member Function Documentation

static void ns3::MobilityHelper::EnableAscii	(	std::ostream &	os,
		NodeContainer	n
	)			`[static]`

Parameters:

	os	output stream
	n	node container

Enable ascii output on the mobility model associated each of the nodes in the input container and dump that to the specified stdc++ output stream.

static void ns3::MobilityHelper::EnableAscii	(	std::ostream &	os,
		uint32_t	nodeid
	)			`[static]`

Parameters:

	os	output stream
	nodeid	the id of the node to generate ascii output for.

Enable ascii output on the mobility model associated to the specified nodeid and dump that to the specified stdc++ output stream.

static void ns3::MobilityHelper::EnableAsciiAll ( std::ostream & os ) [static]

Parameters:

os

output stream

Enable ascii output on the mobility model associated every node in the system and dump that to the specified stdc++ output stream.

std::string ns3::MobilityHelper::GetMobilityModelType ( void ) const

Returns:: a string which contains the TypeId of the currently-selected mobility model.

void ns3::MobilityHelper::Install ( NodeContainer container )

Parameters:

container

the set of nodes to layout.

For each input node, this method creates an instance of a ns3::MobilityModel subclass (the type of which was set with MobilityHelper::SetMobilityModel), aggregates it to the mode, and sets an initial position based on the current position allocator (set through MobilityHelper::SetPositionAllocator).

void ns3::MobilityHelper::InstallAll ( void )

Perform the work of MobilityHelper::Install on _all_ nodes which exist in the simulation.

void ns3::MobilityHelper::PopReferenceMobilityModel ( void )

Remove the top item from the top of the stack of "reference mobility models".

void ns3::MobilityHelper::PushReferenceMobilityModel ( Ptr< Object > reference )

Parameters:

reference

item to push.

Push an item on the top of the stack of "reference mobility models". The input item should be a node instance to which a mobility model has already been aggregated (usually by a call to Install).

If this this stack is not empty when MobilityHelper::Install is called, the model from the top of the stack is used to create a ns3::HierarchicalMobilityModel to make the newly-created models define their positions relative to that of the parent mobility model.

This method is typically used to create hierarchical mobility patterns and positions by starting with the large-scale mobility features, and, then, defining the smaller-scale movements relative to a few reference points in the large-scale model.

void ns3::MobilityHelper::SetMobilityModel	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue()`
	)

Parameters:

	type	the type of mobility model to use.
	n1	the name of the attribute to set in the mobility model.
	v1	the value of the attribute to set in the mobility model.
	n2	the name of the attribute to set in the mobility model.
	v2	the value of the attribute to set in the mobility model.
	n3	the name of the attribute to set in the mobility model.
	v3	the value of the attribute to set in the mobility model.
	n4	the name of the attribute to set in the mobility model.
	v4	the value of the attribute to set in the mobility model.
	n5	the name of the attribute to set in the mobility model.
	v5	the value of the attribute to set in the mobility model.
	n6	the name of the attribute to set in the mobility model.
	v6	the value of the attribute to set in the mobility model.
	n7	the name of the attribute to set in the mobility model.
	v7	the value of the attribute to set in the mobility model.
	n8	the name of the attribute to set in the mobility model.
	v8	the value of the attribute to set in the mobility model.
	n9	the name of the attribute to set in the mobility model.
	v9	the value of the attribute to set in the mobility model.

Calls to MobilityHelper::Install will create an instance of a matching mobility model for each node.

void ns3::MobilityHelper::SetPositionAllocator ( Ptr< PositionAllocator > allocator )

Parameters:

allocator

allocate initial node positions

Set the position allocator which will be used to allocate the initial position of every node in MobilityModel::Install.

void ns3::MobilityHelper::SetPositionAllocator	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue()`
	)

Parameters:

	type	the type of mobility model to use.
	n1	the name of the attribute to set in the mobility model.
	v1	the value of the attribute to set in the mobility model.
	n2	the name of the attribute to set in the mobility model.
	v2	the value of the attribute to set in the mobility model.
	n3	the name of the attribute to set in the mobility model.
	v3	the value of the attribute to set in the mobility model.
	n4	the name of the attribute to set in the mobility model.
	v4	the value of the attribute to set in the mobility model.
	n5	the name of the attribute to set in the mobility model.
	v5	the value of the attribute to set in the mobility model.
	n6	the name of the attribute to set in the mobility model.
	v6	the value of the attribute to set in the mobility model.
	n7	the name of the attribute to set in the mobility model.
	v7	the value of the attribute to set in the mobility model.
	n8	the name of the attribute to set in the mobility model.
	v8	the value of the attribute to set in the mobility model.
	n9	the name of the attribute to set in the mobility model.
	v9	the value of the attribute to set in the mobility model.

The documentation for this class was generated from the following file:

src/helper/mobility-helper.h
