ns3::AccessorHelper< T, U > Class Template Reference

#include <attribute-accessor-helper.h>

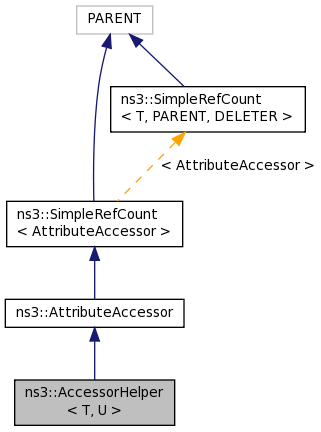

Inheritance diagram for ns3::AccessorHelper< T, U >:

Collaboration diagram for ns3::AccessorHelper< T, U >:

Public Member Functions
	AccessorHelper ()
virtual bool	Get (const ObjectBase *object, AttributeValue &val) const
virtual bool	Set (ObjectBase *object, const AttributeValue &val) const
Public Member Functions inherited from ns3::AttributeAccessor
	AttributeAccessor ()
virtual	~AttributeAccessor ()
virtual bool	HasGetter (void) const =0
virtual bool	HasSetter (void) const =0
Public Member Functions inherited from ns3::SimpleRefCount< AttributeAccessor >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
virtual bool	DoGet (const T *object, U *v) const =0
virtual bool	DoSet (T *object, const U *v) const =0

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeAccessor >
static void	Cleanup (void)
	Noop. More...

Detailed Description

template<typename T, typename U>
class ns3::AccessorHelper< T, U >

Definition at line 60 of file attribute-accessor-helper.h.

Constructor & Destructor Documentation

template<typename T , typename U >

ns3::AccessorHelper< T, U >::AccessorHelper ( )

inline

Definition at line 63 of file attribute-accessor-helper.h.

Member Function Documentation

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::DoGet ( const T *  object, U *  v  ) const

privatepure virtual

Referenced by ns3::AccessorHelper< T, U >::Get().

Here is the caller graph for this function:

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::DoSet ( T *  object, const U *  v  ) const

privatepure virtual

Referenced by ns3::AccessorHelper< T, U >::Set().

Here is the caller graph for this function:

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::Get ( const ObjectBase *  object, AttributeValue &  attribute  ) const

inlinevirtual

Parameters

object	the object instance to get the value from
attribute	a pointer to where the value should be set.

Returns

true if the value could be read successfully, and stored in the input value, false otherwise.

This method expects that the caller has checked that the input value is valid with AttributeChecker::Check.

Implements ns3::AttributeAccessor.

Definition at line 79 of file attribute-accessor-helper.h.

References ns3::AccessorHelper< T, U >::DoGet().

Here is the call graph for this function:

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::Set ( ObjectBase *  object, const AttributeValue &  value  ) const

inlinevirtual

Parameters

object	the object instance to set the value in
value	the value to set

Returns

true if the value could be set successfully, false otherwise.

This method expects that the caller has checked that the input value is valid with AttributeChecker::Check.

Implements ns3::AttributeAccessor.

Definition at line 65 of file attribute-accessor-helper.h.

References ns3::AccessorHelper< T, U >::DoSet().

Referenced by ns3::DoMakeAccessorHelperOne(), and ns3::DoMakeAccessorHelperTwo().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/core/model/attribute-accessor-helper.h
