ns3::AttributeAccessor Class Referenceabstract

allow setting and getting the value of an attribute. More...

#include <attribute.h>

+ Inheritance diagram for ns3::AttributeAccessor:

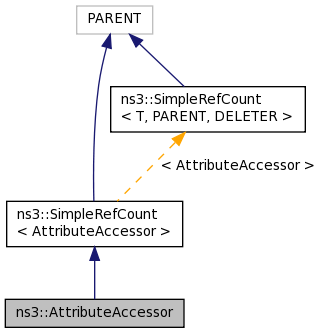

+ Collaboration diagram for ns3::AttributeAccessor:

Public Member Functions

 AttributeAccessor ()

virtual ~AttributeAccessor ()

virtual bool Get (const ObjectBase *object, AttributeValue &attribute) const =0

virtual bool HasGetter (void) const =0

virtual bool HasSetter (void) const =0

virtual bool Set (ObjectBase *object, const AttributeValue &value) const =0

- Public Member Functions inherited from ns3::SimpleRefCount< AttributeAccessor >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeAccessor >
static void Cleanup (void)
 Noop. More...


Detailed Description

allow setting and getting the value of an attribute.

The goal of this class is to hide from the user how an attribute is actually set or get to or from a class instance. Implementations of this base class are usually provided through the MakeAccessorHelper template functions, hidden behind an ATTRIBUTE_HELPER_* macro.

Definition at line 102 of file attribute.h.

Constructor & Destructor Documentation

ns3::AttributeAccessor::AttributeAccessor ( )

Definition at line 38 of file attribute.cc.

ns3::AttributeAccessor::~AttributeAccessor ( )
virtual

Definition at line 41 of file attribute.cc.

Member Function Documentation

virtual bool ns3::AttributeAccessor::Get ( const ObjectBase object,
AttributeValue attribute
) const
pure virtual
Parameters
objectthe object instance to get the value from
attributea pointer to where the value should be set.
Returns
true if the value could be read successfully, and stored in the input value, false otherwise.

This method expects that the caller has checked that the input value is valid with AttributeChecker::Check.

Implemented in ns3::ObjectPtrContainerAccessor, ns3::AccessorHelper< T, U >, and ns3::NscStackStringAccessor.

virtual bool ns3::AttributeAccessor::HasGetter ( void  ) const
pure virtual
Returns
true if this accessor supports the Get operation, false otherwise.

Implemented in ns3::ObjectPtrContainerAccessor, and ns3::NscStackStringAccessor.

virtual bool ns3::AttributeAccessor::HasSetter ( void  ) const
pure virtual
Returns
true if this accessor supports the Set operation, false otherwise.

Implemented in ns3::ObjectPtrContainerAccessor, and ns3::NscStackStringAccessor.

virtual bool ns3::AttributeAccessor::Set ( ObjectBase object,
const AttributeValue value
) const
pure virtual
Parameters
objectthe object instance to set the value in
valuethe value to set
Returns
true if the value could be set successfully, false otherwise.

This method expects that the caller has checked that the input value is valid with AttributeChecker::Check.

Implemented in ns3::ObjectPtrContainerAccessor, ns3::AccessorHelper< T, U >, and ns3::NscStackStringAccessor.


The documentation for this class was generated from the following files:
