ns3::BasicEnergySourceHelper Class Reference

Creates a BasicEnergySource object. More...

#include <basic-energy-source-helper.h>

+ Inheritance diagram for ns3::BasicEnergySourceHelper:
+ Collaboration diagram for ns3::BasicEnergySourceHelper:

Public Member Functions

 BasicEnergySourceHelper ()
 ~BasicEnergySourceHelper ()
void Set (std::string name, const AttributeValue &v)
- Public Member Functions inherited from ns3::EnergySourceHelper
virtual ~EnergySourceHelper ()
EnergySourceContainer Install (Ptr< Node > node) const
EnergySourceContainer Install (NodeContainer c) const
EnergySourceContainer Install (std::string nodeName) const
EnergySourceContainer InstallAll (void) const
 This function installs an EnergySource on all nodes in simulation. More...

Private Member Functions

virtual Ptr< EnergySourceDoInstall (Ptr< Node > node) const

Private Attributes

ObjectFactory m_basicEnergySource

Detailed Description

Creates a BasicEnergySource object.

Definition at line 34 of file basic-energy-source-helper.h.

Constructor & Destructor Documentation

ns3::BasicEnergySourceHelper::BasicEnergySourceHelper ( )

Definition at line 26 of file basic-energy-source-helper.cc.

References m_basicEnergySource, and ns3::ObjectFactory::SetTypeId().

+ Here is the call graph for this function:

ns3::BasicEnergySourceHelper::~BasicEnergySourceHelper ( )

Definition at line 31 of file basic-energy-source-helper.cc.

Member Function Documentation

Ptr< EnergySource > ns3::BasicEnergySourceHelper::DoInstall ( Ptr< Node node) const
nodePointer to node where the energy source is to be installed.
Pointer to the created EnergySource.

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Implements ns3::EnergySourceHelper.

Definition at line 42 of file basic-energy-source-helper.cc.

References ns3::ObjectFactory::Create(), m_basicEnergySource, and NS_ASSERT.

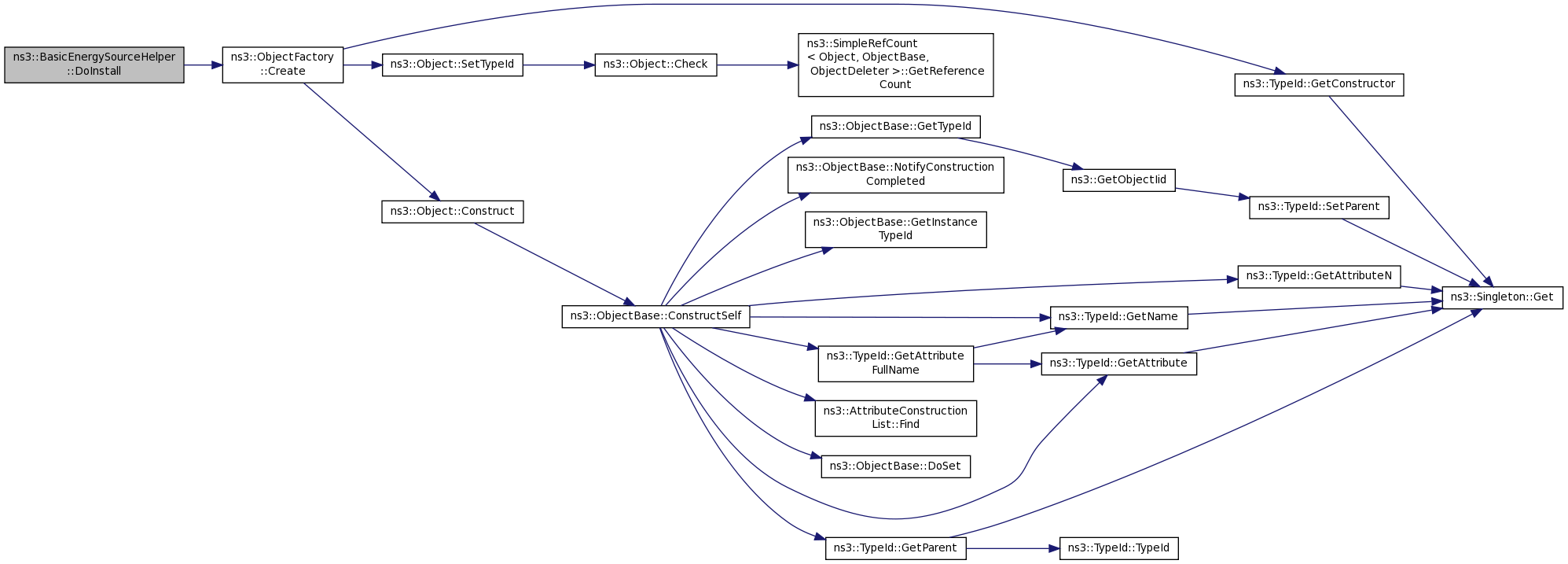

+ Here is the call graph for this function:

void ns3::BasicEnergySourceHelper::Set ( std::string  name,
const AttributeValue v
nameName of attribute to set.
vValue of the attribute.

Sets one of the attributes of underlying EnergySource.

Implements ns3::EnergySourceHelper.

Definition at line 36 of file basic-energy-source-helper.cc.

References m_basicEnergySource, and ns3::ObjectFactory::Set().

Referenced by BasicEnergyDepletionTest::DepletionTestCase(), AcousticModemEnergyTestCase::DoRun(), AcousticModemEnergyDepletionTestCase::DoRun(), and main().

+ Here is the call graph for this function:

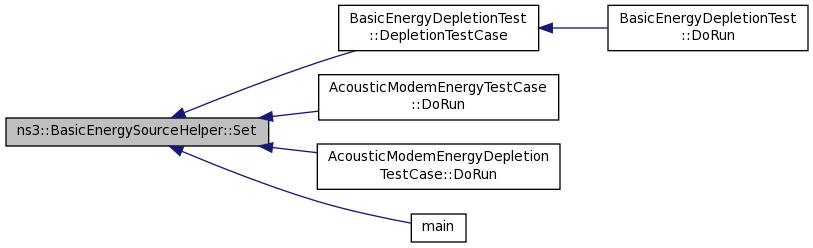

+ Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::BasicEnergySourceHelper::m_basicEnergySource

Definition at line 46 of file basic-energy-source-helper.h.

Referenced by BasicEnergySourceHelper(), DoInstall(), and Set().

The documentation for this class was generated from the following files:
