#include <node.h>

Inheritance diagram for ns3::Node:

Collaboration diagram for ns3::Node:

Classes
struct	ProtocolHandlerEntry
	Protocol handler entry. More...

Public Types
typedef Callback< void, Ptr < NetDevice > >	DeviceAdditionListener
	A callback invoked whenever a device is added to a node. More...

typedef Callback< void, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, NetDevice::PacketType >	ProtocolHandler
	A protocol handler. More...

Public Member Functions
	Node ()

	Node (uint32_t systemId)

virtual	~Node ()

uint32_t	AddApplication (Ptr< Application > application)

uint32_t	AddDevice (Ptr< NetDevice > device)

Ptr< Application >	GetApplication (uint32_t index) const

Ptr< NetDevice >	GetDevice (uint32_t index) const

uint32_t	GetId (void) const

uint32_t	GetNApplications (void) const

uint32_t	GetNDevices (void) const

uint32_t	GetSystemId (void) const

void	RegisterDeviceAdditionListener (DeviceAdditionListener listener)

void	RegisterProtocolHandler (ProtocolHandler handler, uint16_t protocolType, Ptr< NetDevice > device, bool promiscuous=false)

void	UnregisterDeviceAdditionListener (DeviceAdditionListener listener)

void	UnregisterProtocolHandler (ProtocolHandler handler)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static bool	ChecksumEnabled (void)

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	The dispose method. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::vector < DeviceAdditionListener >	DeviceAdditionListenerList
	Typedef for NetDevice addition listeners container. More...

typedef std::vector< struct Node::ProtocolHandlerEntry >	ProtocolHandlerList
	Typedef for protocol handlers container. More...

Private Member Functions
void	Construct (void)
	Finish node's construction by setting the correct node ID. More...

bool	NonPromiscReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &from)
	Receive a packet from a device in non-promiscuous mode. More...

void	NotifyDeviceAdded (Ptr< NetDevice > device)
	Notifies all the DeviceAdditionListener about the new device added. More...

bool	PromiscReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Receive a packet from a device in promiscuous mode. More...

bool	ReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet >, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType, bool promisc)
	Receive a packet from a device. More...

Private Attributes
std::vector< Ptr< Application > >	m_applications
	Applications associated to this node. More...

DeviceAdditionListenerList	m_deviceAdditionListeners
	Device addition listeners in the node. More...

std::vector< Ptr< NetDevice > >	m_devices
	Devices associated to this node. More...

ProtocolHandlerList	m_handlers
	Protocol handlers in the node. More...

uint32_t	m_id
	Node id for this node. More...

uint32_t	m_sid
	System id for this node. More...

Detailed Description

A network Node.

This class holds together:

a list of NetDevice objects which represent the network interfaces of this node which are connected to other Node instances through Channel instances.
a list of Application objects which represent the userspace traffic generation applications which interact with the Node through the Socket API.
a node Id: a unique per-node identifier.
a system Id: a unique Id used for parallel simulations.

Every Node created is added to the NodeList automatically.

Config Paths

ns3::Node is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]

Attributes

DeviceList: The list of devices associated to this Node.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::NetDevice>
- Flags: read
ApplicationList: The list of applications associated to this Node.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Application>
- Flags: read
Id: The id (unique integer) of this Node.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read
SystemId: The systemId of this node: a unique integer used for parallel simulations.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: write read

No TraceSources are defined for this type.

Definition at line 55 of file node.h.

Member Typedef Documentation

typedef Callback<void,Ptr<NetDevice> > ns3::Node::DeviceAdditionListener

A callback invoked whenever a device is added to a node.

Definition at line 177 of file node.h.

typedef std::vector<DeviceAdditionListener> ns3::Node::DeviceAdditionListenerList

private

Typedef for NetDevice addition listeners container.

Definition at line 272 of file node.h.

typedef Callback<void,Ptr<NetDevice>, Ptr<const Packet>,uint16_t,const Address &, const Address &, NetDevice::PacketType> ns3::Node::ProtocolHandler

A protocol handler.

Parameters

device	a pointer to the net device which received the packet
packet	the packet received
protocol	the 16 bit protocol number associated with this packet. This protocol number is expected to be the same protocol number given to the Send method by the user on the sender side.
sender	the address of the sender
receiver	the address of the receiver; Note: this value is only valid for promiscuous mode protocol handlers. Note: If the L2 protocol does not use L2 addresses, the address reported here is the value of device->GetAddress().
packetType	type of packet received (broadcast/multicast/unicast/otherhost); Note: this value is only valid for promiscuous mode protocol handlers.

Definition at line 148 of file node.h.

typedef std::vector<struct Node::ProtocolHandlerEntry> ns3::Node::ProtocolHandlerList

private

Typedef for protocol handlers container.

Definition at line 270 of file node.h.

Constructor & Destructor Documentation

ns3::Node::Node ( )

Definition at line 77 of file node.cc.

References Construct(), and NS_LOG_FUNCTION.

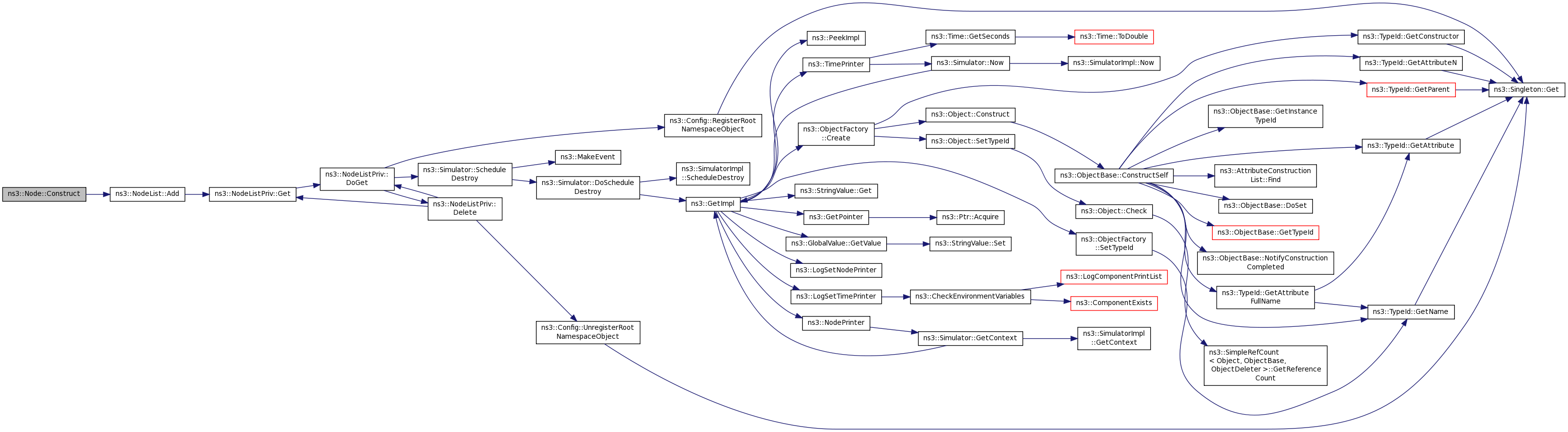

Here is the call graph for this function:

ns3::Node::Node ( uint32_t systemId )

Parameters

systemId a unique integer used for parallel simulations.

Definition at line 85 of file node.cc.

References Construct(), and NS_LOG_FUNCTION.

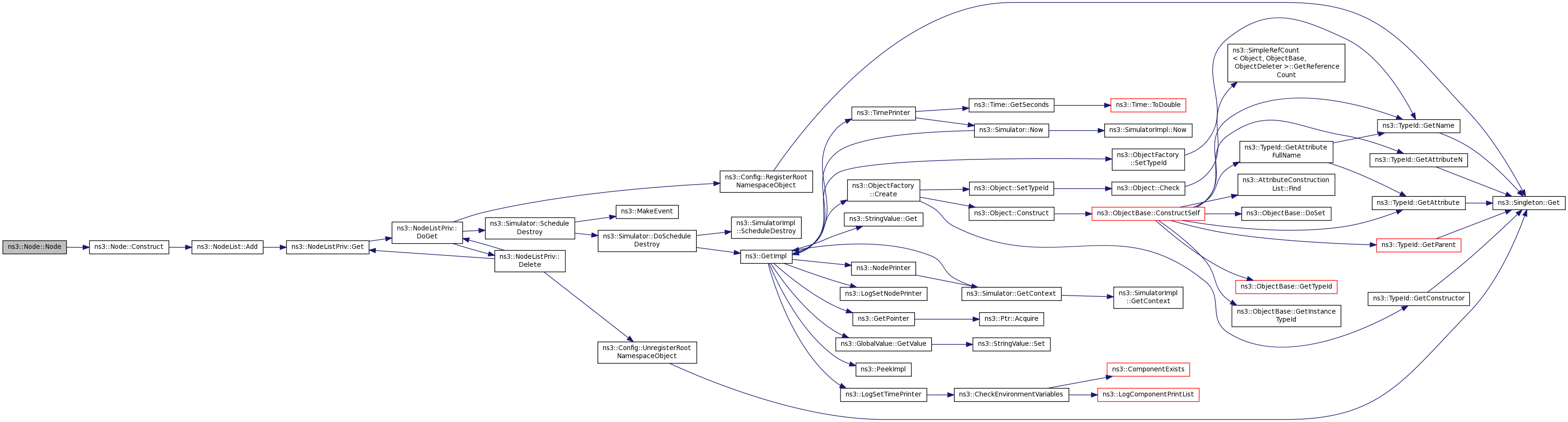

Here is the call graph for this function:

ns3::Node::~Node ( )

virtual

Definition at line 100 of file node.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Node::AddApplication ( Ptr< Application > application )

Parameters

application Application to associate to this node.

Returns: the index of the Application within the Node's list of Application.

Associated this Application to this Node.

Definition at line 149 of file node.cc.

References GetId(), ns3::Object::Initialize(), m_applications, NS_LOG_FUNCTION, ns3::Simulator::ScheduleWithContext(), and ns3::Application::SetNode().

Referenced by ns3::PointToPointEpcHelper::AddEnb(), ns3::aodv::LoopbackTestCase::DoRun(), Ns3TcpNoDelayTestCase::DoRun(), Ns3TcpSocketTestCase1::DoRun(), NscTcpLossTestCase1::DoRun(), Ns3TcpSocketTestCase2::DoRun(), NscTcpLossTestCase2::DoRun(), Ns3TcpCwndTestCase1::DoRun(), EpcS1uUlTestCase::DoRun(), Ns3TcpCwndTestCase2::DoRun(), ns3::Ping6Helper::Install(), ns3::UdpServerHelper::Install(), ns3::RadvdHelper::Install(), ns3::UdpClientHelper::Install(), ns3::UdpTraceClientHelper::Install(), ns3::V4PingHelper::InstallPriv(), ns3::PacketSinkHelper::InstallPriv(), ns3::UdpEchoServerHelper::InstallPriv(), ns3::BulkSendHelper::InstallPriv(), ns3::OnOffHelper::InstallPriv(), ns3::UdpEchoClientHelper::InstallPriv(), main(), and ns3::PointToPointEpcHelper::PointToPointEpcHelper().

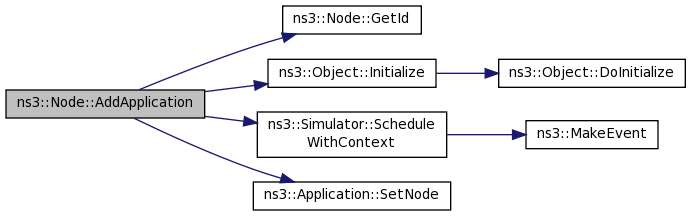

Here is the call graph for this function:

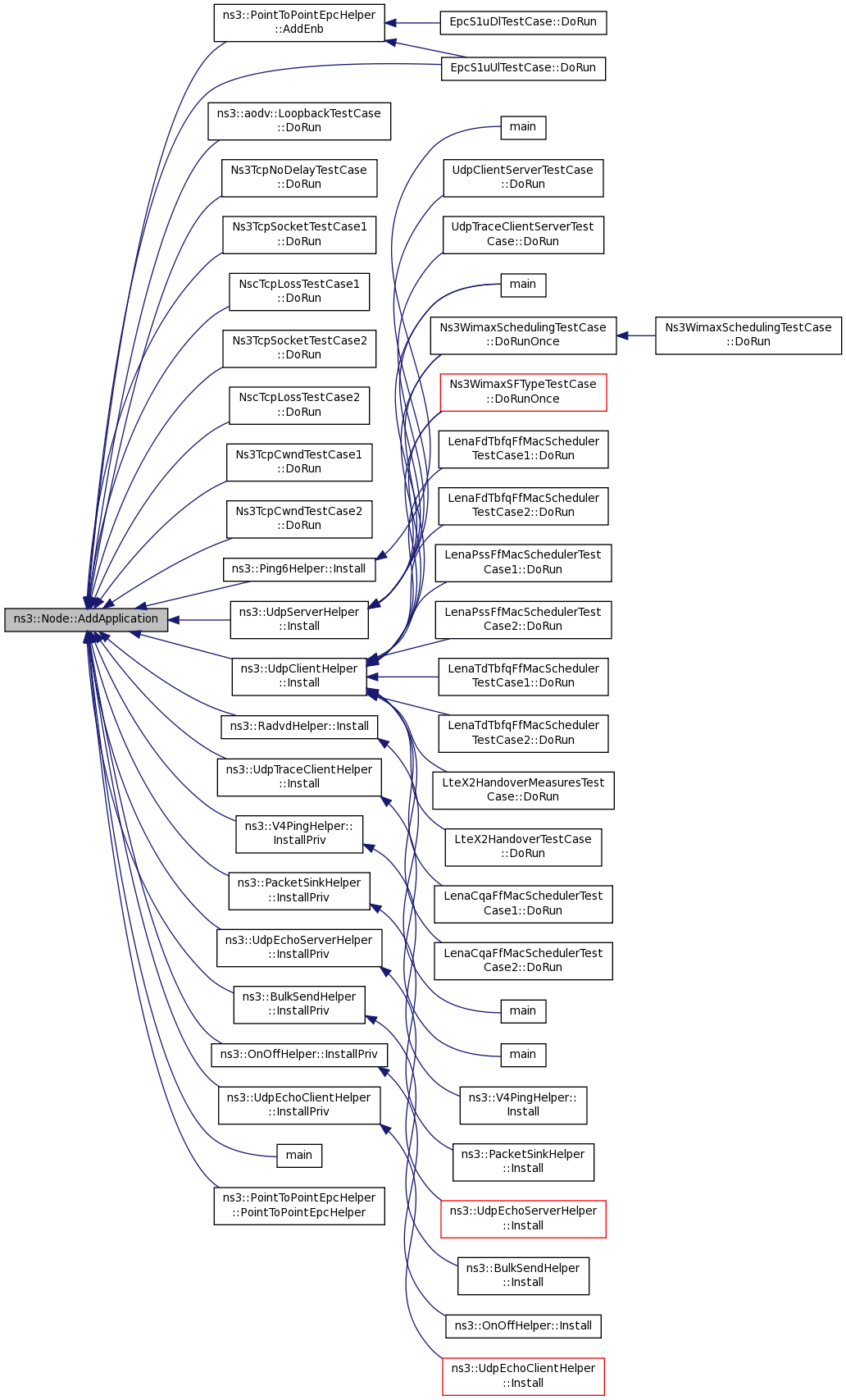

Here is the caller graph for this function:

uint32_t ns3::Node::AddDevice ( Ptr< NetDevice > device )

Parameters

device NetDevice to associate to this node.

Returns: the index of the NetDevice into the Node's list of NetDevice.

Associate this device to this node.

Definition at line 120 of file node.cc.

References GetId(), ns3::Object::Initialize(), m_devices, ns3::MakeCallback(), NonPromiscReceiveFromDevice(), NotifyDeviceAdded(), NS_LOG_FUNCTION, and ns3::Simulator::ScheduleWithContext().

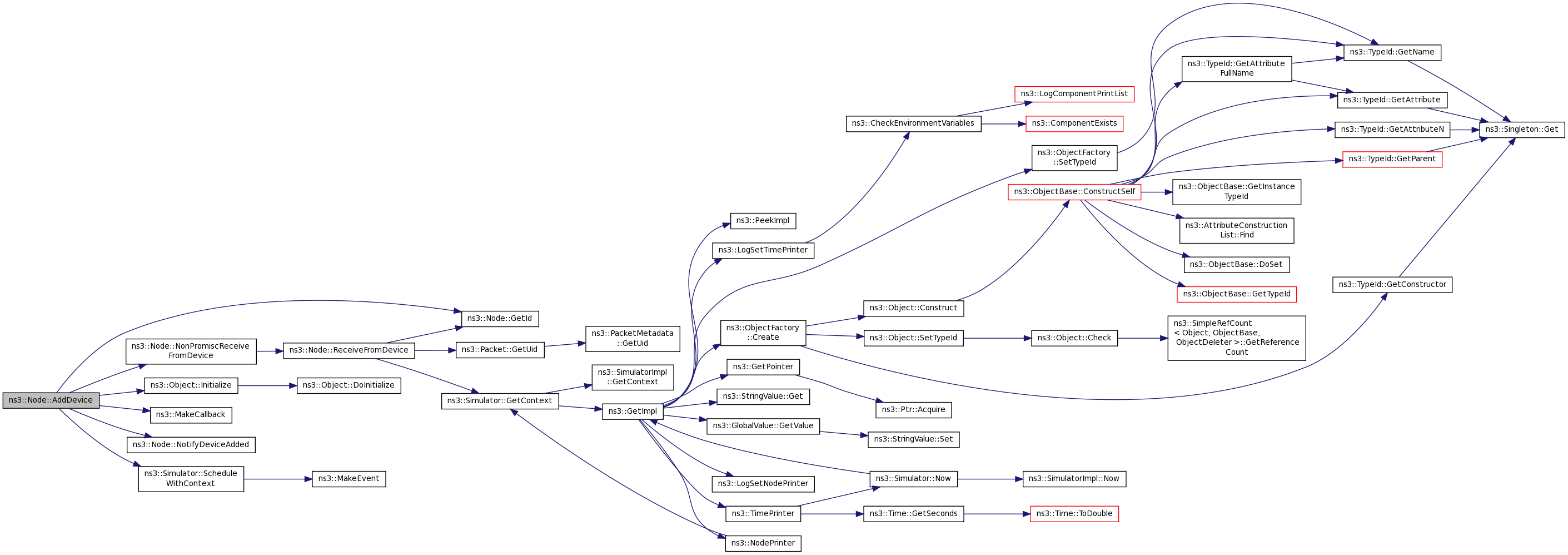

Here is the call graph for this function:

bool ns3::Node::ChecksumEnabled ( void )

static

Returns: true if checksums are enabled, false otherwise.

Definition at line 268 of file node.cc.

References ns3::g_checksumEnabled, ns3::BooleanValue::Get(), ns3::GlobalValue::GetValue(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::CsmaNetDevice::AddHeader(), ns3::Ipv4L3Protocol::BuildHeader(), ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc(), ns3::Ipv4L3Protocol::DoFragmentation(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataIndication(), ns3::CsmaNetDevice::Receive(), ns3::Ipv4L3Protocol::Receive(), ns3::TcpL4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), ns3::V4Ping::Send(), ns3::UdpL4Protocol::Send(), ns3::TcpL4Protocol::Send(), ns3::LrWpanMac::SendAck(), ns3::Icmpv4L4Protocol::SendMessage(), ns3::TcpL4Protocol::SendPacket(), and ns3::Ipv4L3Protocol::SendWithHeader().

Here is the call graph for this function:

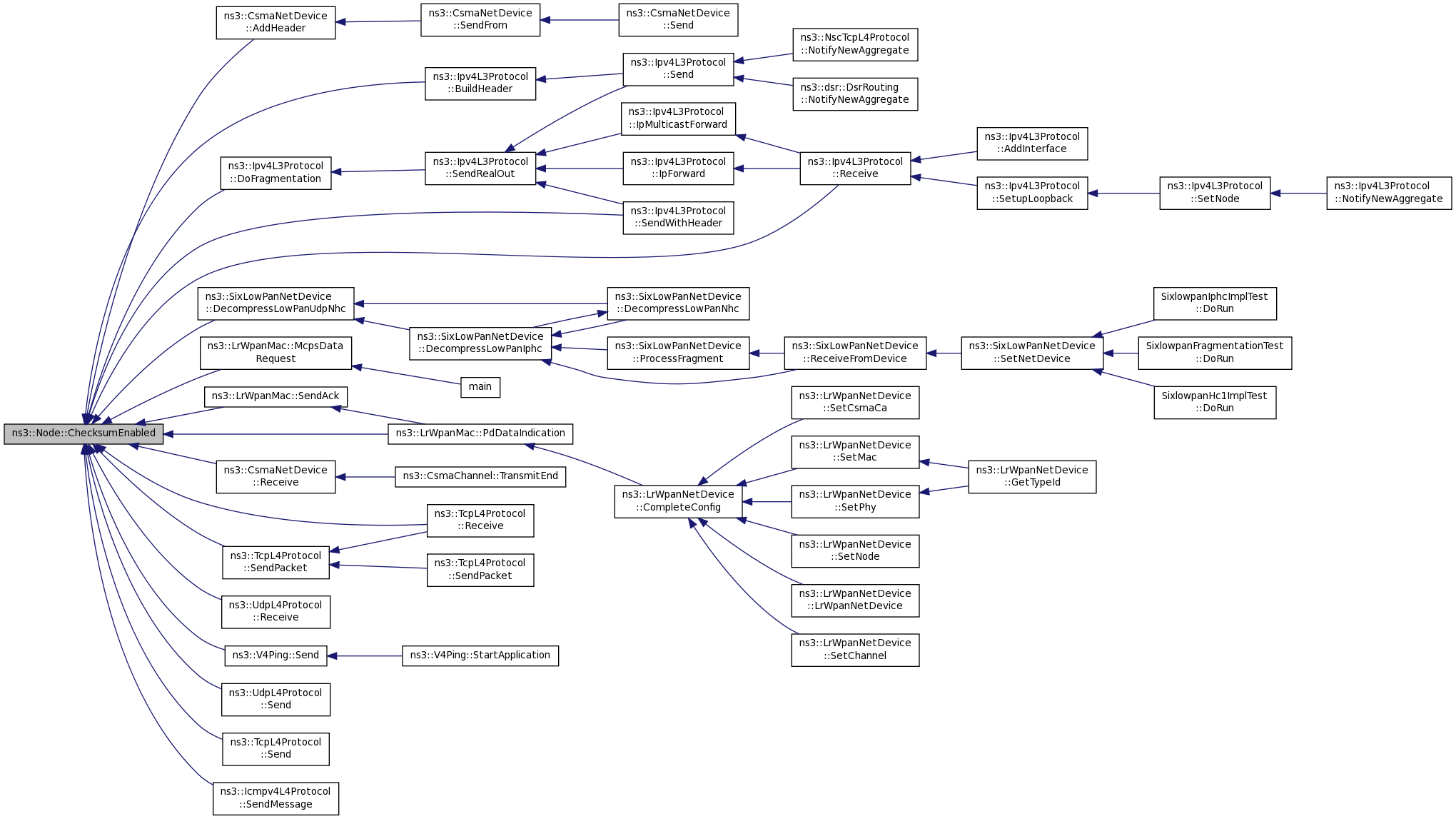

Here is the caller graph for this function:

void ns3::Node::Construct ( void )

private

Finish node's construction by setting the correct node ID.

Definition at line 94 of file node.cc.

References ns3::NodeList::Add(), m_id, and NS_LOG_FUNCTION.

Referenced by Node().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Node::DoDispose ( void )

protectedvirtual

The dispose method.

Subclasses must override this method and must chain up to it by calling Node::DoDispose at the end of their own DoDispose method.

Reimplemented from ns3::Object.

Definition at line 175 of file node.cc.

References ns3::Object::Dispose(), ns3::Object::DoDispose(), m_applications, m_deviceAdditionListeners, m_devices, m_handlers, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Node::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 199 of file node.cc.

References ns3::Object::DoInitialize(), ns3::Object::Initialize(), m_applications, m_devices, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< Application > ns3::Node::GetApplication ( uint32_t index ) const

Parameters

index

Returns: the application associated to this requested index within this Node.

Definition at line 160 of file node.cc.

References m_applications, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::PointToPointEpcHelper::AddEnb(), ns3::OnOffHelper::AssignStreams(), EpcS1uDlTestCase::DoRun(), EpcS1uUlTestCase::DoRun(), ns3::V4Ping::GetApplicationId(), and ns3::LteHelper::InstallSingleEnbDevice().

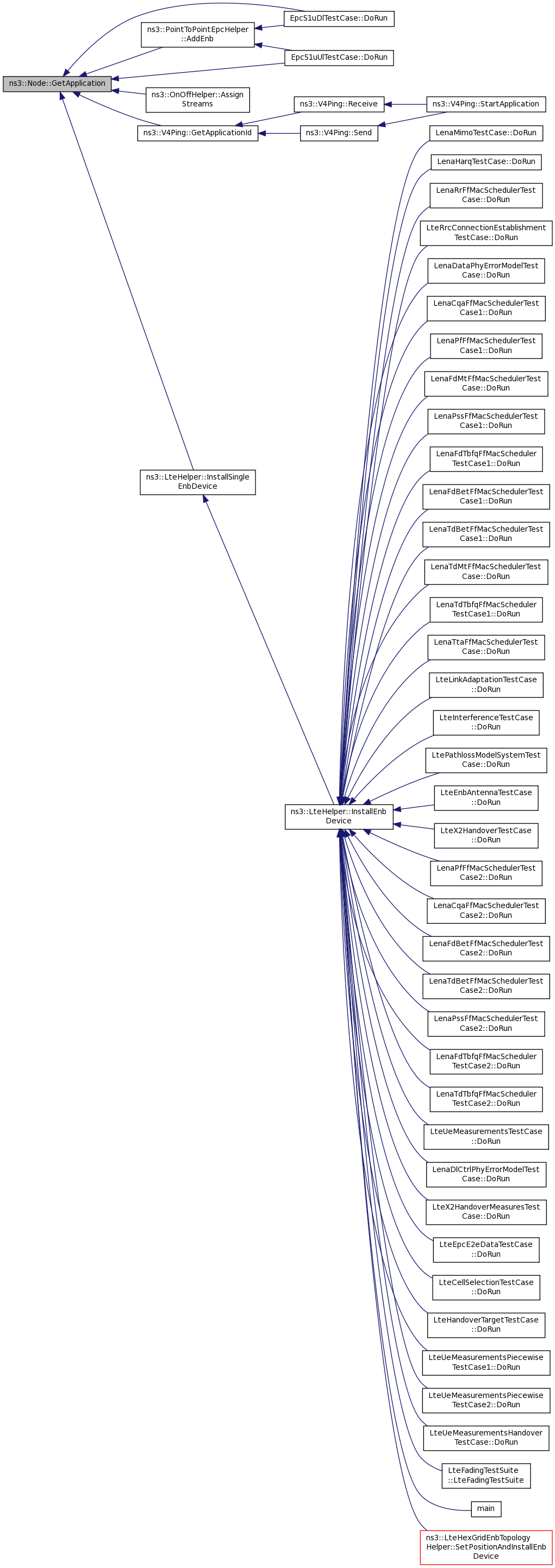

Here is the caller graph for this function:

Ptr< NetDevice > ns3::Node::GetDevice ( uint32_t index ) const

Parameters

index the index of the requested NetDevice

Returns: the requested NetDevice associated to this Node.

The indexes used by the GetDevice method start at one and end at GetNDevices ()

Definition at line 134 of file node.cc.

References m_devices, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

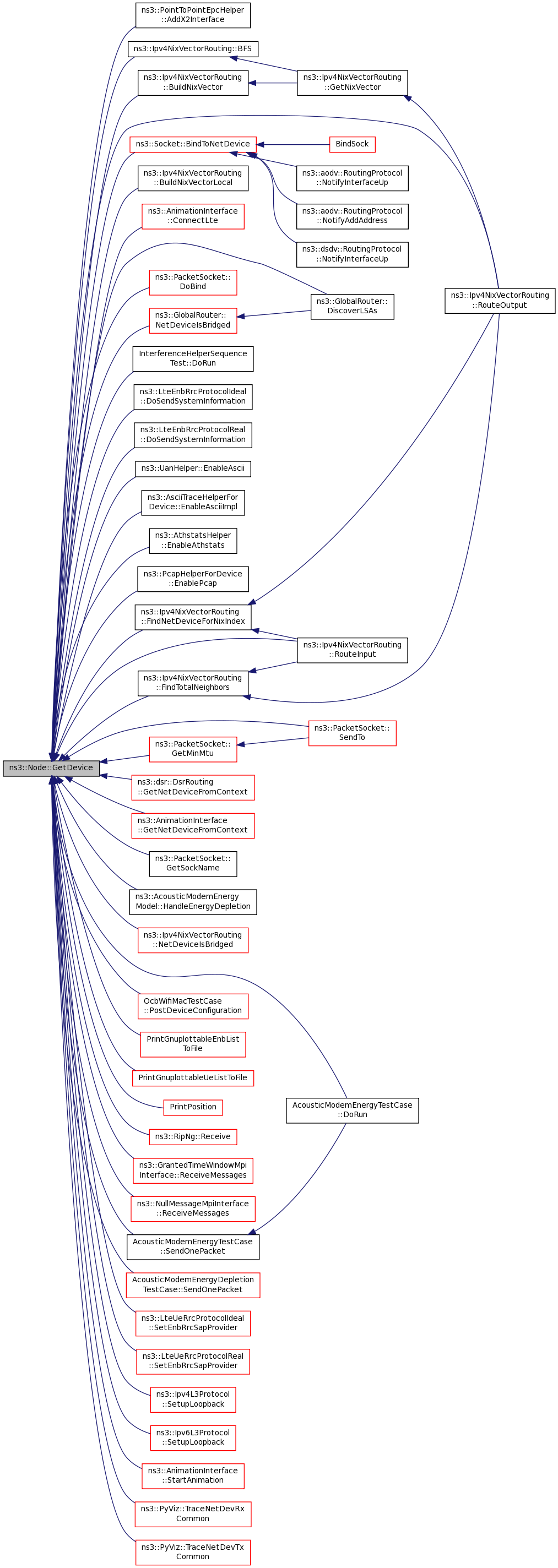

Here is the caller graph for this function:

uint32_t ns3::Node::GetId ( void ) const

Returns: the unique id of this node.

This unique id happens to be also the index of the Node into the NodeList.

Definition at line 106 of file node.cc.

References m_id, and NS_LOG_FUNCTION.

uint32_t ns3::Node::GetNApplications ( void ) const

Returns: the number of applications associated to this Node.

Definition at line 168 of file node.cc.

References m_applications, and NS_LOG_FUNCTION.

Referenced by ns3::PointToPointEpcHelper::AddEnb(), ns3::OnOffHelper::AssignStreams(), and ns3::V4Ping::GetApplicationId().

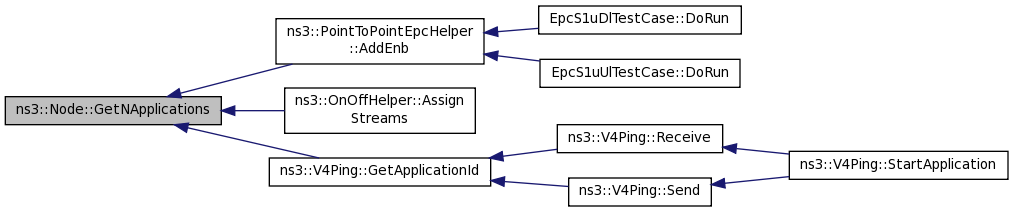

Here is the caller graph for this function:

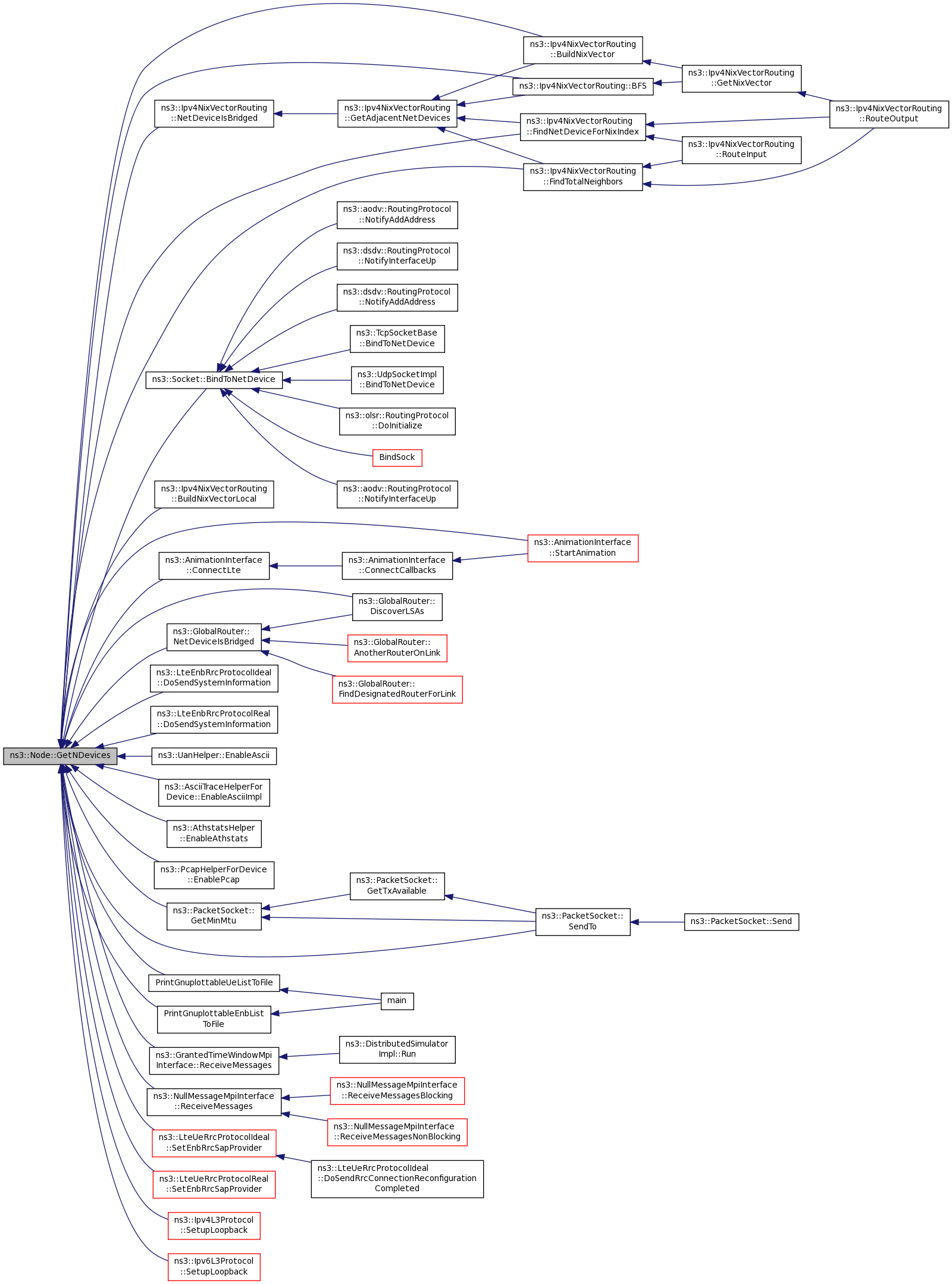

uint32_t ns3::Node::GetNDevices ( void ) const

Returns: the number of NetDevice instances associated to this Node.

Definition at line 142 of file node.cc.

References m_devices, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4NixVectorRouting::BFS(), ns3::Socket::BindToNetDevice(), ns3::Ipv4NixVectorRouting::BuildNixVector(), ns3::Ipv4NixVectorRouting::BuildNixVectorLocal(), ns3::AnimationInterface::ConnectLte(), ns3::GlobalRouter::DiscoverLSAs(), ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), ns3::LteEnbRrcProtocolReal::DoSendSystemInformation(), ns3::UanHelper::EnableAscii(), ns3::AsciiTraceHelperForDevice::EnableAsciiImpl(), ns3::AthstatsHelper::EnableAthstats(), ns3::PcapHelperForDevice::EnablePcap(), ns3::Ipv4NixVectorRouting::FindNetDeviceForNixIndex(), ns3::Ipv4NixVectorRouting::FindTotalNeighbors(), ns3::PacketSocket::GetMinMtu(), ns3::Ipv4NixVectorRouting::NetDeviceIsBridged(), ns3::GlobalRouter::NetDeviceIsBridged(), PrintGnuplottableEnbListToFile(), PrintGnuplottableUeListToFile(), ns3::GrantedTimeWindowMpiInterface::ReceiveMessages(), ns3::NullMessageMpiInterface::ReceiveMessages(), ns3::PacketSocket::SendTo(), ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider(), ns3::Ipv4L3Protocol::SetupLoopback(), ns3::Ipv6L3Protocol::SetupLoopback(), and ns3::AnimationInterface::StartAnimation().

Here is the caller graph for this function:

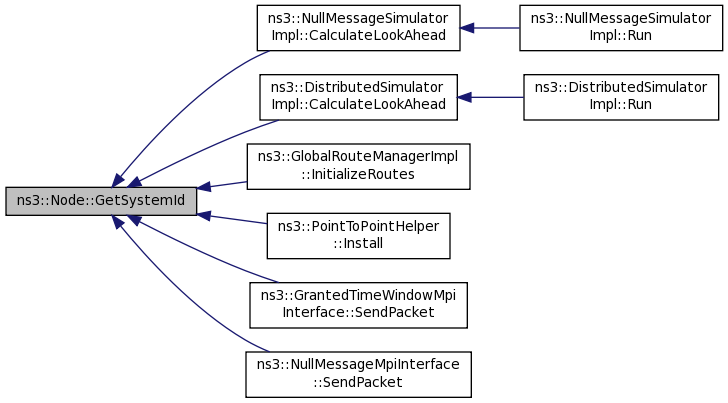

uint32_t ns3::Node::GetSystemId ( void ) const

Returns: the system id for parallel simulations associated to this node.

Definition at line 113 of file node.cc.

References m_sid, and NS_LOG_FUNCTION.

Referenced by ns3::NullMessageSimulatorImpl::CalculateLookAhead(), ns3::DistributedSimulatorImpl::CalculateLookAhead(), ns3::GlobalRouteManagerImpl::InitializeRoutes(), ns3::PointToPointHelper::Install(), ns3::GrantedTimeWindowMpiInterface::SendPacket(), and ns3::NullMessageMpiInterface::SendPacket().

Here is the caller graph for this function:

TypeId ns3::Node::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 50 of file node.cc.

References ns3::TypeId::ATTR_GET, ns3::TypeId::ATTR_SET, m_applications, m_devices, m_id, m_sid, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::Node::NonPromiscReceiveFromDevice	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	from
	)

private

Receive a packet from a device in non-promiscuous mode.

Parameters

device	the device
packet	the packet
protocol	the protocol
from	the sender

Returns: true if the packet has been delivered to a protocol handler.

Definition at line 285 of file node.cc.

References NS_LOG_FUNCTION, and ReceiveFromDevice().

Referenced by AddDevice().

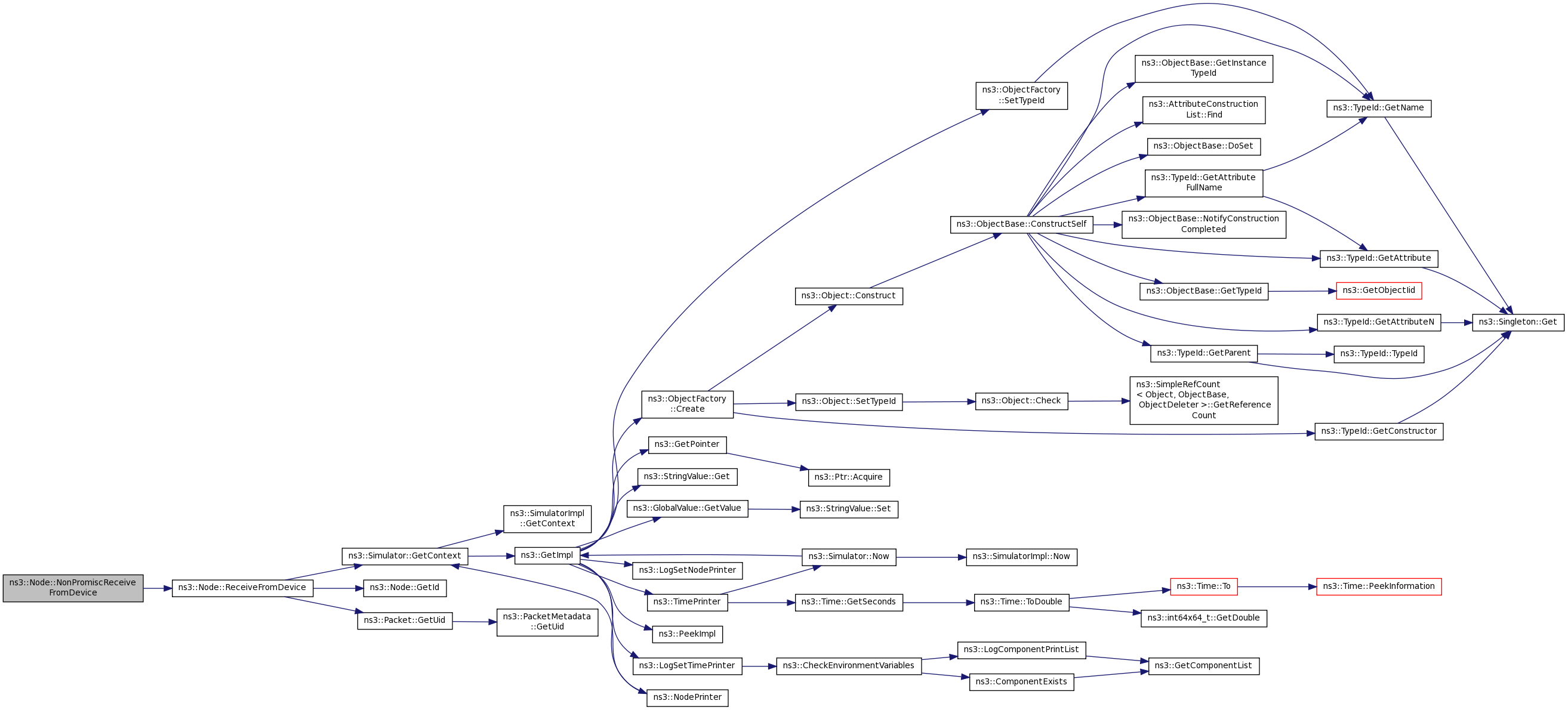

Here is the call graph for this function:

Here is the caller graph for this function:

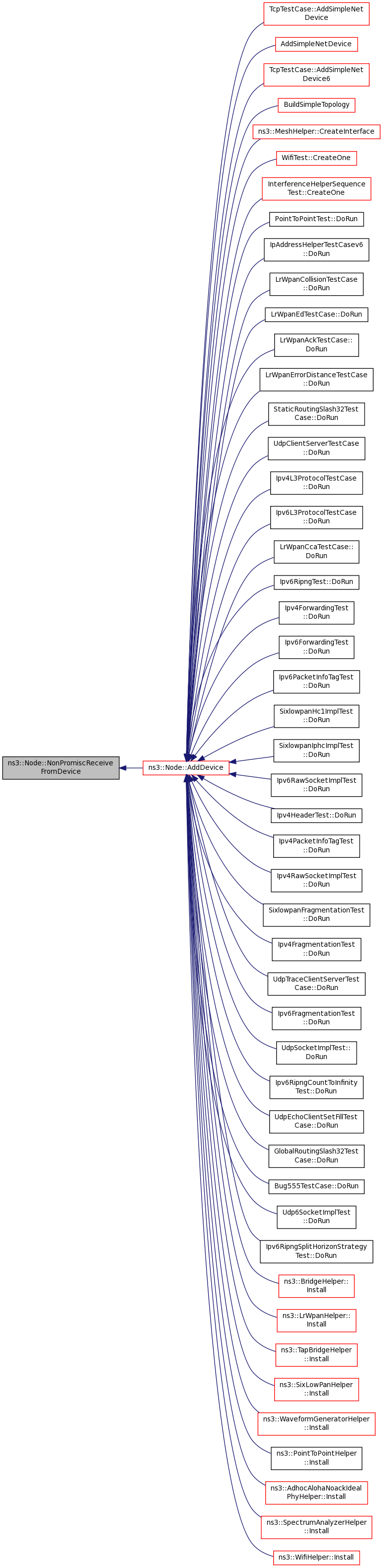

void ns3::Node::NotifyDeviceAdded ( Ptr< NetDevice > device )

private

Notifies all the DeviceAdditionListener about the new device added.

Parameters

device the added device to notify.

Definition at line 352 of file node.cc.

References m_deviceAdditionListeners, and NS_LOG_FUNCTION.

Referenced by AddDevice().

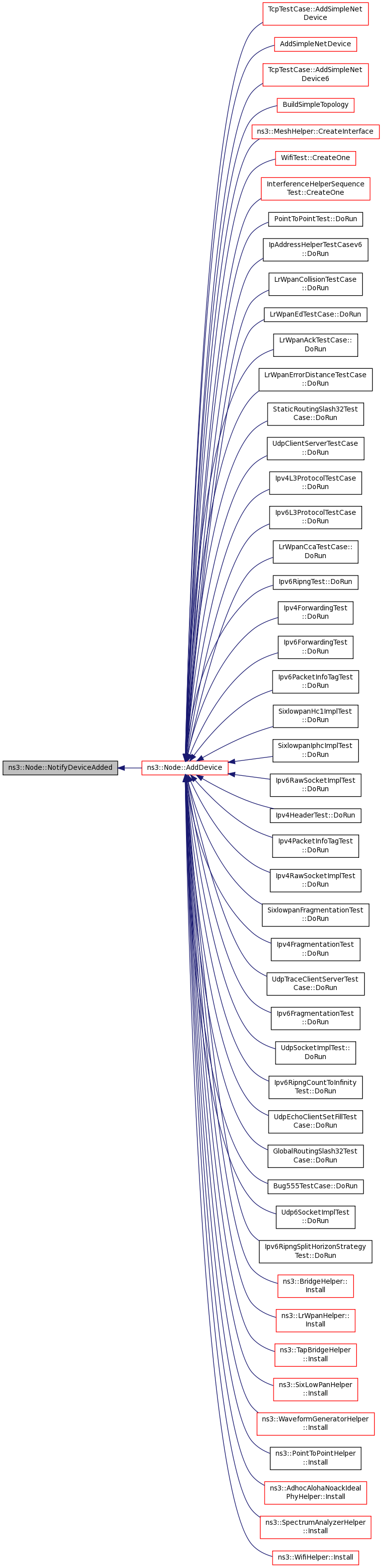

Here is the caller graph for this function:

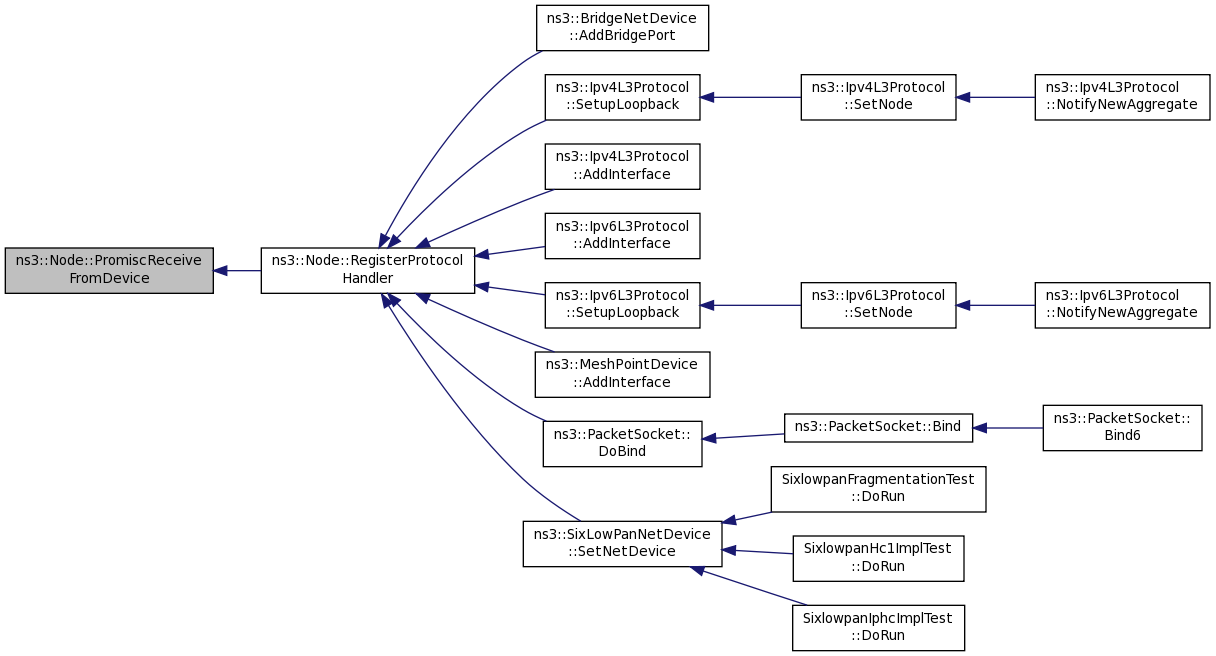

bool ns3::Node::PromiscReceiveFromDevice	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

private

Receive a packet from a device in promiscuous mode.

Parameters

device	the device
packet	the packet
protocol	the protocol
from	the sender
to	the destination
packetType	the packet type

Returns: true if the packet has been delivered to a protocol handler.

Definition at line 277 of file node.cc.

References NS_LOG_FUNCTION, and ReceiveFromDevice().

Referenced by RegisterProtocolHandler().

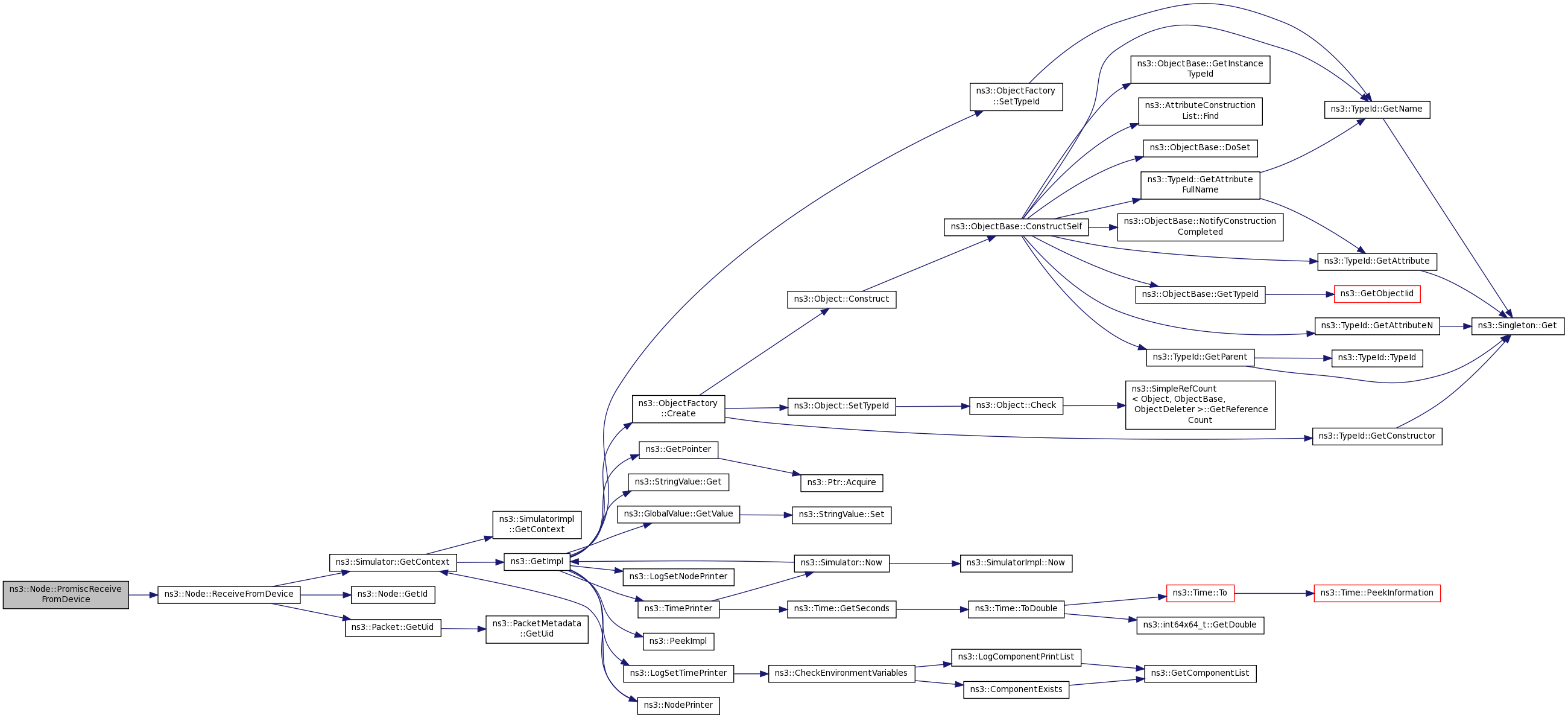

Here is the call graph for this function:

Here is the caller graph for this function:

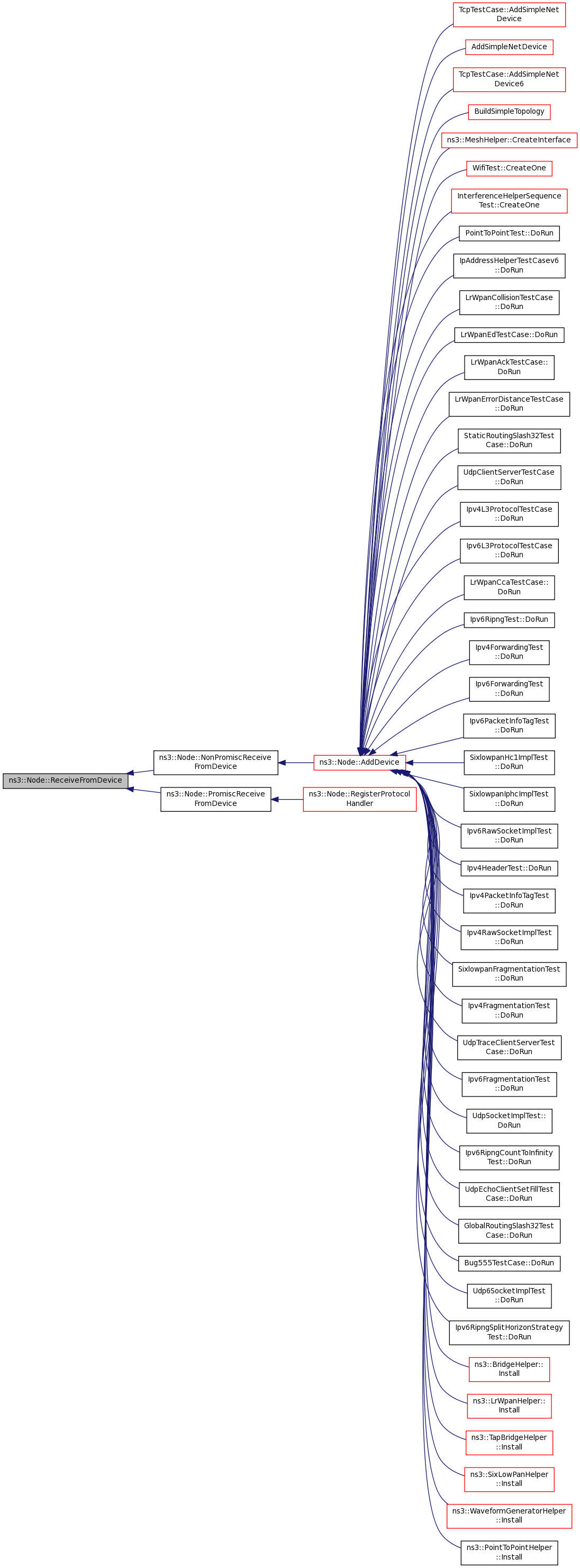

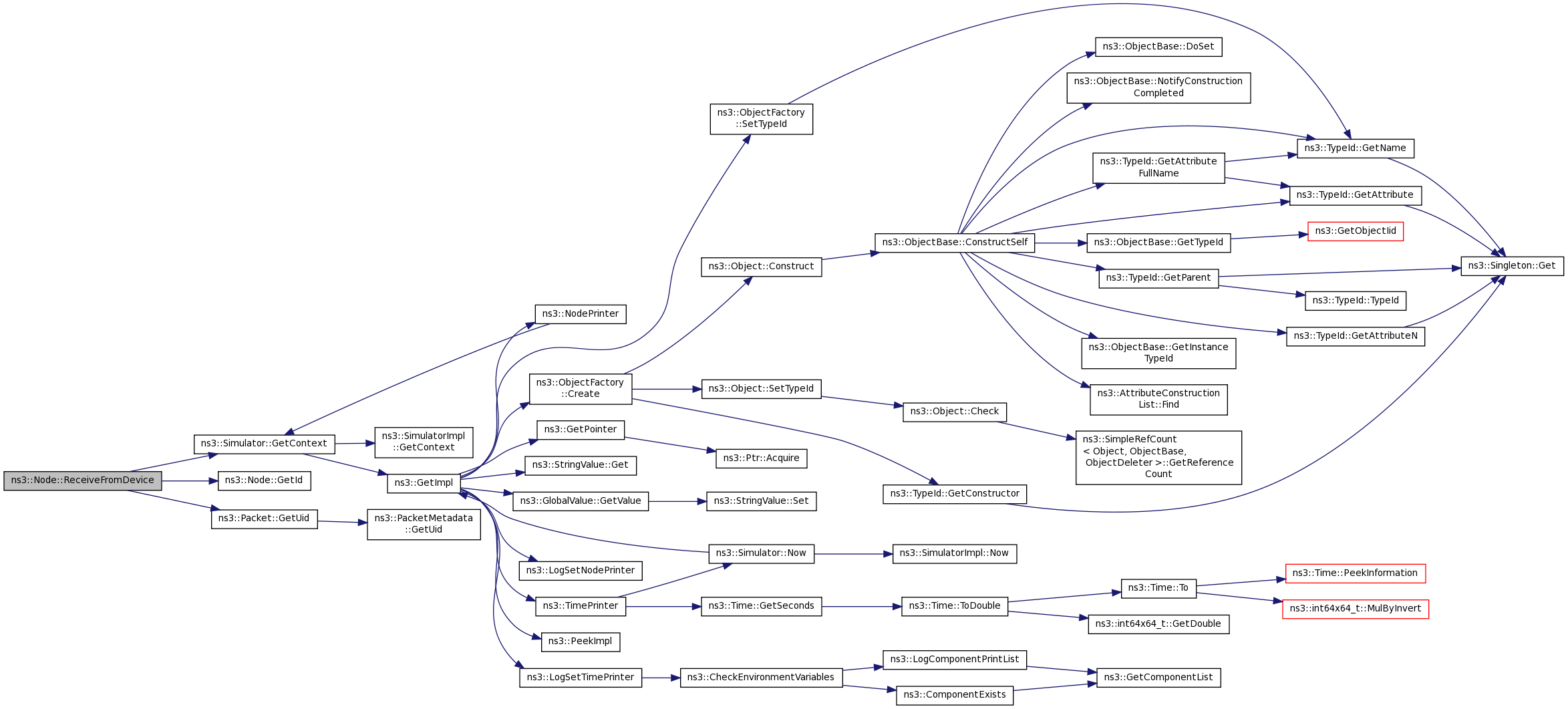

bool ns3::Node::ReceiveFromDevice	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType,
		bool	promisc
	)

private

Receive a packet from a device.

Parameters

device	the device
packet	the packet
protocol	the protocol
from	the sender
to	the destination
packetType	the packet type
promisc	true if received in promiscuous mode

Returns: true if the packet has been delivered to a protocol handler.

Definition at line 293 of file node.cc.

References ns3::Simulator::GetContext(), GetId(), ns3::Packet::GetUid(), m_handlers, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by NonPromiscReceiveFromDevice(), and PromiscReceiveFromDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Node::RegisterDeviceAdditionListener ( DeviceAdditionListener listener )

Parameters

listener the listener to add

Add a new listener to the list of listeners for the device-added event. When a new listener is added, it is notified of the existence of all already-added devices to make discovery of devices easier.

Definition at line 325 of file node.cc.

References m_deviceAdditionListeners, m_devices, and NS_LOG_FUNCTION.

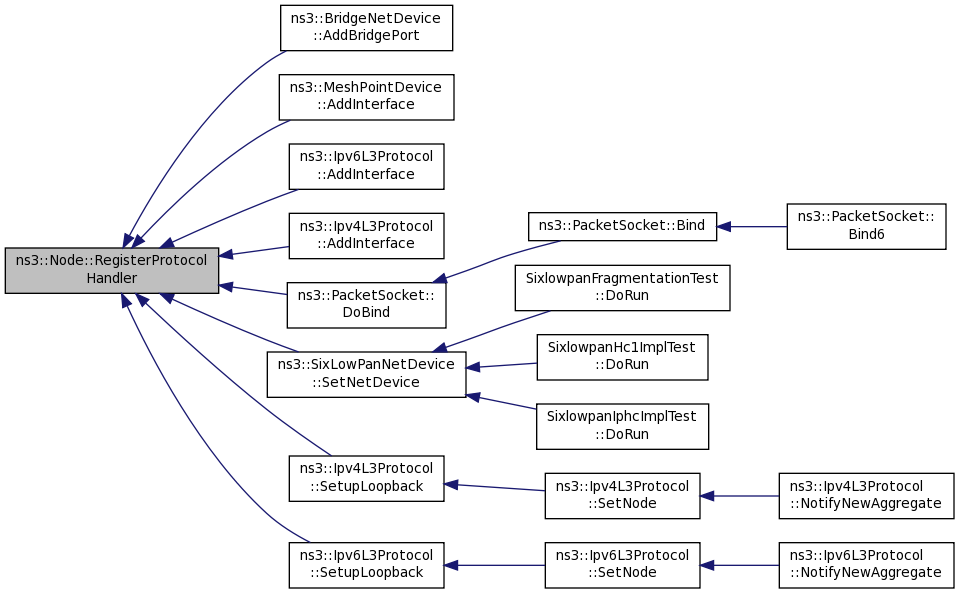

void ns3::Node::RegisterProtocolHandler	(	ProtocolHandler	handler,
		uint16_t	protocolType,
		Ptr< NetDevice >	device,
		bool	promiscuous = `false`
	)

Parameters

handler	the handler to register
protocolType	the type of protocol this handler is interested in. This protocol type is a so-called EtherType, as registered here: http://standards.ieee.org/regauth/ethertype/eth.txt the value zero is interpreted as matching all protocols.
device	the device attached to this handler. If the value is zero, the handler is attached to all devices on this node.
promiscuous	whether to register a promiscuous mode handler

Definition at line 219 of file node.cc.

References ns3::Node::ProtocolHandlerEntry::device, ns3::Node::ProtocolHandlerEntry::handler, m_devices, m_handlers, ns3::MakeCallback(), NS_LOG_FUNCTION, PromiscReceiveFromDevice(), ns3::Node::ProtocolHandlerEntry::promiscuous, and ns3::Node::ProtocolHandlerEntry::protocol.

Referenced by ns3::BridgeNetDevice::AddBridgePort(), ns3::MeshPointDevice::AddInterface(), ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4L3Protocol::AddInterface(), ns3::PacketSocket::DoBind(), ns3::SixLowPanNetDevice::SetNetDevice(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

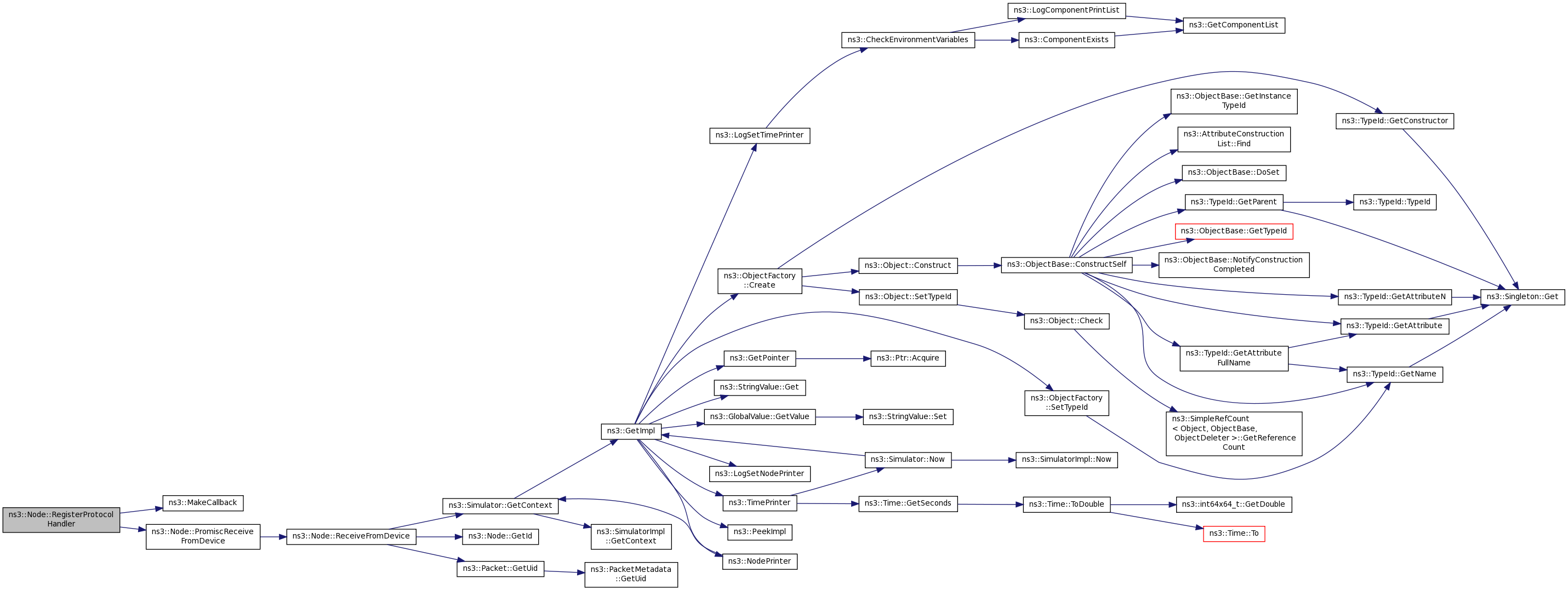

Here is the call graph for this function:
