The base class for all ns3 applications. More...

#include <application.h>

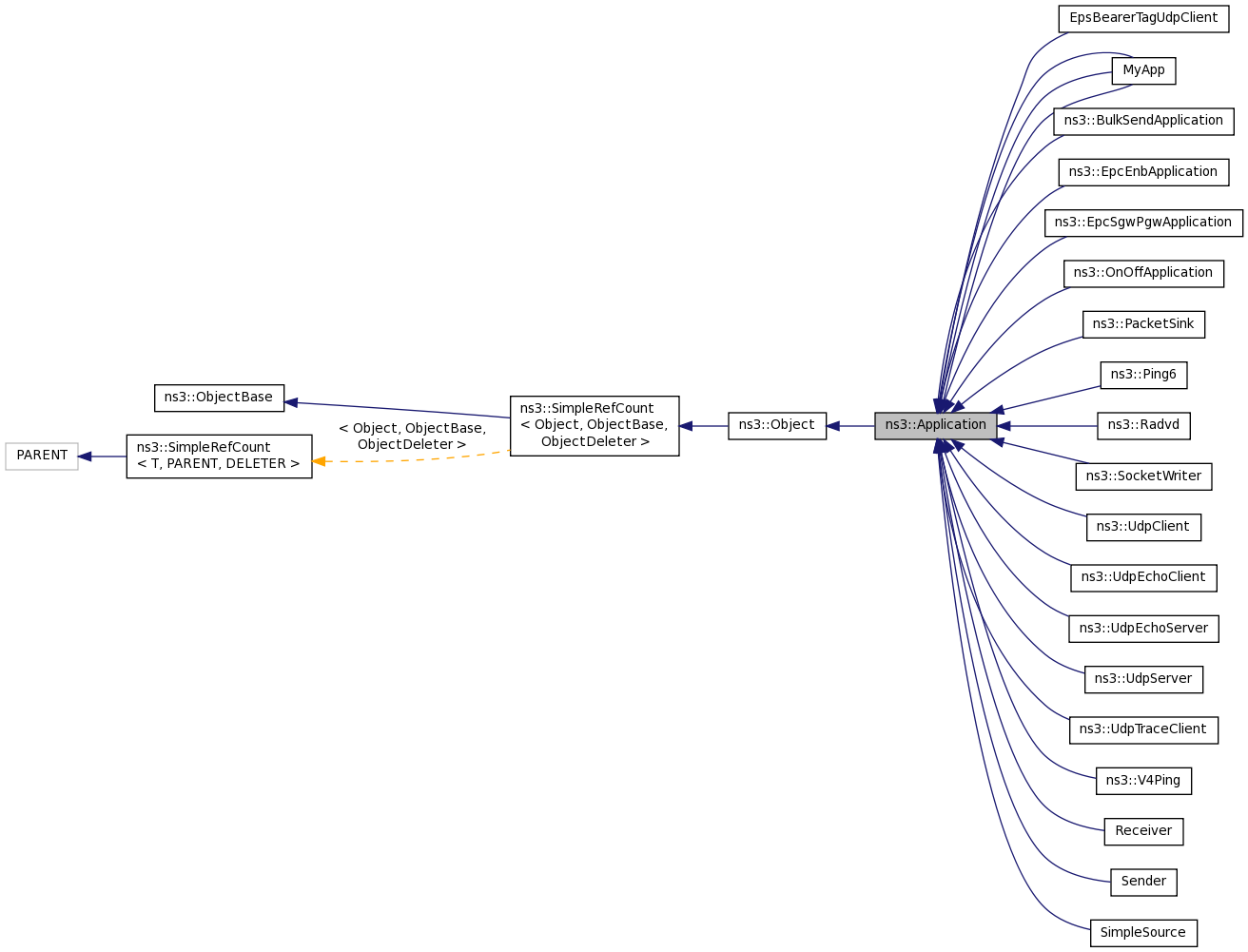

Inheritance diagram for ns3::Application:

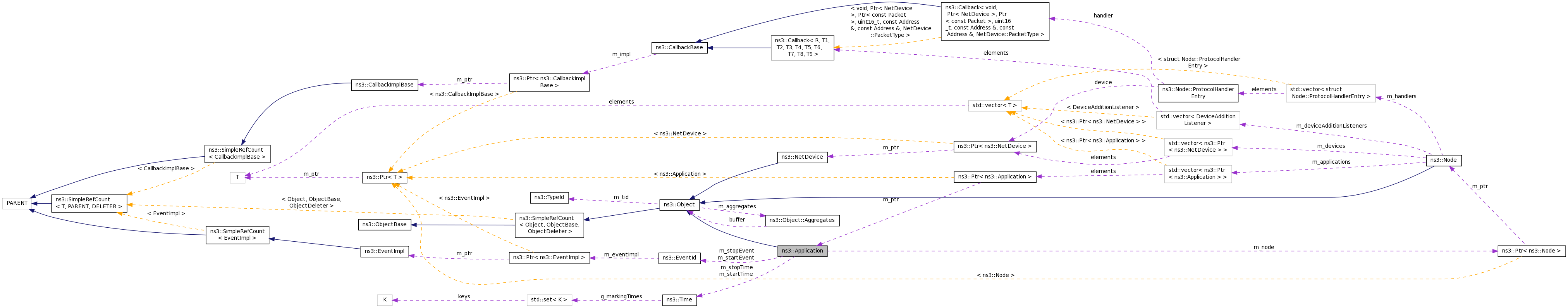

Collaboration diagram for ns3::Application:

Public Member Functions
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Private Member Functions
virtual void	StartApplication (void)
	Application specific startup code. More...

virtual void	StopApplication (void)
	Application specific shutdown code. More...

Detailed Description

The base class for all ns3 applications.

Config Paths

ns3::Application is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]

Attributes

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 60 of file application.h.

Constructor & Destructor Documentation

ns3::Application::Application ( )

Definition at line 56 of file application.cc.

References NS_LOG_FUNCTION.

ns3::Application::~Application ( )

virtual

Definition at line 62 of file application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::Application::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::UdpEchoClient, ns3::OnOffApplication, ns3::UdpTraceClient, ns3::BulkSendApplication, ns3::PacketSink, ns3::Ping6, ns3::Radvd, EpsBearerTagUdpClient, Receiver, ns3::UdpServer, ns3::V4Ping, ns3::UdpClient, ns3::EpcEnbApplication, ns3::EpcSgwPgwApplication, ns3::UdpEchoServer, and Sender.

Definition at line 82 of file application.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), m_node, m_startEvent, m_stopEvent, and NS_LOG_FUNCTION.

Referenced by Sender::DoDispose(), ns3::UdpEchoServer::DoDispose(), ns3::UdpClient::DoDispose(), ns3::V4Ping::DoDispose(), ns3::UdpServer::DoDispose(), ns3::Radvd::DoDispose(), ns3::Ping6::DoDispose(), ns3::PacketSink::DoDispose(), ns3::BulkSendApplication::DoDispose(), ns3::UdpTraceClient::DoDispose(), ns3::OnOffApplication::DoDispose(), and ns3::UdpEchoClient::DoDispose().

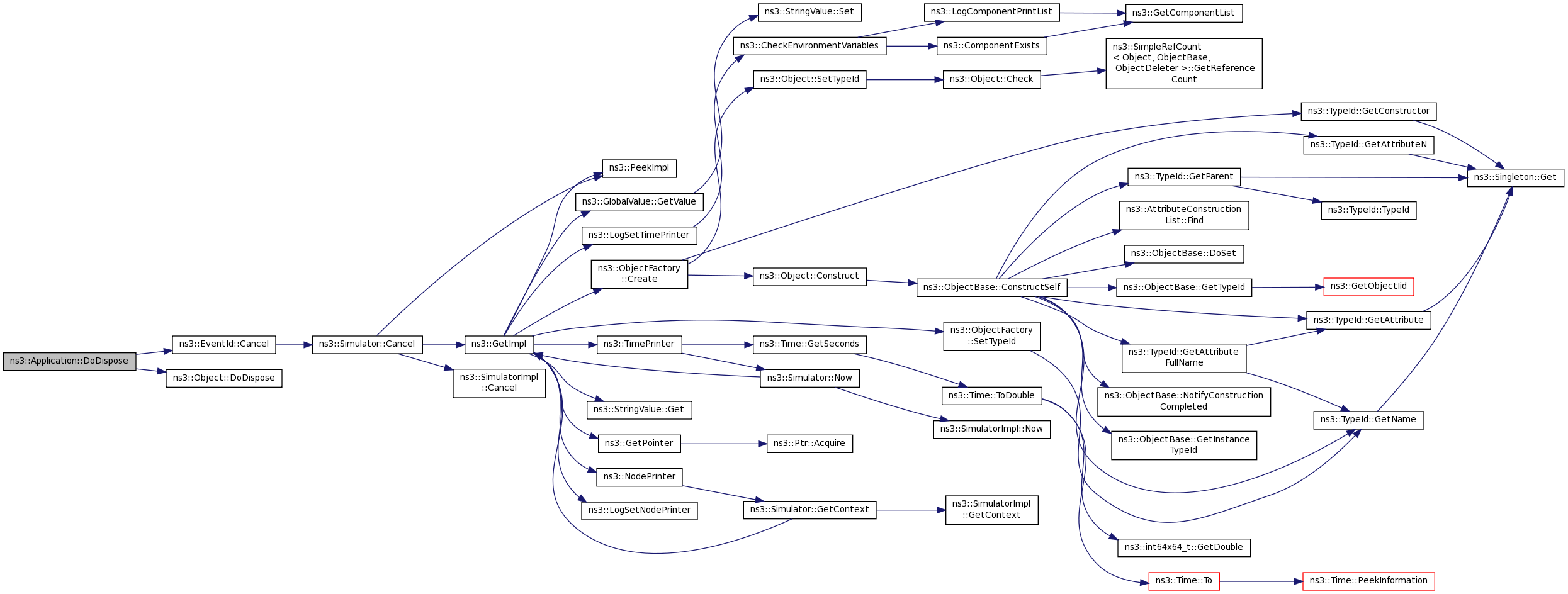

Here is the call graph for this function:

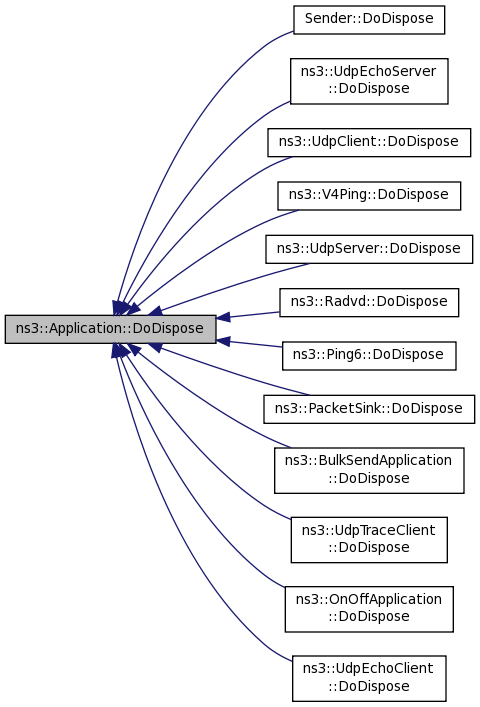

Here is the caller graph for this function:

void ns3::Application::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 92 of file application.cc.

References ns3::Object::DoInitialize(), m_startEvent, m_startTime, m_stopEvent, m_stopTime, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), StartApplication(), StopApplication(), and ns3::TimeStep().

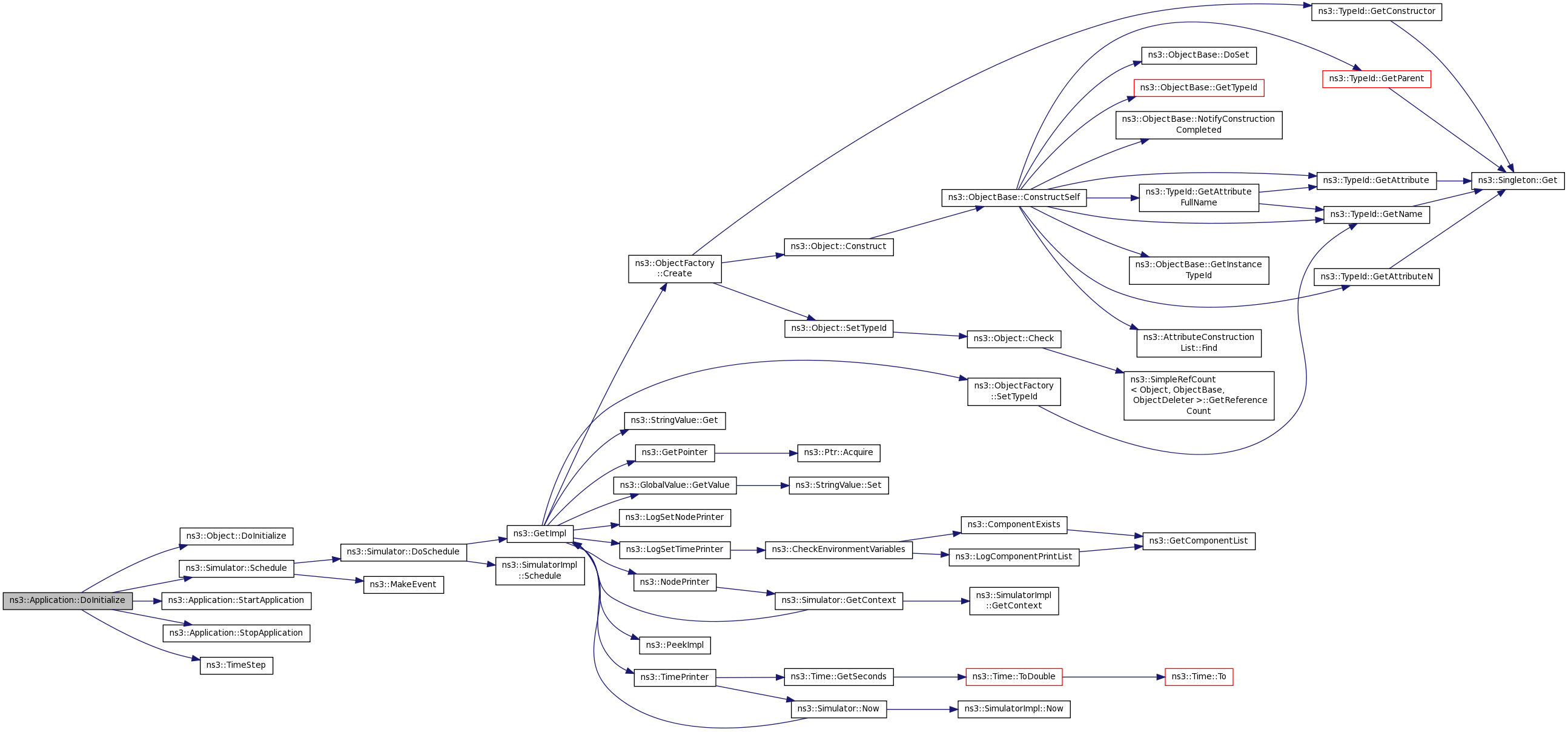

Here is the call graph for this function:

Ptr< Node > ns3::Application::GetNode ( void ) const

Returns: the Node to which this Application object is attached.

Definition at line 103 of file application.cc.

References m_node, and NS_LOG_FUNCTION.

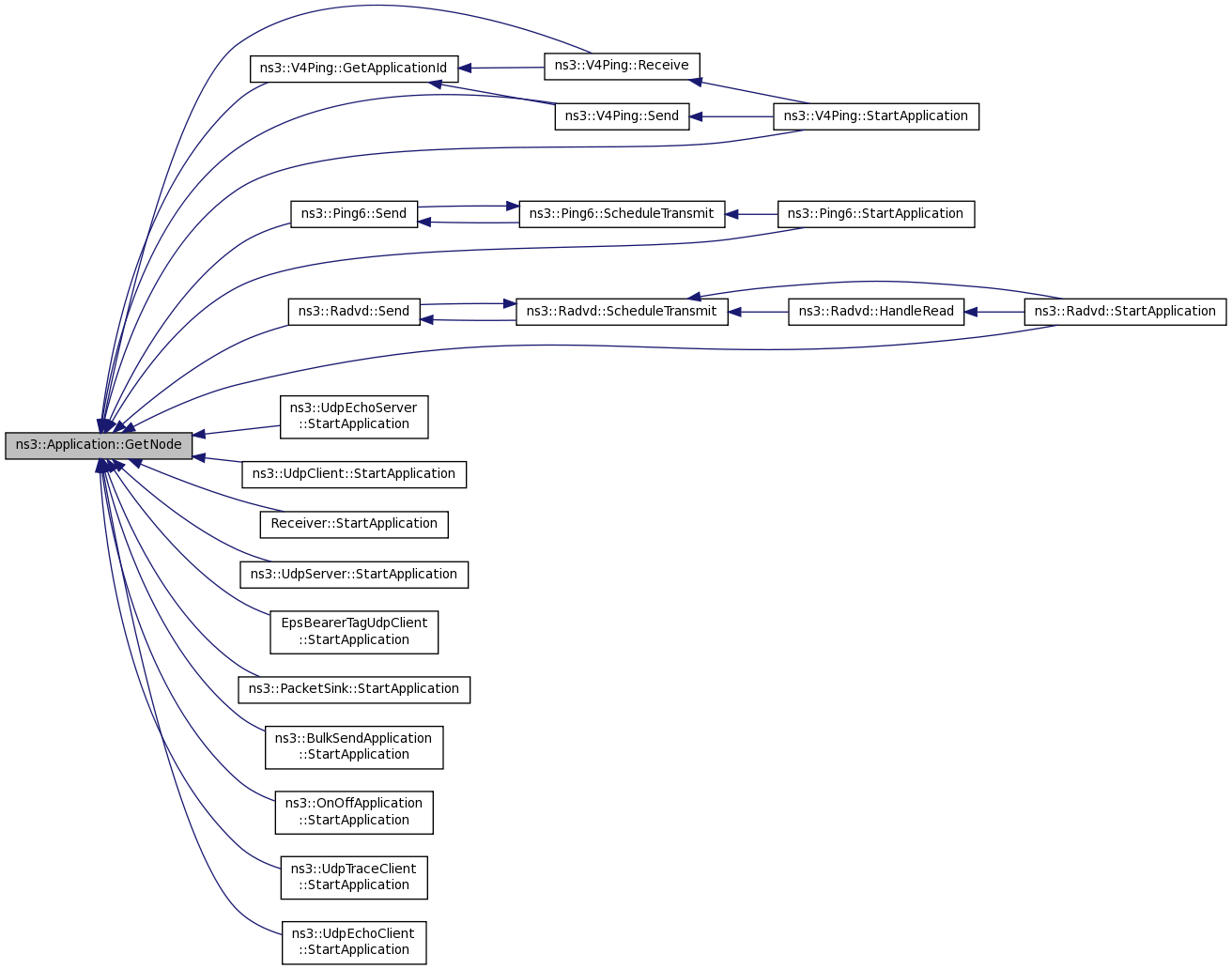

Here is the caller graph for this function:

TypeId ns3::Application::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 39 of file application.cc.

References m_startTime, m_stopTime, ns3::MakeTimeChecker(), ns3::TypeId::SetParent(), and ns3::TimeStep().

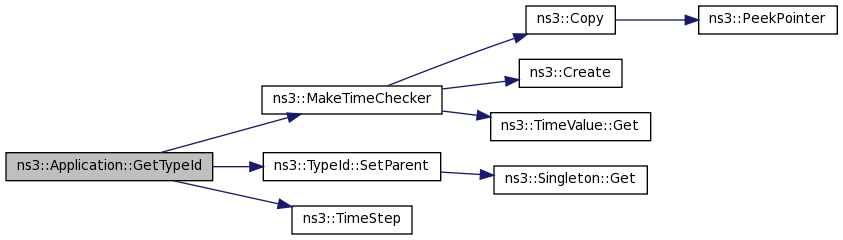

Here is the call graph for this function:

void ns3::Application::SetNode ( Ptr< Node > node )

Parameters

node	the node to which this Application object is attached.

Definition at line 110 of file application.cc.

References m_node, and NS_LOG_FUNCTION.

Referenced by ns3::Node::AddApplication().

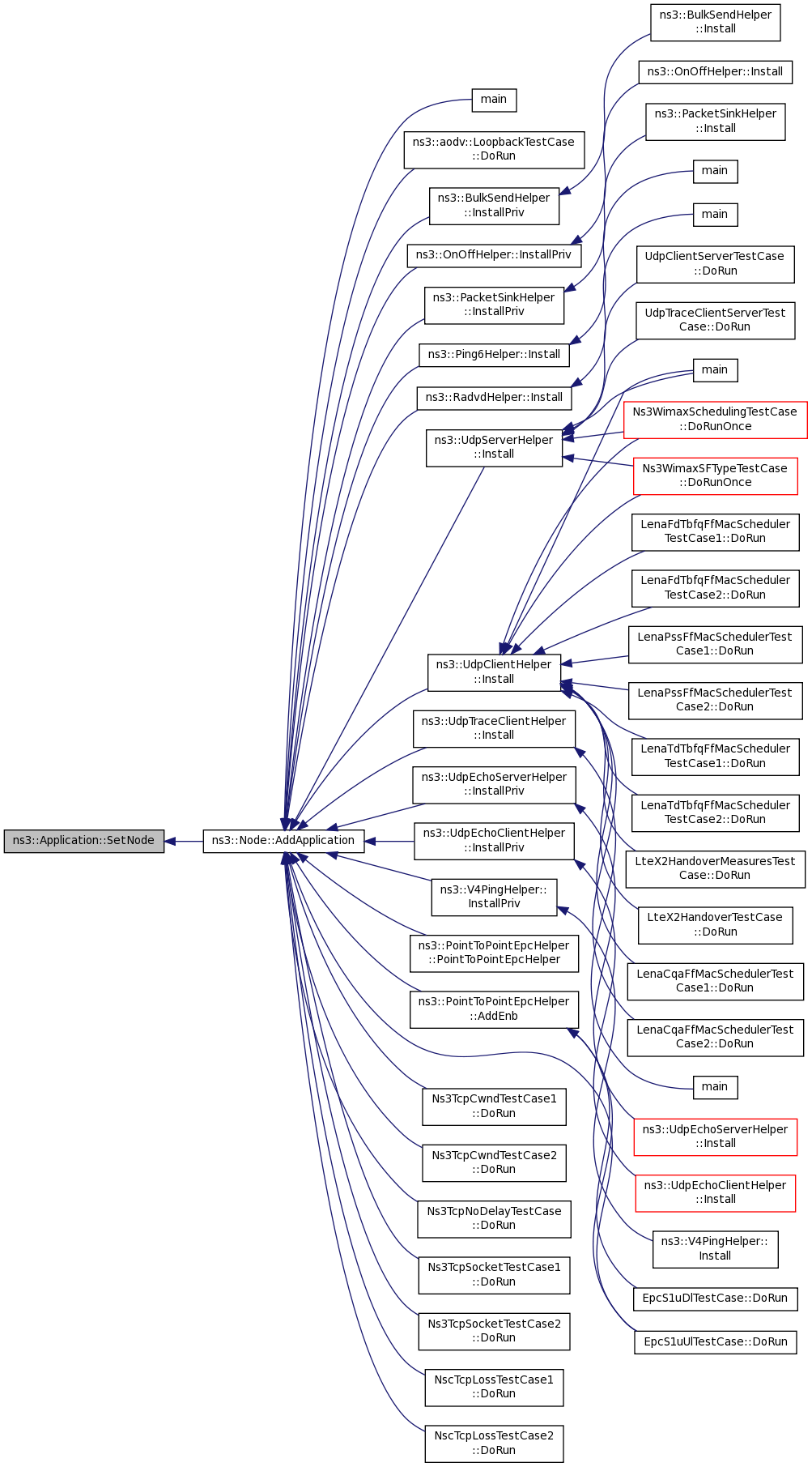

Here is the caller graph for this function:

void ns3::Application::SetStartTime ( Time start )

Specify application start time.

Parameters

start Start time for this application, relative to the current simulation time.

Applications start at various times in the simulation scenario. The Start method specifies when the application should be started. The application subclasses should override the private "StartApplication" method defined below, which is called at the time specified, to cause the application to begin.

Definition at line 68 of file application.cc.

References m_startTime, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Ns3TcpNoDelayTestCase::DoRun(), Ns3TcpSocketTestCase1::DoRun(), NscTcpLossTestCase1::DoRun(), Ns3TcpSocketTestCase2::DoRun(), NscTcpLossTestCase2::DoRun(), Ns3TcpCwndTestCase1::DoRun(), Ns3TcpCwndTestCase2::DoRun(), main(), and ns3::ApplicationContainer::Start().

Here is the call graph for this function:

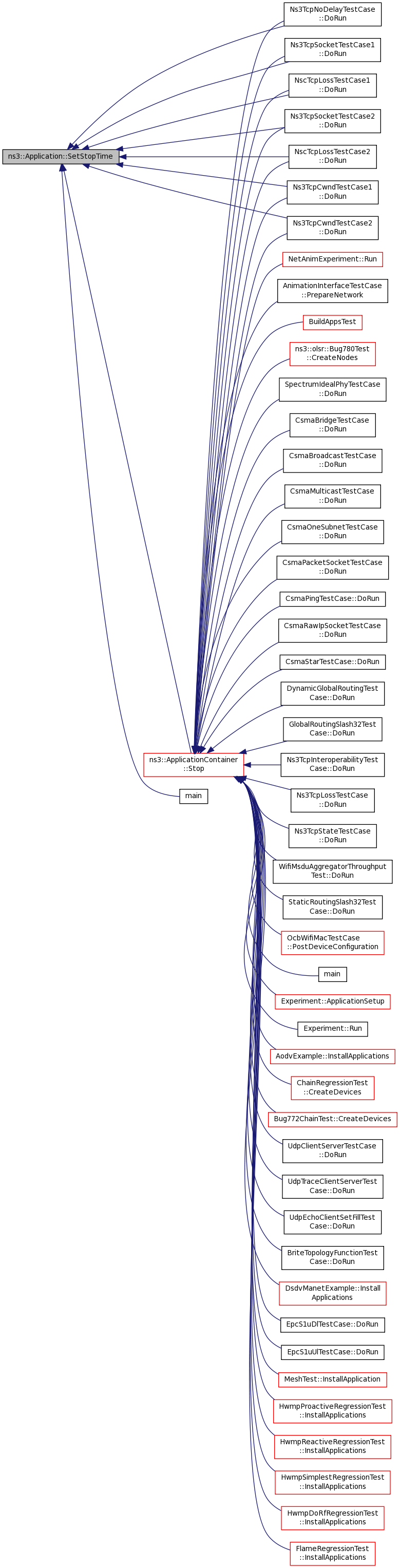

Here is the caller graph for this function:

void ns3::Application::SetStopTime ( Time stop )

Specify application stop time.

Parameters

stop	Stop time for this application, relative to the current simulation time.

Once an application has started, it is sometimes useful to stop the application. The Stop method specifies when an application is to stop. The application subclasses should override the private StopApplication method, to be notified when that time has come.

Definition at line 74 of file application.cc.

References m_stopTime, and NS_LOG_FUNCTION.

Referenced by Ns3TcpNoDelayTestCase::DoRun(), Ns3TcpSocketTestCase1::DoRun(), NscTcpLossTestCase1::DoRun(), Ns3TcpSocketTestCase2::DoRun(), NscTcpLossTestCase2::DoRun(), Ns3TcpCwndTestCase1::DoRun(), Ns3TcpCwndTestCase2::DoRun(), main(), and ns3::ApplicationContainer::Stop().

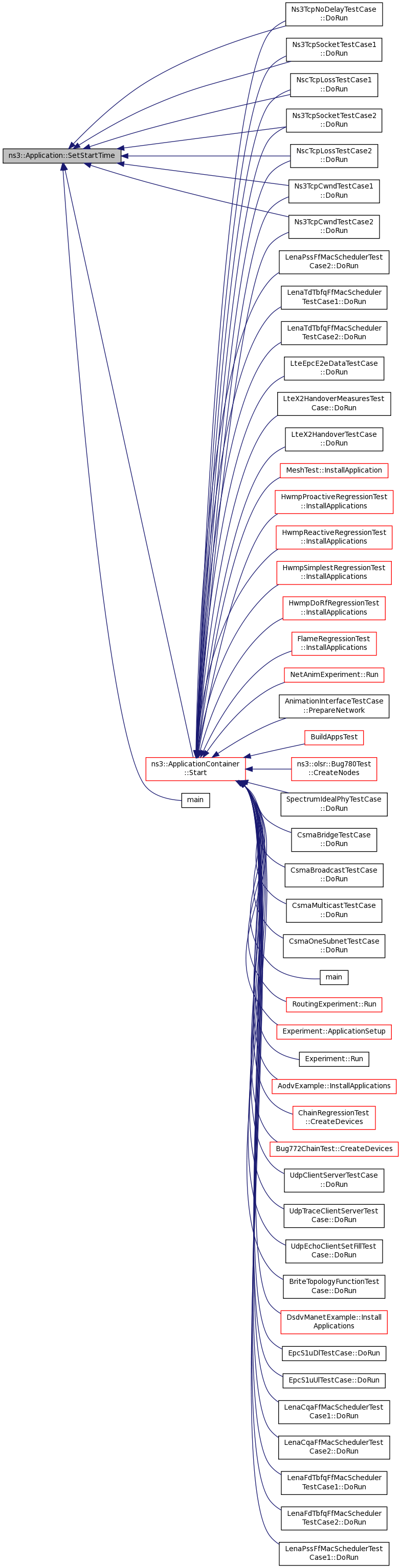

Here is the caller graph for this function:
