This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time). More...

#include <half-duplex-ideal-phy.h>

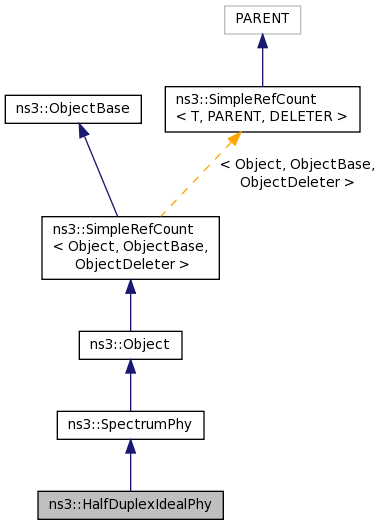

Inheritance diagram for ns3::HalfDuplexIdealPhy:

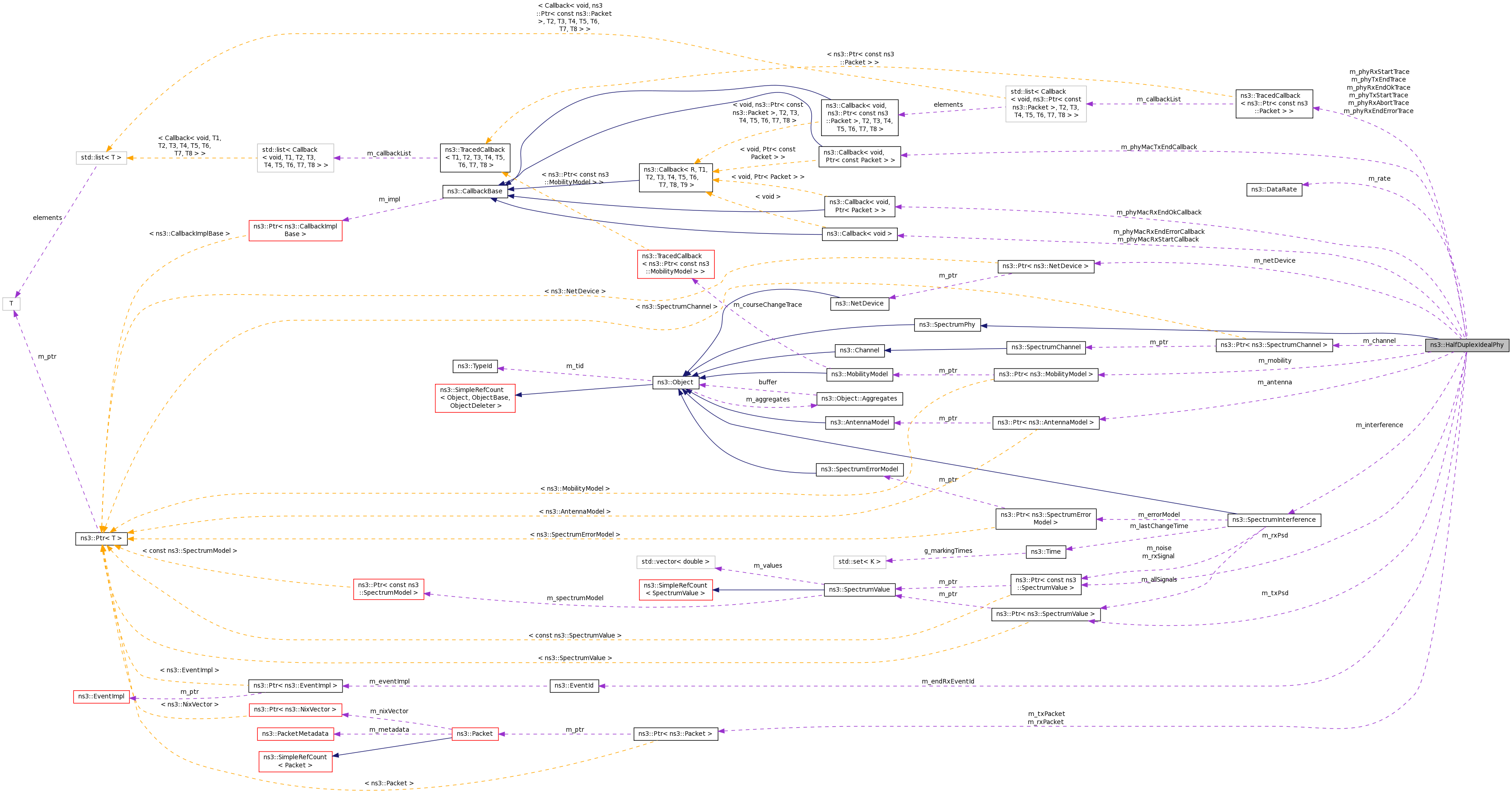

Collaboration diagram for ns3::HalfDuplexIdealPhy:

Public Types
enum	State { IDLE, TX, RX }
	PHY states. More...

Public Member Functions
	HalfDuplexIdealPhy ()

virtual	~HalfDuplexIdealPhy ()

Ptr< NetDevice >	GetDevice ()
	get the associated NetDevice instance More...

Ptr< MobilityModel >	GetMobility ()
	get the associated MobilityModel instance More...

DataRate	GetRate () const

Ptr< AntennaModel >	GetRxAntenna ()
	get the AntennaModel used by the NetDevice for reception More...

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

void	SetAntenna (Ptr< AntennaModel > a)
	set the AntennaModel to be used More...

void	SetChannel (Ptr< SpectrumChannel > c)
	Set the channel attached to this device. More...

void	SetDevice (Ptr< NetDevice > d)
	set the associated NetDevice instance More...

void	SetGenericPhyRxEndErrorCallback (GenericPhyRxEndErrorCallback c)
	set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC More...

void	SetGenericPhyRxEndOkCallback (GenericPhyRxEndOkCallback c)
	set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC More...

void	SetGenericPhyRxStartCallback (GenericPhyRxStartCallback c)
	set the callback for the start of RX, as part of the interconnections betweenthe PHY and the MAC More...

void	SetGenericPhyTxEndCallback (GenericPhyTxEndCallback c)
	set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC More...

void	SetMobility (Ptr< MobilityModel > m)
	Set the mobility model associated with this device. More...

void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)

void	SetRate (DataRate rate)
	set the PHY rate to be used by this PHY. More...

void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
	set the Power Spectral Density of outgoing signals in power units (Watt, Pascal...) per Hz. More...

void	StartRx (Ptr< SpectrumSignalParameters > params)
	Notify the SpectrumPhy instance of an incoming signal. More...

bool	StartTx (Ptr< Packet > p)
	Start a transmission. More...

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	AbortRx ()

void	ChangeState (State newState)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

void	EndRx ()

void	EndTx ()

Private Attributes
Ptr< AntennaModel >	m_antenna

Ptr< SpectrumChannel >	m_channel

EventId	m_endRxEventId

SpectrumInterference	m_interference

Ptr< MobilityModel >	m_mobility

Ptr< NetDevice >	m_netDevice

GenericPhyRxEndErrorCallback	m_phyMacRxEndErrorCallback

GenericPhyRxEndOkCallback	m_phyMacRxEndOkCallback

GenericPhyRxStartCallback	m_phyMacRxStartCallback

GenericPhyTxEndCallback	m_phyMacTxEndCallback

TracedCallback< Ptr< const Packet > >	m_phyRxAbortTrace

TracedCallback< Ptr< const Packet > >	m_phyRxEndErrorTrace

TracedCallback< Ptr< const Packet > >	m_phyRxEndOkTrace

TracedCallback< Ptr< const Packet > >	m_phyRxStartTrace

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace

TracedCallback< Ptr< const Packet > >	m_phyTxStartTrace

DataRate	m_rate

Ptr< Packet >	m_rxPacket

Ptr< const SpectrumValue >	m_rxPsd

State	m_state

Ptr< Packet >	m_txPacket

Ptr< SpectrumValue >	m_txPsd

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time).

Doxygen introspection did not find any typical Config paths.

The device is ideal in the sense that: 1) it uses an error model based on the Shannon capacity, which assumes ideal channel coding; 2) it uses ideal signal acquisition, i.e., preamble detection and synchronization are always successful 3) it has no PHY layer overhead

Being half duplex, if a RX is ongoing but a TX is requested, the RX is aborted and the TX is started. Of course, no RX can be performed while there is an ongoing TX.

The use of OFDM is modeled by means of the Spectrum framework. By calling the method SetTxPowerSpectralDensity(), the user can specify how much of the spectrum is used, how many subcarriers are used, and what power is allocated to each subcarrier.

The user can also specify the PHY rate at which communications take place by using SetRate(). This is equivalent to choosing a particular modulation and coding scheme.

The use of the ShannonSpectrumErrorModel allows us to account for the following aspects in determining whether a transmission is successful or not:

the PHY rate (trades off communication speed with reliability)
the power spectral density (trade-off among total power consumed, total bandwidth used (i.e., how much of the spectrum is occupied), and communication reliability)
the signal propagation

This PHY model supports a single antenna model instance which is used for both transmission and reception.

Attributes

Rate: The PHY rate used by this device
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 1000000bps
- Flags: construct write read

TraceSources

TxStart: Trace fired when a new transmission is started
TxEnd: Trace fired when a previosuly started transmission is finished
RxStart: Trace fired when the start of a signal is detected
RxAbort: Trace fired when a previously started RX is aborted before time
RxEndOk: Trace fired when a previosuly started RX terminates successfully
RxEndError: Trace fired when a previosuly started RX terminates with an error (packet is corrupted)

Definition at line 78 of file half-duplex-ideal-phy.h.

Member Enumeration Documentation

enum ns3::HalfDuplexIdealPhy::State

PHY states.

Enumerator
IDLE
TX
RX

Definition at line 89 of file half-duplex-ideal-phy.h.

Constructor & Destructor Documentation

ns3::HalfDuplexIdealPhy::HalfDuplexIdealPhy ( )

Definition at line 41 of file half-duplex-ideal-phy.cc.

References m_interference, and ns3::SpectrumInterference::SetErrorModel().

Here is the call graph for this function:

ns3::HalfDuplexIdealPhy::~HalfDuplexIdealPhy ( )

virtual

Definition at line 52 of file half-duplex-ideal-phy.cc.

Member Function Documentation

void ns3::HalfDuplexIdealPhy::AbortRx ( )

private

Definition at line 393 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumInterference::AbortRx(), ns3::EventId::Cancel(), ChangeState(), IDLE, m_endRxEventId, m_interference, m_phyRxAbortTrace, m_rxPacket, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX.

Referenced by StartTx().

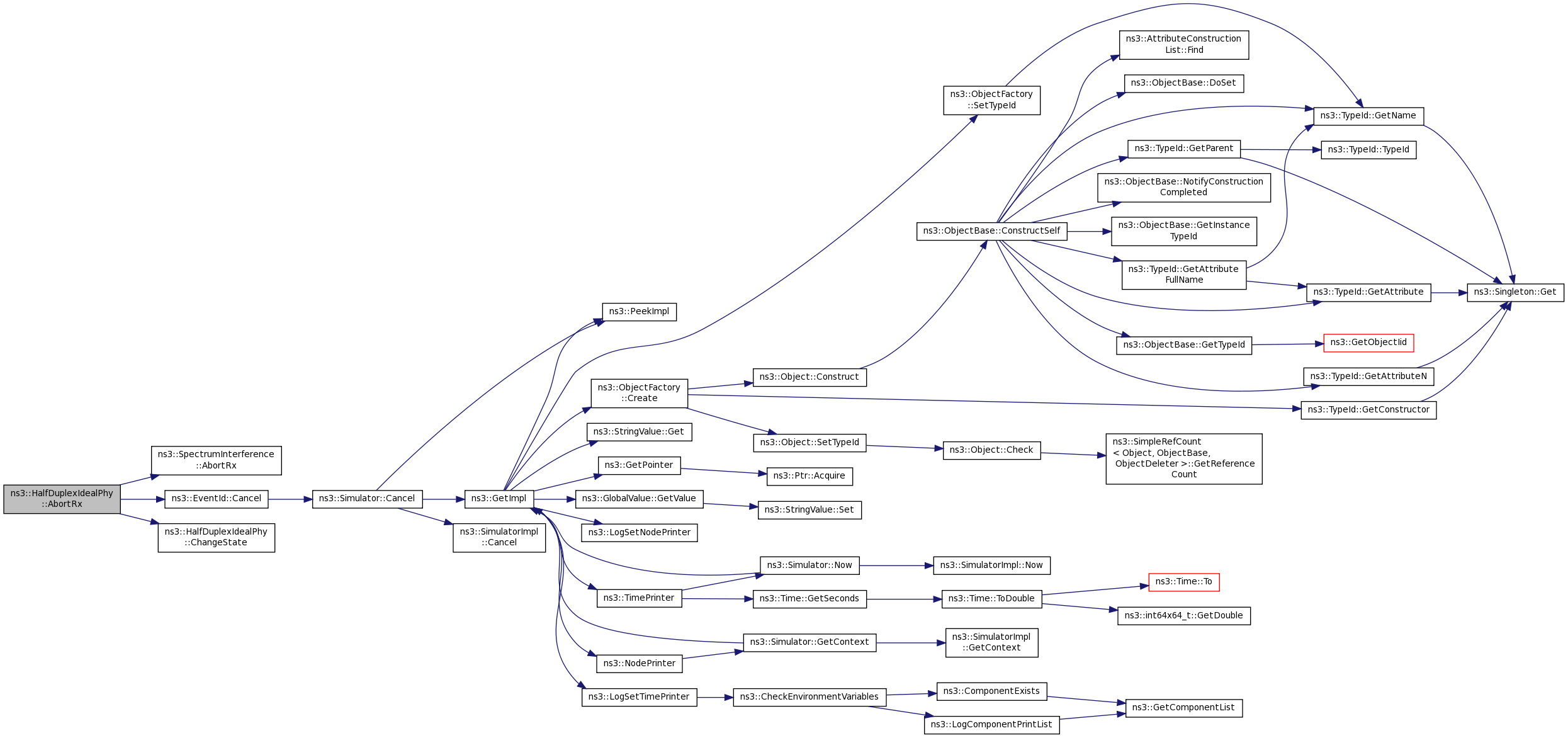

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::ChangeState ( State newState )

private

Definition at line 260 of file half-duplex-ideal-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by AbortRx(), EndRx(), EndTx(), StartRx(), and StartTx().

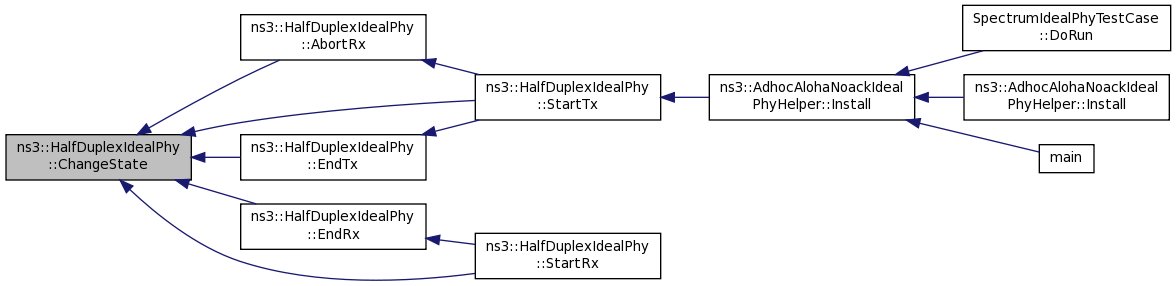

Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file half-duplex-ideal-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_mobility, m_netDevice, m_phyMacRxEndErrorCallback, m_phyMacRxEndOkCallback, m_phyMacRxStartCallback, m_phyMacTxEndCallback, m_rxPacket, m_rxPsd, m_txPacket, m_txPsd, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::HalfDuplexIdealPhy::EndRx ( )

private

Definition at line 408 of file half-duplex-ideal-phy.cc.

References ChangeState(), ns3::SpectrumInterference::EndRx(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_interference, m_phyMacRxEndErrorCallback, m_phyMacRxEndOkCallback, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_rxPacket, m_rxPsd, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX.

Referenced by StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::EndTx ( void )

private

Definition at line 308 of file half-duplex-ideal-phy.cc.

References ChangeState(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_phyMacTxEndCallback, m_phyTxEndTrace, m_state, m_txPacket, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTx().

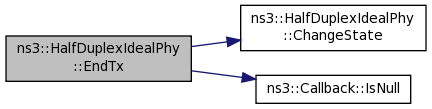

Here is the call graph for this function:

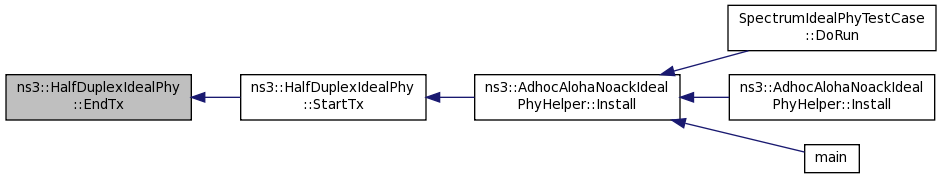

Here is the caller graph for this function:

Ptr< NetDevice > ns3::HalfDuplexIdealPhy::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 132 of file half-duplex-ideal-phy.cc.

References m_netDevice, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::HalfDuplexIdealPhy::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 140 of file half-duplex-ideal-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

DataRate ns3::HalfDuplexIdealPhy::GetRate ( void ) const

Returns: the PHY rate used by this PHY.

Definition at line 208 of file half-duplex-ideal-phy.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< AntennaModel > ns3::HalfDuplexIdealPhy::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 246 of file half-duplex-ideal-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

Ptr< const SpectrumModel > ns3::HalfDuplexIdealPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 171 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumValue::GetSpectrumModel(), and m_txPsd.

Here is the call graph for this function:

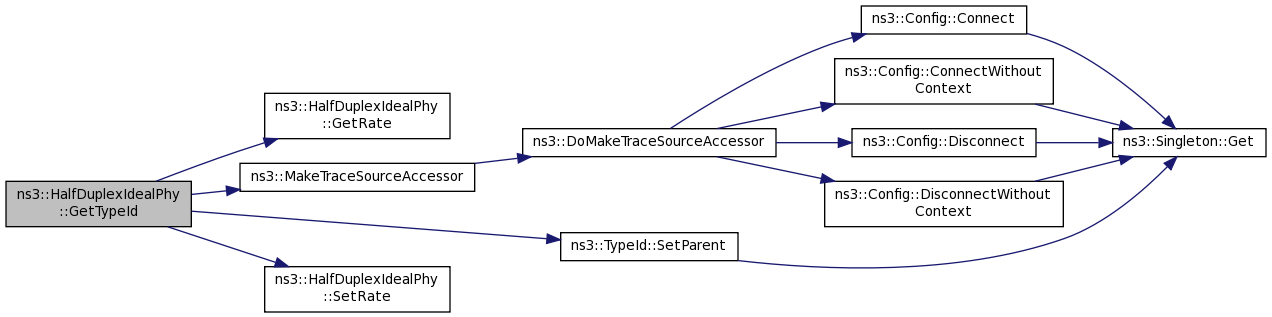

TypeId ns3::HalfDuplexIdealPhy::GetTypeId ( void )

static

Definition at line 96 of file half-duplex-ideal-phy.cc.

References GetRate(), m_phyRxAbortTrace, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_phyRxStartTrace, m_phyTxEndTrace, m_phyTxStartTrace, ns3::MakeTraceSourceAccessor(), ns3::TypeId::SetParent(), and SetRate().

Here is the call graph for this function:

void ns3::HalfDuplexIdealPhy::SetAntenna ( Ptr< AntennaModel > a )

set the AntennaModel to be used

Parameters

a	the Antenna Model

Definition at line 253 of file half-duplex-ideal-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetChannel ( Ptr< SpectrumChannel > c )

virtual

Set the channel attached to this device.

Parameters

c	the channel

Implements ns3::SpectrumPhy.

Definition at line 164 of file half-duplex-ideal-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetDevice ( Ptr< NetDevice > d )

virtual

set the associated NetDevice instance

Parameters

d	the NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 148 of file half-duplex-ideal-phy.cc.

References m_netDevice, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxEndErrorCallback ( GenericPhyRxEndErrorCallback c )

set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 231 of file half-duplex-ideal-phy.cc.

References m_phyMacRxEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxEndOkCallback ( GenericPhyRxEndOkCallback c )

set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 239 of file half-duplex-ideal-phy.cc.

References m_phyMacRxEndOkCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxStartCallback ( GenericPhyRxStartCallback c )

set the callback for the start of RX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 223 of file half-duplex-ideal-phy.cc.

References m_phyMacRxStartCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyTxEndCallback ( GenericPhyTxEndCallback c )

set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 216 of file half-duplex-ideal-phy.cc.

References m_phyMacTxEndCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetMobility ( Ptr< MobilityModel > m )

virtual

Set the mobility model associated with this device.

Parameters

m	the mobility model

Implements ns3::SpectrumPhy.

Definition at line 156 of file half-duplex-ideal-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue > noisePsd )

Parameters

noisePsd the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 193 of file half-duplex-ideal-phy.cc.

References m_interference, NS_ASSERT, NS_LOG_FUNCTION, and ns3::SpectrumInterference::SetNoisePowerSpectralDensity().

Here is the call graph for this function:

void ns3::HalfDuplexIdealPhy::SetRate ( DataRate rate )

set the PHY rate to be used by this PHY.

Parameters

rate

Definition at line 201 of file half-duplex-ideal-phy.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue > txPsd )

set the Power Spectral Density of outgoing signals in power units (Watt, Pascal...) per Hz.

Parameters

txPsd

Definition at line 184 of file half-duplex-ideal-phy.cc.

References m_txPsd, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_INFO.

void ns3::HalfDuplexIdealPhy::StartRx ( Ptr< SpectrumSignalParameters > params )

virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters

params the parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 328 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumInterference::AddSignal(), ChangeState(), EndRx(), IDLE, ns3::Integral(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_endRxEventId, m_interference, m_phyMacRxStartCallback, m_phyRxStartTrace, m_rxPacket, m_rxPsd, m_state, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX, ns3::Simulator::Schedule(), ns3::SpectrumInterference::StartRx(), and TX.

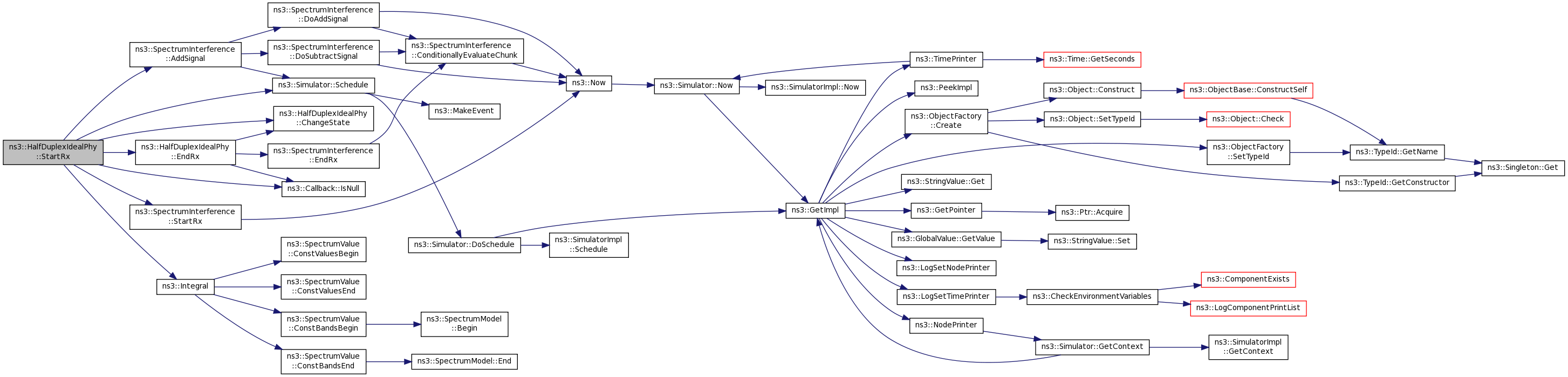

Here is the call graph for this function:

bool ns3::HalfDuplexIdealPhy::StartTx ( Ptr< Packet > p )

Start a transmission.

Parameters

p	the packet to be transmitted

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 267 of file half-duplex-ideal-phy.cc.

References AbortRx(), ns3::DataRate::CalculateTxTime(), ChangeState(), EndTx(), ns3::Packet::GetSize(), IDLE, ns3::Integral(), m_antenna, m_channel, m_phyTxStartTrace, m_rate, m_state, m_txPacket, m_txPsd, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX, ns3::Simulator::Schedule(), and TX.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

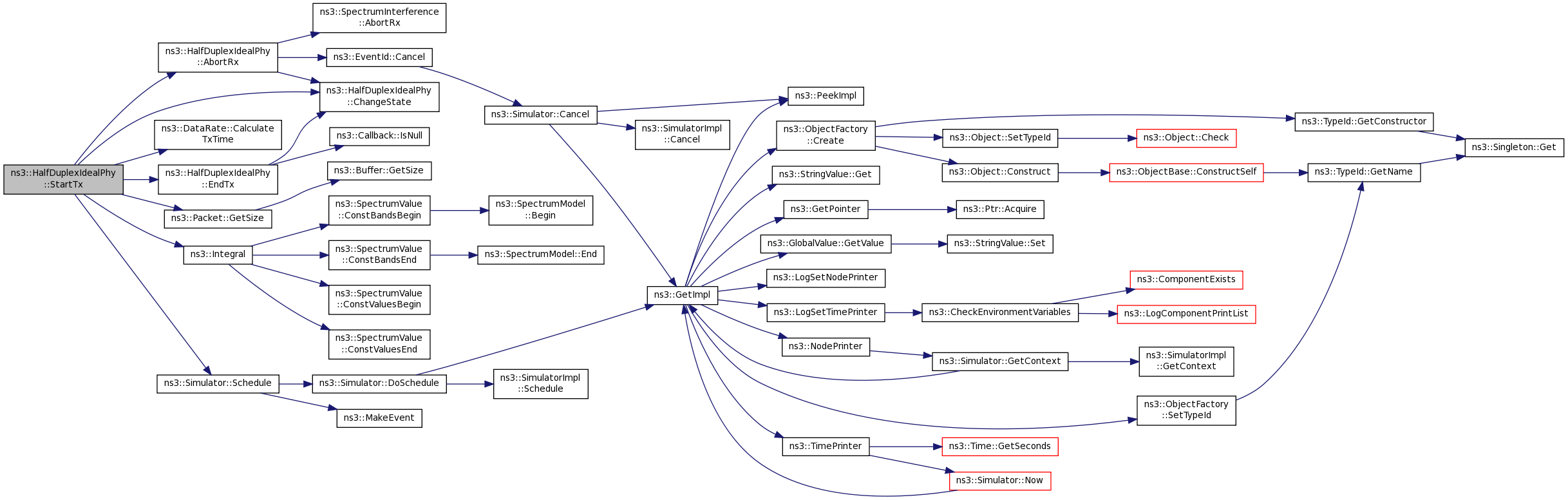

Here is the call graph for this function:

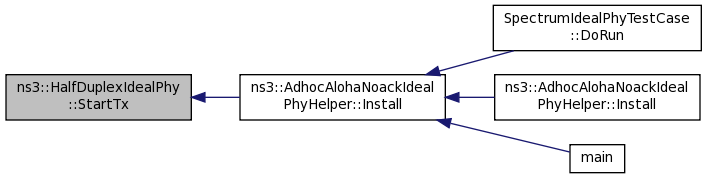

Here is the caller graph for this function:

Member Data Documentation

Ptr<AntennaModel> ns3::HalfDuplexIdealPhy::m_antenna

private

Definition at line 197 of file half-duplex-ideal-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), and StartTx().

Ptr<SpectrumChannel> ns3::HalfDuplexIdealPhy::m_channel

private

Definition at line 199 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), SetChannel(), and StartTx().

EventId ns3::HalfDuplexIdealPhy::m_endRxEventId

private

Definition at line 194 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), and StartRx().

SpectrumInterference ns3::HalfDuplexIdealPhy::m_interference

private

Definition at line 222 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), EndRx(), HalfDuplexIdealPhy(), SetNoisePowerSpectralDensity(), and StartRx().

Ptr<MobilityModel> ns3::HalfDuplexIdealPhy::m_mobility

private

Definition at line 196 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

Ptr<NetDevice> ns3::HalfDuplexIdealPhy::m_netDevice

private

Definition at line 198 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

GenericPhyRxEndErrorCallback ns3::HalfDuplexIdealPhy::m_phyMacRxEndErrorCallback

private

Definition at line 219 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndErrorCallback().

GenericPhyRxEndOkCallback ns3::HalfDuplexIdealPhy::m_phyMacRxEndOkCallback

private

Definition at line 220 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndOkCallback().

GenericPhyRxStartCallback ns3::HalfDuplexIdealPhy::m_phyMacRxStartCallback

private

Definition at line 218 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), SetGenericPhyRxStartCallback(), and StartRx().

GenericPhyTxEndCallback ns3::HalfDuplexIdealPhy::m_phyMacTxEndCallback

private

Definition at line 217 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndTx(), and SetGenericPhyTxEndCallback().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxAbortTrace

private

Definition at line 213 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxEndErrorTrace

private

Definition at line 215 of file half-duplex-ideal-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxEndOkTrace

private

Definition at line 214 of file half-duplex-ideal-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxStartTrace

private

Definition at line 212 of file half-duplex-ideal-phy.h.

Referenced by GetTypeId(), and StartRx().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyTxEndTrace

private

Definition at line 211 of file half-duplex-ideal-phy.h.

Referenced by EndTx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyTxStartTrace

private

Definition at line 210 of file half-duplex-ideal-phy.h.

Referenced by GetTypeId(), and StartTx().

DataRate ns3::HalfDuplexIdealPhy::m_rate

private

Definition at line 206 of file half-duplex-ideal-phy.h.

Referenced by GetRate(), SetRate(), and StartTx().

Ptr<Packet> ns3::HalfDuplexIdealPhy::m_rxPacket

private

Definition at line 204 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), DoDispose(), EndRx(), and StartRx().

Ptr<const SpectrumValue> ns3::HalfDuplexIdealPhy::m_rxPsd

private

Definition at line 202 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and StartRx().

State ns3::HalfDuplexIdealPhy::m_state

private

Definition at line 208 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), ChangeState(), EndRx(), EndTx(), StartRx(), and StartTx().

Ptr<Packet> ns3::HalfDuplexIdealPhy::m_txPacket

private

Definition at line 203 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndTx(), and StartTx().

Ptr<SpectrumValue> ns3::HalfDuplexIdealPhy::m_txPsd

private

Definition at line 201 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetRxSpectrumModel(), SetTxPowerSpectralDensity(), and StartTx().

The documentation for this class was generated from the following files:

src/spectrum/model/half-duplex-ideal-phy.h
src/spectrum/model/half-duplex-ideal-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
