ns3::SpectrumPhy Class Referenceabstract

Abstract base class for Spectrum-aware PHY layers. More...

#include <spectrum-phy.h>

+ Inheritance diagram for ns3::SpectrumPhy:

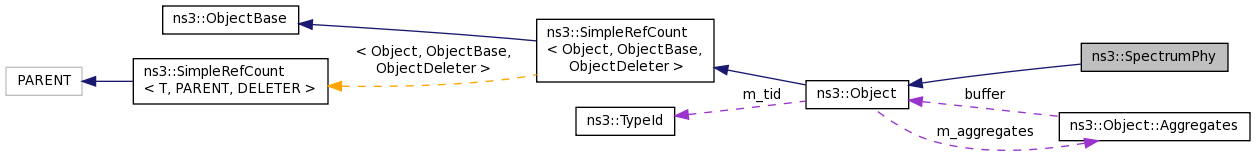

+ Collaboration diagram for ns3::SpectrumPhy:

Public Member Functions

 SpectrumPhy ()

virtual ~SpectrumPhy ()

virtual Ptr< NetDeviceGetDevice ()=0
 get the associated NetDevice instance More...

virtual Ptr< MobilityModelGetMobility ()=0
 get the associated MobilityModel instance More...

virtual Ptr< AntennaModelGetRxAntenna ()=0
 get the AntennaModel used by the NetDevice for reception More...

virtual Ptr< const SpectrumModelGetRxSpectrumModel () const =0

virtual void SetChannel (Ptr< SpectrumChannel > c)=0
 Set the channel attached to this device. More...

virtual void SetDevice (Ptr< NetDevice > d)=0
 set the associated NetDevice instance More...

virtual void SetMobility (Ptr< MobilityModel > m)=0
 Set the mobility model associated with this device. More...

virtual void StartRx (Ptr< SpectrumSignalParameters > params)=0
 Notify the SpectrumPhy instance of an incoming signal. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

 SpectrumPhy (SpectrumPhy const &)

SpectrumPhyoperator= (SpectrumPhy const &)


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Abstract base class for Spectrum-aware PHY layers.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 45 of file spectrum-phy.h.

Constructor & Destructor Documentation

ns3::SpectrumPhy::SpectrumPhy ( )

Definition at line 45 of file spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::SpectrumPhy::~SpectrumPhy ( )
virtual

Definition at line 50 of file spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::SpectrumPhy::SpectrumPhy ( SpectrumPhy const &  )
private

Member Function Documentation

virtual Ptr<NetDevice> ns3::SpectrumPhy::GetDevice ( )
pure virtual
virtual Ptr<MobilityModel> ns3::SpectrumPhy::GetMobility ( )
pure virtual

get the associated MobilityModel instance

Returns
a Ptr to the associated MobilityModel instance

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by GlobalPathlossDatabase::UpdatePathloss().

+ Here is the caller graph for this function:

virtual Ptr<AntennaModel> ns3::SpectrumPhy::GetRxAntenna ( )
pure virtual

get the AntennaModel used by the NetDevice for reception

Returns
a Ptr to the AntennaModel used by the NetDevice for reception

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

virtual Ptr<const SpectrumModel> ns3::SpectrumPhy::GetRxSpectrumModel ( ) const
pure virtual
Returns
returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::MultiModelSpectrumChannel::AddRx().

+ Here is the caller graph for this function:

TypeId ns3::SpectrumPhy::GetTypeId ( void  )
static

Definition at line 37 of file spectrum-phy.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

SpectrumPhy& ns3::SpectrumPhy::operator= ( SpectrumPhy const &  )
private
virtual void ns3::SpectrumPhy::SetChannel ( Ptr< SpectrumChannel c)
pure virtual

Set the channel attached to this device.

Parameters
cthe channel

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::SpectrumPhyHelper::Create().

+ Here is the caller graph for this function:

virtual void ns3::SpectrumPhy::SetDevice ( Ptr< NetDevice d)
pure virtual

set the associated NetDevice instance

Parameters
dthe NetDevice instance

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::SpectrumPhyHelper::Create().

+ Here is the caller graph for this function:

virtual void ns3::SpectrumPhy::SetMobility ( Ptr< MobilityModel m)
pure virtual

Set the mobility model associated with this device.

Parameters
mthe mobility model

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::SpectrumPhyHelper::Create().

+ Here is the caller graph for this function:

virtual void ns3::SpectrumPhy::StartRx ( Ptr< SpectrumSignalParameters params)
pure virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters
paramsthe parameters of the signals being received

Implemented in ns3::LrWpanPhy, ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::SingleModelSpectrumChannel::StartRx(), and ns3::MultiModelSpectrumChannel::StartRx().

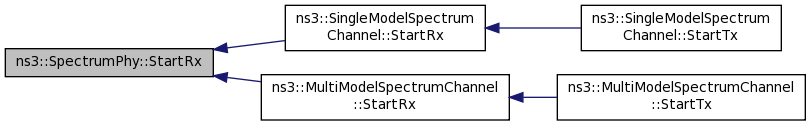

+ Here is the caller graph for this function:


The documentation for this class was generated from the following files:
