Class that monitors flows at the IPv4 layer of a Node. More...

#include <ipv4-flow-probe.h>

Inheritance diagram for ns3::Ipv4FlowProbe:

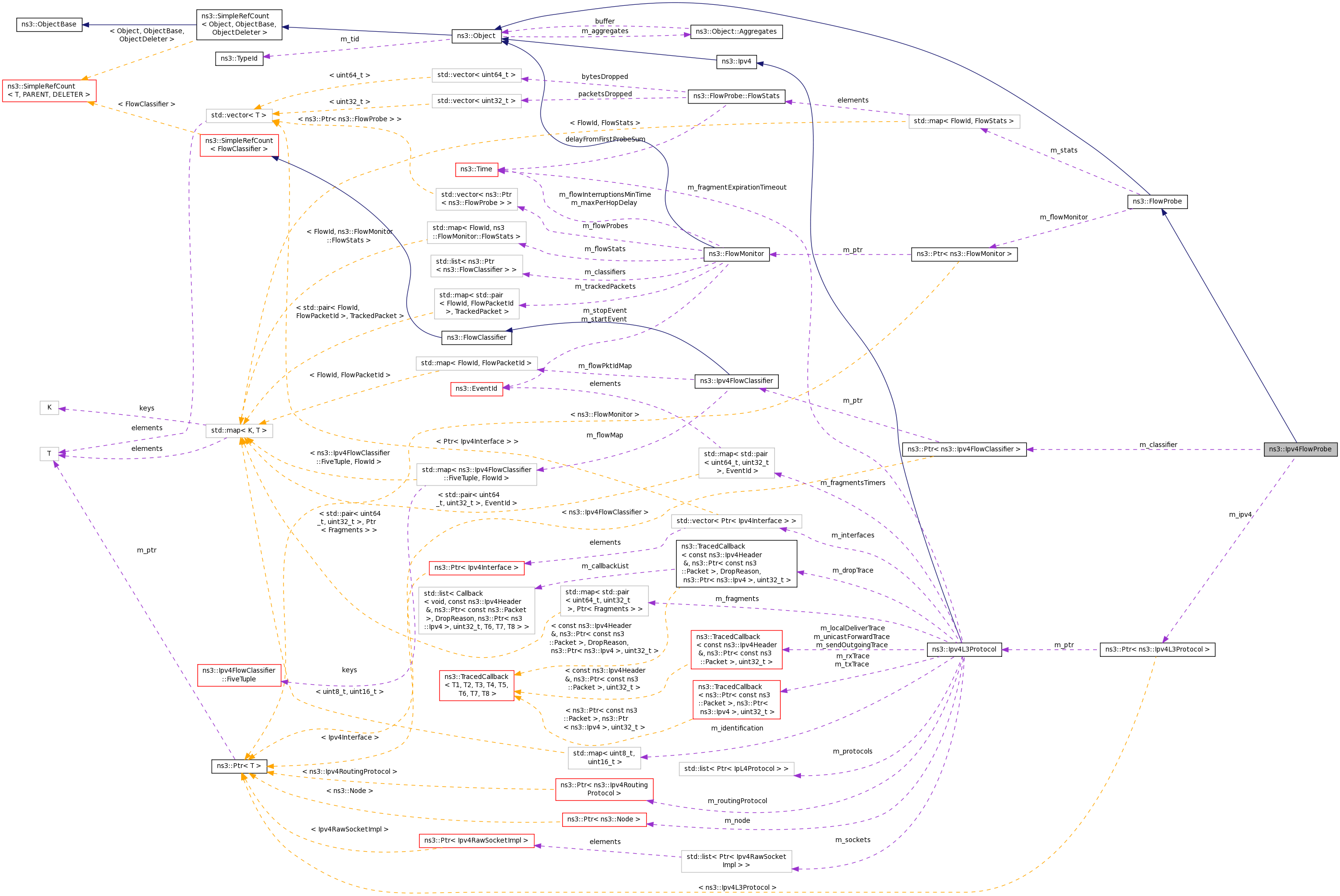

Collaboration diagram for ns3::Ipv4FlowProbe:

Public Types
enum	DropReason { DROP_NO_ROUTE = 0, DROP_TTL_EXPIRE, DROP_BAD_CHECKSUM, DROP_QUEUE, DROP_INTERFACE_DOWN, DROP_ROUTE_ERROR, DROP_FRAGMENT_TIMEOUT, DROP_INVALID_REASON }
	enumeration of possible reasons why a packet may be dropped More...

Public Types inherited from ns3::FlowProbe
typedef std::map< FlowId, FlowStats >	Stats
	Container to map FlowId -> FlowStats. More...

Public Member Functions
	Ipv4FlowProbe (Ptr< FlowMonitor > monitor, Ptr< Ipv4FlowClassifier > classifier, Ptr< Node > node)
	Constructor. More...

virtual	~Ipv4FlowProbe ()

Public Member Functions inherited from ns3::FlowProbe
virtual	~FlowProbe ()

void	AddPacketDropStats (FlowId flowId, uint32_t packetSize, uint32_t reasonCode)
	Add a packet drop data to the flow stats. More...

void	AddPacketStats (FlowId flowId, uint32_t packetSize, Time delayFromFirstProbe)
	Add a packet data to the flow stats. More...

Stats	GetStats () const
	Get the partial flow statistics stored in this probe. More...

void	SerializeToXmlStream (std::ostream &os, int indent, uint32_t index) const
	Serializes the results to an std::ostream in XML format. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::FlowProbe
	FlowProbe (Ptr< FlowMonitor > flowMonitor)
	Constructor. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	DropLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, Ipv4L3Protocol::DropReason reason, Ptr< Ipv4 > ipv4, uint32_t ifIndex)
	Log a packet being dropped. More...

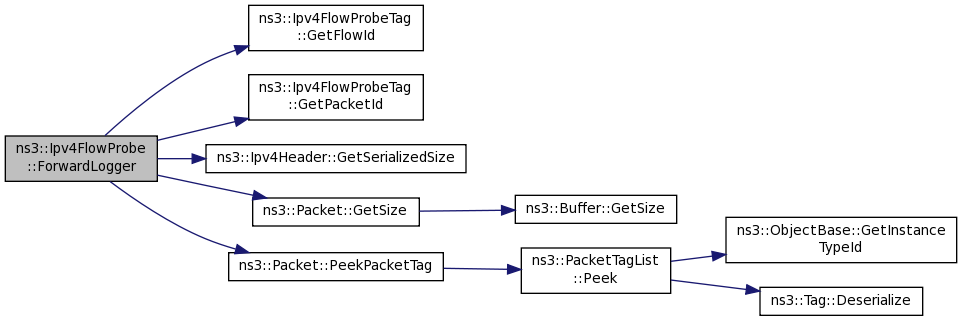

void	ForwardLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t interface)
	Log a packet being forwarded. More...

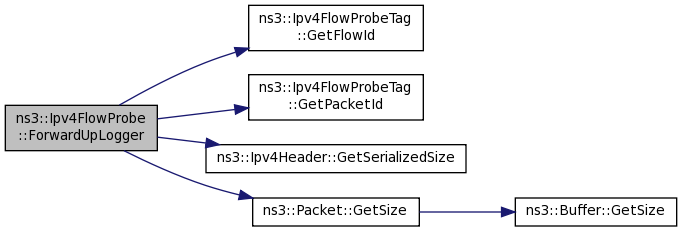

void	ForwardUpLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t interface)
	Log a packet being received by the destination. More...

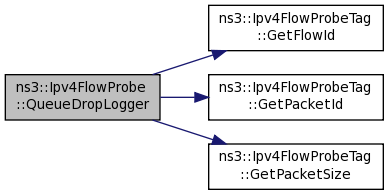

void	QueueDropLogger (Ptr< const Packet > ipPayload)
	Log a packet being dropped by a queue. More...

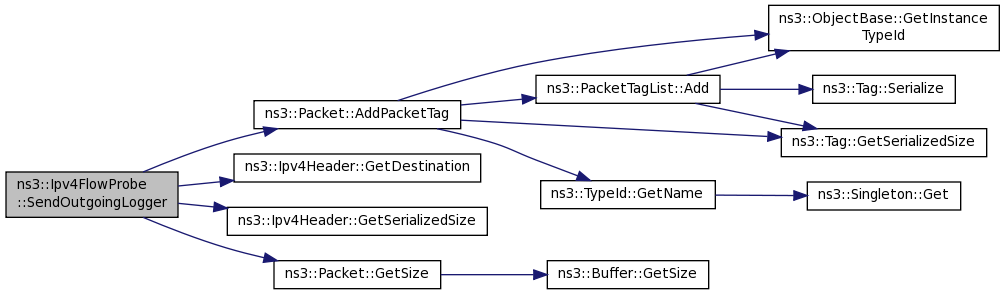

void	SendOutgoingLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t interface)
	Log a packet being sent. More...

Private Attributes
Ptr< Ipv4FlowClassifier >	m_classifier
	the Ipv4FlowClassifier this probe is associated with More...

Ptr< Ipv4L3Protocol >	m_ipv4
	the Ipv4L3Protocol this probe is bound to More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Attributes inherited from ns3::FlowProbe
Ptr< FlowMonitor >	m_flowMonitor
	the FlowMonitor instance More...

Stats	m_stats
	The flow stats. More...

Detailed Description

Class that monitors flows at the IPv4 layer of a Node.

For each node in the simulation, one instance of the class Ipv4FlowProbe is created to monitor that node. Ipv4FlowProbe accomplishes this by connecting callbacks to trace sources in the Ipv4L3Protocol interface of the node.

Definition at line 40 of file ipv4-flow-probe.h.

Member Enumeration Documentation

enum ns3::Ipv4FlowProbe::DropReason

enumeration of possible reasons why a packet may be dropped

Enumerator
DROP_NO_ROUTE	Packet dropped due to missing route to the destination.
DROP_TTL_EXPIRE	Packet dropped due to TTL decremented to zero during IPv4 forwarding.
DROP_BAD_CHECKSUM	Packet dropped due to invalid checksum in the IPv4 header.
DROP_QUEUE	Packet dropped due to queue overflow. Note: only works for NetDevices that provide a TxQueue attribute of type Queue with a Drop trace source. It currently works with Csma and PointToPoint devices, but not with WiFi or WiMax.
DROP_INTERFACE_DOWN	Interface is down so can not send packet.
DROP_ROUTE_ERROR	Route error.
DROP_FRAGMENT_TIMEOUT	Fragment timeout exceeded.
DROP_INVALID_REASON	Fallback reason (no known reason)

Definition at line 52 of file ipv4-flow-probe.h.

Constructor & Destructor Documentation

ns3::Ipv4FlowProbe::Ipv4FlowProbe	(	Ptr< FlowMonitor >	monitor,
		Ptr< Ipv4FlowClassifier >	classifier,
		Ptr< Node >	node
	)

Constructor.

Parameters

monitor	the FlowMonitor this probe is associated with
classifier	the Ipv4FlowClassifier this probe is associated with
node	the Node this probe is associated with

Definition at line 191 of file ipv4-flow-probe.cc.

References ns3::Config::ConnectWithoutContext(), DropLogger(), ForwardLogger(), ForwardUpLogger(), ns3::Node::GetId(), ns3::Object::GetObject(), m_ipv4, ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, QueueDropLogger(), and SendOutgoingLogger().

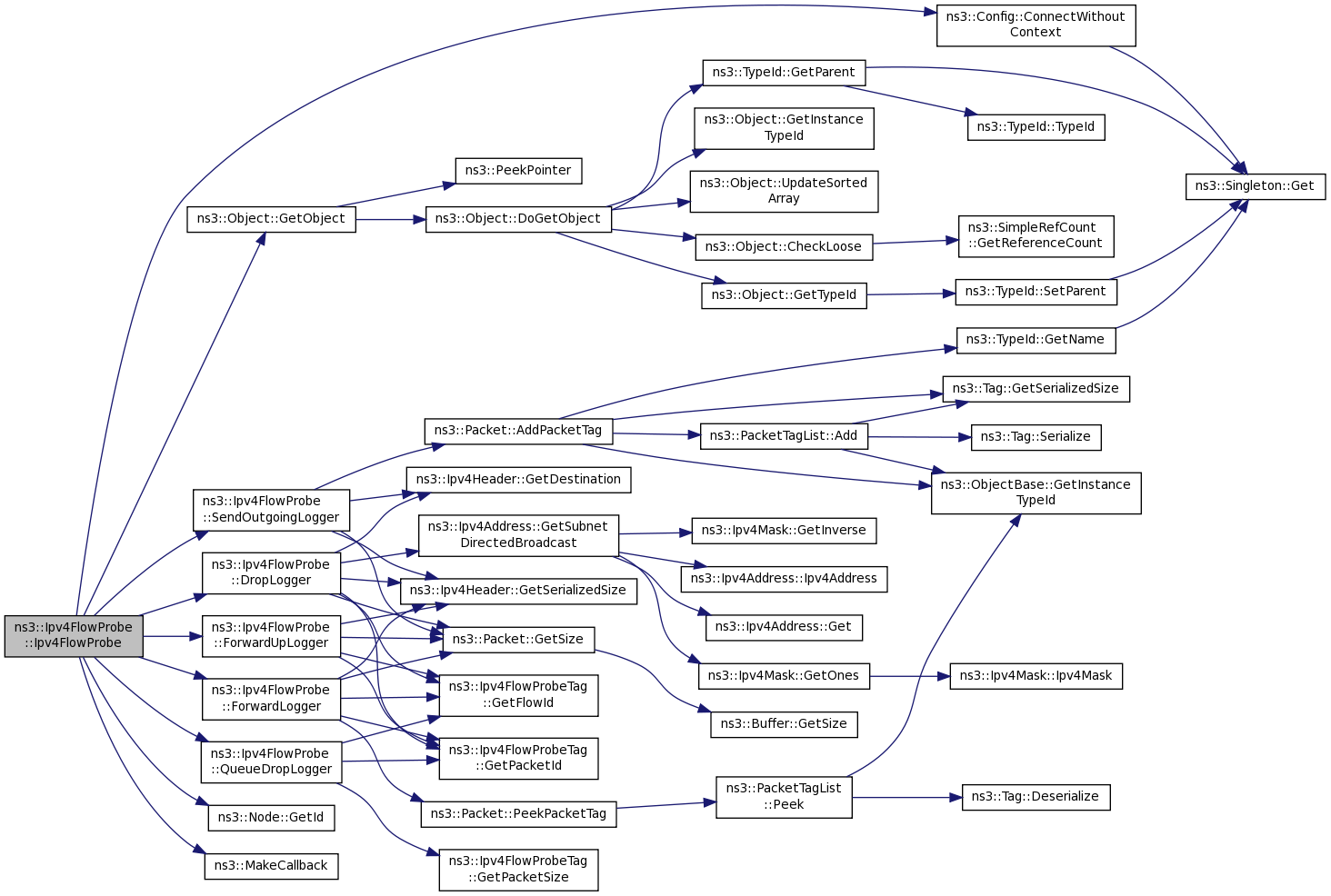

Here is the call graph for this function:

ns3::Ipv4FlowProbe::~Ipv4FlowProbe ( )

virtual

Definition at line 229 of file ipv4-flow-probe.cc.

Member Function Documentation

void ns3::Ipv4FlowProbe::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FlowProbe.

Definition at line 234 of file ipv4-flow-probe.cc.

References ns3::FlowProbe::DoDispose(), m_classifier, and m_ipv4.

Here is the call graph for this function:

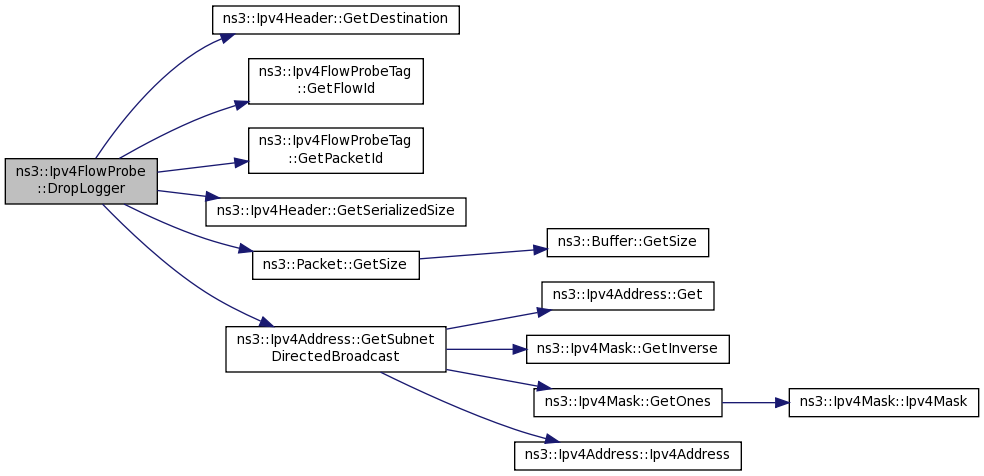

void ns3::Ipv4FlowProbe::DropLogger	(	const Ipv4Header &	ipHeader,
		Ptr< const Packet >	ipPayload,
		Ipv4L3Protocol::DropReason	reason,
		Ptr< Ipv4 >	ipv4,
		uint32_t	ifIndex
	)
