Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension-demux.h>

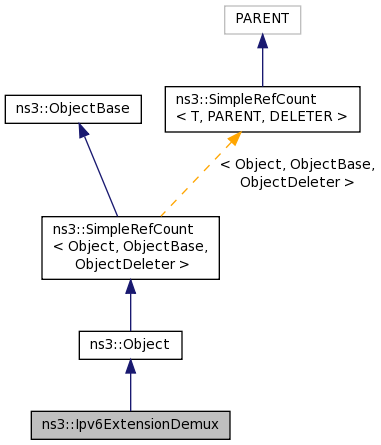

Inheritance diagram for ns3::Ipv6ExtensionDemux:

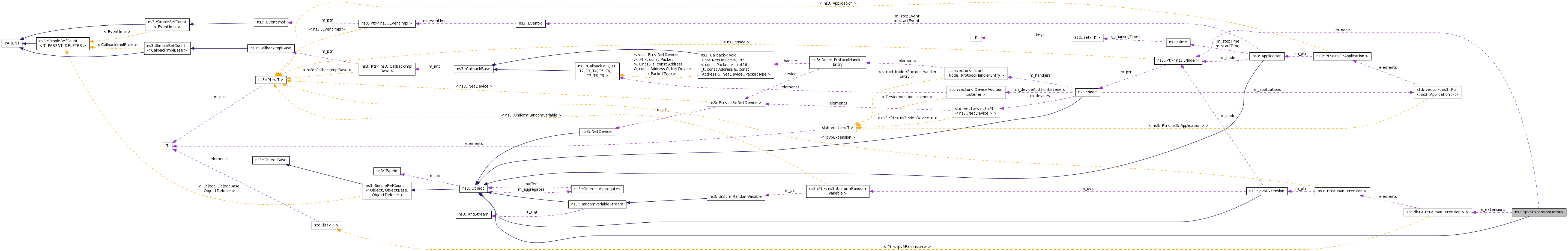

Collaboration diagram for ns3::Ipv6ExtensionDemux:

Public Member Functions
	Ipv6ExtensionDemux ()
	Constructor. More...

virtual	~Ipv6ExtensionDemux ()
	Destructor. More...

Ptr< Ipv6Extension >	GetExtension (uint8_t extensionNumber)
	Get the extension corresponding to extensionNumber. More...

void	Insert (Ptr< Ipv6Extension > extension)
	Insert a new IPv6 Extension. More...

void	Remove (Ptr< Ipv6Extension > extension)
	Remove an extension from this demux. More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	The interface ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::list< Ptr < Ipv6Extension > >	Ipv6ExtensionList_t
	Container of the IPv6 Extensions. More...

Private Attributes
Ipv6ExtensionList_t	m_extensions
	List of IPv6 Extensions supported. More...

Ptr< Node >	m_node
	The node. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Demultiplexes IPv6 extensions.

Attributes

Extensions: The set of IPv6 extensions registered with this demux.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Ipv6Extension>
- Flags: read

No TraceSources are defined for this type.

Definition at line 38 of file ipv6-extension-demux.h.

Member Typedef Documentation

typedef std::list<Ptr<Ipv6Extension> > ns3::Ipv6ExtensionDemux::Ipv6ExtensionList_t

private

Container of the IPv6 Extensions.

Definition at line 93 of file ipv6-extension-demux.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionDemux::Ipv6ExtensionDemux ( )

Constructor.

Definition at line 45 of file ipv6-extension-demux.cc.

ns3::Ipv6ExtensionDemux::~Ipv6ExtensionDemux ( )

virtual

Destructor.

Definition at line 49 of file ipv6-extension-demux.cc.

Member Function Documentation

void ns3::Ipv6ExtensionDemux::DoDispose ( void )

protectedvirtual

Dispose object.

Reimplemented from ns3::Object.

Definition at line 53 of file ipv6-extension-demux.cc.

References ns3::Object::DoDispose(), m_extensions, and m_node.

Here is the call graph for this function:

Ptr< Ipv6Extension > ns3::Ipv6ExtensionDemux::GetExtension ( uint8_t extensionNumber )

Get the extension corresponding to extensionNumber.

Parameters

extensionNumber extension number of the extension to retrieve

Returns: a matching IPv6 extension

Definition at line 75 of file ipv6-extension-demux.cc.

References m_extensions.

TypeId ns3::Ipv6ExtensionDemux::GetTypeId ( void )

static

The interface ID.

Returns: type ID

Definition at line 33 of file ipv6-extension-demux.cc.

References m_extensions, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Ipv6ExtensionDemux::Insert ( Ptr< Ipv6Extension > extension )

Insert a new IPv6 Extension.

Parameters

extension the extension to insert

Definition at line 70 of file ipv6-extension-demux.cc.

References m_extensions.

void ns3::Ipv6ExtensionDemux::Remove ( Ptr< Ipv6Extension > extension )

Remove an extension from this demux.

Parameters

extension pointer on the extension to remove

Definition at line 87 of file ipv6-extension-demux.cc.

References m_extensions.

void ns3::Ipv6ExtensionDemux::SetNode ( Ptr< Node > node )

Set the node.

Parameters

node	the node to set

Definition at line 65 of file ipv6-extension-demux.cc.

References m_node.

Member Data Documentation

Ipv6ExtensionList_t ns3::Ipv6ExtensionDemux::m_extensions

private

List of IPv6 Extensions supported.

Definition at line 98 of file ipv6-extension-demux.h.

Referenced by DoDispose(), GetExtension(), GetTypeId(), Insert(), and Remove().

Ptr<Node> ns3::Ipv6ExtensionDemux::m_node

private

The node.

Definition at line 103 of file ipv6-extension-demux.h.

Referenced by DoDispose(), and SetNode().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-demux.h
src/internet/model/ipv6-extension-demux.cc
