ns3::Ipv6ExtensionHopByHop Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension.h>

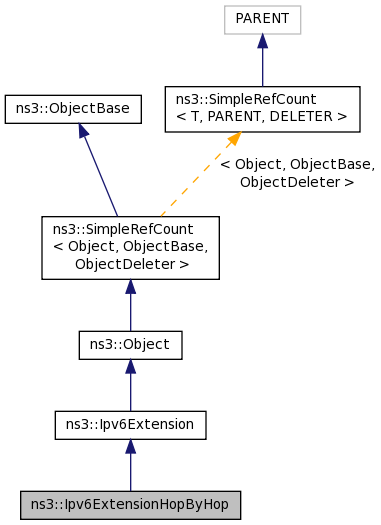

+ Inheritance diagram for ns3::Ipv6ExtensionHopByHop:

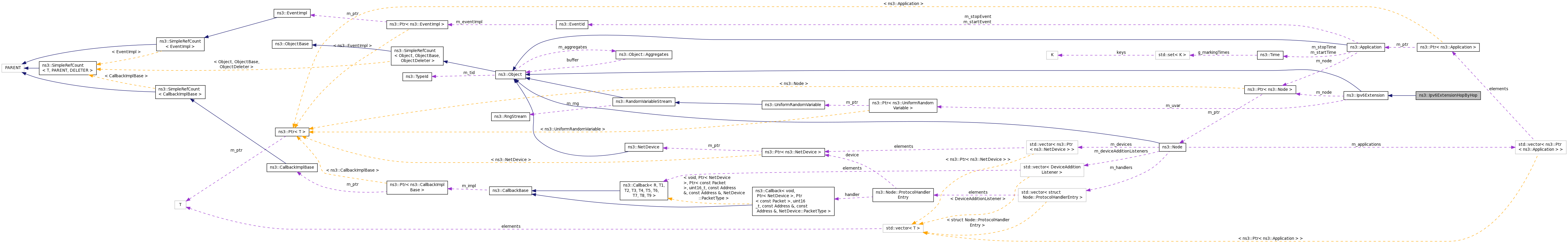

+ Collaboration diagram for ns3::Ipv6ExtensionHopByHop:

Public Member Functions

 Ipv6ExtensionHopByHop ()
 Constructor. More...

 ~Ipv6ExtensionHopByHop ()
 Destructor. More...

virtual uint8_t GetExtensionNumber () const
 Get the extension number. More...

virtual uint8_t Process (Ptr< Packet > &packet, uint8_t offset, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &stopProcessing, bool &isDropped, Ipv6L3Protocol::DropReason &dropReason)
 Process method Called from Ipv6L3Protocol::Receive. More...

- Public Member Functions inherited from ns3::Ipv6Extension
 Ipv6Extension ()
 Constructor. More...

virtual ~Ipv6Extension ()
 Destructor. More...

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

Ptr< NodeGetNode () const
 Get the node. More...

virtual uint8_t ProcessOptions (Ptr< Packet > &packet, uint8_t offset, uint8_t length, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &stopProcessing, bool &isDropped, Ipv6L3Protocol::DropReason &dropReason)
 Process options Called by implementing classes to process the options. More...

void SetNode (Ptr< Node > node)
 Set the node. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6Extension
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Public Attributes

static const uint8_t EXT_NUMBER = 0
 Hop-by-hop extension number. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::Ipv6Extension
Ptr< UniformRandomVariablem_uvar
 Provides uniform random variables. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.

IPv6 Extension "Hop By Hop".


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 161 of file ipv6-extension.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionHopByHop::Ipv6ExtensionHopByHop ( )

Constructor.

Definition at line 200 of file ipv6-extension.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Ipv6ExtensionHopByHop::~Ipv6ExtensionHopByHop ( )

Destructor.

Definition at line 205 of file ipv6-extension.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

uint8_t ns3::Ipv6ExtensionHopByHop::GetExtensionNumber ( ) const
virtual

Get the extension number.

Returns
extension number

Implements ns3::Ipv6Extension.

Definition at line 210 of file ipv6-extension.cc.

References EXT_NUMBER, and NS_LOG_FUNCTION_NOARGS.

TypeId ns3::Ipv6ExtensionHopByHop::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 191 of file ipv6-extension.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

uint8_t ns3::Ipv6ExtensionHopByHop::Process ( Ptr< Packet > &  packet,
uint8_t  offset,
Ipv6Header const &  ipv6Header,
Ipv6Address  dst,
uint8_t *  nextHeader,
bool &  stopProcessing,
bool &  isDropped,
Ipv6L3Protocol::DropReason dropReason
)
virtual

Process method Called from Ipv6L3Protocol::Receive.

Parameters
packetthe packet
offsetthe offset of the extension to process
ipv6Headerthe IPv6 header of packet received
dstdestination address of the packet received (i.e. us)
nextHeaderthe next header
stopProcessingtrue if the packet must not be further processed
isDroppedtrue if the packet must be dropped
dropReasondropping reason
Returns
the size processed

Implements ns3::Ipv6Extension.

Definition at line 217 of file ipv6-extension.cc.

References ns3::Packet::Copy(), ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), ns3::OptionField::GetOptionsOffset(), NS_LOG_FUNCTION, ns3::Ipv6Extension::ProcessOptions(), ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

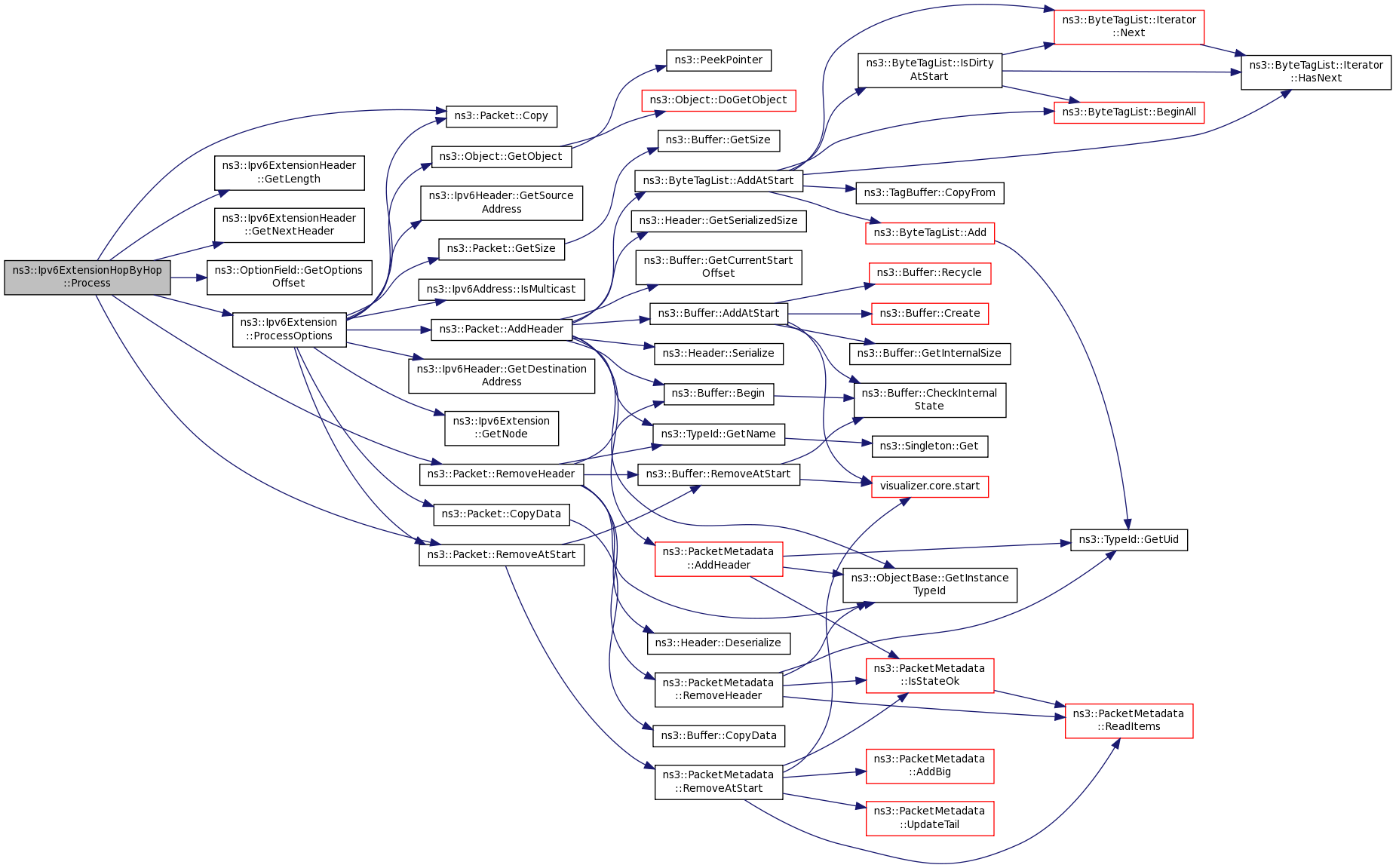

+ Here is the call graph for this function:

Member Data Documentation

const uint8_t ns3::Ipv6ExtensionHopByHop::EXT_NUMBER = 0
static

Hop-by-hop extension number.

Definition at line 167 of file ipv6-extension.h.

Referenced by GetExtensionNumber().


The documentation for this class was generated from the following files:
