The IPv6 representation of a network interface. More...

#include <ipv6-interface.h>

Inheritance diagram for ns3::Ipv6Interface:

Collaboration diagram for ns3::Ipv6Interface:

Public Member Functions
	Ipv6Interface ()
	Constructs an Ipv6Interface. More...

virtual	~Ipv6Interface ()
	Destructor. More...

bool	AddAddress (Ipv6InterfaceAddress iface)
	Add an IPv6 address. More...

Ipv6InterfaceAddress	GetAddress (uint32_t index) const
	Get an address from IPv6 interface. More...

Ipv6InterfaceAddress	GetAddressMatchingDestination (Ipv6Address dst)
	Get an address which is in the same network prefix as destination. More...

uint16_t	GetBaseReachableTime () const
	Get the base reachable time. More...

uint8_t	GetCurHopLimit () const
	Get the current hop limit value. More...

virtual Ptr< NetDevice >	GetDevice () const
	Get the NetDevice. More...

Ipv6InterfaceAddress	GetLinkLocalAddress () const
	Get link-local address from IPv6 interface. More...

uint16_t	GetMetric () const
	Get the metric. More...

uint32_t	GetNAddresses (void) const
	Get number of addresses on this IPv6 interface. More...

uint16_t	GetReachableTime () const
	Get the reachable time. More...

uint16_t	GetRetransTimer () const
	Get the retransmission timer. More...

bool	IsDown () const
	Is the interface DOWN ? More...

bool	IsForwarding () const
	If the interface allows forwarding packets. More...

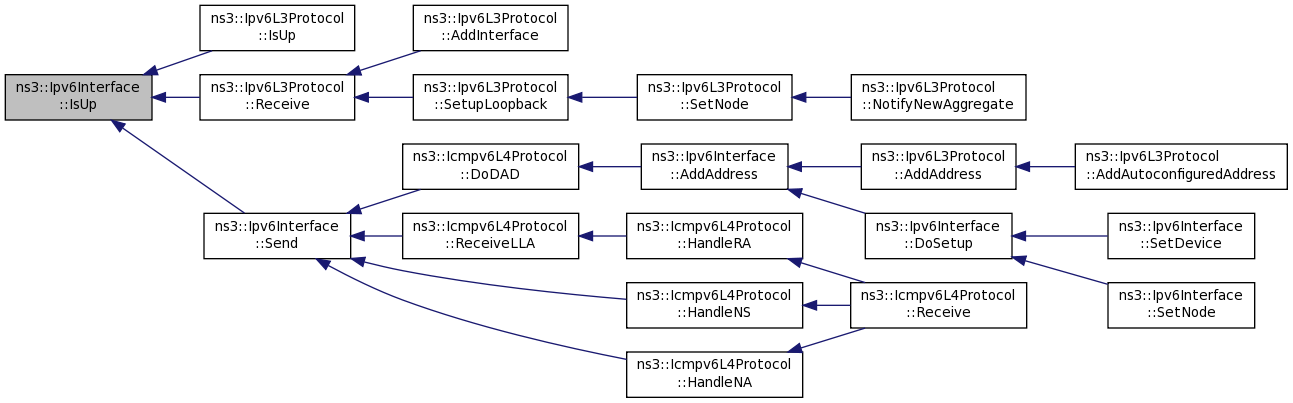

bool	IsUp () const
	Is the interface UP ? More...

Ipv6InterfaceAddress	RemoveAddress (uint32_t index)
	Remove an address from interface. More...

Ipv6InterfaceAddress	RemoveAddress (Ipv6Address address)
	Remove the given Ipv6 address from the interface. More...

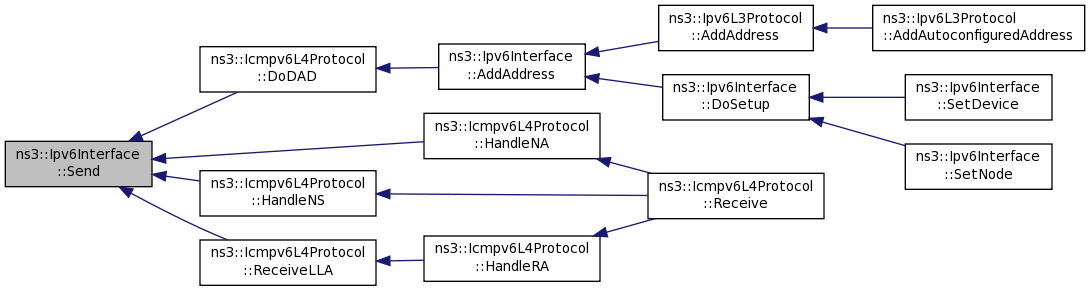

void	Send (Ptr< Packet > p, Ipv6Address dest)
	Send a packet through this interface. More...

void	SetBaseReachableTime (uint16_t baseReachableTime)
	Set the base reachable time. More...

void	SetCurHopLimit (uint8_t curHopLimit)
	Set the current hop limit. More...

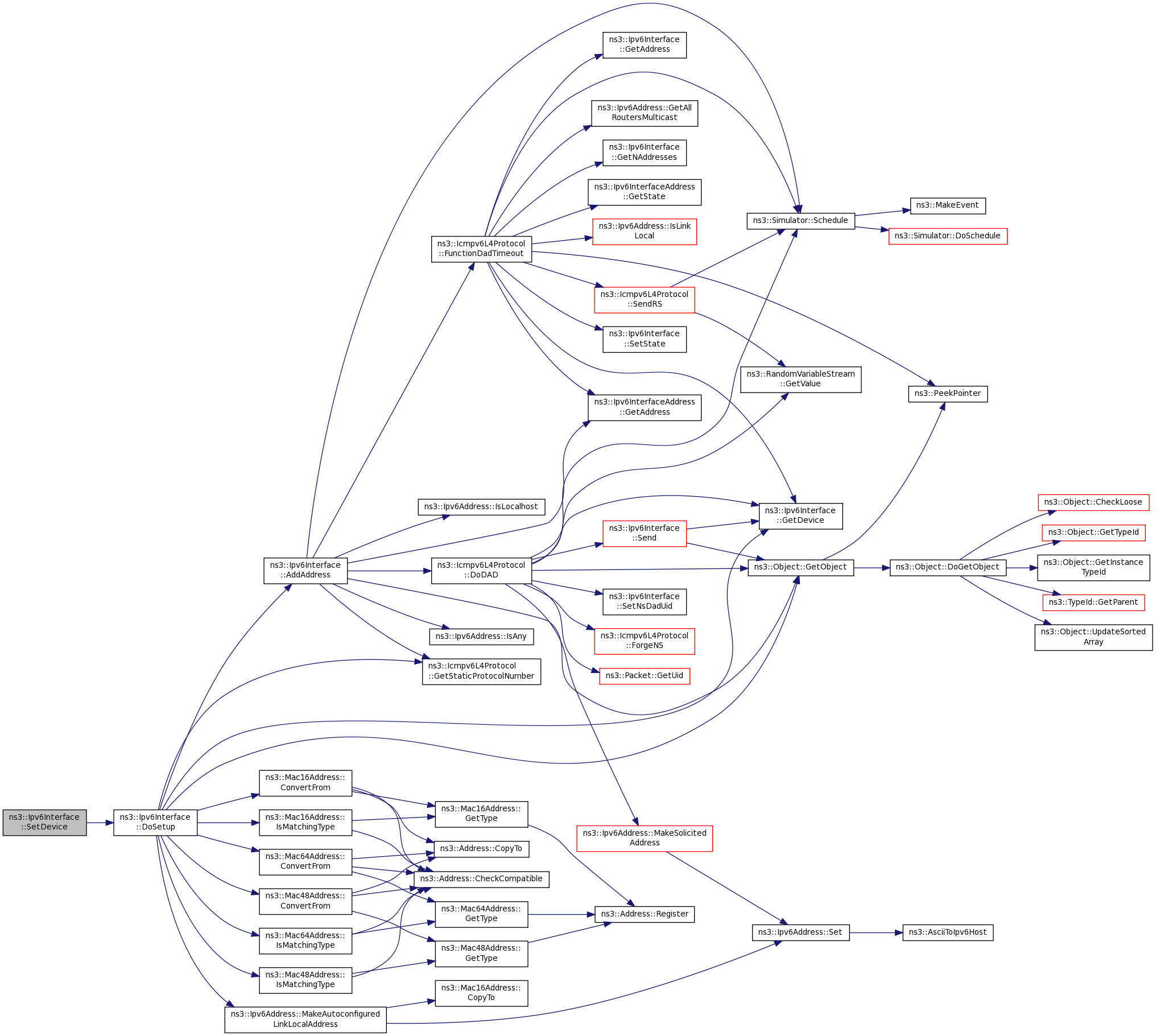

void	SetDevice (Ptr< NetDevice > device)
	Set the NetDevice. More...

void	SetDown ()
	Disable this interface. More...

void	SetForwarding (bool forward)
	Set forwarding enabled or not. More...

void	SetMetric (uint16_t metric)
	Set the metric. More...

void	SetNode (Ptr< Node > node)
	Set node associated with interface. More...

void	SetNsDadUid (Ipv6Address address, uint32_t uid)
	Update NS DAD packet UID of an interface address. More...

void	SetReachableTime (uint16_t reachableTime)
	Set the reachable time. More...

void	SetRetransTimer (uint16_t retransTimer)
	Set the retransmission timer. More...

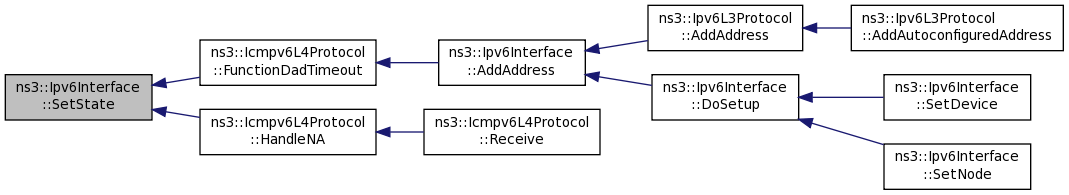

void	SetState (Ipv6Address address, Ipv6InterfaceAddress::State_e state)
	Update state of an interface address. More...

void	SetUp ()
	Enable this interface. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::list < Ipv6InterfaceAddress >	Ipv6InterfaceAddressList
	Container for the Ipv6InterfaceAddresses. More...

typedef std::list < Ipv6InterfaceAddress > ::const_iterator	Ipv6InterfaceAddressListCI
	Const Container Iterator for the Ipv6InterfaceAddresses. More...

typedef std::list < Ipv6InterfaceAddress > ::iterator	Ipv6InterfaceAddressListI
	Container Iterator for the Ipv6InterfaceAddresses. More...

Private Member Functions
void	DoSetup ()
	Initialize interface. More...

Private Attributes
Ipv6InterfaceAddressList	m_addresses
	The addresses assigned to this interface. More...

uint16_t	m_baseReachableTime
	Base value used for computing the random reachable time value (in millisecond). More...

uint8_t	m_curHopLimit
	Current hop limit. More...

Ptr< NetDevice >	m_device
	NetDevice associated with this interface. More...

bool	m_forwarding
	Forwarding state. More...

bool	m_ifup
	The state of this interface. More...

uint16_t	m_metric
	The metric. More...

Ptr< NdiscCache >	m_ndCache
	Neighbor cache. More...

Ptr< Node >	m_node
	Node associated with this interface. More...

uint16_t	m_reachableTime
	Reachable time (in millisecond). More...

uint16_t	m_retransTimer
	Retransmission timer (in millisecond). More...

Detailed Description

The IPv6 representation of a network interface.

Config Paths

ns3::Ipv6Interface is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::Ipv6L3Protocol/InterfaceList/[i]

No Attributes are defined for this type.
No TraceSources are defined for this type.

By default IPv6 interfaces are created in the "down" state with IP "fe80::1" and a /64 prefix. Before becoming usable, the user must invoke SetUp on them once the final IPv6 address and mask has been set.

Definition at line 49 of file ipv6-interface.h.

Member Typedef Documentation

typedef std::list<Ipv6InterfaceAddress> ns3::Ipv6Interface::Ipv6InterfaceAddressList

private

Container for the Ipv6InterfaceAddresses.

Definition at line 263 of file ipv6-interface.h.

typedef std::list<Ipv6InterfaceAddress>::const_iterator ns3::Ipv6Interface::Ipv6InterfaceAddressListCI

private

Const Container Iterator for the Ipv6InterfaceAddresses.

Definition at line 273 of file ipv6-interface.h.

typedef std::list<Ipv6InterfaceAddress>::iterator ns3::Ipv6Interface::Ipv6InterfaceAddressListI

private

Container Iterator for the Ipv6InterfaceAddresses.

Definition at line 268 of file ipv6-interface.h.

Constructor & Destructor Documentation

ns3::Ipv6Interface::Ipv6Interface ( )

Constructs an Ipv6Interface.

Definition at line 49 of file ipv6-interface.cc.

References NS_LOG_FUNCTION.

ns3::Ipv6Interface::~Ipv6Interface ( )

virtual

Destructor.

Definition at line 64 of file ipv6-interface.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::Ipv6Interface::AddAddress ( Ipv6InterfaceAddress iface )

Add an IPv6 address.

Parameters

iface address to add

Returns: true if address was added, false otherwise

Definition at line 204 of file ipv6-interface.cc.

References ns3::Icmpv6L4Protocol::DoDAD(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Object::GetObject(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsLocalhost(), m_addresses, m_node, NS_LOG_FUNCTION_NOARGS, and ns3::Simulator::Schedule().

Referenced by ns3::Ipv6L3Protocol::AddAddress(), and DoSetup().

Here is the call graph for this function:

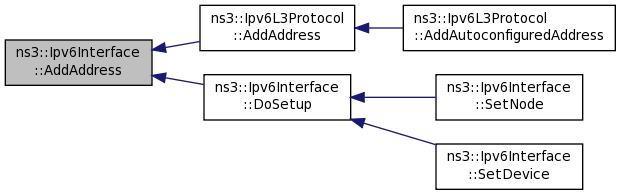

Here is the caller graph for this function:

void ns3::Ipv6Interface::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 69 of file ipv6-interface.cc.

References ns3::Object::DoDispose(), m_device, m_ndCache, m_node, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::Ipv6Interface::DoSetup ( void )

private

Initialize interface.

Definition at line 78 of file ipv6-interface.cc.

References AddAddress(), ns3::Mac16Address::ConvertFrom(), ns3::Mac64Address::ConvertFrom(), ns3::Mac48Address::ConvertFrom(), GetDevice(), ns3::Object::GetObject(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Mac16Address::IsMatchingType(), ns3::Mac64Address::IsMatchingType(), ns3::Mac48Address::IsMatchingType(), m_device, m_ndCache, m_node, ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by SetDevice(), and SetNode().

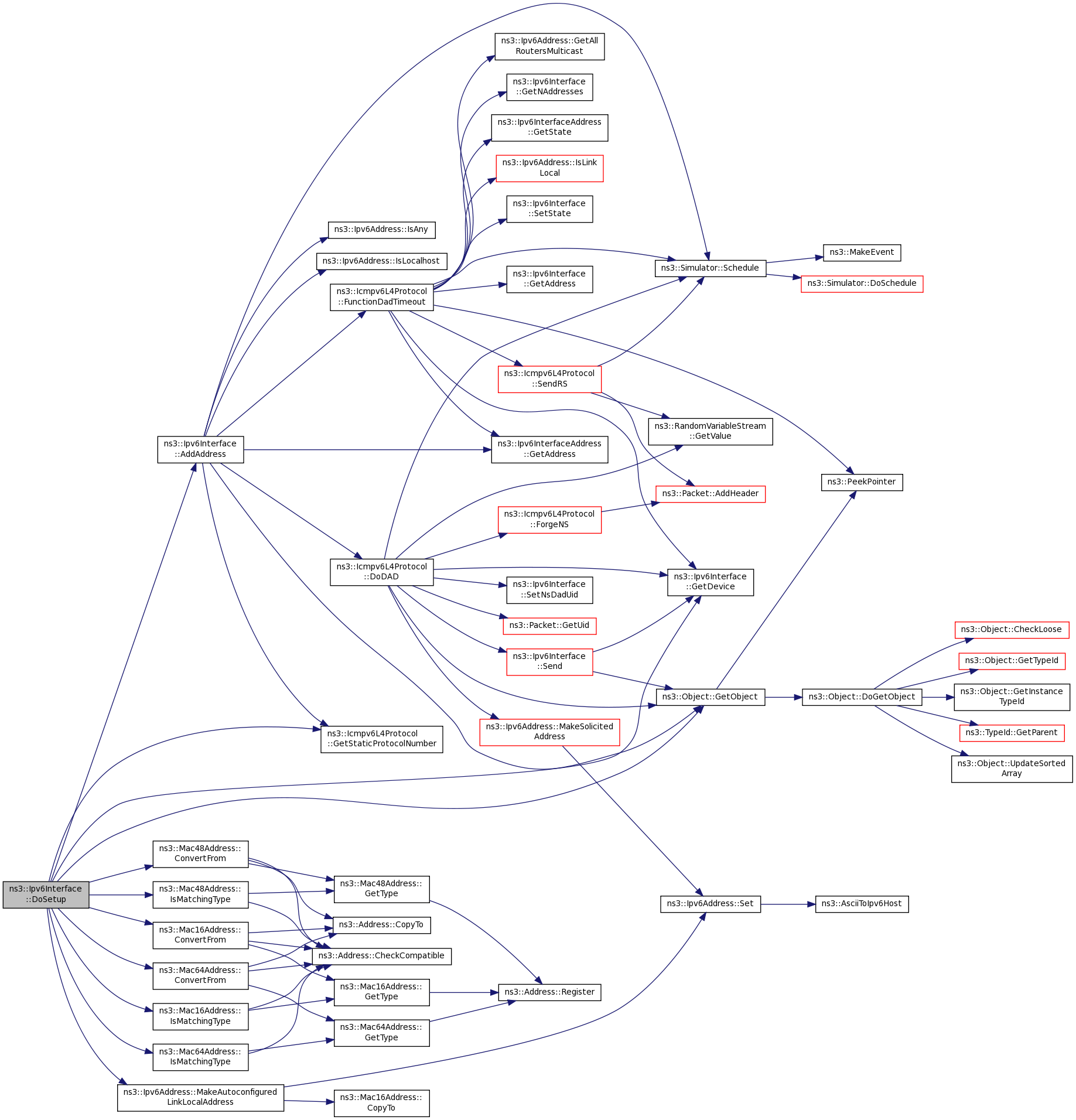

Here is the call graph for this function:

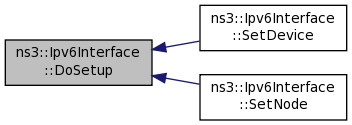

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddress ( uint32_t index ) const

Get an address from IPv6 interface.

Parameters

index index

Returns: Ipv6InterfaceAddress address whose index is i

Definition at line 262 of file ipv6-interface.cc.

References m_addresses, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6L3Protocol::GetAddress(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddressMatchingDestination ( Ipv6Address dst )

Get an address which is in the same network prefix as destination.

Parameters

dst	destination address

Returns: Corresponding Ipv6InterfaceAddress or assert if not found

Definition at line 340 of file ipv6-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetPrefix(), ns3::Ipv6Prefix::IsMatch(), m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

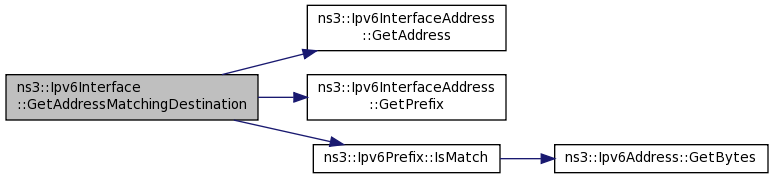

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::Ipv6Interface::GetBaseReachableTime ( ) const

Get the base reachable time.

Returns: base reachable time

Definition at line 448 of file ipv6-interface.cc.

References m_baseReachableTime, and NS_LOG_FUNCTION_NOARGS.

uint8_t ns3::Ipv6Interface::GetCurHopLimit ( ) const

Get the current hop limit value.

Returns: current hop limit

Definition at line 436 of file ipv6-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION_NOARGS.

Ptr< NetDevice > ns3::Ipv6Interface::GetDevice ( void ) const

virtual

Get the NetDevice.

Returns: the NetDevice associated with this interface

Definition at line 143 of file ipv6-interface.cc.

References m_device, and NS_LOG_FUNCTION_NOARGS.

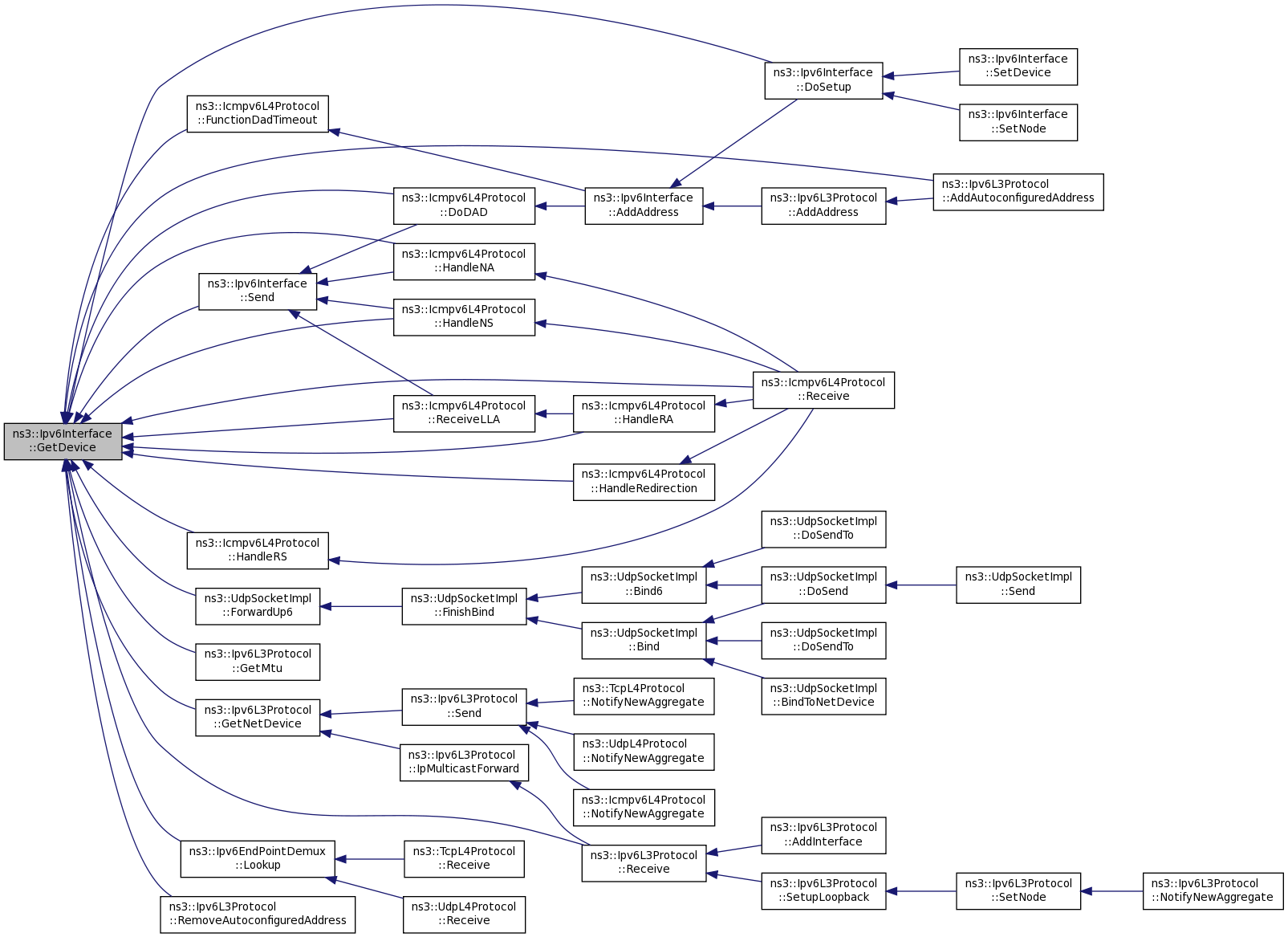

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::GetLinkLocalAddress ( ) const

Get link-local address from IPv6 interface.

Returns: link-local Ipv6InterfaceAddress, assert if not found

Definition at line 245 of file ipv6-interface.cc.

References m_addresses, NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Ipv6L3Protocol::IpForward(), and ns3::Icmpv6L4Protocol::Lookup().

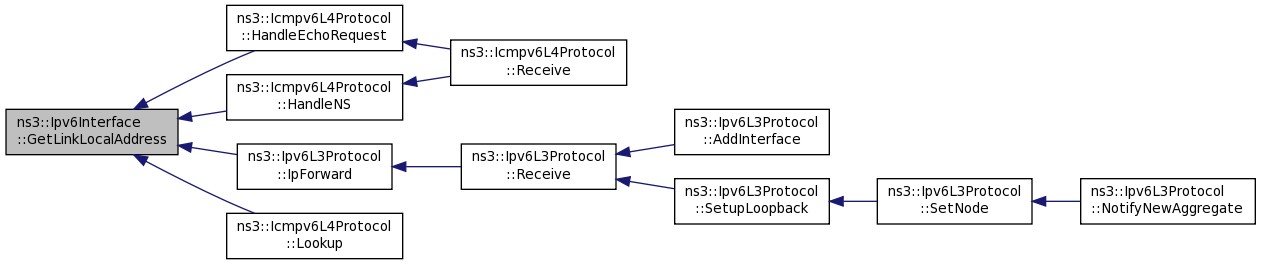

Here is the caller graph for this function:

uint16_t ns3::Ipv6Interface::GetMetric ( void ) const

Get the metric.

Returns: the metric

Definition at line 155 of file ipv6-interface.cc.

References m_metric, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::GetMetric().

Here is the caller graph for this function:

uint32_t ns3::Ipv6Interface::GetNAddresses ( void ) const

Get number of addresses on this IPv6 interface.

Returns: number of address

Definition at line 284 of file ipv6-interface.cc.

References m_addresses, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6L3Protocol::GetNAddresses(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

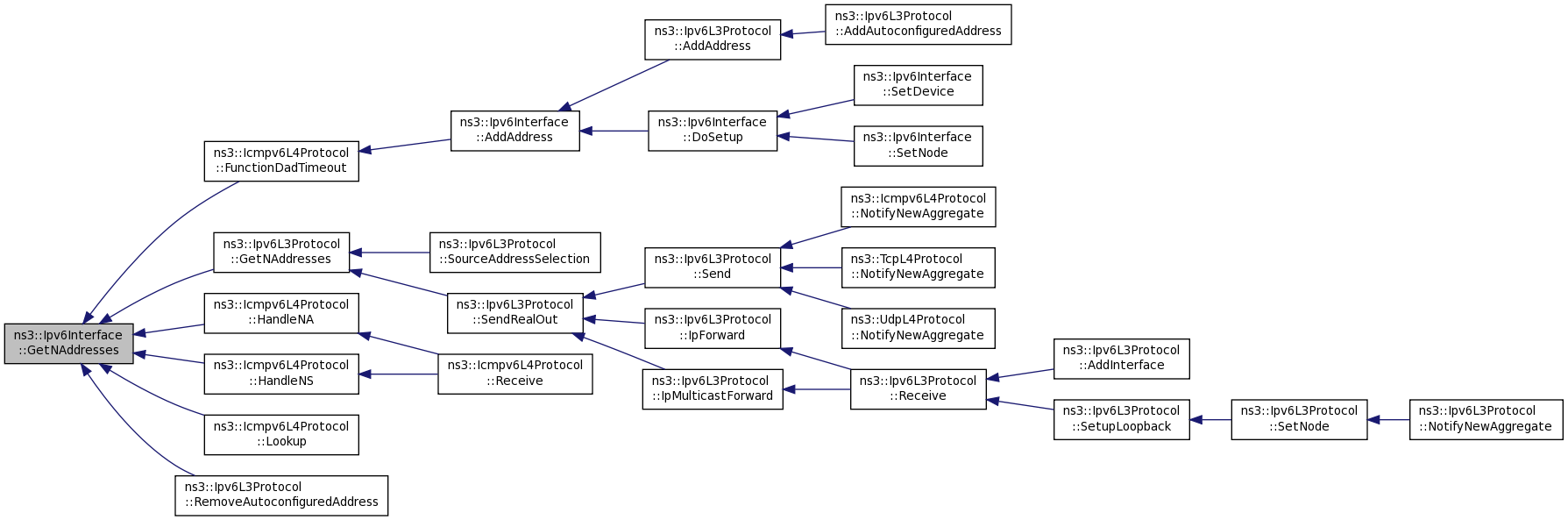

Here is the caller graph for this function:

uint16_t ns3::Ipv6Interface::GetReachableTime ( ) const

Get the reachable time.

Returns: reachable time

Definition at line 460 of file ipv6-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION_NOARGS.

uint16_t ns3::Ipv6Interface::GetRetransTimer ( ) const

Get the retransmission timer.

Returns: retransmission timer

Definition at line 472 of file ipv6-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION_NOARGS.

TypeId ns3::Ipv6Interface::GetTypeId ( void )

static

Get the type ID.

Returns: type ID

Definition at line 41 of file ipv6-interface.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::Ipv6Interface::IsDown ( void ) const

Is the interface DOWN ?

Returns: true if interface is disabled, false otherwise.

Definition at line 167 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv6Interface::IsForwarding ( void ) const

If the interface allows forwarding packets.

Returns: true if forwarding is enabled, false otherwise

Definition at line 192 of file ipv6-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv6Interface::IsUp ( void ) const

Is the interface UP ?

Returns: true if interface is enabled, false otherwise.

Definition at line 161 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::IsUp(), ns3::Ipv6L3Protocol::Receive(), and Send().

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress ( uint32_t index )

Remove an address from interface.

Parameters

index index to remove

Returns: Ipv6InterfaceAddress address whose index is index

Definition at line 290 of file ipv6-interface.cc.

References m_addresses, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress ( Ipv6Address address )

Remove the given Ipv6 address from the interface.

Parameters

address The Ipv6 address to remove

Returns: The removed Ipv6 interface address; The null interface address if the interface did not contain the address or if loopback address was passed as argument

Definition at line 318 of file ipv6-interface.cc.

References first::address, ns3::Ipv6Address::GetLoopback(), m_addresses, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

void ns3::Ipv6Interface::Send	(	Ptr< Packet >	p,
		Ipv6Address	dest
	)

Send a packet through this interface.

Parameters

p	packet to send
dest	next hop address of packet.

Note: This method will eventually call the private SendTo method which must be implemented by subclasses.

Todo:: additional checks needed here (such as whether multicast goes to loopback)?

Definition at line 359 of file ipv6-interface.cc.

References GetDevice(), ns3::Object::GetObject(), ns3::Ipv6Address::IsMulticast(), IsUp(), m_addresses, m_device, m_ndCache, m_node, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::NetDevice::PACKET_HOST, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by ns3::Icmpv6L4Protocol::DoDAD(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

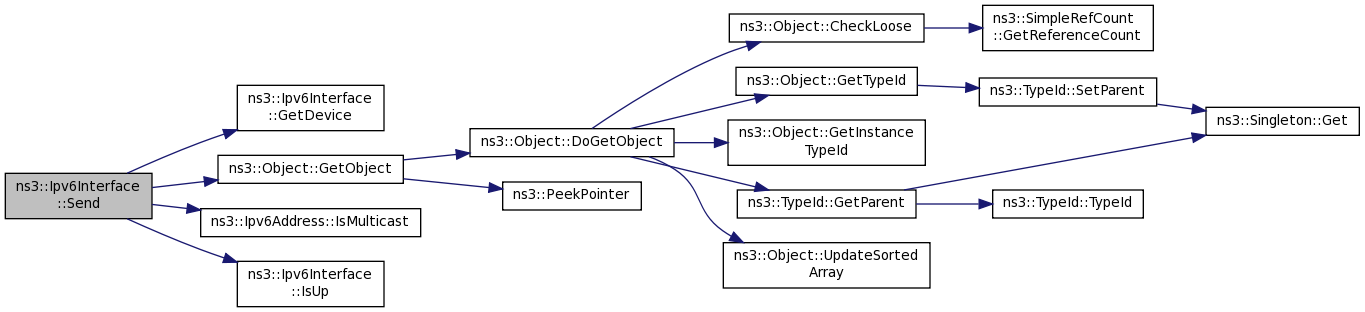

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetBaseReachableTime ( uint16_t baseReachableTime )

Set the base reachable time.

Parameters

baseReachableTime the value to set

Definition at line 442 of file ipv6-interface.cc.

References m_baseReachableTime, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetCurHopLimit ( uint8_t curHopLimit )

Set the current hop limit.

Parameters

curHopLimit the value to set

Definition at line 430 of file ipv6-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetDevice ( Ptr< NetDevice > device )

Set the NetDevice.

Parameters

device NetDevice

Definition at line 136 of file ipv6-interface.cc.

References DoSetup(), m_device, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6Interface::SetDown ( void )

Disable this interface.

Definition at line 184 of file ipv6-interface.cc.

References ns3::NdiscCache::Flush(), m_addresses, m_ifup, m_ndCache, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::SetDown().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetForwarding ( bool forward )

Set forwarding enabled or not.

Parameters

forward forwarding state

Definition at line 198 of file ipv6-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetForwarding().

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetMetric ( uint16_t metric )

Set the metric.

Parameters

metric configured routing metric (cost) of this interface

Definition at line 149 of file ipv6-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetMetric().

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetNode ( Ptr< Node > node )

Set node associated with interface.

Parameters

node node

Definition at line 129 of file ipv6-interface.cc.

References DoSetup(), m_node, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6Interface::SetNsDadUid	(	Ipv6Address	address,
		uint32_t	uid
	)

Update NS DAD packet UID of an interface address.

Parameters

address	IPv6 address
uid	packet UID

Definition at line 493 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::DoDAD().

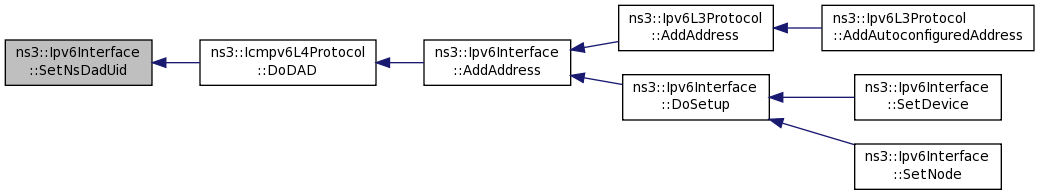

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetReachableTime ( uint16_t reachableTime )

Set the reachable time.

Parameters

reachableTime value to set

Definition at line 454 of file ipv6-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetRetransTimer ( uint16_t retransTimer )

Set the retransmission timer.

Parameters

retransTimer value to set

Definition at line 466 of file ipv6-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetState	(	Ipv6Address	address,
		Ipv6InterfaceAddress::State_e	state
	)

Update state of an interface address.

Parameters

address	IPv6 address
state	new state

Definition at line 478 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), and ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetUp ( void )

Enable this interface.

Definition at line 173 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::SetUp().

Here is the caller graph for this function:

Member Data Documentation

Ipv6InterfaceAddressList ns3::Ipv6Interface::m_addresses

private

The addresses assigned to this interface.

Definition at line 283 of file ipv6-interface.h.

Referenced by AddAddress(), GetAddress(), GetAddressMatchingDestination(), GetLinkLocalAddress(), GetNAddresses(), RemoveAddress(), Send(), SetDown(), SetNsDadUid(), and SetState().

uint16_t ns3::Ipv6Interface::m_baseReachableTime

private

Base value used for computing the random reachable time value (in millisecond).

Definition at line 323 of file ipv6-interface.h.

Referenced by GetBaseReachableTime(), and SetBaseReachableTime().

uint8_t ns3::Ipv6Interface::m_curHopLimit

private

Current hop limit.

Definition at line 318 of file ipv6-interface.h.

Referenced by GetCurHopLimit(), and SetCurHopLimit().

Ptr<NetDevice> ns3::Ipv6Interface::m_device

private

NetDevice associated with this interface.

Definition at line 308 of file ipv6-interface.h.

Referenced by DoDispose(), DoSetup(), GetDevice(), Send(), and SetDevice().

bool ns3::Ipv6Interface::m_forwarding

private

Forwarding state.

Definition at line 293 of file ipv6-interface.h.

Referenced by IsForwarding(), and SetForwarding().

bool ns3::Ipv6Interface::m_ifup

private

The state of this interface.

Definition at line 288 of file ipv6-interface.h.

Referenced by IsDown(), IsUp(), SetDown(), and SetUp().

uint16_t ns3::Ipv6Interface::m_metric

private

The metric.

Definition at line 298 of file ipv6-interface.h.

Referenced by GetMetric(), and SetMetric().

Ptr<NdiscCache> ns3::Ipv6Interface::m_ndCache

private

Neighbor cache.

Definition at line 313 of file ipv6-interface.h.

Referenced by DoDispose(), DoSetup(), Send(), and SetDown().

Ptr<Node> ns3::Ipv6Interface::m_node

private

Node associated with this interface.

Definition at line 303 of file ipv6-interface.h.

Referenced by AddAddress(), DoDispose(), DoSetup(), Send(), and SetNode().

uint16_t ns3::Ipv6Interface::m_reachableTime

private

Reachable time (in millisecond).

The time a neighbor is considered reachable after receiving a reachability confirmation.

Definition at line 329 of file ipv6-interface.h.

Referenced by GetReachableTime(), and SetReachableTime().

uint16_t ns3::Ipv6Interface::m_retransTimer

private

Retransmission timer (in millisecond).

Time between retransmission of NS.

Definition at line 335 of file ipv6-interface.h.

Referenced by GetRetransTimer(), and SetRetransTimer().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-interface.h
src/internet/model/ipv6-interface.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Config Paths

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
