Implement the header for management frames of type association request. More...

#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAssocRequestHeader:

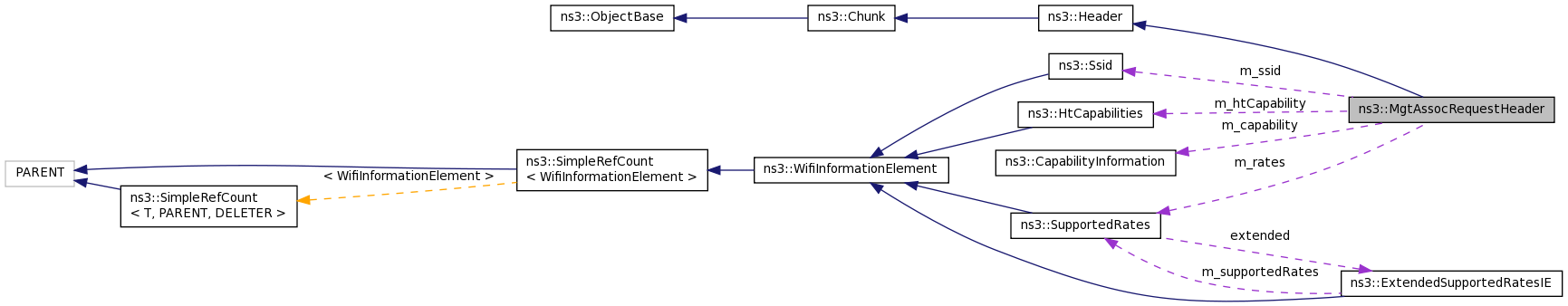

Collaboration diagram for ns3::MgtAssocRequestHeader:

Public Member Functions
	MgtAssocRequestHeader ()

	~MgtAssocRequestHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities. More...

virtual TypeId	GetInstanceTypeId (void) const

uint16_t	GetListenInterval (void) const
	Return the listen interval. More...

virtual uint32_t	GetSerializedSize (void) const

Ssid	GetSsid (void) const
	Return the Service Set Identifier (SSID). More...

SupportedRates	GetSupportedRates (void) const
	Return the supported rates. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetHtCapabilities (HtCapabilities htcapabilities)
	Set the HT capabilities. More...

void	SetListenInterval (uint16_t interval)
	Set the listen interval. More...

void	SetSsid (Ssid ssid)
	Set the Service Set Identifier (SSID). More...

void	SetSupportedRates (SupportedRates rates)
	Set the supported rates. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
CapabilityInformation	m_capability
	Capability information. More...

HtCapabilities	m_htCapability
	HT capabilities. More...

uint16_t	m_listenInterval

SupportedRates	m_rates
	List of supported rates. More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Implement the header for management frames of type association request.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 40 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAssocRequestHeader::MgtAssocRequestHeader ( )

Definition at line 260 of file mgt-headers.cc.

ns3::MgtAssocRequestHeader::~MgtAssocRequestHeader ( )

Definition at line 264 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAssocRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 354 of file mgt-headers.cc.

References ns3::CapabilityInformation::Deserialize(), ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_capability, m_htCapability, m_listenInterval, m_rates, m_ssid, ns3::Buffer::Iterator::ReadLsbtohU16(), and visualizer.core::start().

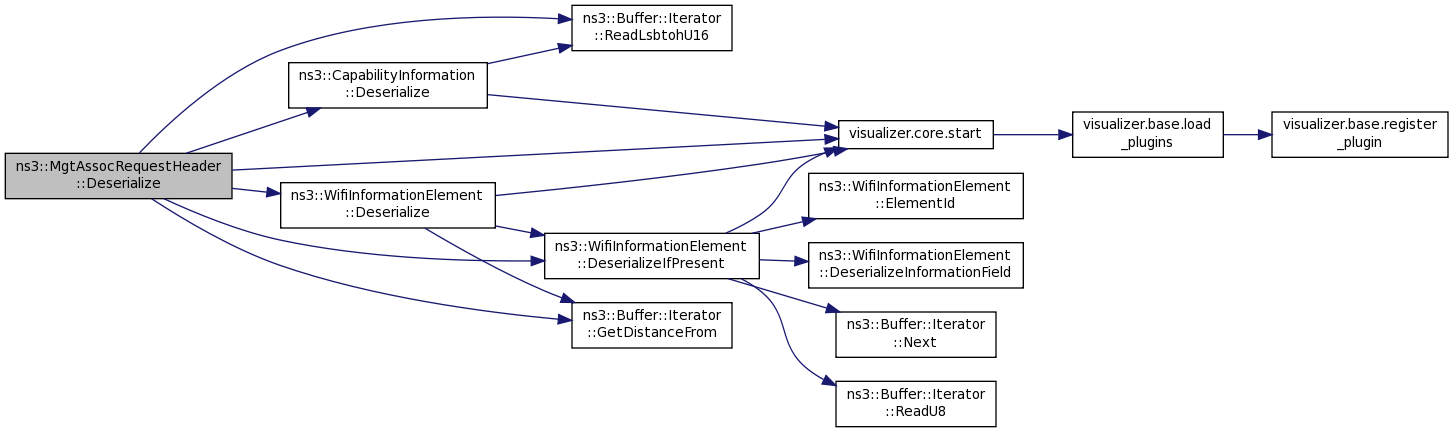

Here is the call graph for this function:

HtCapabilities ns3::MgtAssocRequestHeader::GetHtCapabilities ( void ) const

Return the HT capabilities.

Returns: HT capabilities

Definition at line 289 of file mgt-headers.cc.

References m_htCapability.

Referenced by ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::MgtAssocRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 319 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::MgtAssocRequestHeader::GetListenInterval ( void ) const

Return the listen interval.

Returns: the listen interval

Definition at line 304 of file mgt-headers.cc.

References m_listenInterval.

uint32_t ns3::MgtAssocRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 324 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::CapabilityInformation::GetSerializedSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::HtCapabilities::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_htCapability, m_rates, and m_ssid.

Here is the call graph for this function:

Ssid ns3::MgtAssocRequestHeader::GetSsid ( void ) const

Return the Service Set Identifier (SSID).

Returns: SSID

Definition at line 294 of file mgt-headers.cc.

References m_ssid.

SupportedRates ns3::MgtAssocRequestHeader::GetSupportedRates ( void ) const

Return the supported rates.

Returns: the supported rates

Definition at line 299 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::MgtAssocRequestHeader::GetTypeId ( void )

static

Definition at line 310 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MgtAssocRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 336 of file mgt-headers.cc.

References m_htCapability, m_rates, and m_ssid.

void ns3::MgtAssocRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 343 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_capability, m_htCapability, m_listenInterval, m_rates, m_ssid, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::CapabilityInformation::Serialize(), ns3::HtCapabilities::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().
