This section documents the API of the ns-3 Wifi module. More...

Classes
class	ns3::AarfcdWifiManager
	an implementation of the AARF-CD algorithmThis algorithm was first described in "Efficient Collision Detection for Auto Rate Fallback Algorithm". More...

class	ns3::AarfWifiManager
	AARF Rate control algorithmThis class implements the AARF rate control algorithm which was initially described in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. More...

class	ns3::AdhocWifiMac

class	ns3::AmrrWifiManager
	AMRR Rate control algorithmThis class implements the AMRR rate control algorithm which was initially described in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. More...

class	ns3::AmsduSubframeHeader
	Doxygen introspection did not find any typical Config paths. More...

class	ns3::ApWifiMac
	Wi-Fi AP state machineHandle association, dis-association and authentication, of STAs within an infrastructure BSS. More...

class	ns3::ArfWifiManager
	ARF Rate control algorithm. More...

struct	ns3::Bar
	Block Ack Request. More...

class	ns3::BlockAckAgreement
	Maintains information for a block ack agreement. More...

class	ns3::BlockAckCache

class	ns3::BlockAckManager
	Manages all block ack agreements for an originator station. More...

class	ns3::CapabilityInformation
	Capability information. More...

class	ns3::CaraWifiManager
	implement the CARA rate control algorithmImplement the CARA algorithm from: J. More...

class	ns3::ConstantRateWifiManager
	use constant rates for data and control transmissions More...

class	ns3::CtrlBAckRequestHeader
	Headers for Block ack request. More...

class	ns3::CtrlBAckResponseHeader
	Headers for Block ack response. More...

class	ns3::DcaTxop
	handle packet fragmentation and retransmissions. More...

class	ns3::Dcf
	Doxygen introspection did not find any typical Config paths. More...

class	ns3::DcfManager
	Manage a set of ns3::DcfStateHandle a set of independent ns3::DcfState, each of which represents a single DCF within a MAC stack. More...

class	ns3::DcfState
	keep track of the state needed for a single DCF function. More...

class	ns3::DsssErrorRateModel
	an implementation of DSSS error rate modelThe 802.11b modulations: More...

class	ns3::EdcaTxopN
	This queue contains packets for a particular access class. More...

class	ns3::ErrorRateModel
	the interface for Wifi's error models More...

class	ns3::ExtendedSupportedRatesIE
	The Extended Supported Rates Information ElementThis class knows how to serialise and deserialise the Extended Supported Rates Element that holds (non-HT) rates beyond the 8 that the original Supported Rates element can carry. More...

class	ns3::HtCapabilities
	The Ht Capabilities Information ElementThis class knows how to serialise and deserialise the Ht Capabilities Information Element. More...

class	ns3::IdealWifiManager
	Ideal rate control algorithmThis class implements an 'ideal' rate control algorithm similar to RBAR in spirit (see A rate-adaptive MAC protocol for multihop wireless networks by G. More...

class	ns3::InterferenceHelper
	handles interference calculations More...

class	ns3::MacLow
	handle RTS/CTS/DATA/ACK transactions. More...

class	ns3::MacLowBlockAckEventListener
	listen for block ack events. More...

class	ns3::MacLowDcfListener
	listen to NAV eventsThis class is typically connected to an instance of ns3::Dcf and calls to its methods are forwards to the corresponding ns3::Dcf methods. More...

class	ns3::MacLowTransmissionListener
	listen to events coming from ns3::MacLow. More...

class	ns3::MacLowTransmissionParameters
	control how a packet is transmitted. More...

class	ns3::MacRxMiddle
	This class handles duplicate detection and recomposition of fragments. More...

class	ns3::MacTxMiddle
	Handles sequence numbering of IEEE 802.11 data frames. More...

class	ns3::MgtAddBaRequestHeader
	Implement the header for management frames of type add block ack request. More...

class	ns3::MgtAddBaResponseHeader
	Implement the header for management frames of type add block ack response. More...

class	ns3::MgtAssocRequestHeader
	Implement the header for management frames of type association request. More...

class	ns3::MgtAssocResponseHeader
	Implement the header for management frames of type association response. More...

class	ns3::MgtBeaconHeader
	Implement the header for management frames of type beacon. More...

class	ns3::MgtDelBaHeader
	Implement the header for management frames of type del block ack. More...

class	ns3::MgtProbeRequestHeader
	Implement the header for management frames of type probe request. More...

class	ns3::MgtProbeResponseHeader
	Implement the header for management frames of type probe response. More...

class	ns3::MinstrelWifiManager
	Implementation of Minstrel Rate Control AlgorithmPorting Minstrel from Madwifi and Linux Kernel http://linuxwireless.org/en/developers/Documentation/mac80211/RateControl/minstrel. More...

class	ns3::MsduAggregator
	Abstract class that concrete msdu aggregators have to implement. More...

class	ns3::MsduStandardAggregator
	Standard MSDU aggregator. More...

class	ns3::NistErrorRateModel
	A model for the error rate for different modulations. More...

class	ns3::OnoeWifiManager
	an implementation of the rate control algorithm developed by Atsushi Onoe More...

class	ns3::OriginatorBlockAckAgreement
	Maintains the state and information about transmitted MPDUs with ack policy block ack for an originator station. More...

class	ns3::QosTag
	The aim of the QosTag is to provide means for an Application to specify the TID which will be used by a QoS-aware WifiMac for a given traffic flow. More...

class	ns3::RegularWifiMac
	base class for all MAC-level wifi objects. More...

class	ns3::RraaWifiManager
	Robust Rate Adaptation AlgorithmThis is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06. More...

class	ns3::Ssid
	The IEEE 802.11 SSID Information Element. More...

class	ns3::StaWifiMac
	The Wifi MAC high model for a non-AP STA in a BSS. More...

class	ns3::SupportedRates
	The Supported Rates Information ElementThis class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates. More...

class	ns3::WifiActionHeader
	See IEEE 802.11 chapter 7.3.1.11 Header format: \| category: 1 \| action value: 1 \|. More...

class	ns3::WifiChannel
	Wifi Channel interface specificationThis class works in tandem with the ns3::WifiPhy class. More...

class	ns3::WifiInformationElement
	Information element, as defined in 802.11-2007 standardThe IEEE 802.11 standard includes the notion of Information Elements, which are encodings of management information to be communicated between STAs in the payload of various frames of type Management. More...

class	ns3::WifiInformationElementVector
	Information element vectorImplements a vector of WifiInformationElements. More...

class	ns3::WifiMac
	base class for all MAC-level wifi objects. More...

class	ns3::WifiMacHeader
	Implements the IEEE 802.11 MAC header. More...

class	ns3::WifiMacQueue
	This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012). More...

class	ns3::WifiMacTrailer
	Implements the IEEE 802.11 MAC trailer. More...

class	ns3::WifiMode
	represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. More...

class	ns3::WifiNetDevice
	Hold together all Wifi-related objects. More...

class	ns3::WifiPhy
	802.11 PHY layer model More...

class	ns3::WifiPhyStateHelper
	This objects implements the PHY state machine of the Wifi device. More...

class	ns3::WifiRemoteStationManager
	hold a list of per-remote-station state. More...

class	ns3::YansErrorRateModel
	Model the error rate for different modulations. More...

class	ns3::YansWifiChannel
	A Yans wifi channelThis wifi channel implements the propagation model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf). More...

class	ns3::YansWifiPhy
	802.11 PHY layer modelThis PHY implements a model of 802.11a. More...

Enumerations
enum	ns3::AcIndex { ns3::AC_BE = 0, ns3::AC_BK = 1, ns3::AC_VI = 2, ns3::AC_VO = 3, ns3::AC_BE_NQOS = 4, ns3::AC_UNDEF }
	This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012). More...

enum	ns3::WifiPhyStandard { ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_holland, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ }
	Identifies the PHY specification that a Wifi device is configured to use. More...

enum	ns3::WifiPreamble { ns3::WIFI_PREAMBLE_LONG, ns3::WIFI_PREAMBLE_SHORT, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_HT_GF }
	The type of preamble to be used by an IEEE 802.11 transmission. More...

Functions
uint8_t	ns3::QosUtilsGetTidForPacket (Ptr< const Packet > packet)
	If a qos tag is attached to the packet, returns a value < 8. More...

bool	ns3::QosUtilsIsOldPacket (uint16_t startingSeq, uint16_t seqNumber)
	This function checks if packet with sequence number seqNumber is an "old" packet. More...

uint32_t	ns3::QosUtilsMapSeqControlToUniqueInteger (uint16_t seqControl, uint16_t endSequence)
	Next function is useful to correctly sort buffered packets under block ack. More...

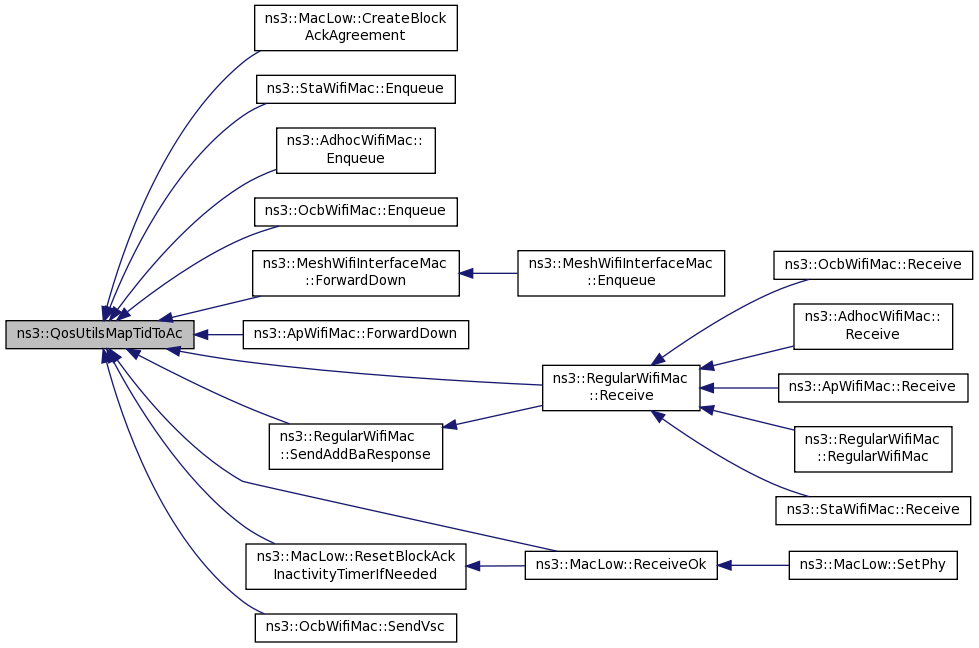

AcIndex	ns3::QosUtilsMapTidToAc (uint8_t tid)
	Maps TID (Traffic ID) to Access classes. More...

Detailed Description

This section documents the API of the ns-3 Wifi module.

For a generic functional description, please refer to the ns-3 manual.

Enumeration Type Documentation

enum ns3::AcIndex

This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012).

Enumerator
AC_BE	Best Effort.
AC_BK	Background.
AC_VI	Video.
AC_VO	Voice.
AC_BE_NQOS	Total number of ACs.
AC_UNDEF

Definition at line 35 of file qos-utils.h.

enum ns3::WifiPhyStandard

Identifies the PHY specification that a Wifi device is configured to use.

Enumerator
WIFI_PHY_STANDARD_80211a	OFDM PHY for the 5 GHz band (Clause 17)
WIFI_PHY_STANDARD_80211b	DSSS PHY (Clause 15) and HR/DSSS PHY (Clause 18)
WIFI_PHY_STANDARD_80211g	ERP-OFDM PHY (Clause 19, Section 19.5)
WIFI_PHY_STANDARD_80211_10MHZ	OFDM PHY for the 5 GHz band (Clause 17 with 10 MHz channel bandwidth)
WIFI_PHY_STANDARD_80211_5MHZ	OFDM PHY for the 5 GHz band (Clause 17 with 5 MHz channel bandwidth)
WIFI_PHY_STANDARD_holland	This is intended to be the configuration used in this paper: Gavin Holland, Nitin Vaidya and Paramvir Bahl, "A Rate-Adaptive MAC Protocol for Multi-Hop Wireless Networks", in Proc. of ACM MOBICOM, 2001.
WIFI_PHY_STANDARD_80211n_2_4GHZ
WIFI_PHY_STANDARD_80211n_5GHZ

Definition at line 30 of file wifi-phy-standard.h.

enum ns3::WifiPreamble

The type of preamble to be used by an IEEE 802.11 transmission.

Enumerator
WIFI_PREAMBLE_LONG
WIFI_PREAMBLE_SHORT
WIFI_PREAMBLE_HT_MF
WIFI_PREAMBLE_HT_GF

Definition at line 29 of file wifi-preamble.h.

Function Documentation

uint8_t ns3::QosUtilsGetTidForPacket ( Ptr< const Packet > packet )

If a qos tag is attached to the packet, returns a value < 8.

A value >= 8 is returned otherwise.

Parameters

packet the packet to checked for a QoS tag

Returns: a value less than 8 if QoS tag was present, a value >= 8 is returned if no QoS tag was present

Definition at line 60 of file qos-utils.cc.

References ns3::QosTag::GetTid(), and ns3::Packet::PeekPacketTag().

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), and ns3::OcbWifiMac::SendVsc().

Here is the call graph for this function:

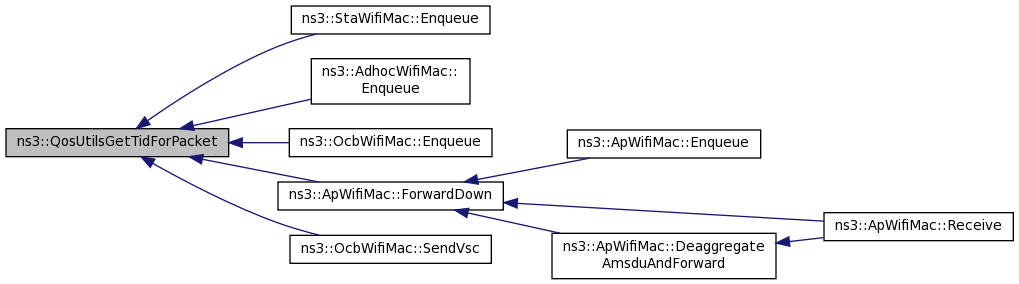

Here is the caller graph for this function:

bool ns3::QosUtilsIsOldPacket	(	uint16_t	startingSeq,
		uint16_t	seqNumber
	)

This function checks if packet with sequence number seqNumber is an "old" packet.

The sequence number space is considered divided into two parts, one of which is "old" and one of which is "new" by means of a boundary created by adding half the sequence number range to the starting sequence number startingSeq. So this function works fine also when seqNumber is smaller than startingSeq and startingSeq + 2048 is greater than 4096 because all comparison are circular modulo 2^12. The following are possible scenarios:

--— = old packets +++++ = new packets

CASE A:

0 4095 |++++++|-------------—|++++++| ^ ^ | endSeq | startingSeq

CASE B:

0 4095 |---—|++++++++++++++++|--—| ^ ^ | startingSeq | endSeq

Here in the examples endSeq is the sequenceNumber of the "last" new packet. So this function, when specified a starting sequence and a sequence number, returns true if that packet (with sequence number numberSeq)) belongs to the section of the sequence number space marked with '-' characters. The function returns false otherwise.

Parameters

startingSeq	the starting sequence number
seqNumber	the sequence number to be checked

Returns: true if the packet is old, false otherwise

Definition at line 86 of file qos-utils.cc.

References NS_ASSERT.

Referenced by QosUtilsIsOldPacketTest::DoRun(), ns3::BlockAckCache::UpdateWithBlockAckReq(), and ns3::BlockAckCache::UpdateWithMpdu().

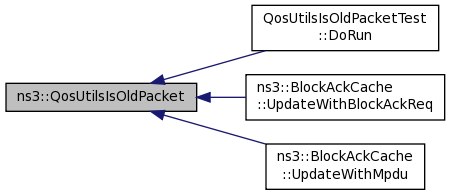

Here is the caller graph for this function:

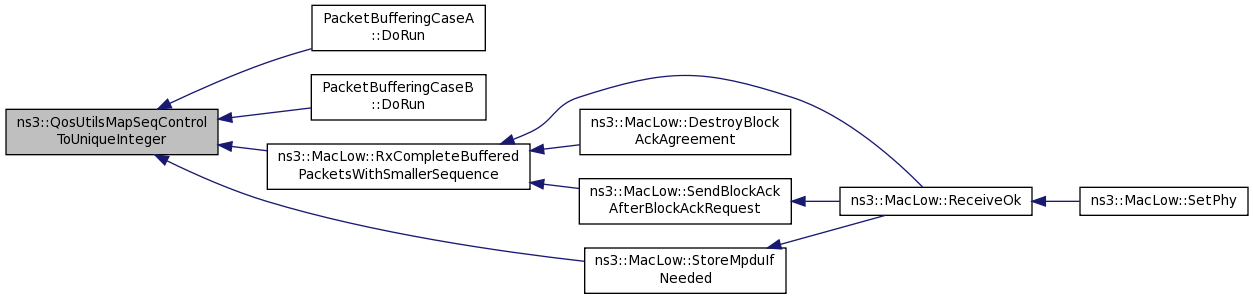

uint32_t ns3::QosUtilsMapSeqControlToUniqueInteger	(	uint16_t	seqControl,
		uint16_t	endSequence
	)

Next function is useful to correctly sort buffered packets under block ack.

When an BAR is received from originator station, completed "old" (see section 9.10.3 in IEEE802.11e) packets must be forwarded up before "new" packets.

Parameters
