ns3::EdcaTxopN Class Reference

This queue contains packets for a particular access class. More...

#include <edca-txop-n.h>

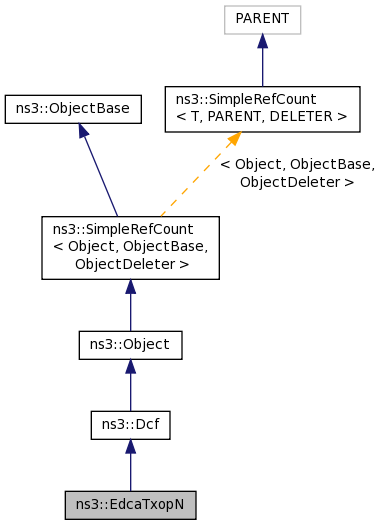

Inheritance diagram for ns3::EdcaTxopN:

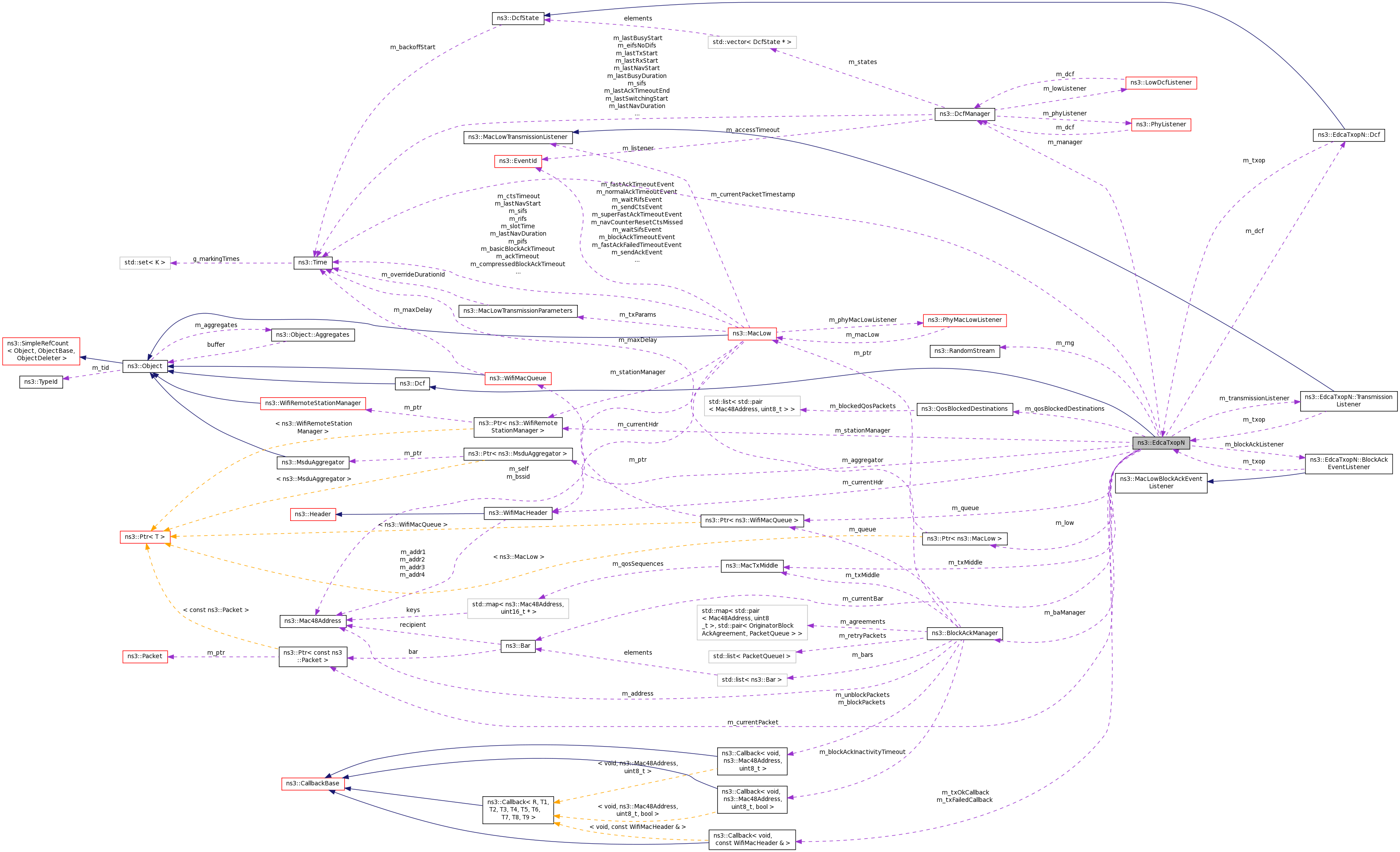

Collaboration diagram for ns3::EdcaTxopN:

Classes
class	BlockAckEventListener
class	Dcf
class	TransmissionListener

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
	typedef for a callback to invoke when a packet transmission was failed. More...
typedef Callback< void, const WifiMacHeader & >	TxOk
	typedef for a callback to invoke when a packet transmission was completed successfully. More...

Public Member Functions

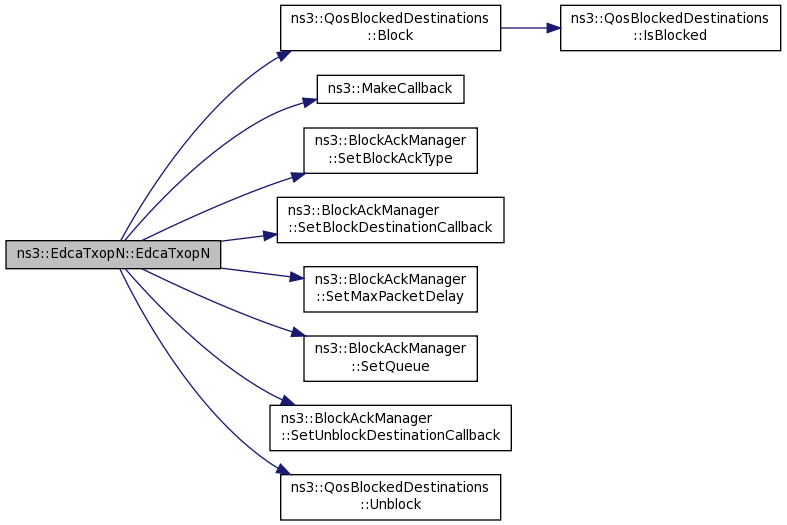

	EdcaTxopN ()
virtual	~EdcaTxopN ()

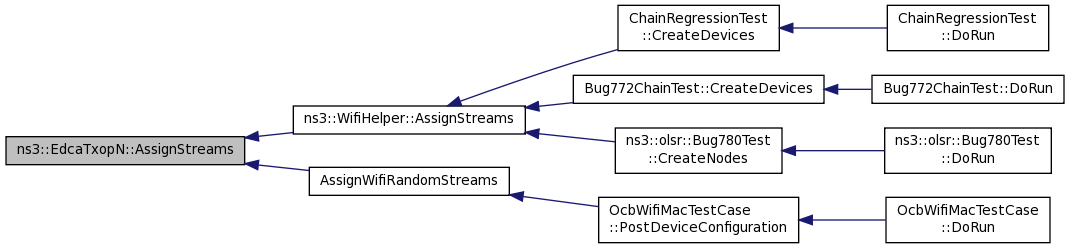

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...
void	Cancel (void)
	Cancel the transmission. More...

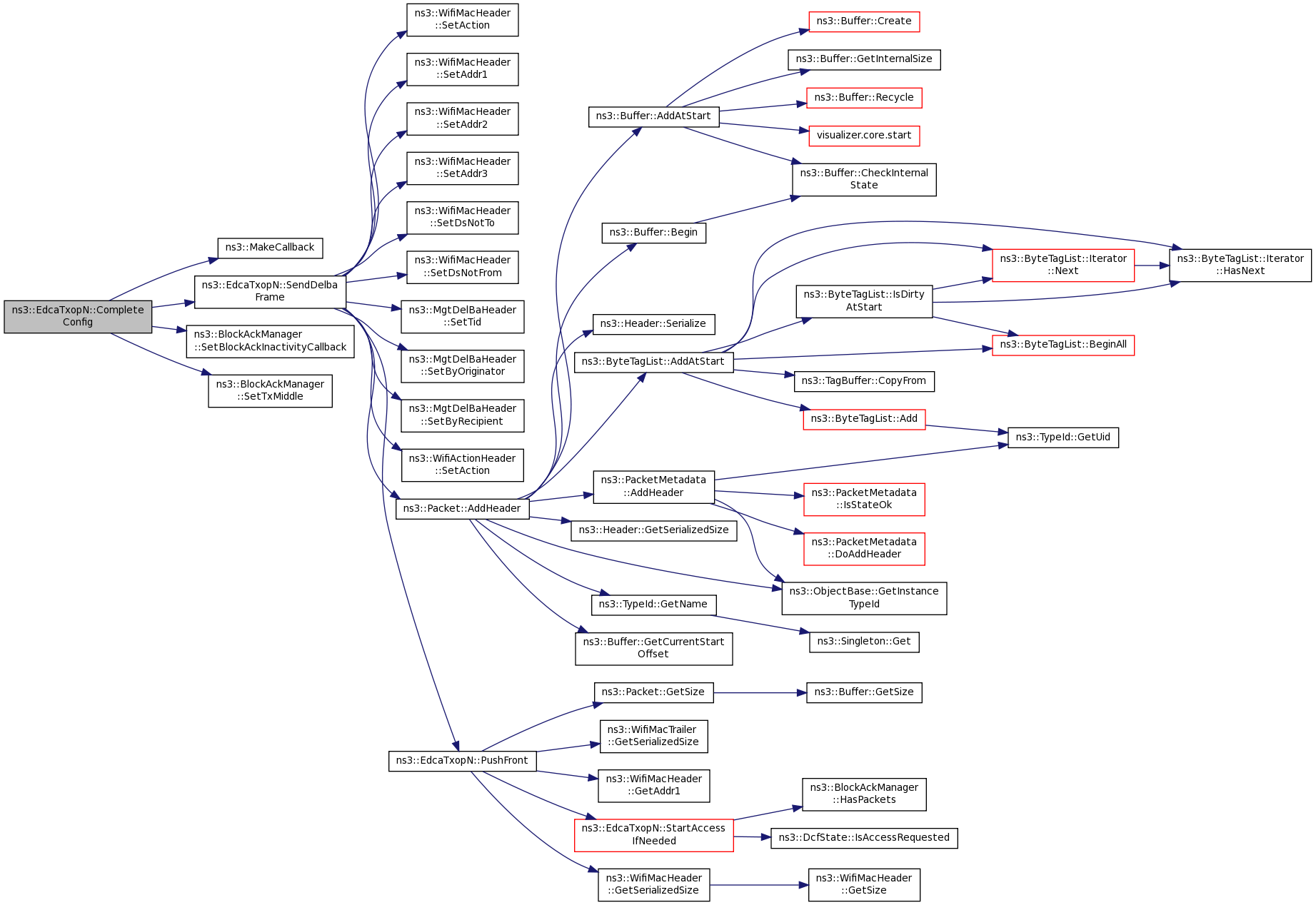

void	CompleteConfig (void)
	Complete block ACK configuration. More...
void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
void	EndTxNoAck (void)
	Event handler when a transmission that does not require an ACK has completed. More...
virtual uint32_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...
uint8_t	GetBlockAckThreshold (void) const
	Return the current threshold for block ACK mechanism. More...

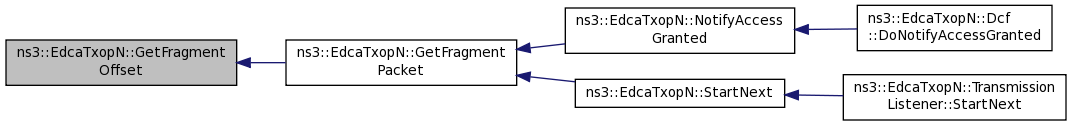

uint32_t	GetFragmentOffset (void)
	Calculate the offset for the current fragment. More...

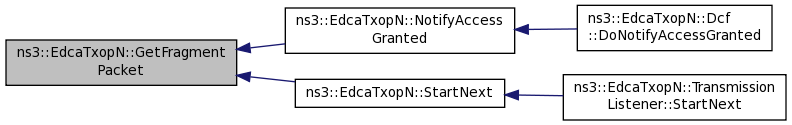

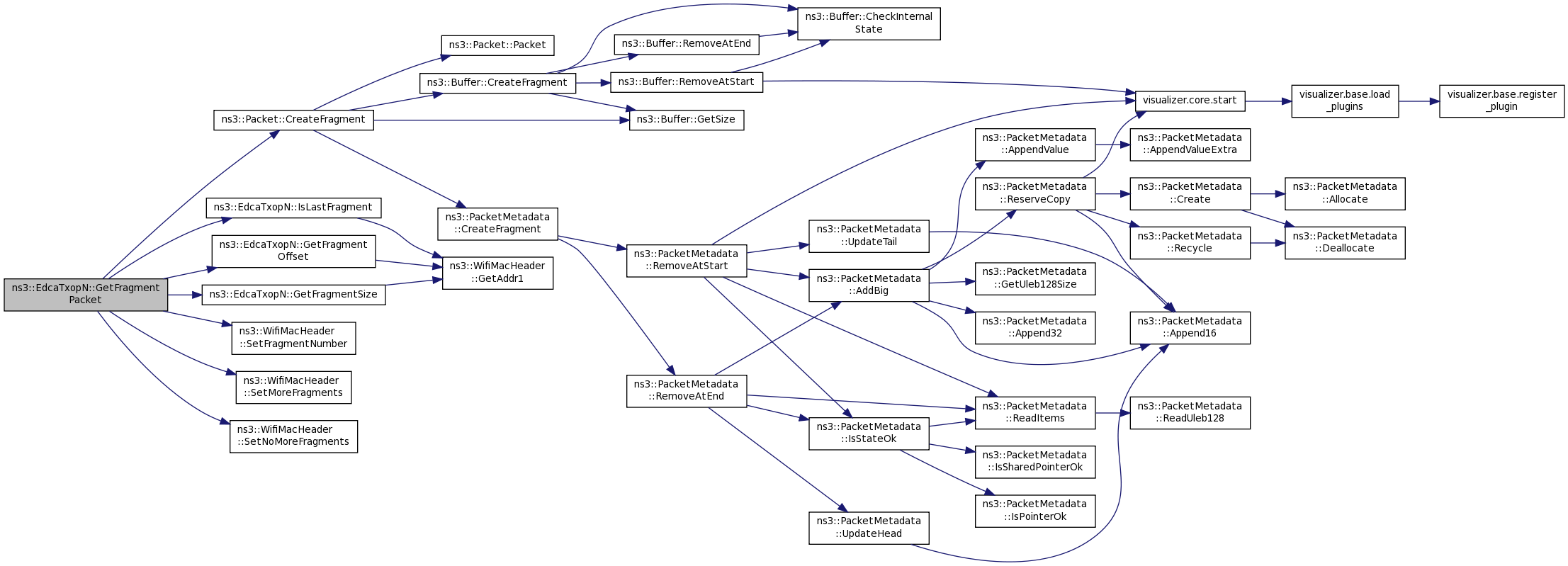

Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
	Get the next fragment from the packet with appropriate Wifi header for the fragment. More...

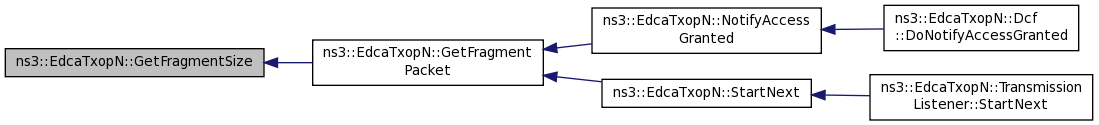

uint32_t	GetFragmentSize (void)
	Calculate the size of the current fragment. More...
virtual uint32_t	GetMaxCw (void) const
	Return the maximum congestion window size. More...
virtual uint32_t	GetMinCw (void) const
	Return the minimum congestion window size. More...
Ptr< MsduAggregator >	GetMsduAggregator (void) const

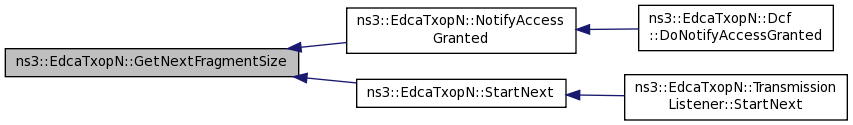

uint32_t	GetNextFragmentSize (void)
	Calculate the size of the next fragment. More...
Ptr< WifiMacQueue >	GetQueue () const
	Return the packet queue associated with this EdcaTxopN. More...
enum TypeOfStation	GetTypeOfStation (void) const
	Return type of station. More...

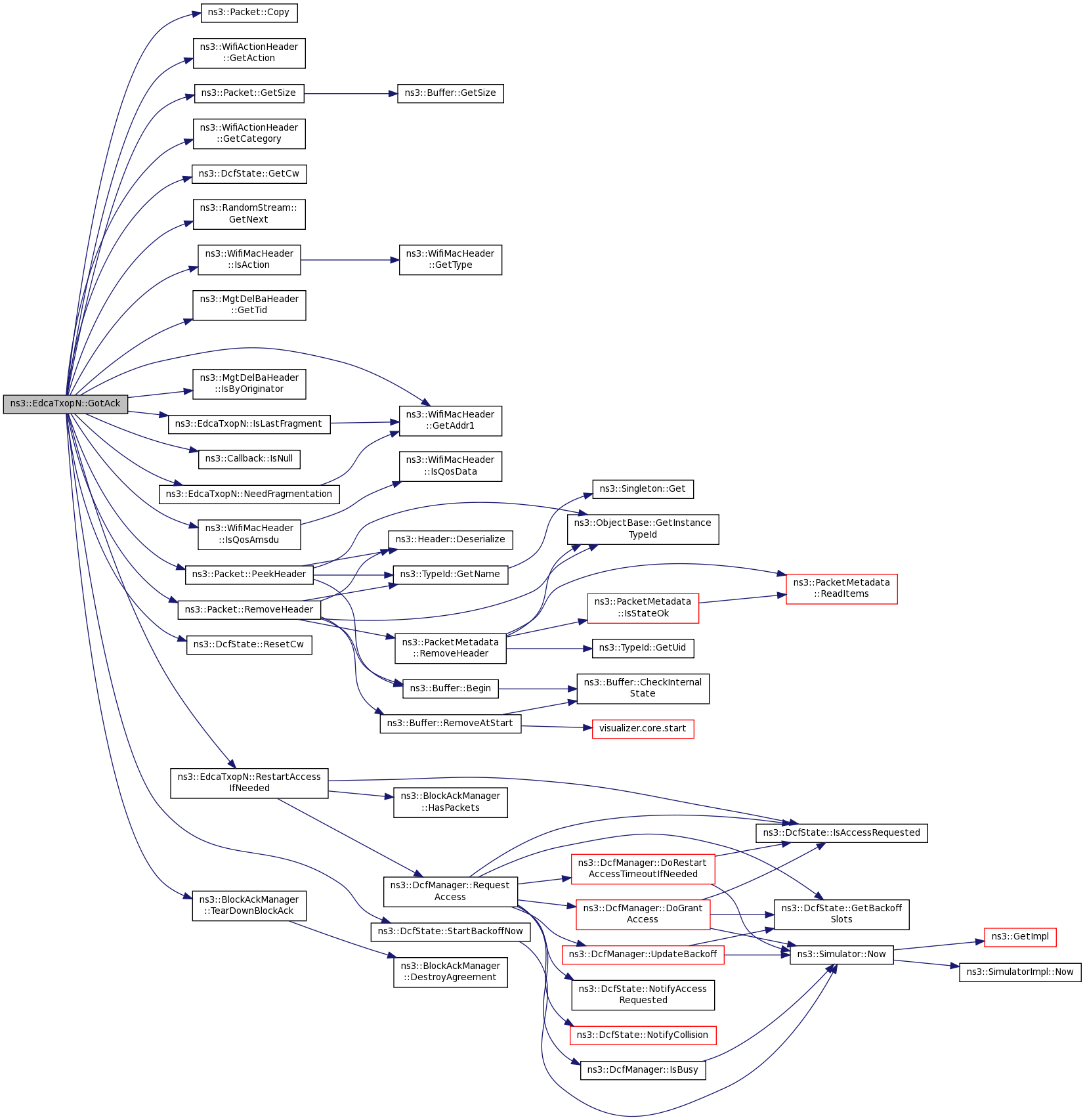

void	GotAck (double snr, WifiMode txMode)
	Event handler when an ACK is received. More...

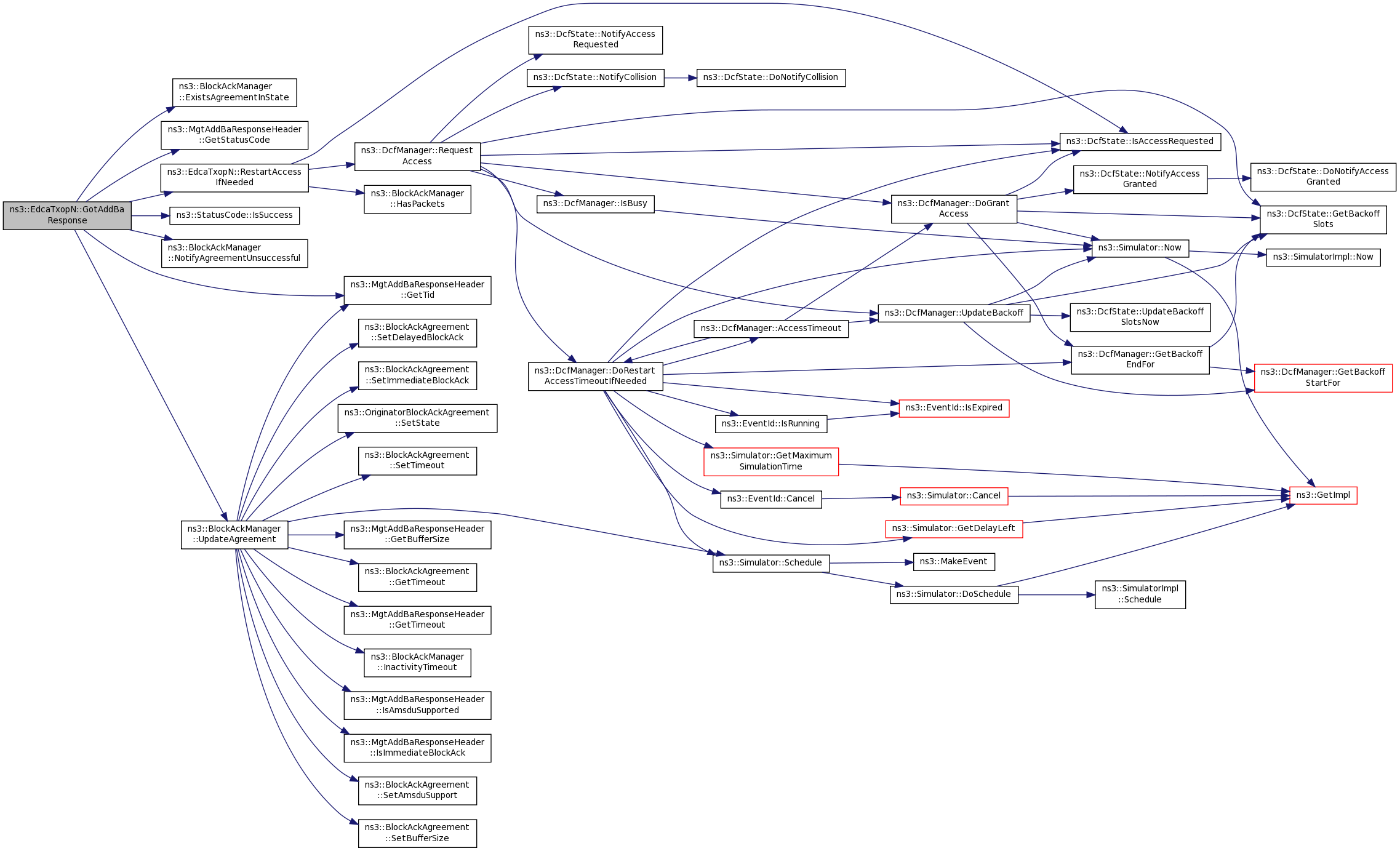

void	GotAddBaResponse (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient)

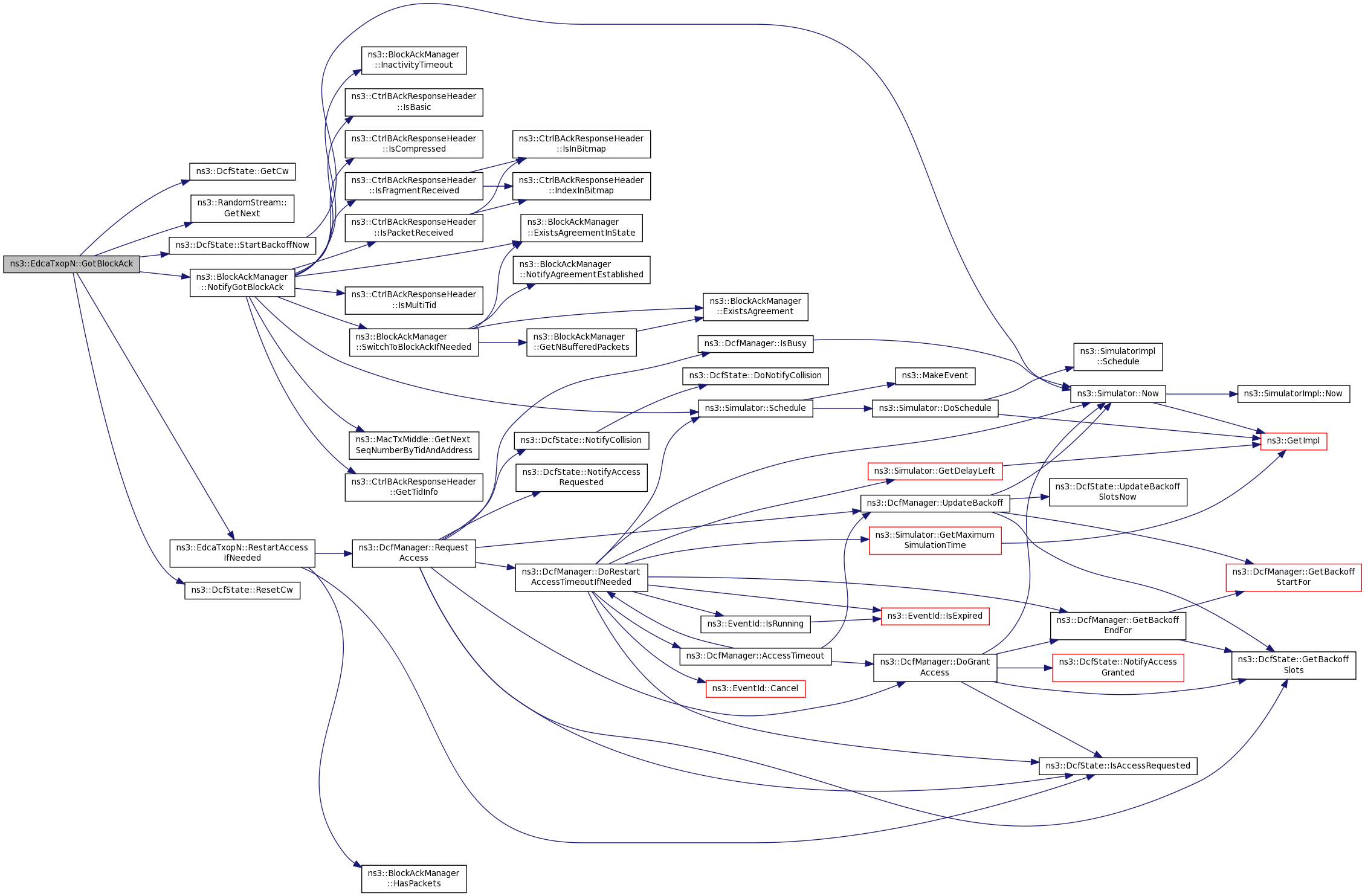

void	GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient)
	Event handler when a Block ACK is received. More...
void	GotCts (double snr, WifiMode txMode)
	Event handler when a CTS is received. More...

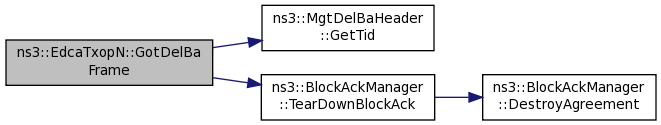

void	GotDelBaFrame (const MgtDelBaHeader *delBaHdr, Mac48Address recipient)

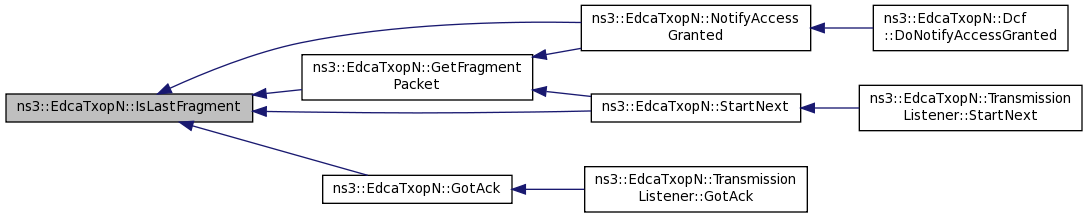

bool	IsLastFragment (void) const
	Check if the curren fragment is the last fragment. More...
Ptr< MacLow >	Low (void)
	Return the MacLow associated with this EdcaTxopN. More...

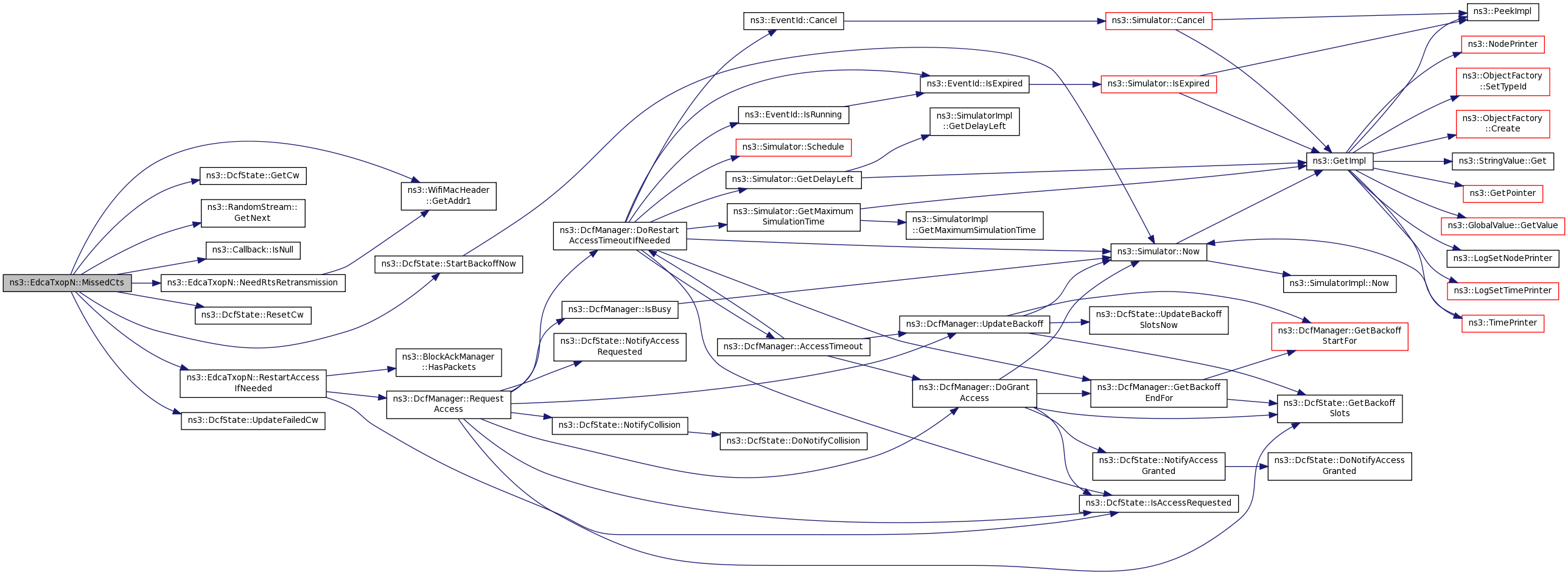

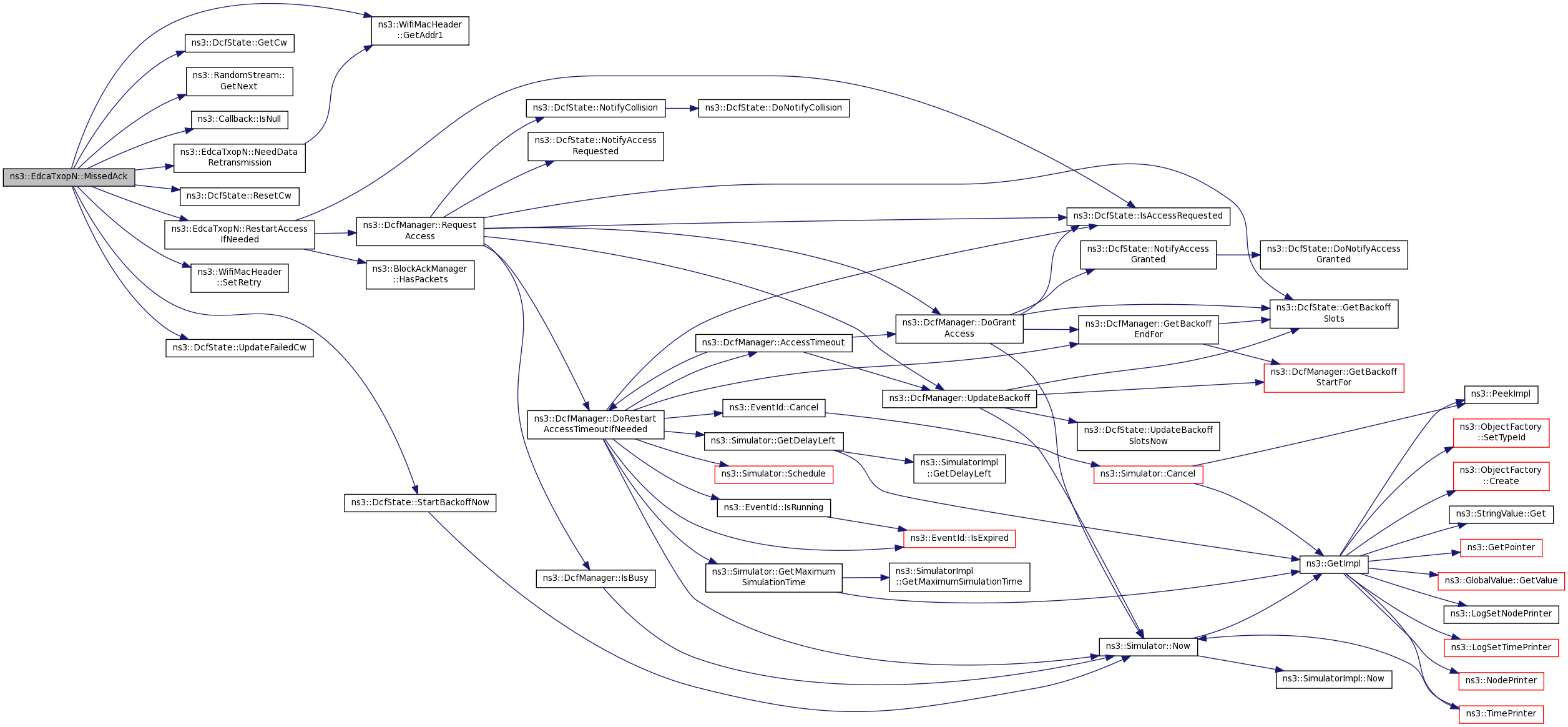

void	MissedAck (void)
	Event handler when an ACK is received. More...

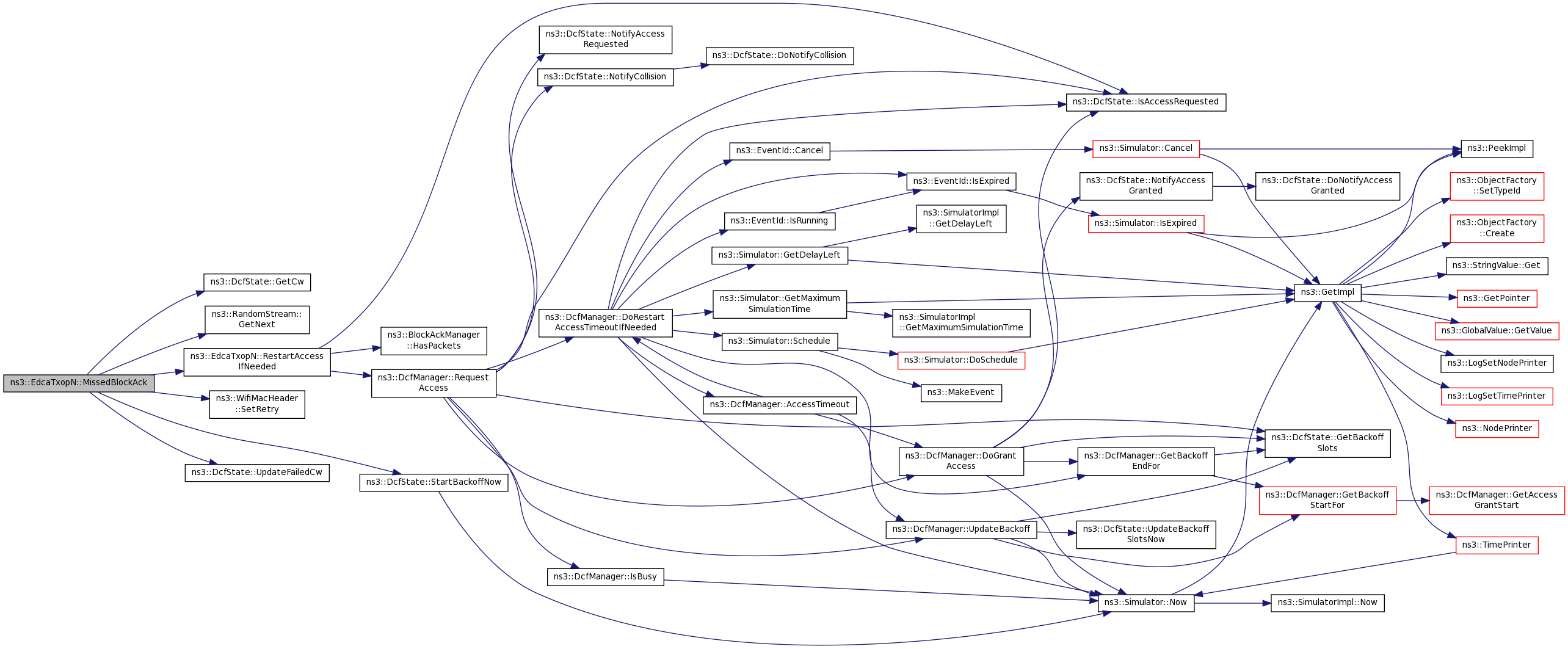

void	MissedBlockAck (void)
	Event handler when a Block ACK timeout has occurred. More...
void	MissedCts (void)
	Event handler when a CTS timeout has occurred. More...
bool	NeedDataRetransmission (void)
	Check if DATA should be re-transmitted if ACK was missed. More...

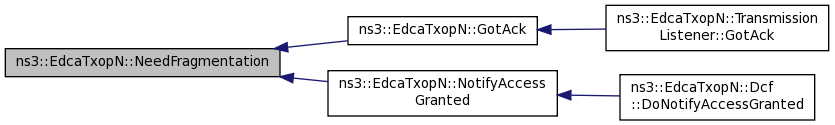

bool	NeedFragmentation (void) const
	Check if the current packet should be fragmented. More...
bool	NeedRts (void)
	Check if the current packet should be sent with a RTS protection. More...
bool	NeedRtsRetransmission (void)
	Check if RTS should be re-transmitted if CTS was missed. More...
bool	NeedsAccess (void) const
	Check if the EDCAF requires access. More...
void	NextFragment (void)
	Continue to the next fragment. More...
void	NotifyAccessGranted (void)
	Notify the EDCAF that access has been granted. More...
void	NotifyChannelSwitching (void)
	When a channel switching occurs, enqueued packets are removed. More...

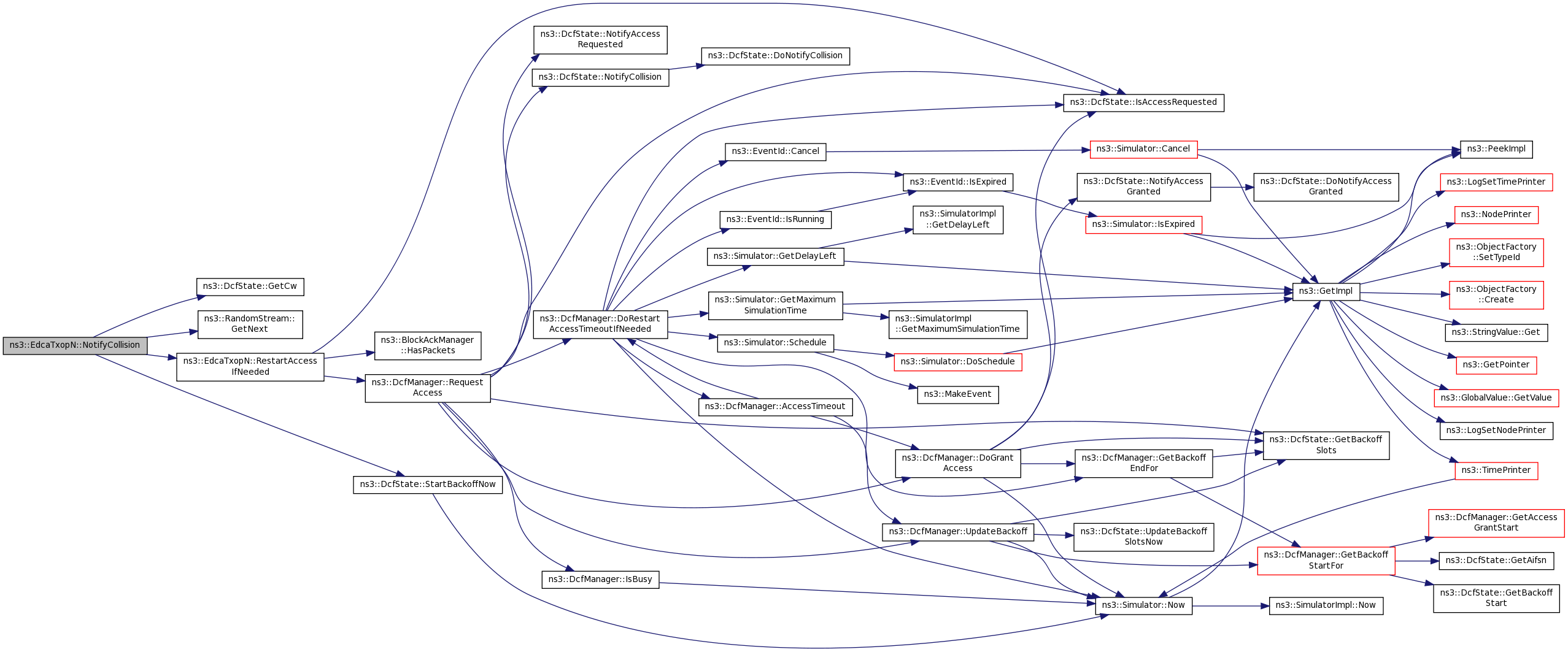

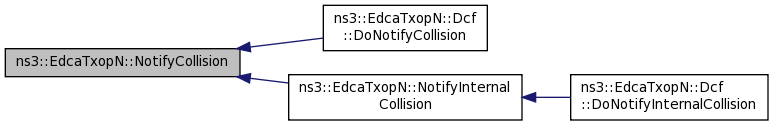

void	NotifyCollision (void)
	Notify the EDCAF that collision has occurred. More...

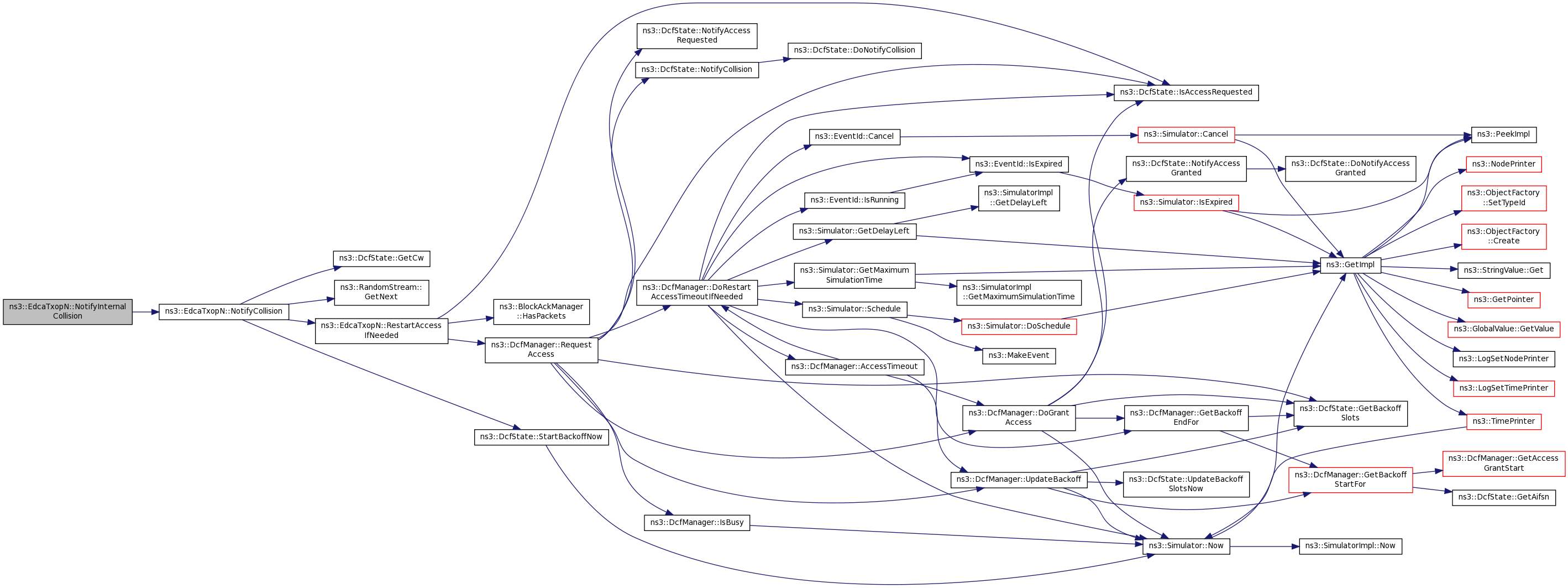

void	NotifyInternalCollision (void)
	Notify the EDCAF that internal collision has occurred. More...

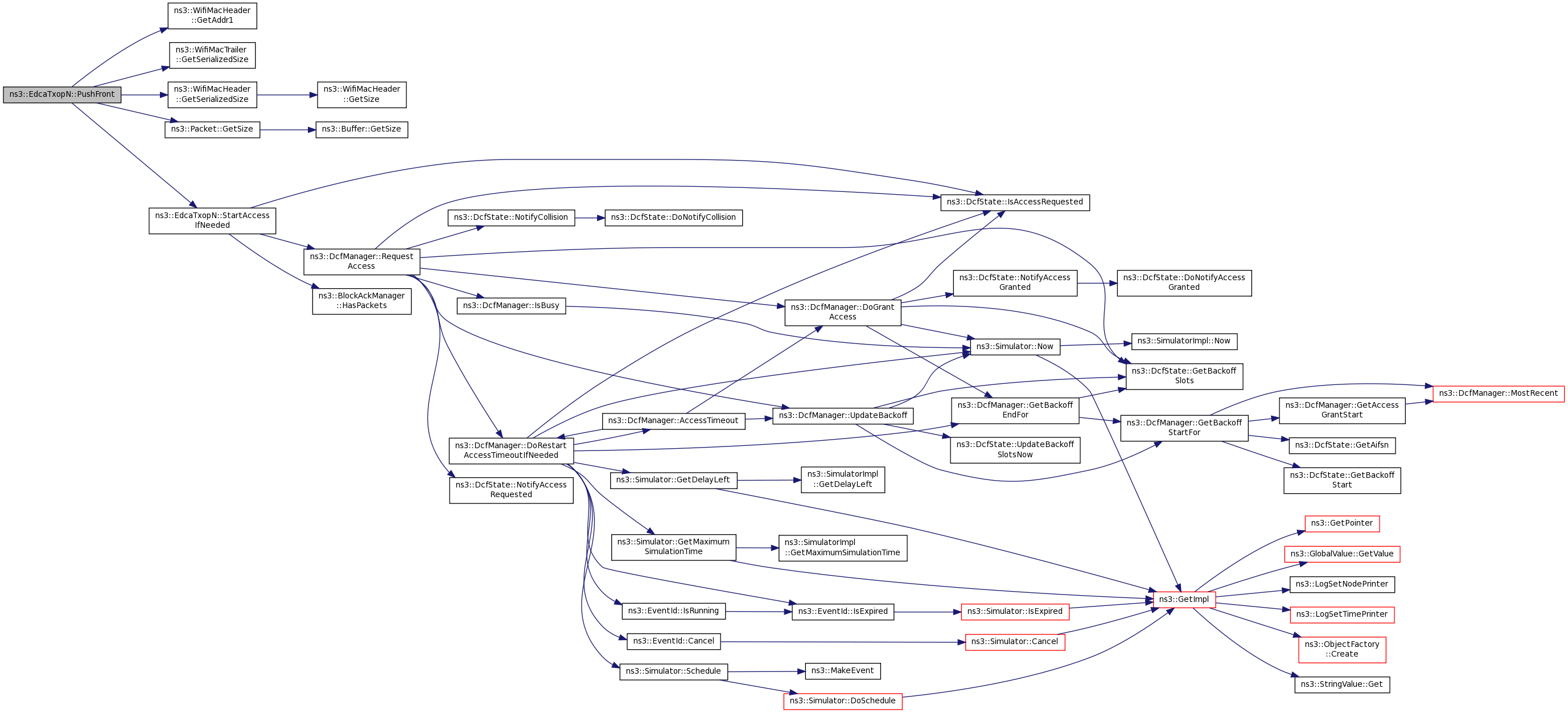

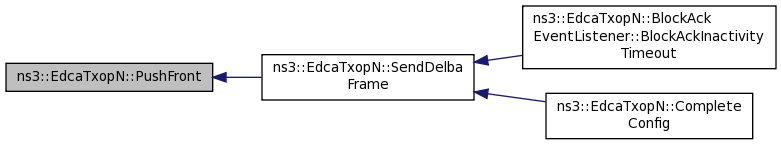

void	PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)
void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

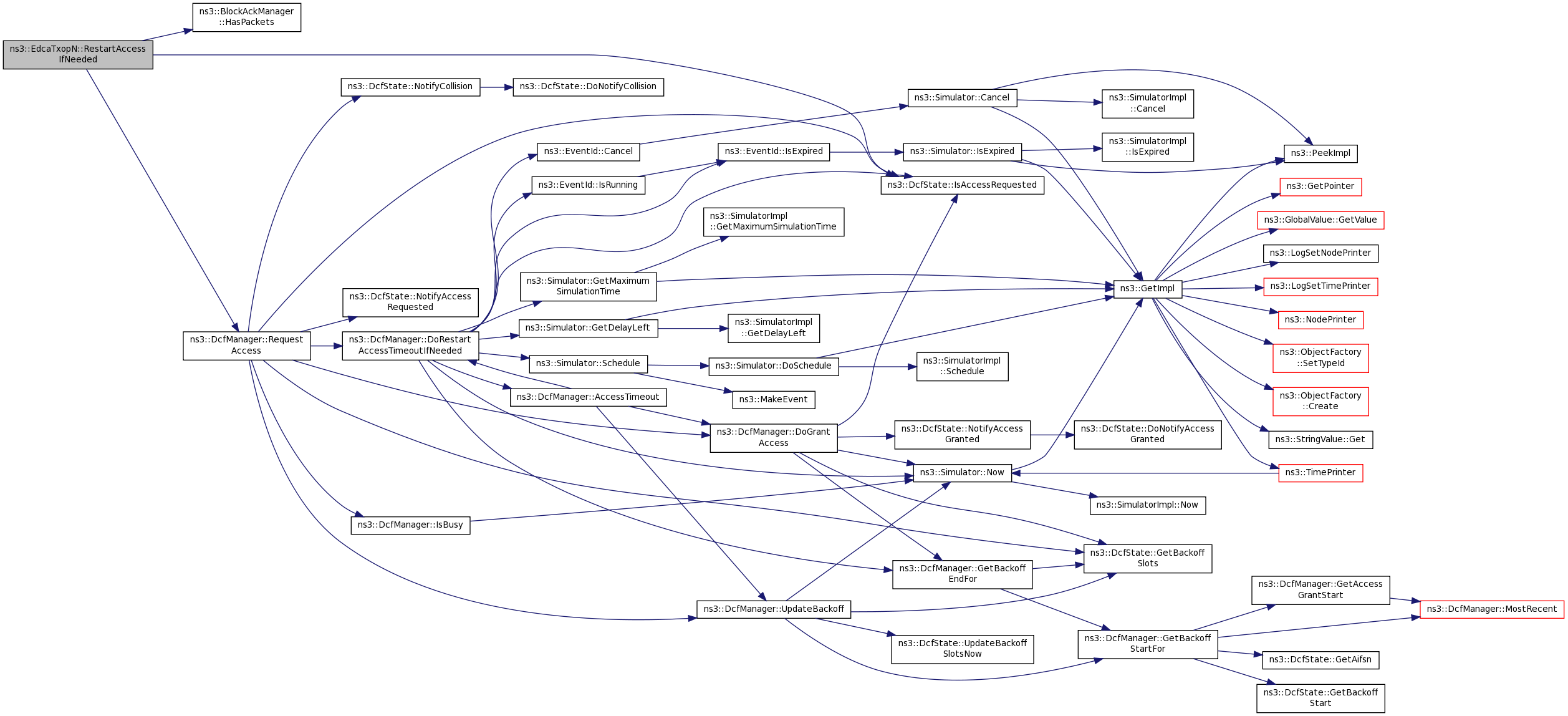

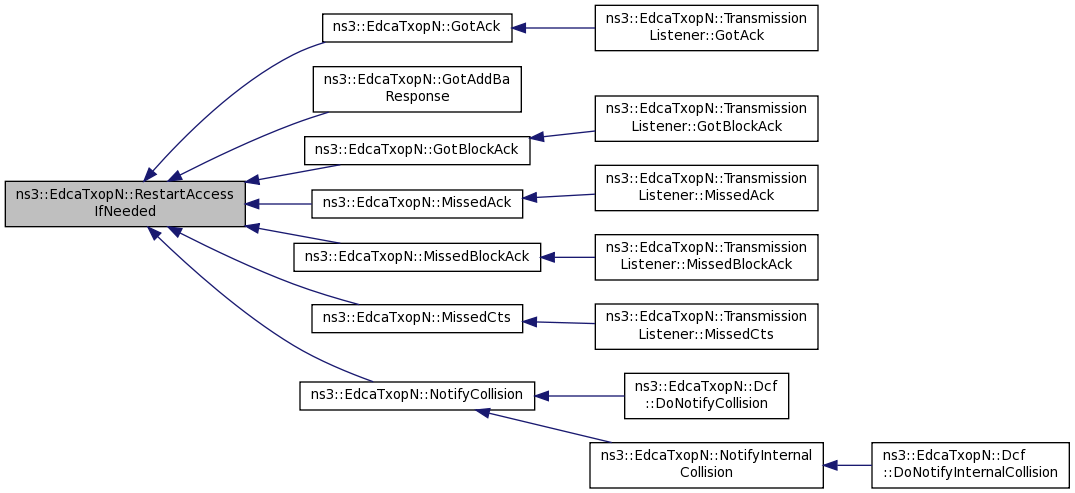

void	RestartAccessIfNeeded (void)
	Restart access request if needed. More...

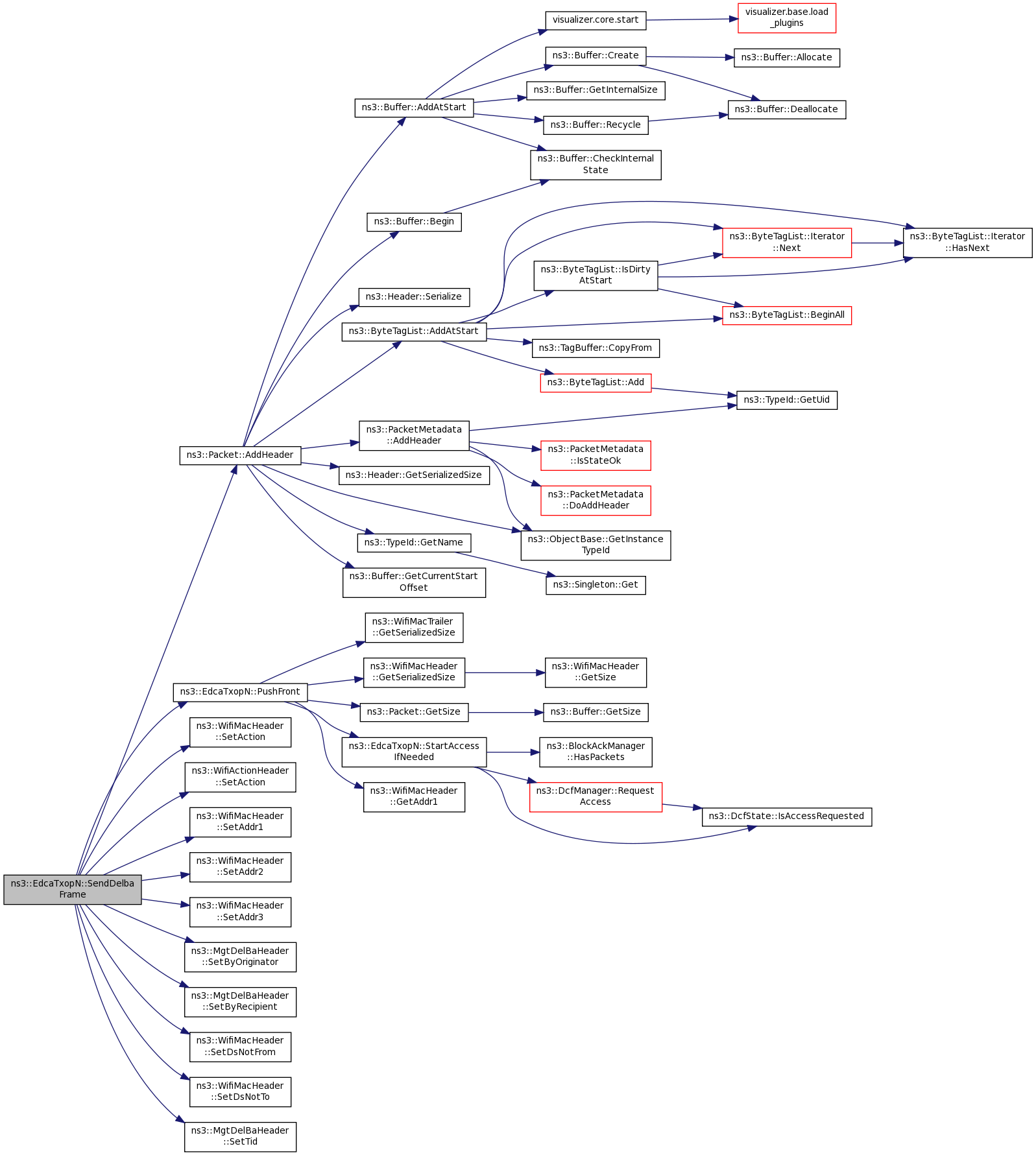

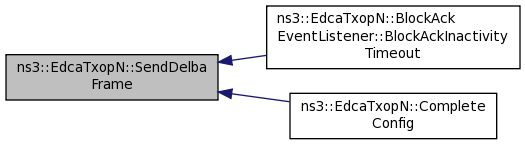

void	SendDelbaFrame (Mac48Address addr, uint8_t tid, bool byOriginator)
void	SetAccessCategory (enum AcIndex ac)
	Set the access category of this EDCAF. More...
virtual void	SetAifsn (uint32_t aifsn)

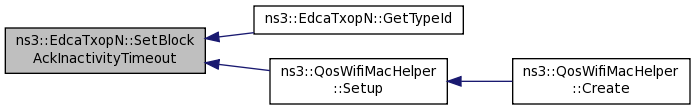

void	SetBlockAckInactivityTimeout (uint16_t timeout)

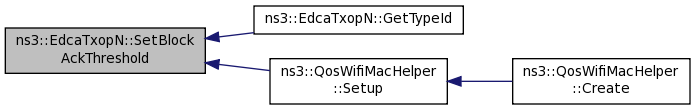

void	SetBlockAckThreshold (uint8_t threshold)
	Set threshold for block ACK mechanism. More...
void	SetLow (Ptr< MacLow > low)
	Set MacLow associated with this EdcaTxopN. More...
void	SetManager (DcfManager *manager)
	Set DcfManager this EdcaTxopN is associated to. More...
virtual void	SetMaxCw (uint32_t maxCw)
	Set the maximum congestion window size. More...
virtual void	SetMinCw (uint32_t minCw)
	Set the minimum congestion window size. More...
void	SetMsduAggregator (Ptr< MsduAggregator > aggr)
void	SetTxFailedCallback (TxFailed callback)
void	SetTxMiddle (MacTxMiddle *txMiddle)
void	SetTxOkCallback (TxOk callback)
void	SetTypeOfStation (enum TypeOfStation type)
	Set type of station with the given type. More...
void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)
	Set WifiRemoteStationsManager this EdcaTxopN is associated to. More...

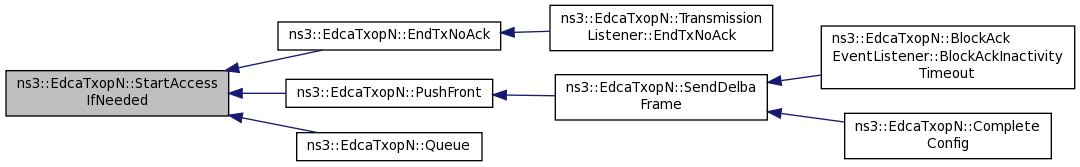

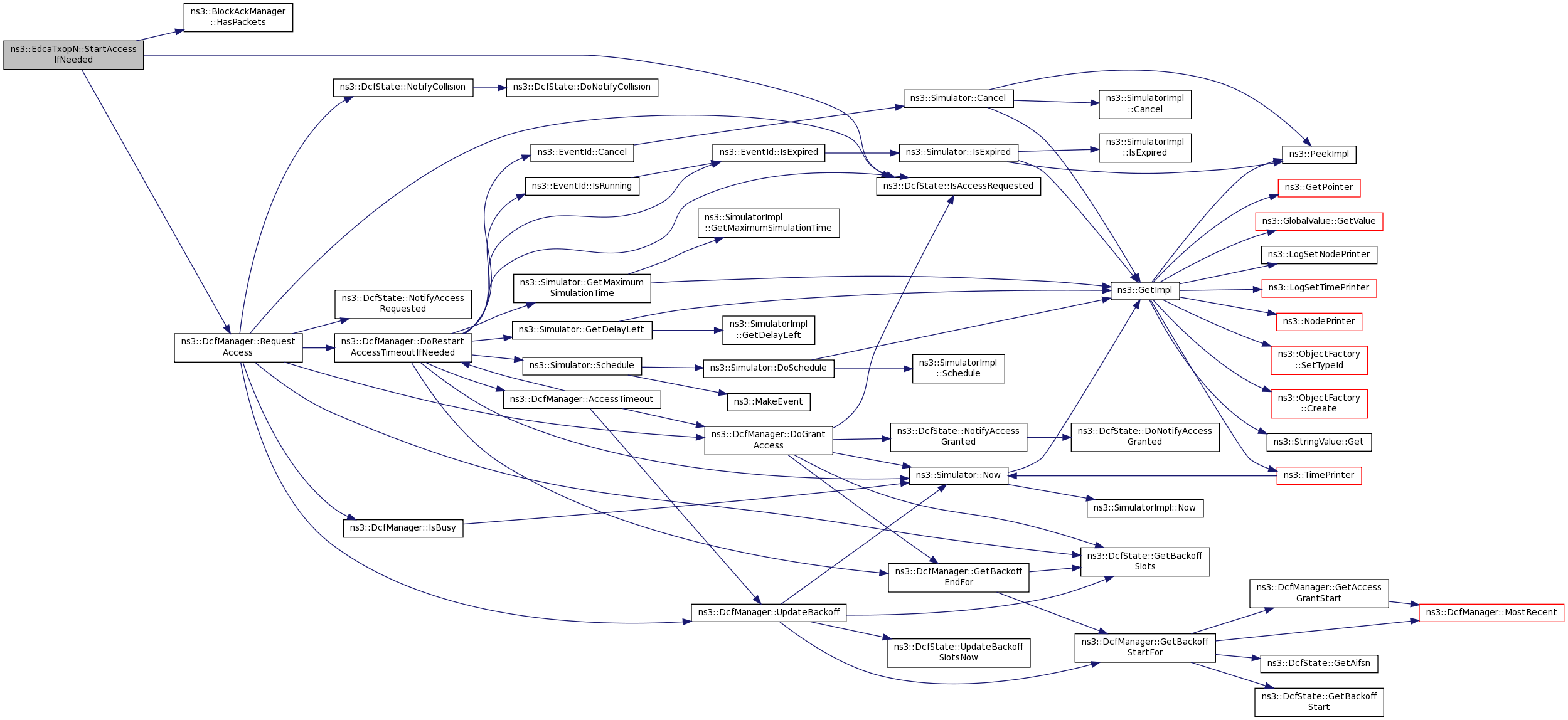

void	StartAccessIfNeeded (void)
	Request access from DCF manager if needed. More...

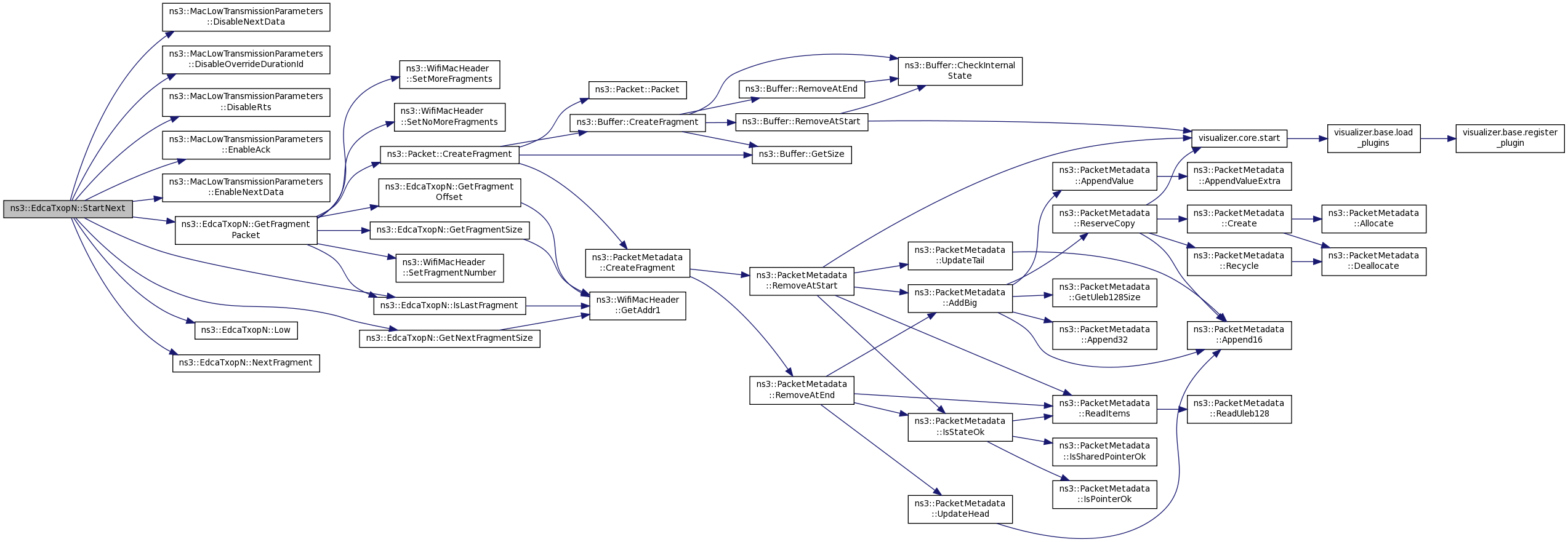

void	StartNext (void)
	Start transmission for the next fragment. More...
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

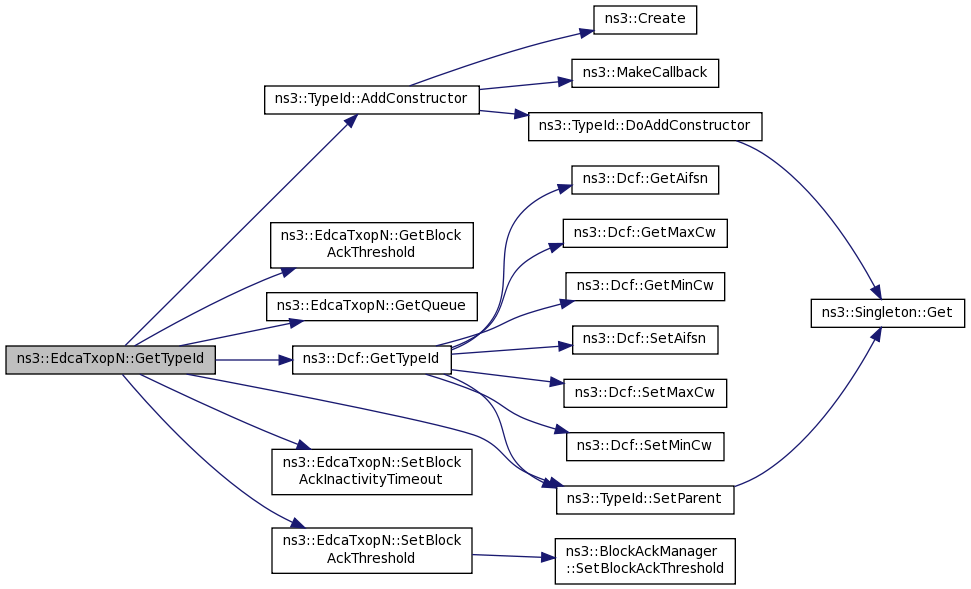

static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Dcf
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	EdcaTxopN (const EdcaTxopN &)

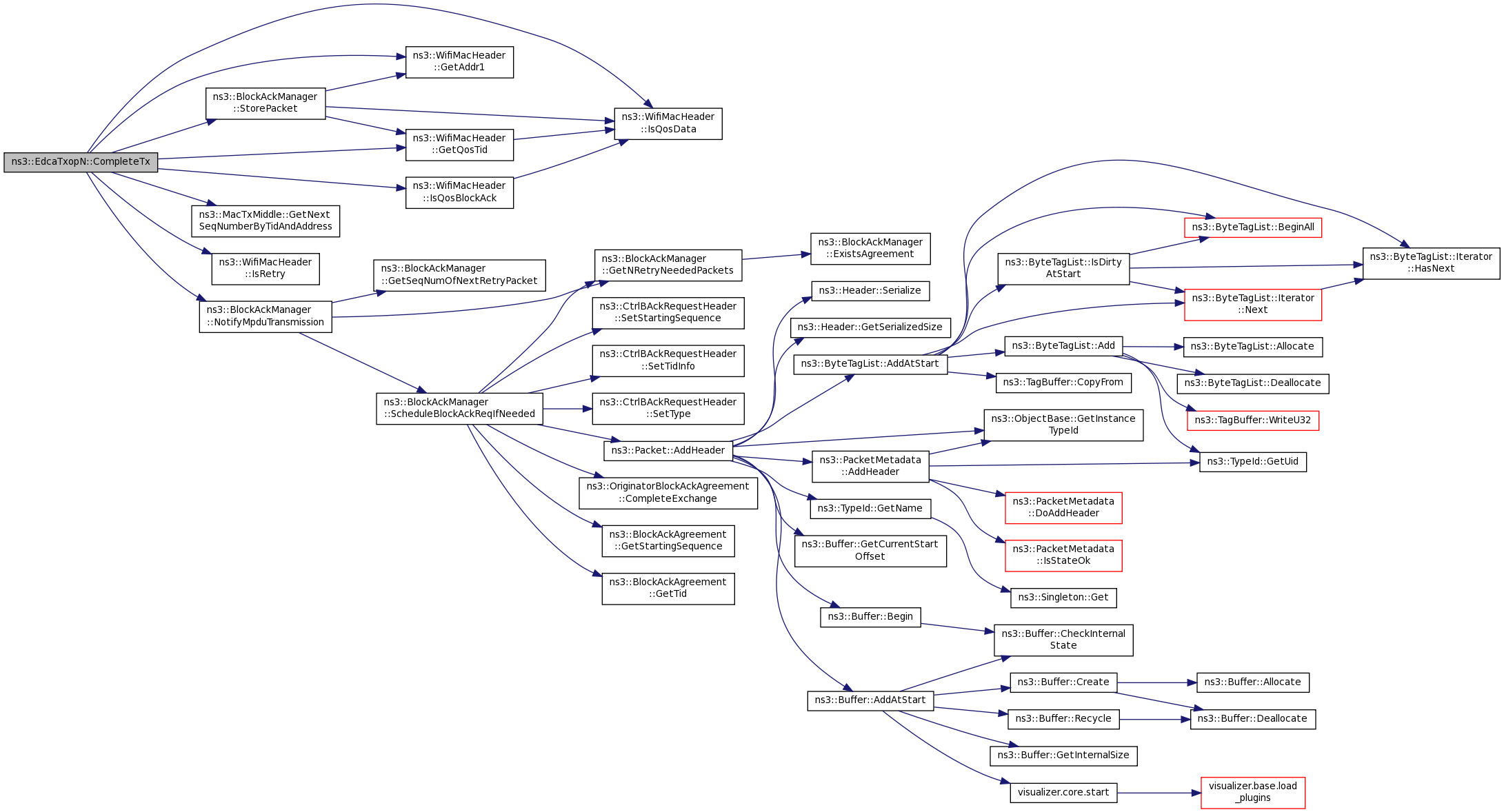

void	CompleteTx (void)
	For now is typically invoked to complete transmission of a packets sent with ack policy Block Ack: the packet is buffered and dcf is reset. More...
void	DoInitialize ()
	This method is called only once by Object::Initialize. More...

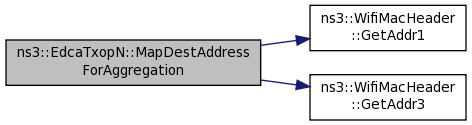

Mac48Address	MapDestAddressForAggregation (const WifiMacHeader &hdr)

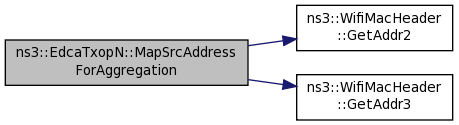

Mac48Address	MapSrcAddressForAggregation (const WifiMacHeader &hdr)
	This functions are used only to correctly set addresses in a-msdu subframe. More...
EdcaTxopN &	operator= (const EdcaTxopN &)

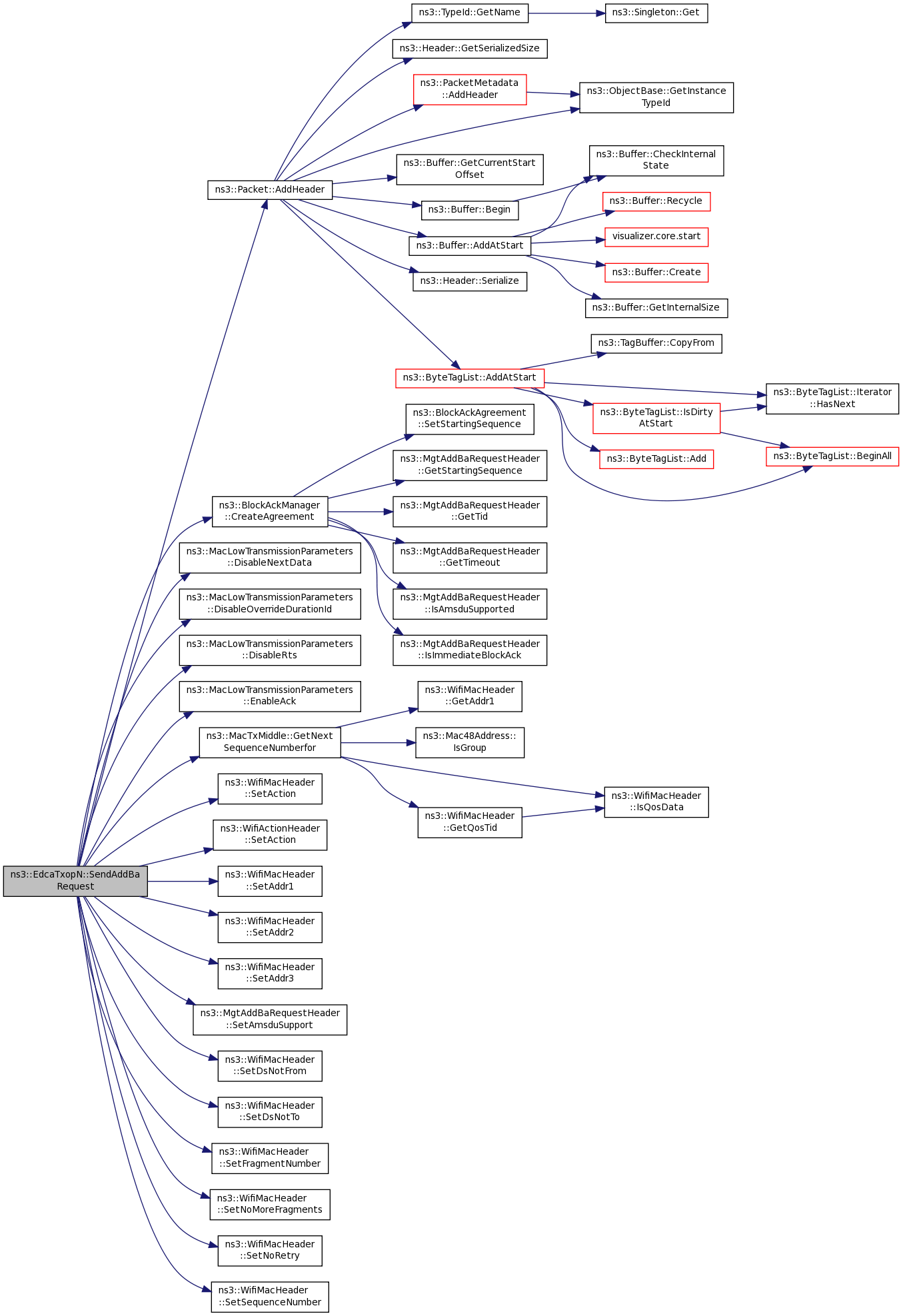

void	SendAddBaRequest (Mac48Address recipient, uint8_t tid, uint16_t startSeq, uint16_t timeout, bool immediateBAck)
	Sends an ADDBARequest to establish a block ack agreement with sta addressed by recipient for tid tid. More...

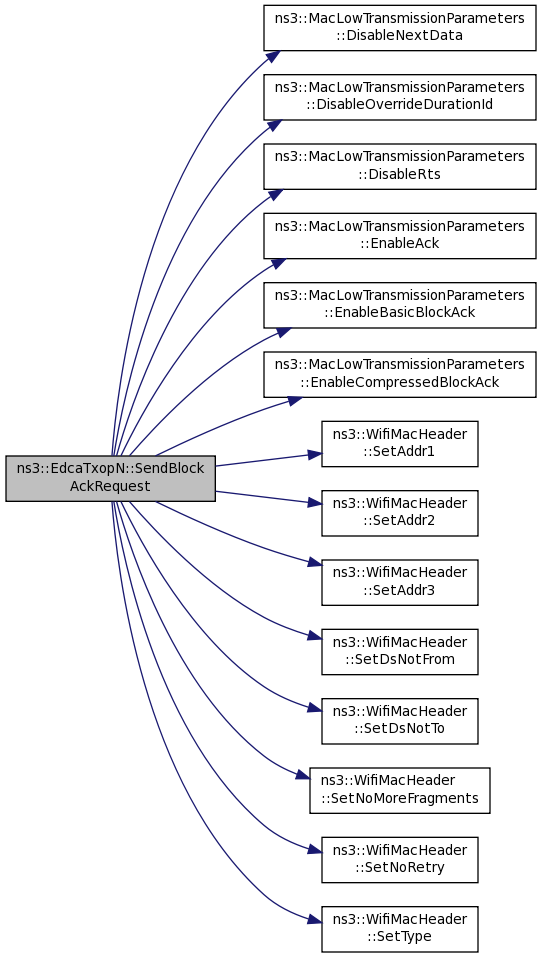

void	SendBlockAckRequest (const struct Bar &bar)
	After that all packets, for which a block ack agreement was established, have been transmitted, we have to send a block ack request. More...

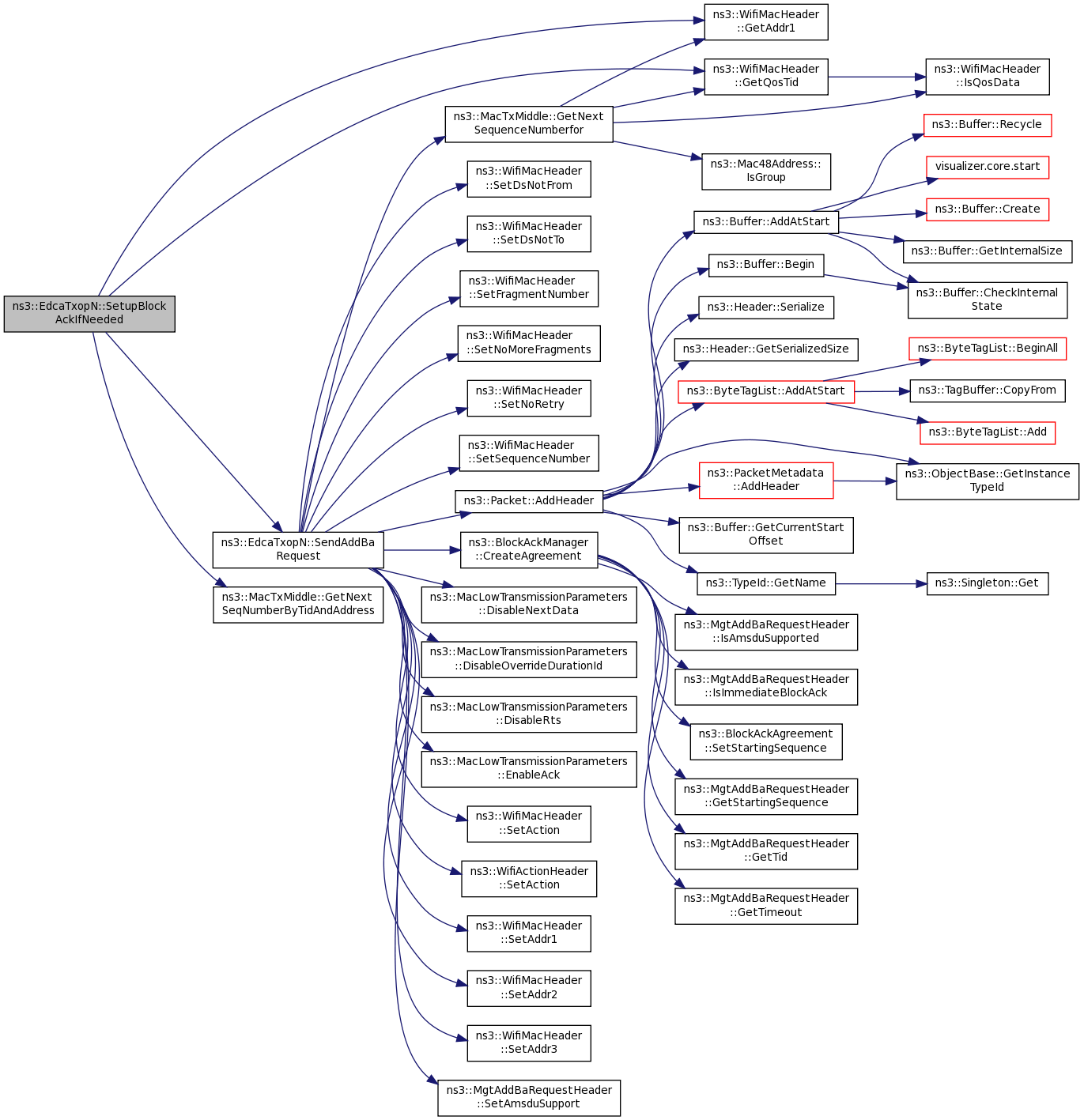

bool	SetupBlockAckIfNeeded ()
	If number of packets in the queue reaches m_blockAckThreshold value, an ADDBARequest frame is sent to destination in order to setup a block ack. More...

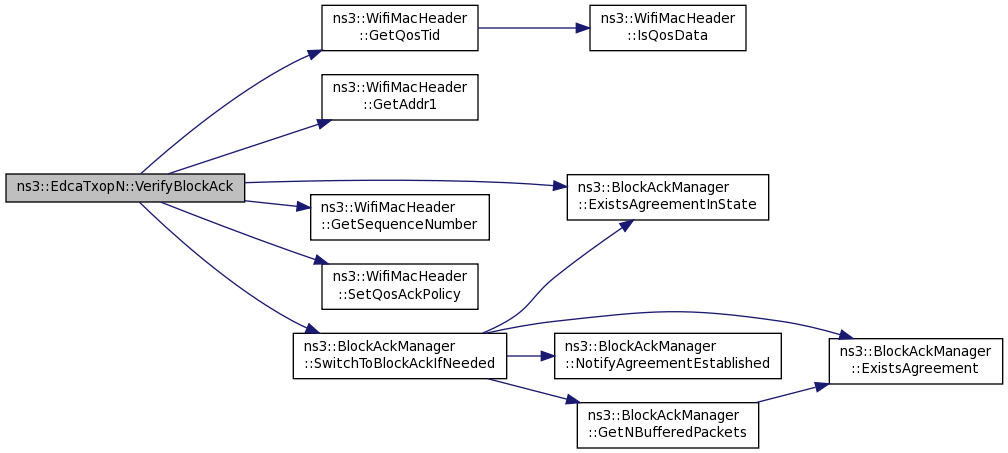

void	VerifyBlockAck (void)
	Verifies if dequeued packet has to be transmitted with ack policy Block Ack. More...

Private Attributes
AcIndex	m_ac
Ptr< MsduAggregator >	m_aggregator
BlockAckManager *	m_baManager
uint16_t	m_blockAckInactivityTimeout
BlockAckEventListener *	m_blockAckListener
uint8_t	m_blockAckThreshold
enum BlockAckType	m_blockAckType
struct Bar	m_currentBar
WifiMacHeader	m_currentHdr
Ptr< const Packet >	m_currentPacket
Time	m_currentPacketTimestamp
Dcf *	m_dcf
uint8_t	m_fragmentNumber
Ptr< MacLow >	m_low
DcfManager *	m_manager
QosBlockedDestinations *	m_qosBlockedDestinations
Ptr< WifiMacQueue >	m_queue
RandomStream *	m_rng
Ptr< WifiRemoteStationManager >	m_stationManager
TransmissionListener *	m_transmissionListener
TxFailed	m_txFailedCallback
MacTxMiddle *	m_txMiddle
TxOk	m_txOkCallback
TypeOfStation	m_typeOfStation

Friends
class	Dcf
class	TransmissionListener

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This queue contains packets for a particular access class.

possibles access classes are:

-AC_VO : voice, tid = 6,7 ^ -AC_VI : video, tid = 4,5 | -AC_BE : best-effort, tid = 0,3 | priority -AC_BK : background, tid = 1,2 |

For more details see section 9.1.3.1 in 802.11 standard.

Config Paths

ns3::EdcaTxopN is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN

Attributes

• BlockAckThreshold: If number of packets in this queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:64
  • Initial value: 0
  • Flags: construct write read
• BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ack inactivity. If this value isn't equal to 0 a timer start after that a block ack setup is completed and will be reset every time that a block ack frame is received. If this value is 0, block ack inactivity timeout won't be used.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 0
  • Flags: construct write
• Queue: The WifiMacQueue object
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::WifiMacQueue>
  • Flags: read

Attributes defined in parent class ns3::Dcf

• MinCw: The minimum value of the contention window.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 15
  • Flags: construct write read
• MaxCw: The maximum value of the contention window.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1023
  • Flags: construct write read
• Aifsn: The AIFSN: the default value conforms to simple DCA.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 84 of file edca-txop-n.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 96 of file edca-txop-n.h.

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 91 of file edca-txop-n.h.

Constructor & Destructor Documentation

ns3::EdcaTxopN::EdcaTxopN

(

)

Definition at line 170 of file edca-txop-n.cc.

References ns3::QosBlockedDestinations::Block(), Dcf, m_baManager, m_blockAckListener, m_blockAckType, m_dcf, m_qosBlockedDestinations, m_queue, m_rng, m_transmissionListener, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::BlockAckManager::SetBlockAckType(), ns3::BlockAckManager::SetBlockDestinationCallback(), ns3::BlockAckManager::SetMaxPacketDelay(), ns3::BlockAckManager::SetQueue(), ns3::BlockAckManager::SetUnblockDestinationCallback(), TransmissionListener, and ns3::QosBlockedDestinations::Unblock().

Here is the call graph for this function:

ns3::EdcaTxopN::~EdcaTxopN ( )

virtual

Definition at line 191 of file edca-txop-n.cc.

References NS_LOG_FUNCTION.

ns3::EdcaTxopN::EdcaTxopN ( const EdcaTxopN &  )

private

Member Function Documentation

int64_t ns3::EdcaTxopN::AssignStreams

(

int64_t

stream

)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream

first stream index to use

Returns

the number of stream indices assigned by this model

Definition at line 1148 of file edca-txop-n.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by ns3::WifiHelper::AssignStreams(), and AssignWifiRandomStreams().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::Cancel

(

void

)

Cancel the transmission.

Definition at line 743 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::Cancel().

Here is the caller graph for this function:

void ns3::EdcaTxopN::CompleteConfig

(

void

)

Complete block ACK configuration.

Definition at line 1019 of file edca-txop-n.cc.

References m_ac, m_baManager, m_blockAckListener, m_low, m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, SendDelbaFrame(), ns3::BlockAckManager::SetBlockAckInactivityCallback(), and ns3::BlockAckManager::SetTxMiddle().

Here is the call graph for this function:

void ns3::EdcaTxopN::CompleteTx ( void  )

private

For now is typically invoked to complete transmission of a packets sent with ack policy Block Ack: the packet is buffered and dcf is reset.

Definition at line 940 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_baManager, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_txMiddle, ns3::BlockAckManager::NotifyMpduTransmission(), NS_LOG_FUNCTION, and ns3::BlockAckManager::StorePacket().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::DoDispose ( void  )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 197 of file edca-txop-n.cc.

References m_aggregator, m_baManager, m_blockAckListener, m_dcf, m_low, m_qosBlockedDestinations, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::DoInitialize ( void  )

privatevirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 1156 of file edca-txop-n.cc.

References ns3::Object::DoInitialize(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

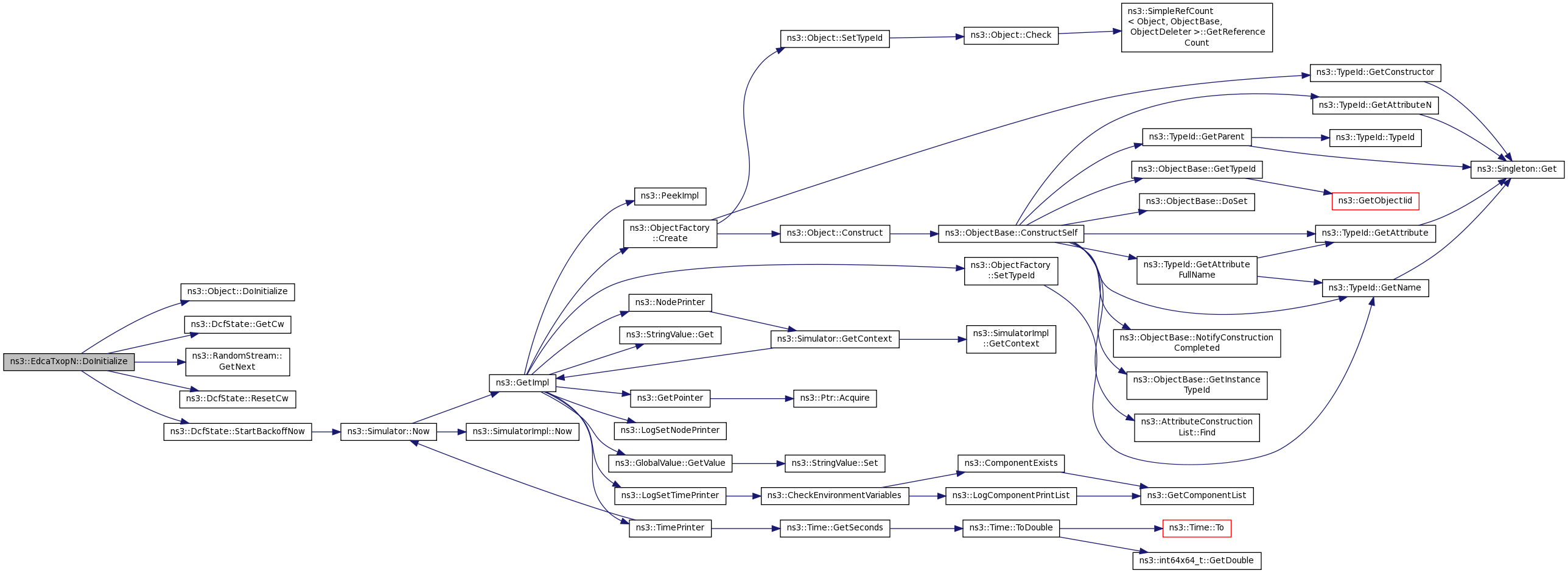

Here is the call graph for this function:

void ns3::EdcaTxopN::EndTxNoAck

(

void

)

Event handler when a transmission that does not require an ACK has completed.

Definition at line 750 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::EndTxNoAck().

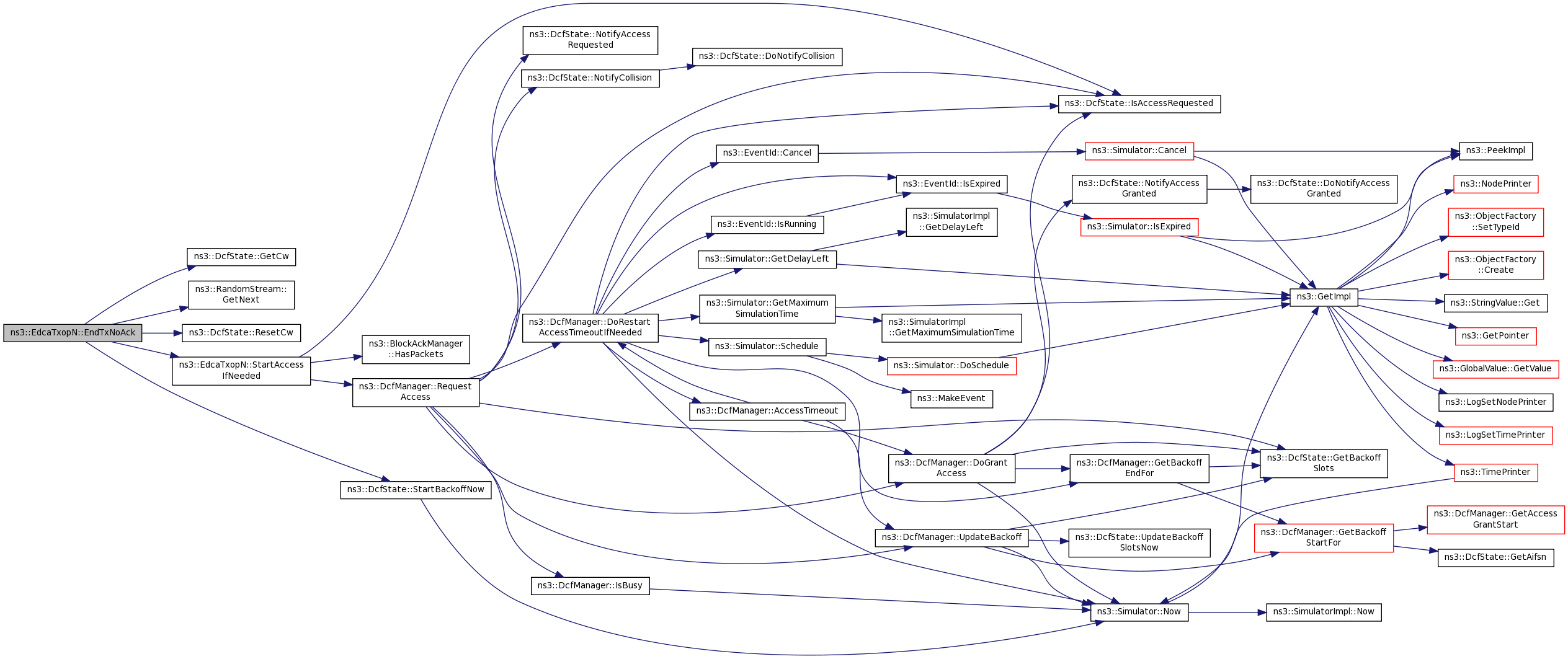

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetAifsn ( void  ) const

virtual

Return the number of slots that make up an AIFS.

Returns

the number of slots that make up an AIFS

Implements ns3::Dcf.

Definition at line 304 of file edca-txop-n.cc.

References ns3::DcfState::GetAifsn(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::EdcaTxopN::GetBlockAckThreshold

(

void

)

const

Return the current threshold for block ACK mechanism.

Returns

the current threshold for block ACK mechanism

Definition at line 1043 of file edca-txop-n.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetFragmentOffset

(

void

)

Calculate the offset for the current fragment.

Returns

the offset for the current fragment

Definition at line 785 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::EdcaTxopN::GetFragmentPacket

(

WifiMacHeader *

hdr

)

Get the next fragment from the packet with appropriate Wifi header for the fragment.

Parameters

hdr

Returns

the fragment with the current fragment number

Definition at line 802 of file edca-txop-n.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetFragmentSize

(

void

)

Calculate the size of the current fragment.

Returns

the size of the current fragment

Definition at line 769 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetMaxCw ( void  ) const

virtual

Return the maximum congestion window size.

Returns

the maximum congestion window size

Implements ns3::Dcf.

Definition at line 297 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMax(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::EdcaTxopN::GetMinCw ( void  ) const

virtual

Return the minimum congestion window size.

Returns

the minimum congestion window size

Implements ns3::Dcf.

Definition at line 290 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMin(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< MsduAggregator > ns3::EdcaTxopN::GetMsduAggregator

(

void

)

const

Definition at line 658 of file edca-txop-n.cc.

References m_aggregator.

uint32_t ns3::EdcaTxopN::GetNextFragmentSize

(

void

)

Calculate the size of the next fragment.

Returns

the size of the next fragment

Definition at line 777 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiMacQueue > ns3::EdcaTxopN::GetQueue

(

void

)

const

Return the packet queue associated with this EdcaTxopN.

Returns

WifiMacQueue

Definition at line 262 of file edca-txop-n.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::EdcaTxopN::GetTypeId ( void  )

static

Definition at line 144 of file edca-txop-n.cc.

References ns3::TypeId::AddConstructor(), GetBlockAckThreshold(), GetQueue(), ns3::Dcf::GetTypeId(), SetBlockAckInactivityTimeout(), SetBlockAckThreshold(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

enum TypeOfStation ns3::EdcaTxopN::GetTypeOfStation

(

void

)

const

Return type of station.

Returns

type of station

Definition at line 255 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::GotAck	(	double	snr,
		WifiMode	txMode
	)

Event handler when an ACK is received.

Parameters

snr
txMode

Definition at line 571 of file edca-txop-n.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::Packet::Copy(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiActionHeader::GetCategory(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::WifiMacHeader::IsQosAmsdu(), m_baManager, m_currentHdr, m_currentPacket, m_dcf, m_low, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), ns3::Packet::RemoveHeader(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::BlockAckManager::TearDownBlockAck().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::GotAddBaResponse	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	recipient
	)

Definition at line 881 of file edca-txop-n.cc.

References ns3::BlockAckManager::ExistsAgreementInState(), ns3::MgtAddBaResponseHeader::GetStatusCode(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::StatusCode::IsSuccess(), m_baManager, ns3::BlockAckManager::NotifyAgreementUnsuccessful(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, RestartAccessIfNeeded(), and ns3::BlockAckManager::UpdateAgreement().

Here is the call graph for this function:

void ns3::EdcaTxopN::GotBlockAck	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	recipient
	)

Event handler when a Block ACK is received.

Parameters

blockAck
recipient

Definition at line 911 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_baManager, m_currentPacket, m_dcf, m_rng, ns3::BlockAckManager::NotifyGotBlockAck(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::GotCts	(	double	snr,
		WifiMode	txMode
	)

Event handler when a CTS is received.

Parameters

snr
txMode

Definition at line 519 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::GotCts().

Here is the caller graph for this function:

void ns3::EdcaTxopN::GotDelBaFrame	(	const MgtDelBaHeader *	delBaHdr,
		Mac48Address	recipient
	)

Definition at line 903 of file edca-txop-n.cc.

References ns3::MgtDelBaHeader::GetTid(), m_baManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::BlockAckManager::TearDownBlockAck().

Here is the call graph for this function:

bool ns3::EdcaTxopN::IsLastFragment

(

void

)

const

Check if the curren fragment is the last fragment.

Returns

true if the curren fragment is the last fragment, false otherwise

Definition at line 794 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< MacLow > ns3::EdcaTxopN::Low

(

void

)

Return the MacLow associated with this EdcaTxopN.

Returns

MacLow

Definition at line 318 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

Mac48Address ns3::EdcaTxopN::MapDestAddressForAggregation ( const WifiMacHeader &  hdr )

private

Definition at line 846 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::AP, ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

Mac48Address ns3::EdcaTxopN::MapSrcAddressForAggregation ( const WifiMacHeader &  hdr )

private

This functions are used only to correctly set addresses in a-msdu subframe.

If aggregating sta is a STA (in an infrastructured network): SA = Address2 DA = Address3 If aggregating sta is an AP SA = Address3 DA = Address1

Parameters

hdr

Returns

Mac48Address

Definition at line 830 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, NS_LOG_FUNCTION, and ns3::STA.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::MissedAck

(

void

)

Event handler when an ACK is received.

Definition at line 617 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::MissedBlockAck

(

void

)

Event handler when a Block ACK timeout has occurred.

Definition at line 644 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentHdr, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::MissedCts

(

void

)

Event handler when a CTS timeout has occurred.

Definition at line 526 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedDataRetransmission

(

void

)

Check if DATA should be re-transmitted if ACK was missed.

Returns

true if DATA should be re-transmitted, false otherwise

Definition at line 704 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedFragmentation

(

void

)

const

Check if the current packet should be fragmented.

Returns

true if the current packet should be fragmented, false otherwise

Definition at line 761 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedRts

(

void

)

Check if the current packet should be sent with a RTS protection.

Returns

true if RTS protection should be used, false otherwise

Definition at line 688 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedRtsRetransmission

(

void

)

Check if RTS should be re-transmitted if CTS was missed.

Returns

true if RTS should be re-transmitted, false otherwise

Definition at line 696 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedsAccess

(

void

)

const

Check if the EDCAF requires access.

Returns

true if the EDCAF requires access, false otherwise

Definition at line 332 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), m_baManager, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EdcaTxopN::NextFragment

(

void

)

Continue to the next fragment.

This method simply increments the internal variable that keep track of the current fragment number.

Definition at line 712 of file edca-txop-n.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyAccessGranted

(

void

)

Notify the EDCAF that access has been granted.

Definition at line 339 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::BASIC_BLOCK_ACK, CompleteTx(), ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::MacLowTransmissionParameters::EnableRts(), ns3::BlockAckManager::ExistsAgreement(), ns3::WifiMacHeader::GetAddr1(), GetFragmentPacket(), GetNextFragmentSize(), ns3::BlockAckManager::GetNextPacket(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetType(), ns3::BlockAckManager::HasBar(), ns3::BlockAckManager::HasPackets(), ns3::Mac48Address::IsBroadcast(), ns3::WifiMacHeader::IsData(), ns3::Mac48Address::IsGroup(), IsLastFragment(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_aggregator, m_baManager, m_blockAckThreshold, m_blockAckType, m_currentBar, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_fragmentNumber, m_low, m_qosBlockedDestinations, m_queue, m_transmissionListener, m_txMiddle, MapDestAddressForAggregation(), MapSrcAddressForAggregation(), NeedFragmentation(), NeedRts(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, SendBlockAckRequest(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetQosAmsdu(), ns3::WifiMacHeader::SetSequenceNumber(), SetupBlockAckIfNeeded(), VerifyBlockAck(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyAccessGranted().

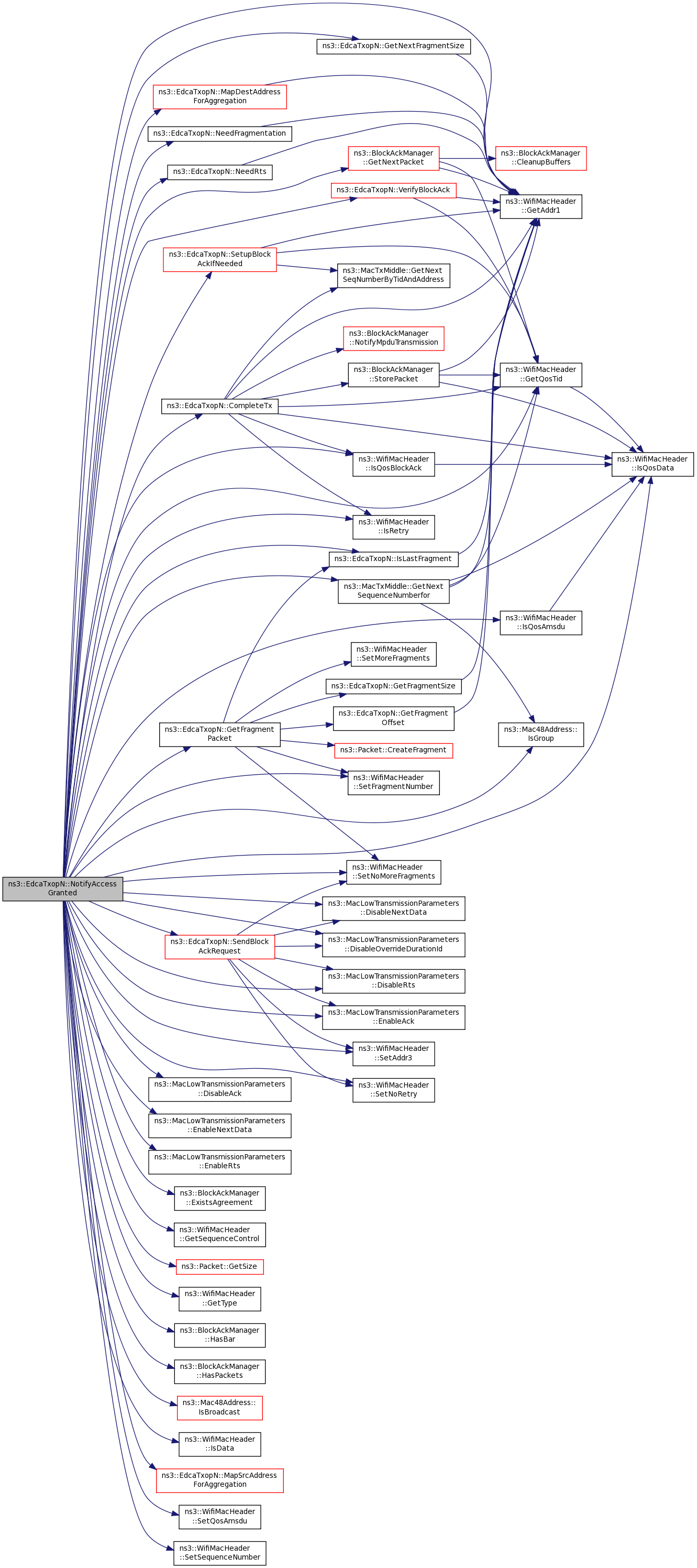

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyChannelSwitching

(

void

)

When a channel switching occurs, enqueued packets are removed.

Definition at line 551 of file edca-txop-n.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyChannelSwitching().

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyCollision

(

void

)

Notify the EDCAF that collision has occurred.

Definition at line 511 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyInternalCollision

(

void

)

Notify the EDCAF that internal collision has occurred.

Definition at line 504 of file edca-txop-n.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

EdcaTxopN& ns3::EdcaTxopN::operator= ( const EdcaTxopN &  )

private

void ns3::EdcaTxopN::PushFront	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the front of the internal queue until it can be sent safely.

Definition at line 869 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, and StartAccessIfNeeded().

Referenced by SendDelbaFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the internal queue until it can be sent safely.

Definition at line 559 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, and StartAccessIfNeeded().

Here is the call graph for this function:

void ns3::EdcaTxopN::RestartAccessIfNeeded

(

void

)

Restart access request if needed.

Definition at line 664 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), GotAddBaResponse(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SendAddBaRequest ( Mac48Address  recipient, uint8_t  tid, uint16_t  startSeq, uint16_t  timeout, bool  immediateBAck  )

private

Sends an ADDBARequest to establish a block ack agreement with sta addressed by recipient for tid tid.

Parameters

recipient
tid
startSeq
timeout
immediateBAck

Definition at line 1050 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::ActionValue::blockAck, ns3::BlockAckManager::CreateAgreement(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), m_baManager, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, m_txMiddle, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaRequestHeader::SetAmsduSupport(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), and ns3::WifiMacHeader::SetSequenceNumber().

Referenced by SetupBlockAckIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SendBlockAckRequest ( const struct Bar &  bar )

private

After that all packets, for which a block ack agreement was established, have been transmitted, we have to send a block ack request.

Parameters

bar

Definition at line 975 of file edca-txop-n.cc.

References ns3::Bar::bar, ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableBasicBlockAck(), ns3::MacLowTransmissionParameters::EnableCompressedBlockAck(), ns3::Bar::immediate, m_blockAckType, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Bar::recipient, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SendDelbaFrame	(	Mac48Address	addr,
		uint8_t	tid,
		bool	byOriginator
	)

Definition at line 1113 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, m_low, NS_LOG_FUNCTION, PushFront(), ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtDelBaHeader::SetByOriginator(), ns3::MgtDelBaHeader::SetByRecipient(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtDelBaHeader::SetTid().

Referenced by ns3::EdcaTxopN::BlockAckEventListener::BlockAckInactivityTimeout(), and CompleteConfig().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetAccessCategory

(

enum AcIndex

ac

)

Set the access category of this EDCAF.

Parameters

ac

Definition at line 823 of file edca-txop-n.cc.

References m_ac, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetAifsn ( uint32_t  aifsn )

virtual

Parameters

aifsn

the number of slots which make up an AIFS for a specific DCF. a DIFS corresponds to an AIFSN = 2.

Calling this method after DcfManager::Add has been called is not recommended.

Implements ns3::Dcf.

Definition at line 283 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetBlockAckInactivityTimeout

(

uint16_t

timeout

)

Definition at line 1036 of file edca-txop-n.cc.

References m_blockAckInactivityTimeout, NS_LOG_FUNCTION, and timeout.

Referenced by GetTypeId(), and ns3::QosWifiMacHelper::Setup().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetBlockAckThreshold

(

uint8_t

threshold

)

Set threshold for block ACK mechanism.

If number of packets in the queue reaches the threshold, block ACK mechanism is used.

Parameters

threshold

Definition at line 1028 of file edca-txop-n.cc.

References m_baManager, m_blockAckThreshold, NS_LOG_FUNCTION, and ns3::BlockAckManager::SetBlockAckThreshold().

Referenced by GetTypeId(), and ns3::QosWifiMacHelper::Setup().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetLow

(

Ptr< MacLow >

low

)

Set MacLow associated with this EdcaTxopN.

Parameters

low

MacLow

Definition at line 325 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::SetupEdcaQueue().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetManager

(

DcfManager *

manager

)

Set DcfManager this EdcaTxopN is associated to.

Parameters

manager

DcfManager

Definition at line 220 of file edca-txop-n.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMaxCw ( uint32_t  maxCw )

virtual

Set the maximum congestion window size.

Parameters

maxCw

the maximum congestion window size

Implements ns3::Dcf.

Definition at line 276 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMinCw ( uint32_t  minCw )

virtual

Set the minimum congestion window size.

Parameters

minCw

the minimum congestion window size

Implements ns3::Dcf.

Definition at line 269 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

Here is the call graph for this function:

void ns3::EdcaTxopN::SetMsduAggregator

(

Ptr< MsduAggregator >

aggr

)

Definition at line 862 of file edca-txop-n.cc.

References m_aggregator, and NS_LOG_FUNCTION.

Referenced by ns3::QosWifiMacHelper::Setup().

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetTxFailedCallback

(

TxFailed

callback

)

Parameters

callback

the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 235 of file edca-txop-n.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxMiddle

(

MacTxMiddle *

txMiddle

)

Definition at line 311 of file edca-txop-n.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxOkCallback

(

TxOk

callback

)

Parameters

callback

the callback to invoke when a packet transmission was completed successfully.

Definition at line 228 of file edca-txop-n.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTypeOfStation

(

enum TypeOfStation

type

)

Set type of station with the given type.

Parameters

type

Definition at line 248 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

bool ns3::EdcaTxopN::SetupBlockAckIfNeeded ( )

private

If number of packets in the queue reaches m_blockAckThreshold value, an ADDBARequest frame is sent to destination in order to setup a block ack.

Returns

true if we tried to set up block ACK, false otherwise

Definition at line 956 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), m_blockAckInactivityTimeout, m_blockAckThreshold, m_currentHdr, m_queue, m_txMiddle, NS_LOG_FUNCTION, and SendAddBaRequest().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::SetWifiRemoteStationManager

(

Ptr< WifiRemoteStationManager >

remoteManager

)

Set WifiRemoteStationsManager this EdcaTxopN is associated to.

Parameters

remoteManager

WifiRemoteStationManager

Definition at line 242 of file edca-txop-n.cc.

References m_stationManager, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::StartAccessIfNeeded

(

void

)

Request access from DCF manager if needed.

Definition at line 676 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), PushFront(), and Queue().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::StartNext

(

void

)

Start transmission for the next fragment.

This is called for fragment only.

Definition at line 719 of file edca-txop-n.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaTxopN::VerifyBlockAck ( void  )

private

Verifies if dequeued packet has to be transmitted with ack policy Block Ack.

This happens if an established block ack agreement exists with the receiver.

Definition at line 923 of file edca-txop-n.cc.

References ns3::WifiMacHeader::BLOCK_ACK, ns3::OriginatorBlockAckAgreement::ESTABLISHED, ns3::BlockAckManager::ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::OriginatorBlockAckAgreement::INACTIVE, m_baManager, m_currentHdr, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetQosAckPolicy(), and ns3::BlockAckManager::SwitchToBlockAckIfNeeded().

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Dcf

friend

Definition at line 427 of file edca-txop-n.h.

Referenced by EdcaTxopN().

friend class TransmissionListener

friend

Definition at line 429 of file edca-txop-n.h.

Referenced by EdcaTxopN().

Member Data Documentation

AcIndex ns3::EdcaTxopN::m_ac

private

Definition at line 424 of file edca-txop-n.h.

Referenced by CompleteConfig(), and SetAccessCategory().

Ptr<MsduAggregator> ns3::EdcaTxopN::m_aggregator

private

Definition at line 449 of file edca-txop-n.h.

Referenced by DoDispose(), GetMsduAggregator(), NotifyAccessGranted(), and SetMsduAggregator().

BlockAckManager* ns3::EdcaTxopN::m_baManager

private

Definition at line 452 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteTx(), DoDispose(), EdcaTxopN(), GotAck(), GotAddBaResponse(), GotBlockAck(), GotDelBaFrame(), NeedsAccess(), NotifyAccessGranted(), RestartAccessIfNeeded(), SendAddBaRequest(), SetBlockAckThreshold(), StartAccessIfNeeded(), and VerifyBlockAck().

uint16_t ns3::EdcaTxopN::m_blockAckInactivityTimeout

private

Definition at line 459 of file edca-txop-n.h.

Referenced by SetBlockAckInactivityTimeout(), and SetupBlockAckIfNeeded().

BlockAckEventListener* ns3::EdcaTxopN::m_blockAckListener

private

Definition at line 438 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), and EdcaTxopN().

uint8_t ns3::EdcaTxopN::m_blockAckThreshold

private

Definition at line 456 of file edca-txop-n.h.

Referenced by GetBlockAckThreshold(), NotifyAccessGranted(), SetBlockAckThreshold(), and SetupBlockAckIfNeeded().

enum BlockAckType ns3::EdcaTxopN::m_blockAckType

private

Definition at line 457 of file edca-txop-n.h.

Referenced by EdcaTxopN(), NotifyAccessGranted(), and SendBlockAckRequest().

struct Bar ns3::EdcaTxopN::m_currentBar

private

Definition at line 460 of file edca-txop-n.h.

Referenced by NotifyAccessGranted().

WifiMacHeader ns3::EdcaTxopN::m_currentHdr

private

Definition at line 448 of file edca-txop-n.h.

Referenced by CompleteTx(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedBlockAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SetupBlockAckIfNeeded(), and VerifyBlockAck().

Ptr<const Packet> ns3::EdcaTxopN::m_currentPacket

private

Definition at line 446 of file edca-txop-n.h.

Referenced by CompleteTx(), EndTxNoAck(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), GotBlockAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), RestartAccessIfNeeded(), SendAddBaRequest(), SendBlockAckRequest(), and StartAccessIfNeeded().

Time ns3::EdcaTxopN::m_currentPacketTimestamp

private

Definition at line 458 of file edca-txop-n.h.

Referenced by CompleteTx(), and NotifyAccessGranted().

Dcf* ns3::EdcaTxopN::m_dcf

private

Definition at line 430 of file edca-txop-n.h.

Referenced by DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), and StartAccessIfNeeded().

uint8_t ns3::EdcaTxopN::m_fragmentNumber

private

Definition at line 441 of file edca-txop-n.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::EdcaTxopN::m_low

private

Definition at line 435 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), GotAck(), Low(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SendDelbaFrame(), and SetLow().

DcfManager* ns3::EdcaTxopN::m_manager

private

Definition at line 431 of file edca-txop-n.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

QosBlockedDestinations* ns3::EdcaTxopN::m_qosBlockedDestinations

private

Definition at line 451 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), and NotifyAccessGranted().

Ptr<WifiMacQueue> ns3::EdcaTxopN::m_queue

private

Definition at line 432 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), GetQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), PushFront(), Queue(), RestartAccessIfNeeded(), SetupBlockAckIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::EdcaTxopN::m_rng

private

Definition at line 439 of file edca-txop-n.h.

Referenced by AssignStreams(), DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::EdcaTxopN::m_stationManager

private

Definition at line 440 of file edca-txop-n.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), PushFront(), Queue(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::EdcaTxopN::m_transmissionListener

private

Definition at line 437 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), and StartNext().

TxFailed ns3::EdcaTxopN::m_txFailedCallback

private

Definition at line 434 of file edca-txop-n.h.

Referenced by MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::EdcaTxopN::m_txMiddle

private

Definition at line 436 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteTx(), DoDispose(), NotifyAccessGranted(), SendAddBaRequest(), SetTxMiddle(), and SetupBlockAckIfNeeded().

TxOk ns3::EdcaTxopN::m_txOkCallback

private

Definition at line 433 of file edca-txop-n.h.

Referenced by GotAck(), and SetTxOkCallback().

TypeOfStation ns3::EdcaTxopN::m_typeOfStation

private

Definition at line 450 of file edca-txop-n.h.

Referenced by GetTypeOfStation(), MapDestAddressForAggregation(), MapSrcAddressForAggregation(), and SetTypeOfStation().

---

The documentation for this class was generated from the following files:

• src/wifi/model/edca-txop-n.h
• src/wifi/model/edca-txop-n.cc
