ns3::Dcf Class Referenceabstract

Doxygen introspection did not find any typical Config paths. More...

#include <dcf.h>

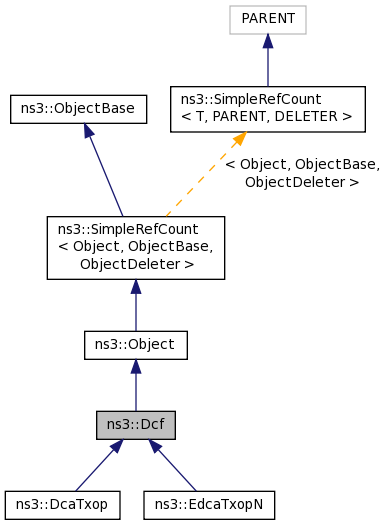

+ Inheritance diagram for ns3::Dcf:

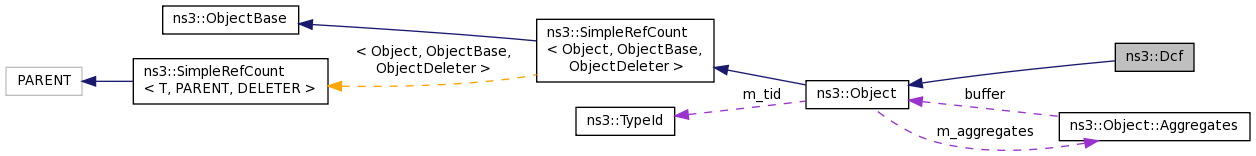

+ Collaboration diagram for ns3::Dcf:

Public Member Functions

virtual uint32_t GetAifsn (void) const =0
 Return the number of slots that make up an AIFS. More...

virtual uint32_t GetMaxCw (void) const =0
 Return the maximum congestion window size. More...

virtual uint32_t GetMinCw (void) const =0
 Return the minimum congestion window size. More...

virtual void SetAifsn (uint32_t aifsn)=0

virtual void SetMaxCw (uint32_t maxCw)=0
 Set the maximum congestion window size. More...

virtual void SetMinCw (uint32_t minCw)=0
 Set the minimum congestion window size. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.


Attributes

  • MinCw: The minimum value of the contention window.
  • MaxCw: The maximum value of the contention window.
  • Aifsn: The AIFSN: the default value conforms to simple DCA.

No TraceSources are defined for this type.

Definition at line 32 of file dcf.h.

Member Function Documentation

virtual uint32_t ns3::Dcf::GetAifsn ( void  ) const
pure virtual

Return the number of slots that make up an AIFS.

Returns
the number of slots that make up an AIFS

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual uint32_t ns3::Dcf::GetMaxCw ( void  ) const
pure virtual

Return the maximum congestion window size.

Returns
the maximum congestion window size

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual uint32_t ns3::Dcf::GetMinCw ( void  ) const
pure virtual

Return the minimum congestion window size.

Returns
the minimum congestion window size

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

TypeId ns3::Dcf::GetTypeId ( void  )
static

Definition at line 31 of file dcf.cc.

References GetAifsn(), GetMaxCw(), GetMinCw(), SetAifsn(), SetMaxCw(), SetMinCw(), and ns3::TypeId::SetParent().

Referenced by ns3::DcaTxop::GetTypeId(), and ns3::EdcaTxopN::GetTypeId().

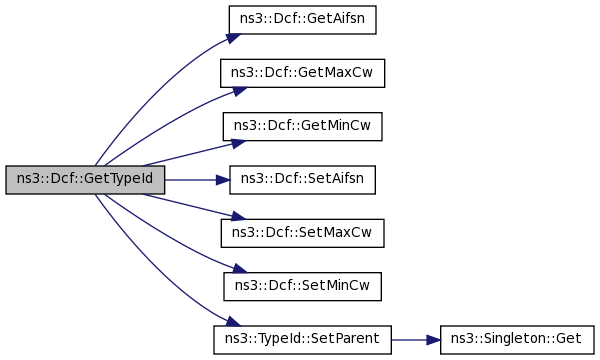

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual void ns3::Dcf::SetAifsn ( uint32_t  aifsn)
pure virtual
Parameters
aifsnthe number of slots which make up an AIFS for a specific DCF. a DIFS corresponds to an AIFSN = 2.

Calling this method after DcfManager::Add has been called is not recommended.

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::Dcf::SetMaxCw ( uint32_t  maxCw)
pure virtual

Set the maximum congestion window size.

Parameters
maxCwthe maximum congestion window size

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

virtual void ns3::Dcf::SetMinCw ( uint32_t  minCw)
pure virtual

Set the minimum congestion window size.

Parameters
minCwthe minimum congestion window size

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

+ Here is the caller graph for this function:


The documentation for this class was generated from the following files:
