ns3::WifiMacQueue Class Reference
Wifi Models

This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012). More...

#include <wifi-mac-queue.h>

+ Inheritance diagram for ns3::WifiMacQueue:
+ Collaboration diagram for ns3::WifiMacQueue:

Classes

struct  Item
 A struct that holds information about a packet for putting in a packet queue. More...


Public Member Functions

 WifiMacQueue ()

 ~WifiMacQueue ()

Ptr< const Packet > Dequeue (WifiMacHeader *hdr)
 Dequeue the packet in the front of the queue. More...

Ptr< const Packet > DequeueByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
 Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. More...

Ptr< const Packet > DequeueFirstAvailable (WifiMacHeader *hdr, Time &tStamp, const QosBlockedDestinations *blockedPackets)
 Returns first available packet for transmission. More...

void Enqueue (Ptr< const Packet > packet, const WifiMacHeader &hdr)
 Enqueue the given packet and its corresponding WifiMacHeader at the end of the queue. More...

void Flush (void)
 Flush the queue. More...

Time GetMaxDelay (void) const
 Return the maximum delay before the packet is discarded. More...

uint32_t GetMaxSize (void) const
 Return the maximum queue size. More...

uint32_t GetNPacketsByTidAndAddress (uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
 Returns number of QoS packets having tid equals to tid and address specified by type equals to addr. More...

uint32_t GetSize (void)
 Return the current queue size. More...

bool IsEmpty (void)
 Return if the queue is empty. More...

Ptr< const Packet > Peek (WifiMacHeader *hdr)
 Peek the packet in the front of the queue. More...

Ptr< const Packet > PeekByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)
 Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. More...

Ptr< const Packet > PeekFirstAvailable (WifiMacHeader *hdr, Time &tStamp, const QosBlockedDestinations *blockedPackets)
 Returns first available packet for transmission. More...

void PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)
 Enqueue the given packet and its corresponding WifiMacHeader at the front of the queue. More...

bool Remove (Ptr< const Packet > packet)
 If exists, removes packet from queue and returns true. More...

void SetMaxDelay (Time delay)
 Set the maximum delay before the packet is discarded. More...

void SetMaxSize (uint32_t maxSize)
 Set the maximum queue size. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Types

typedef std::list< struct Item > PacketQueue
 typedef for packet (struct Item) queue. More...

typedef std::list< struct Item >
::iterator 		PacketQueueI
 typedef for packet (struct Item) queue iterator. More...

typedef std::list< struct Item >
::reverse_iterator 		PacketQueueRI
 typedef for packet (struct Item) queue reverse iterator. More...


Protected Member Functions

virtual void Cleanup (void)
 Clean up the queue by removing packets that exceeded the maximum delay. More...

Mac48Address GetAddressForPacket (enum WifiMacHeader::AddressType type, PacketQueueI it)
 Return the appropriate address for the given packet (given by PacketQueue iterator). More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Protected Attributes

Time m_maxDelay
 Time to live for packets in the queue. More...

uint32_t m_maxSize
 Queue capacity. More...

PacketQueue m_queue
 Packet (struct Item) queue. More...

uint32_t m_size
 Current queue size. More...


Detailed Description

This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012).

When a packet is received by the MAC, to be sent to the PHY, it is queued in the internal queue after being tagged by the current time.

When a packet is dequeued, the queue checks its timestamp to verify whether or not it should be dropped. If dot11EDCATableMSDULifetime has elapsed, it is dropped. Otherwise, it is returned to the caller.

Config Paths

ns3::WifiMacQueue is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN/Queue

Attributes

  • MaxPacketNumber: If a packet arrives when there are already this number of packets, it is dropped.
  • MaxDelay: If a packet stays longer than this delay in the queue, it is dropped.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +10000000000.0ns
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 50 of file wifi-mac-queue.h.

Member Typedef Documentation

typedef std::list<struct Item> ns3::WifiMacQueue::PacketQueue
protected

typedef for packet (struct Item) queue.

Definition at line 214 of file wifi-mac-queue.h.

typedef std::list<struct Item>::iterator ns3::WifiMacQueue::PacketQueueI
protected

typedef for packet (struct Item) queue iterator.

Definition at line 227 of file wifi-mac-queue.h.

typedef std::list<struct Item>::reverse_iterator ns3::WifiMacQueue::PacketQueueRI
protected

typedef for packet (struct Item) queue reverse iterator.

Definition at line 223 of file wifi-mac-queue.h.

Constructor & Destructor Documentation

ns3::WifiMacQueue::WifiMacQueue ( )

Definition at line 61 of file wifi-mac-queue.cc.

ns3::WifiMacQueue::~WifiMacQueue ( )

Definition at line 66 of file wifi-mac-queue.cc.

References Flush().

+ Here is the call graph for this function:

Member Function Documentation

void ns3::WifiMacQueue::Cleanup ( void  )
protectedvirtual

Clean up the queue by removing packets that exceeded the maximum delay.

Definition at line 109 of file wifi-mac-queue.cc.

References m_maxDelay, m_queue, m_size, and ns3::Simulator::Now().

Referenced by Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), GetNPacketsByTidAndAddress(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), and PushFront().

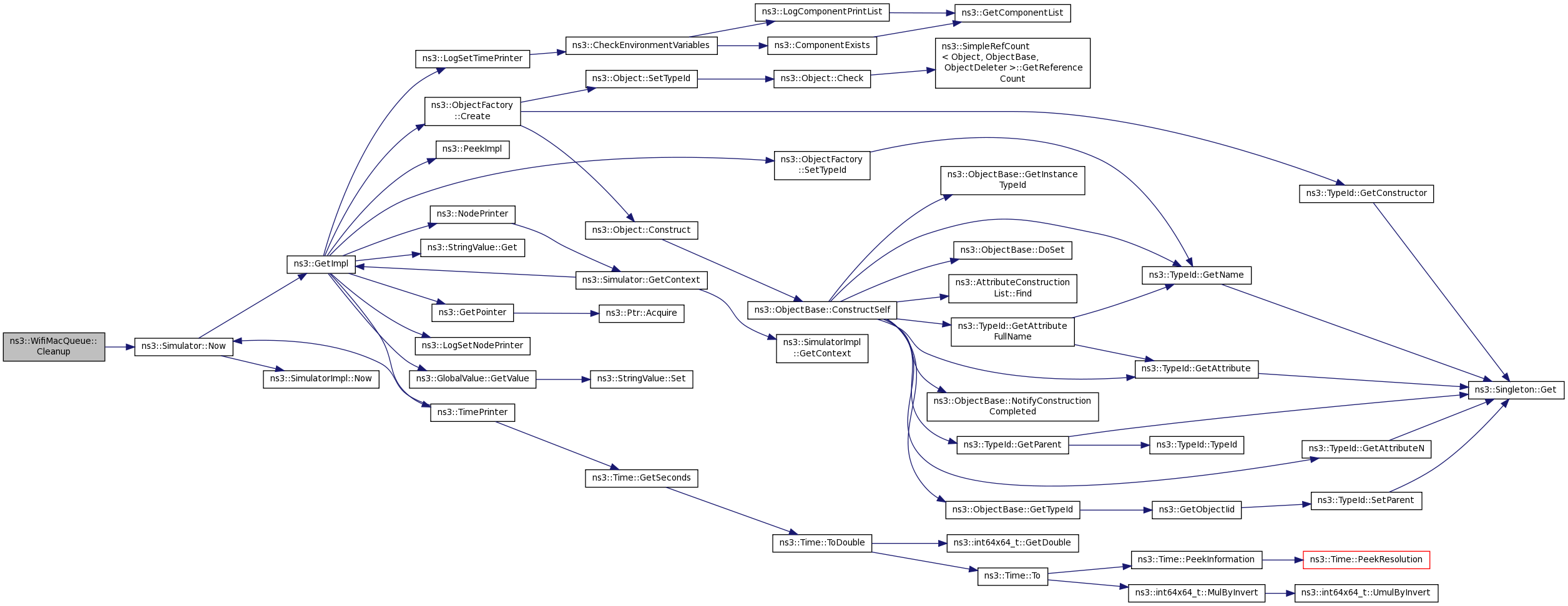

+ Here is the call graph for this function:

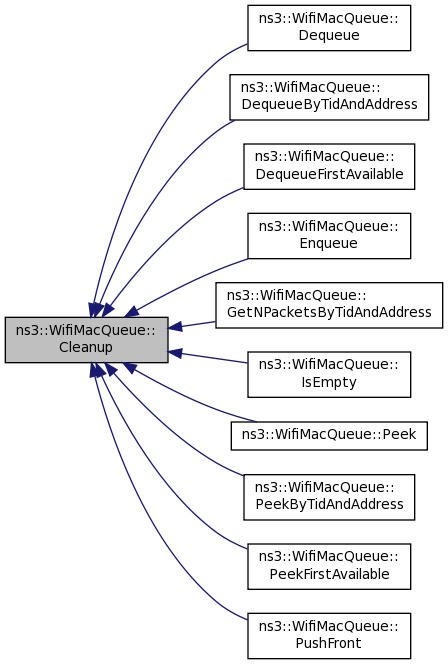

+ Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Dequeue ( WifiMacHeader *  hdr)

Dequeue the packet in the front of the queue.

Parameters
hdrthe WifiMacHeader of the packet
Returns
the packet

Definition at line 134 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, m_size, and ns3::WifiMacQueue::Item::packet.

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueByTidAndAddress ( WifiMacHeader *  hdr,
uint8_t  tid,
WifiMacHeader::AddressType  type,
Mac48Address  addr
)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid.

This method removes the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Parameters
hdrthe header of the dequeued packet
tidthe given TID
typethe given address type
addrthe given destination
Returns
packet

Definition at line 162 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), m_queue, and m_size.

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueFirstAvailable ( WifiMacHeader *  hdr,
Time &  tStamp,
const QosBlockedDestinations *  blockedPackets
)

Returns first available packet for transmission.

A packet could be no available if it's a QoS packet with a tid and an address1 fields equal to tid and addr respectively that index a pending agreement in the BlockAckManager object. So that packet must not be transmitted until reception of an ADDBA response frame from station addressed by addr. This method removes the packet from queue.

Parameters
hdrthe header of the dequeued packet
tStamp
blockedPackets
Returns
packet

Definition at line 304 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), m_queue, and m_size.

+ Here is the call graph for this function:

void ns3::WifiMacQueue::Enqueue ( Ptr< const Packet >  packet,
const WifiMacHeader &  hdr
)

Enqueue the given packet and its corresponding WifiMacHeader at the end of the queue.

Parameters
packetthe packet to be euqueued at the end
hdrthe header of the given packet

Definition at line 96 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Simulator::Now().

+ Here is the call graph for this function:

void ns3::WifiMacQueue::Flush ( void  )

Flush the queue.

Definition at line 227 of file wifi-mac-queue.cc.

References m_queue, and m_size.

Referenced by ~WifiMacQueue().

+ Here is the caller graph for this function:

Mac48Address ns3::WifiMacQueue::GetAddressForPacket ( enum WifiMacHeader::AddressType  type,
PacketQueueI  it
)
protected

Return the appropriate address for the given packet (given by PacketQueue iterator).

Parameters
type
it
Returns
the address

Definition at line 234 of file wifi-mac-queue.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::ADDR2, and ns3::WifiMacHeader::ADDR3.

Referenced by DequeueByTidAndAddress(), GetNPacketsByTidAndAddress(), and PeekByTidAndAddress().

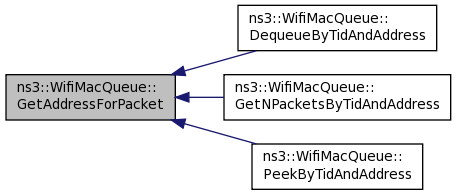

+ Here is the caller graph for this function:

Time ns3::WifiMacQueue::GetMaxDelay ( void  ) const

Return the maximum delay before the packet is discarded.

Returns
the maximum delay

Definition at line 90 of file wifi-mac-queue.cc.

References m_maxDelay.

uint32_t ns3::WifiMacQueue::GetMaxSize ( void  ) const

Return the maximum queue size.

Returns
the maximum queue size

Definition at line 84 of file wifi-mac-queue.cc.

References m_maxSize.

uint32_t ns3::WifiMacQueue::GetNPacketsByTidAndAddress ( uint8_t  tid,
WifiMacHeader::AddressType  type,
Mac48Address  addr
)

Returns number of QoS packets having tid equals to tid and address specified by type equals to addr.

Parameters
tidthe given TID
typethe given address type
addrthe given destination
Returns
the number of QoS packets

Definition at line 281 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), and m_queue.

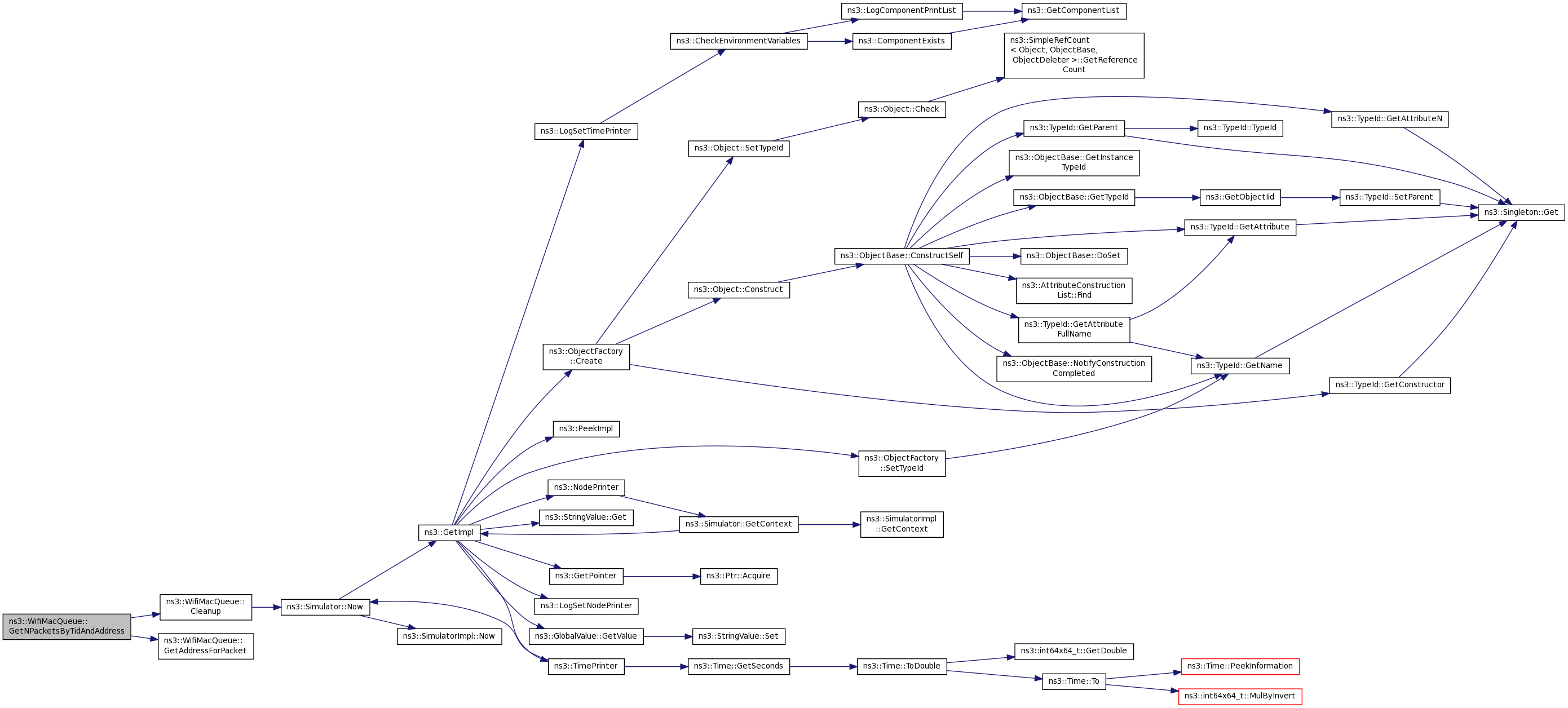

+ Here is the call graph for this function:

uint32_t ns3::WifiMacQueue::GetSize ( void  )

Return the current queue size.

Returns
the current queue size

Definition at line 221 of file wifi-mac-queue.cc.

References m_size.

TypeId ns3::WifiMacQueue::GetTypeId ( void  )
static

Definition at line 44 of file wifi-mac-queue.cc.

References m_maxDelay, m_maxSize, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

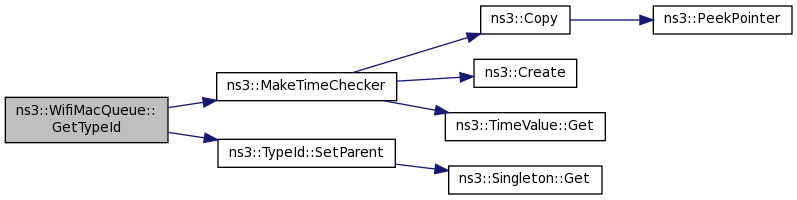

+ Here is the call graph for this function:

bool ns3::WifiMacQueue::IsEmpty ( void  )

Return if the queue is empty.

Returns
true if the queue is empty, false otherwise

Definition at line 214 of file wifi-mac-queue.cc.

References Cleanup(), and m_queue.

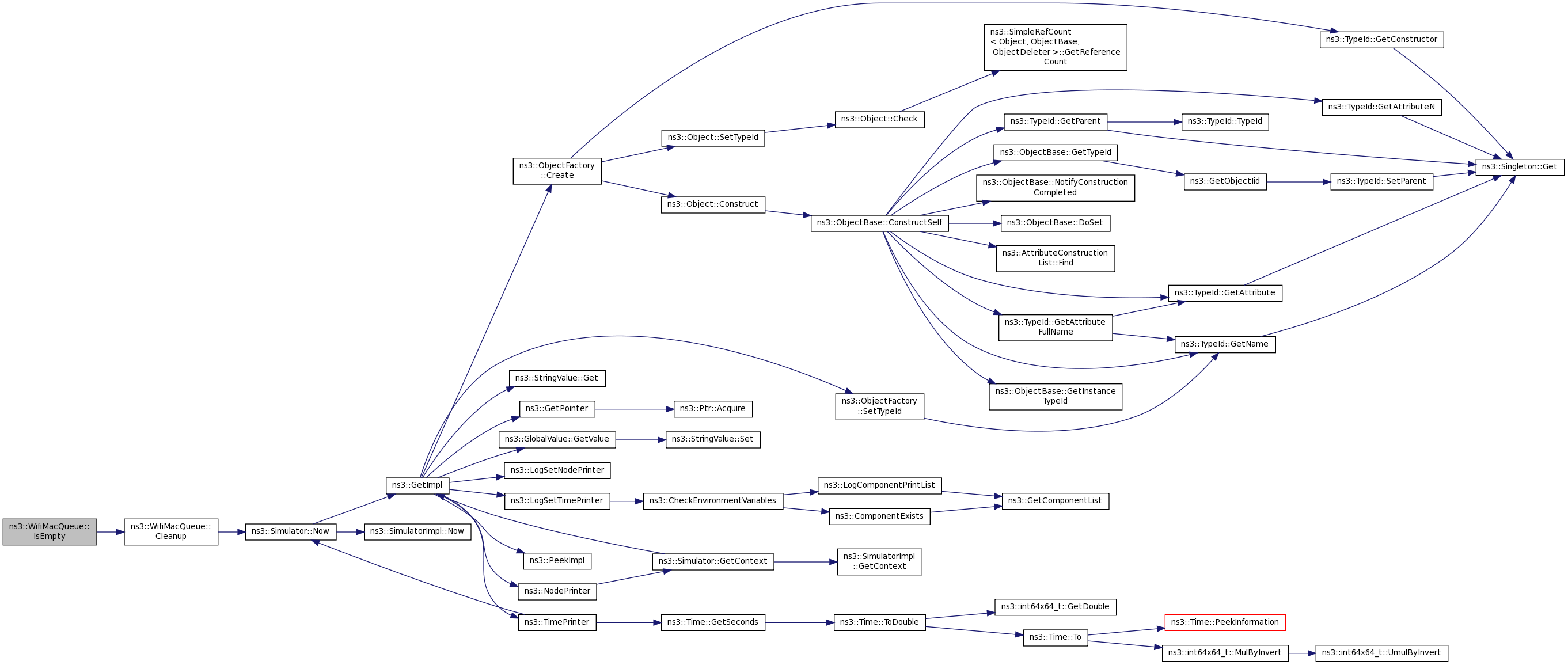

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Peek ( WifiMacHeader *  hdr)

Peek the packet in the front of the queue.

The packet is not removed.

Parameters
hdrthe WifiMacHeader of the packet
Returns
the packet

Definition at line 149 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, and ns3::WifiMacQueue::Item::packet.

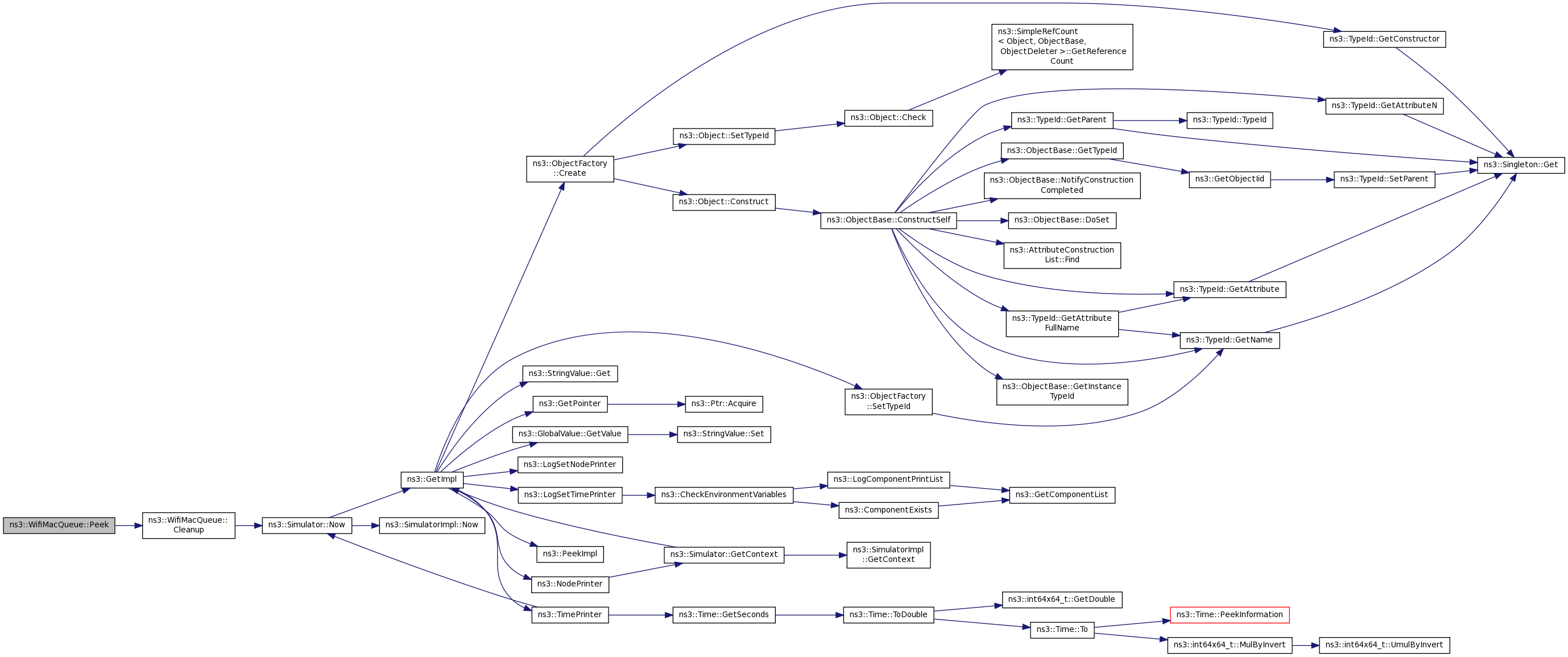

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekByTidAndAddress ( WifiMacHeader *  hdr,
uint8_t  tid,
WifiMacHeader::AddressType  type,
Mac48Address  addr
)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid.

This method doesn't remove the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Parameters
hdrthe header of the dequeued packet
tidthe given TID
typethe given address type
addrthe given destination
Returns
packet

Definition at line 190 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), and m_queue.

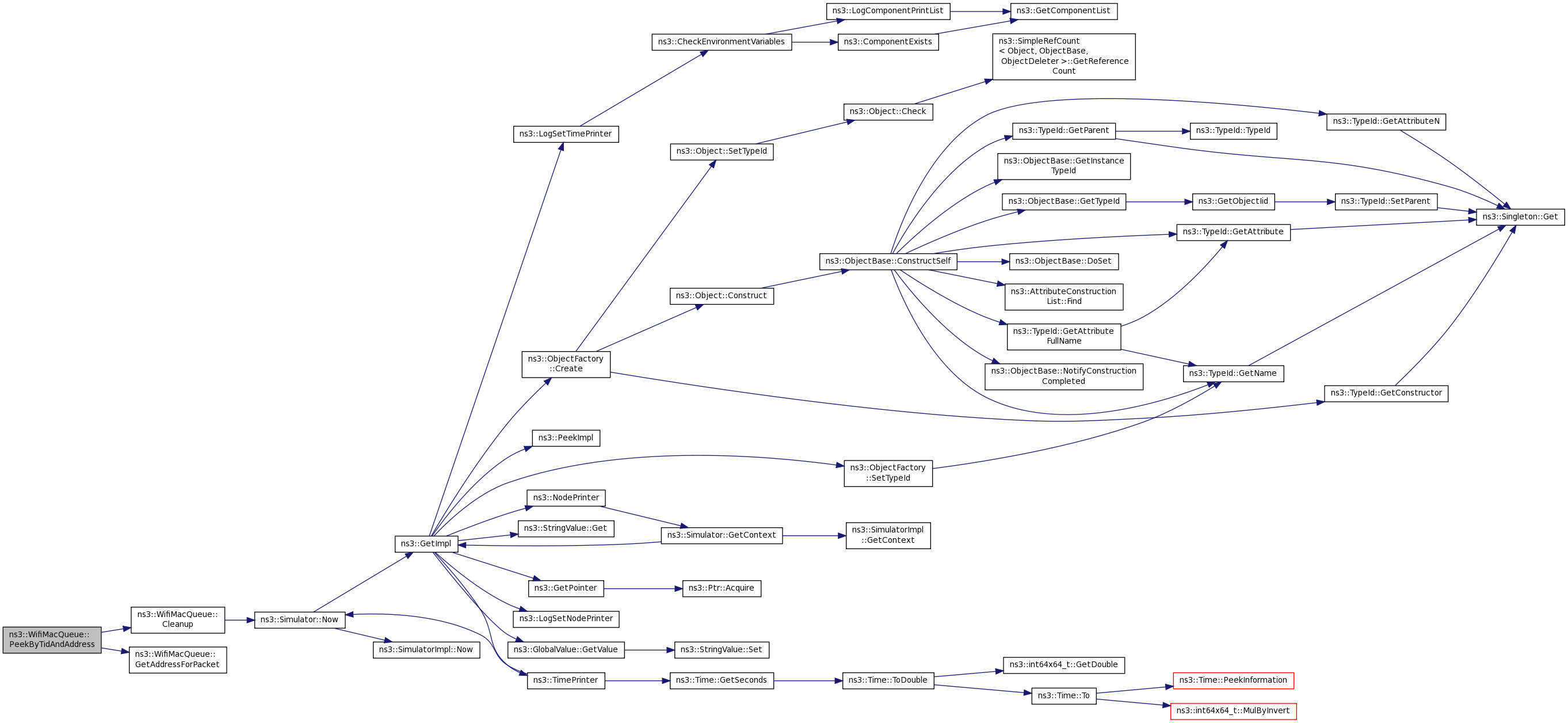

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekFirstAvailable ( WifiMacHeader *  hdr,
Time &  tStamp,
const QosBlockedDestinations *  blockedPackets
)

Returns first available packet for transmission.

The packet isn't removed from queue.

Parameters
hdrthe header of the dequeued packet
tStamp
blockedPackets
Returns
packet

Definition at line 326 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), and m_queue.

+ Here is the call graph for this function:

void ns3::WifiMacQueue::PushFront ( Ptr< const Packet >  packet,
const WifiMacHeader &  hdr
)

Enqueue the given packet and its corresponding WifiMacHeader at the front of the queue.

Parameters
packetthe packet to be euqueued at the end
hdrthe header of the given packet

Definition at line 268 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Simulator::Now().

+ Here is the call graph for this function:

bool ns3::WifiMacQueue::Remove ( Ptr< const Packet >  packet)

If exists, removes packet from queue and returns true.

Otherwise it takes no effects and return false. Deletion of the packet is performed in linear time (O(n)).

Parameters
packetthe packet to be removed
Returns
true if the packet was removed, false otherwise

Definition at line 252 of file wifi-mac-queue.cc.

References m_queue, and m_size.

void ns3::WifiMacQueue::SetMaxDelay ( Time  delay)

Set the maximum delay before the packet is discarded.

Parameters
delaythe maximum delay

Definition at line 78 of file wifi-mac-queue.cc.

References m_maxDelay.

void ns3::WifiMacQueue::SetMaxSize ( uint32_t  maxSize)

Set the maximum queue size.

Parameters
maxSizethe maximum queue size

Definition at line 72 of file wifi-mac-queue.cc.

References m_maxSize.

Member Data Documentation

Time ns3::WifiMacQueue::m_maxDelay
protected

Time to live for packets in the queue.

Definition at line 261 of file wifi-mac-queue.h.

Referenced by Cleanup(), GetMaxDelay(), GetTypeId(), and SetMaxDelay().

uint32_t ns3::WifiMacQueue::m_maxSize
protected

Queue capacity.

Definition at line 260 of file wifi-mac-queue.h.

Referenced by Enqueue(), GetMaxSize(), GetTypeId(), PushFront(), and SetMaxSize().

PacketQueue ns3::WifiMacQueue::m_queue
protected

Packet (struct Item) queue.

Definition at line 258 of file wifi-mac-queue.h.

Referenced by Cleanup(), Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), Flush(), GetNPacketsByTidAndAddress(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), PushFront(), and Remove().

uint32_t ns3::WifiMacQueue::m_size
protected

Current queue size.

Definition at line 259 of file wifi-mac-queue.h.

Referenced by Cleanup(), Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), Flush(), GetSize(), PushFront(), and Remove().

The documentation for this class was generated from the following files:
