ns3::YansErrorRateModel Class Reference

Model the error rate for different modulations. More...

#include <yans-error-rate-model.h>

+ Inheritance diagram for ns3::YansErrorRateModel:

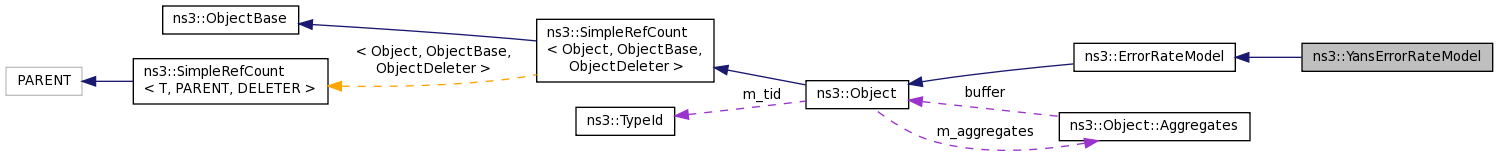

+ Collaboration diagram for ns3::YansErrorRateModel:

Public Member Functions

 YansErrorRateModel ()

virtual double GetChunkSuccessRate (WifiMode mode, double snr, uint32_t nbits) const
 A pure virtual method that must be implemented in the subclass. More...

- Public Member Functions inherited from ns3::ErrorRateModel
double CalculateSnr (WifiMode txMode, double ber) const

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ErrorRateModel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

double Binomial (uint32_t k, double p, uint32_t n) const
 Return Binomial distribution for a given k, p, and n. More...

double CalculatePd (double ber, unsigned int d) const

double CalculatePdEven (double ber, unsigned int d) const

double CalculatePdOdd (double ber, unsigned int d) const

uint32_t Factorial (uint32_t k) const
 Return k! More...

double GetBpskBer (double snr, uint32_t signalSpread, uint32_t phyRate) const
 Return BER of BPSK with the given parameters. More...

double GetFecBpskBer (double snr, double nbits, uint32_t signalSpread, uint32_t phyRate, uint32_t dFree, uint32_t adFree) const

double GetFecQamBer (double snr, uint32_t nbits, uint32_t signalSpread, uint32_t phyRate, uint32_t m, uint32_t dfree, uint32_t adFree, uint32_t adFreePlusOne) const

double GetQamBer (double snr, unsigned int m, uint32_t signalSpread, uint32_t phyRate) const
 Return BER of QAM-m with the given parameters. More...

double Log2 (double val) const
 Return the logarithm of the given value to base 2. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Model the error rate for different modulations.

Doxygen introspection did not find any typical Config paths.

A packet of interest (e.g., a packet can potentially be received by the MAC) is divided into chunks. Each chunk is related to an start/end receiving event. For each chunk, it calculates the ratio (SINR) between received power of packet of interest and summation of noise and interfering power of all the other incoming packets. Then, it will calculate the success rate of the chunk based on BER of the modulation. The success reception rate of the packet is derived from the success rate of all chunks.

The 802.11b modulations:

  • 1 Mbps mode is based on DBPSK. BER is from equation 5.2-69 from John G. Proakis Digitial Communications, 2001 edition
  • 2 Mbps model is based on DQPSK. Equation 8 from "Tight bounds and accurate approximations for dqpsk transmission bit error rate", G. Ferrari and G.E. Corazza ELECTRONICS LETTERS, 40(20):1284-1285, September 2004
  • 5.5 Mbps and 11 Mbps are based on equations (18) and (17) from "Properties and performance of the ieee 802.11b complementarycode-key signal sets", Michael B. Pursley and Thomas C. Royster. IEEE TRANSACTIONS ON COMMUNICATIONS, 57(2):440-449, February 2009.
  • More detailed description and validation can be found in http://www.nsnam.org/~pei/80211b.pdf


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 55 of file yans-error-rate-model.h.

Constructor & Destructor Documentation

ns3::YansErrorRateModel::YansErrorRateModel ( )

Definition at line 43 of file yans-error-rate-model.cc.

Member Function Documentation

double ns3::YansErrorRateModel::Binomial ( uint32_t  k,
double  p,
uint32_t  n
) const
private

Return Binomial distribution for a given k, p, and n.

Parameters
k
p
n
Returns
a Binomial distribution

Definition at line 84 of file yans-error-rate-model.cc.

References Factorial().

Referenced by CalculatePdEven(), and CalculatePdOdd().

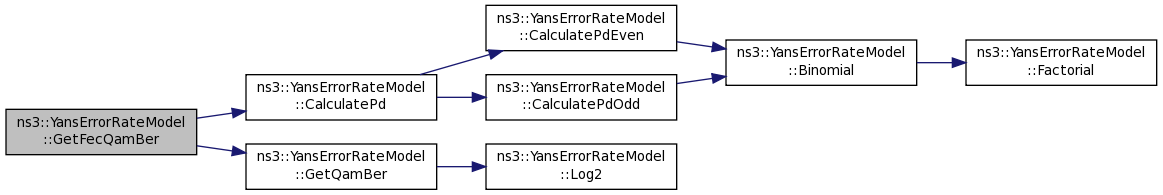

+ Here is the call graph for this function:

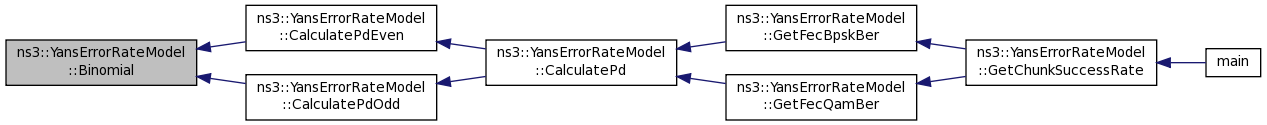

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::CalculatePd ( double  ber,
unsigned int  d
) const
private
Parameters
ber
d
Returns
double

Definition at line 121 of file yans-error-rate-model.cc.

References CalculatePdEven(), and CalculatePdOdd().

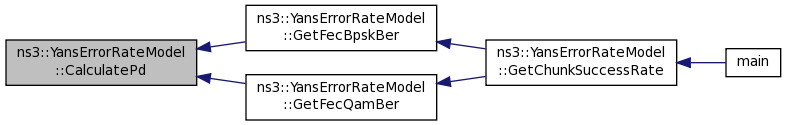

Referenced by GetFecBpskBer(), and GetFecQamBer().

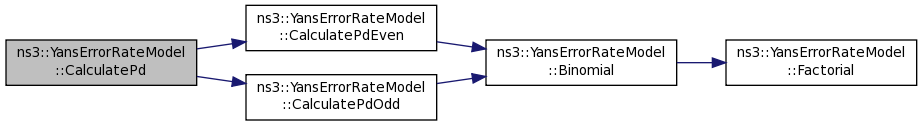

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::CalculatePdEven ( double  ber,
unsigned int  d
) const
private
Parameters
ber
d
Returns
double

Definition at line 104 of file yans-error-rate-model.cc.

References Binomial(), and NS_ASSERT.

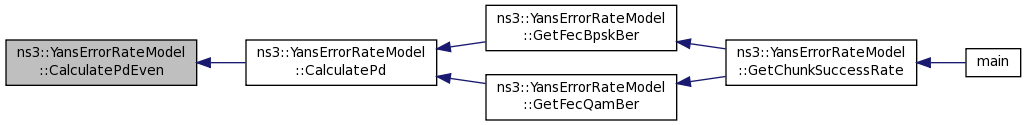

Referenced by CalculatePd().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::CalculatePdOdd ( double  ber,
unsigned int  d
) const
private
Parameters
ber
d
Returns
double

Definition at line 90 of file yans-error-rate-model.cc.

References Binomial(), and NS_ASSERT.

Referenced by CalculatePd().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::YansErrorRateModel::Factorial ( uint32_t  k) const
private

Return k!

Parameters
k
Returns
k!

Definition at line 73 of file yans-error-rate-model.cc.

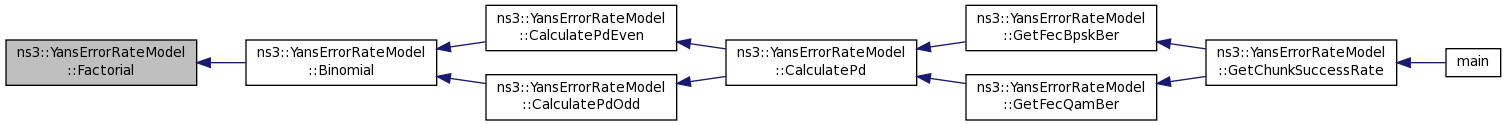

Referenced by Binomial().

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::GetBpskBer ( double  snr,
uint32_t  signalSpread,
uint32_t  phyRate
) const
private

Return BER of BPSK with the given parameters.

Parameters
snrsnr value
signalSpread
phyRate
Returns
BER of BPSK at the given SNR

Definition at line 53 of file yans-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFecBpskBer().

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::GetChunkSuccessRate ( WifiMode  mode,
double  snr,
uint32_t  nbits
) const
virtual

A pure virtual method that must be implemented in the subclass.

This method returns the probability that the given 'chuck' of the packet will be successfully received by the PHY.

A chuck can be viewed as a part of a packet with equal SNR. The probability of successfully receiving the chunk depends on the mode, the SNR, and the size of the chunk.

Parameters
modethe Wi-Fi mode the chunk is sent
snrthe SNR of the chunk
nbitsthe number of bits in this chunk
Returns
probability of successfully receiving the chunk

Implements ns3::ErrorRateModel.

Definition at line 176 of file yans-error-rate-model.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), ns3::WifiMode::GetDataRate(), ns3::DsssErrorRateModel::GetDsssDbpskSuccessRate(), ns3::DsssErrorRateModel::GetDsssDqpskCck11SuccessRate(), ns3::DsssErrorRateModel::GetDsssDqpskCck5_5SuccessRate(), ns3::DsssErrorRateModel::GetDsssDqpskSuccessRate(), GetFecBpskBer(), GetFecQamBer(), ns3::WifiMode::GetModulationClass(), ns3::WifiMode::GetPhyRate(), ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by main().

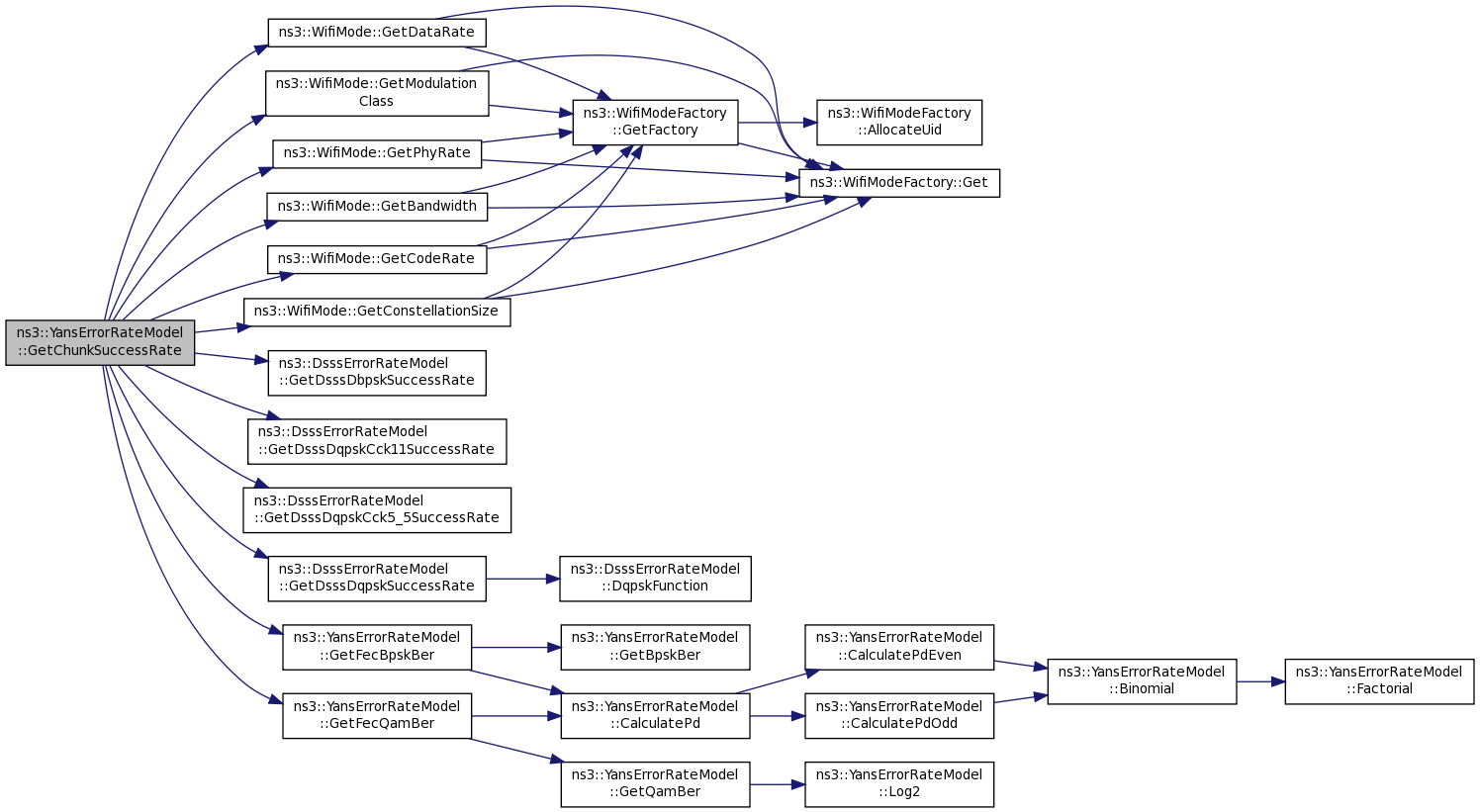

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::GetFecBpskBer ( double  snr,
double  nbits,
uint32_t  signalSpread,
uint32_t  phyRate,
uint32_t  dFree,
uint32_t  adFree
) const
private
Parameters
snr
nbits
signalSpread
phyRate
dFree
adFree
Returns
double

Definition at line 136 of file yans-error-rate-model.cc.

References CalculatePd(), and GetBpskBer().

Referenced by GetChunkSuccessRate().

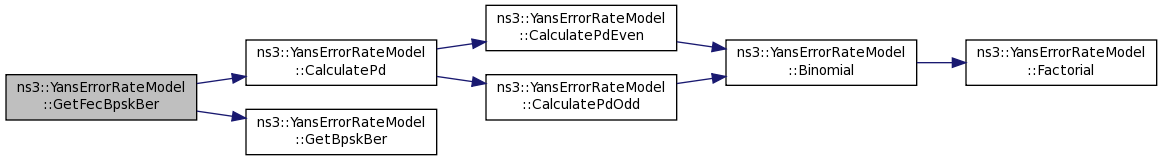

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::GetFecQamBer ( double  snr,
uint32_t  nbits,
uint32_t  signalSpread,
uint32_t  phyRate,
uint32_t  m,
uint32_t  dfree,
uint32_t  adFree,
uint32_t  adFreePlusOne
) const
private
Parameters
snr
nbits
signalSpread
phyRate
m
dfree
adFree
adFreePlusOne
Returns
double

Definition at line 153 of file yans-error-rate-model.cc.

References CalculatePd(), and GetQamBer().

Referenced by GetChunkSuccessRate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::YansErrorRateModel::GetQamBer ( double  snr,
unsigned int  m,
uint32_t  signalSpread,
uint32_t  phyRate
) const
private

Return BER of QAM-m with the given parameters.

Parameters
snrsnr value
m
signalSpread
phyRate
Returns
BER of BPSK at the given SNR

Definition at line 62 of file yans-error-rate-model.cc.

References Log2(), and NS_LOG_INFO.

Referenced by GetFecQamBer().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::YansErrorRateModel::GetTypeId ( void  )
static

Definition at line 34 of file yans-error-rate-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

double ns3::YansErrorRateModel::Log2 ( double  val) const
private

Return the logarithm of the given value to base 2.

Parameters
val
Returns
the logarithm of val to base 2.

Definition at line 48 of file yans-error-rate-model.cc.

Referenced by GetQamBer().

+ Here is the caller graph for this function:
