ns3::NodeListPriv Class Reference

private implementation detail of the NodeList API. More...

#include <introspected-doxygen.h>

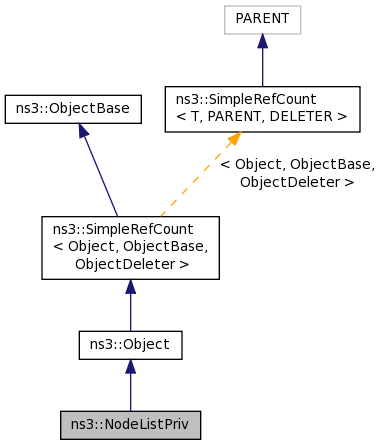

Inheritance diagram for ns3::NodeListPriv:

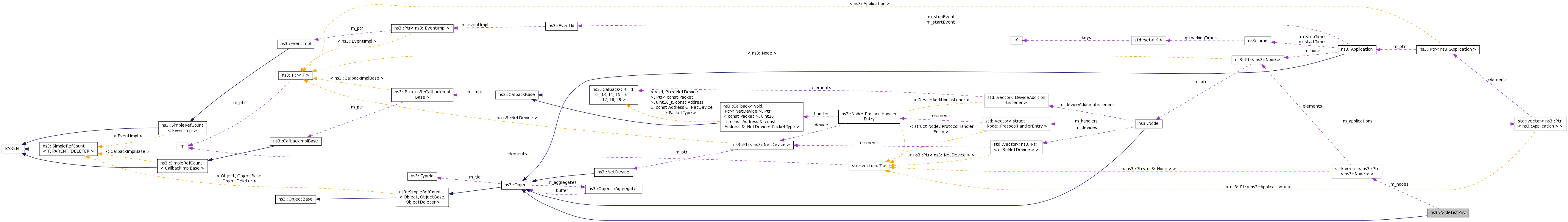

Collaboration diagram for ns3::NodeListPriv:

Public Member Functions
	NodeListPriv ()
	~NodeListPriv ()
uint32_t	Add (Ptr< Node > node)
NodeList::Iterator	Begin (void) const
NodeList::Iterator	End (void) const
uint32_t	GetNNodes (void)
Ptr< Node >	GetNode (uint32_t n)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static Ptr< NodeListPriv >	Get (void)
	Get the node list object. More...
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	Dispose the nodes in the list. More...

Static Private Member Functions
static void	Delete (void)
	Delete the nodes list object. More...
static Ptr< NodeListPriv > *	DoGet (void)
	Get the node list object. More...

Private Attributes
std::vector< Ptr< Node > >	m_nodes
	node objects container More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

private implementation detail of the NodeList API.

Config Paths

ns3::NodeListPriv is accessible through the following paths with Config::Set and Config::Connect:

Attributes

• NodeList: The list of all nodes created during the simulation.
  • Set with class: ns3::ObjectPtrContainerValue
  • Underlying type: ns3::Ptr< ns3::Node>
  • Flags: read

No TraceSources are defined for this type.

Definition at line 38 of file node-list.cc.

Constructor & Destructor Documentation

ns3::NodeListPriv::NodeListPriv

(

)

Definition at line 150 of file node-list.cc.

References NS_LOG_FUNCTION.

ns3::NodeListPriv::~NodeListPriv

(

)

Definition at line 154 of file node-list.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::NodeListPriv::Add

(

Ptr< Node >

node

)

Parameters

node	node to add

Returns

index of node in list.

This method is called automatically from Node::Node so the user has little reason to call it himself.

Definition at line 175 of file node-list.cc.

References ns3::Object::Initialize(), m_nodes, NS_LOG_FUNCTION, ns3::Simulator::ScheduleWithContext(), and ns3::TimeStep().

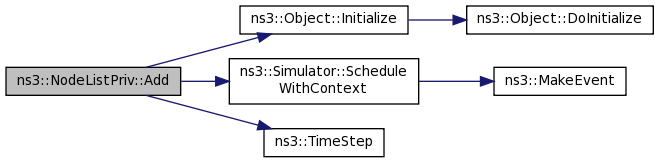

Here is the call graph for this function:

NodeList::Iterator ns3::NodeListPriv::Begin

(

void

)

const

Returns

a C++ iterator located at the beginning of this list.

Definition at line 185 of file node-list.cc.

References m_nodes, and NS_LOG_FUNCTION.

void ns3::NodeListPriv::Delete ( void  )

staticprivate

Delete the nodes list object.

Definition at line 142 of file node-list.cc.

References DoGet(), Get(), NS_LOG_FUNCTION_NOARGS, and ns3::Config::UnregisterRootNamespaceObject().

Referenced by DoGet().

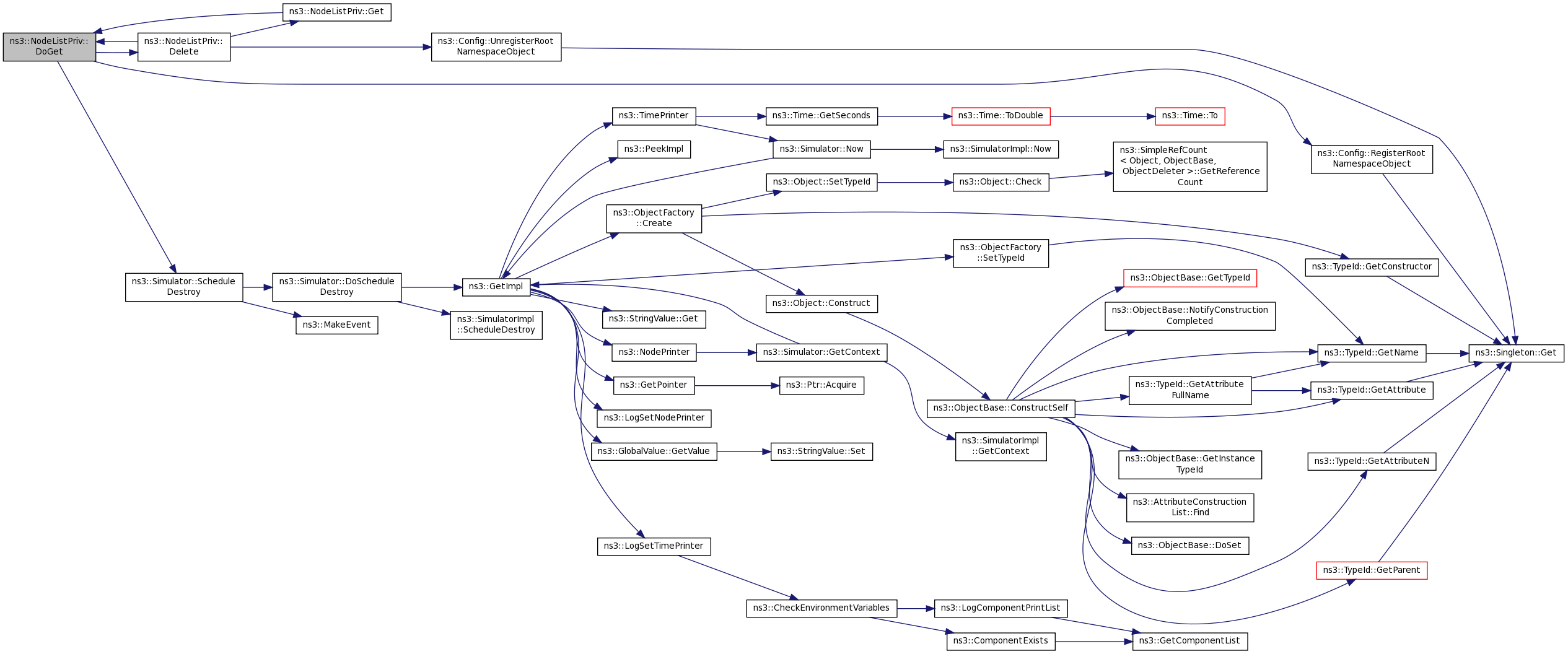

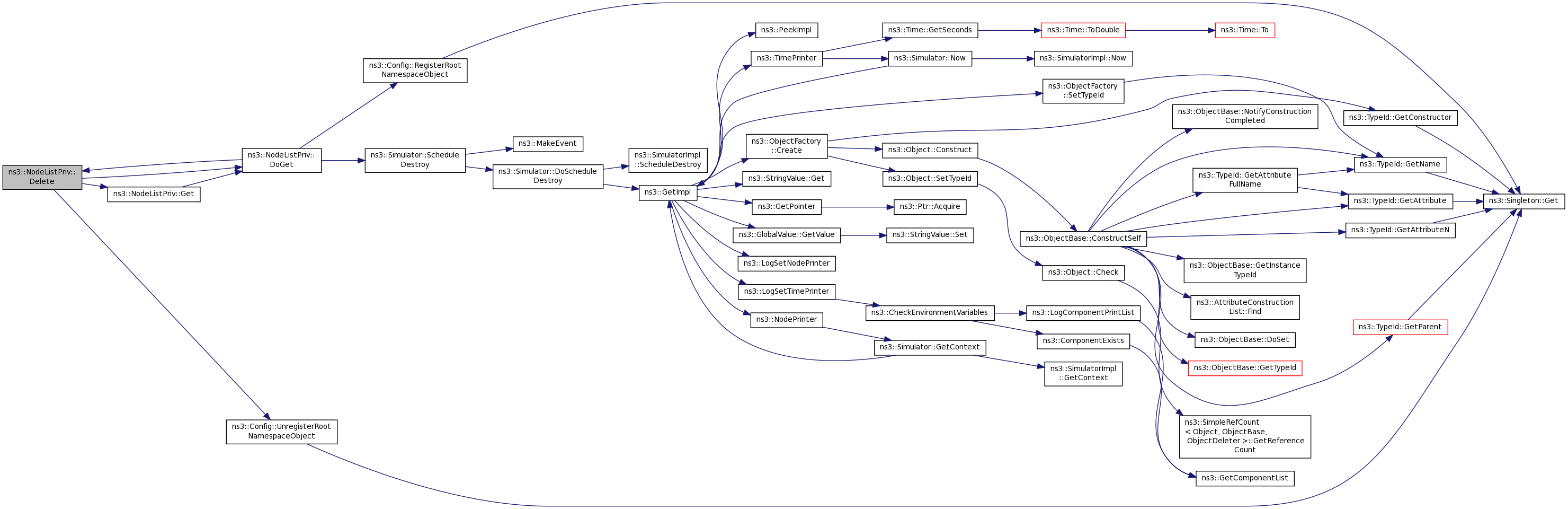

Here is the call graph for this function:

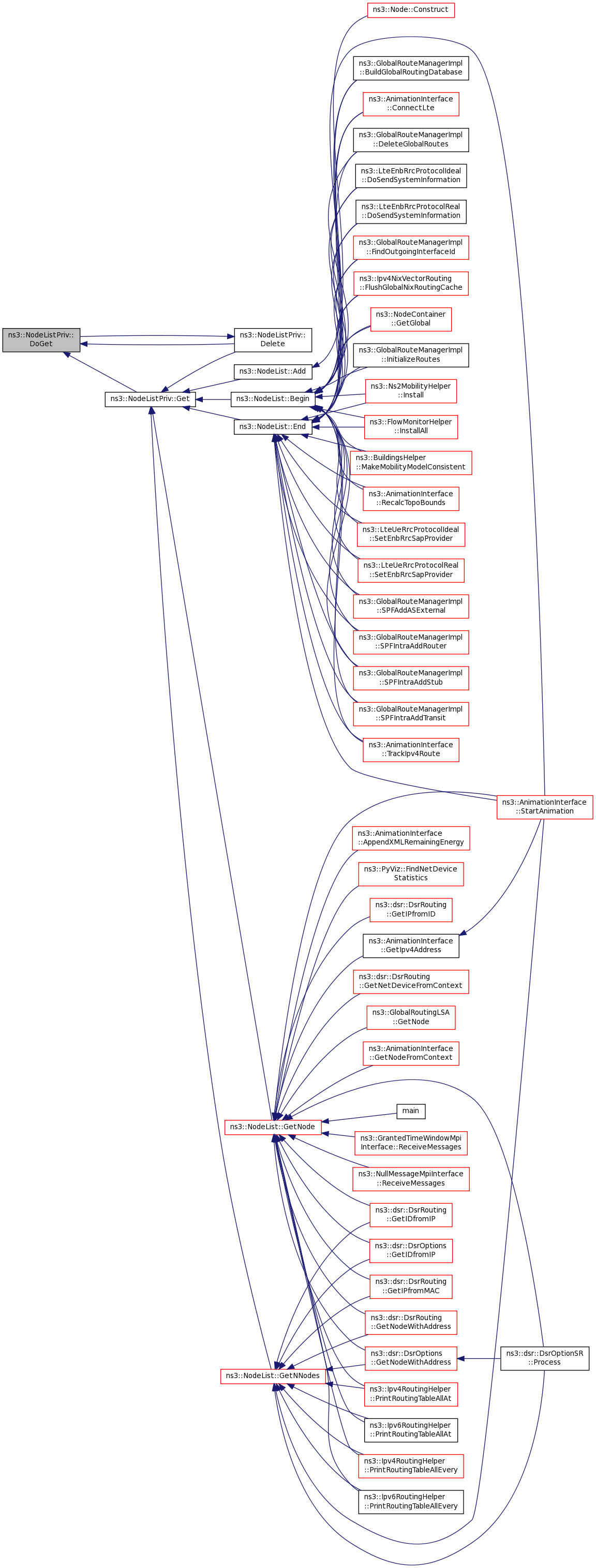

Here is the caller graph for this function:

void ns3::NodeListPriv::DoDispose ( void  )

privatevirtual

Dispose the nodes in the list.

Reimplemented from ns3::Object.

Definition at line 159 of file node-list.cc.

References ns3::Object::Dispose(), ns3::Object::DoDispose(), m_nodes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< NodeListPriv > * ns3::NodeListPriv::DoGet ( void  )

staticprivate

Get the node list object.

Returns

the node list

Definition at line 129 of file node-list.cc.

References Delete(), NS_LOG_FUNCTION_NOARGS, ns3::Config::RegisterRootNamespaceObject(), and ns3::Simulator::ScheduleDestroy().

Referenced by Delete(), and Get().

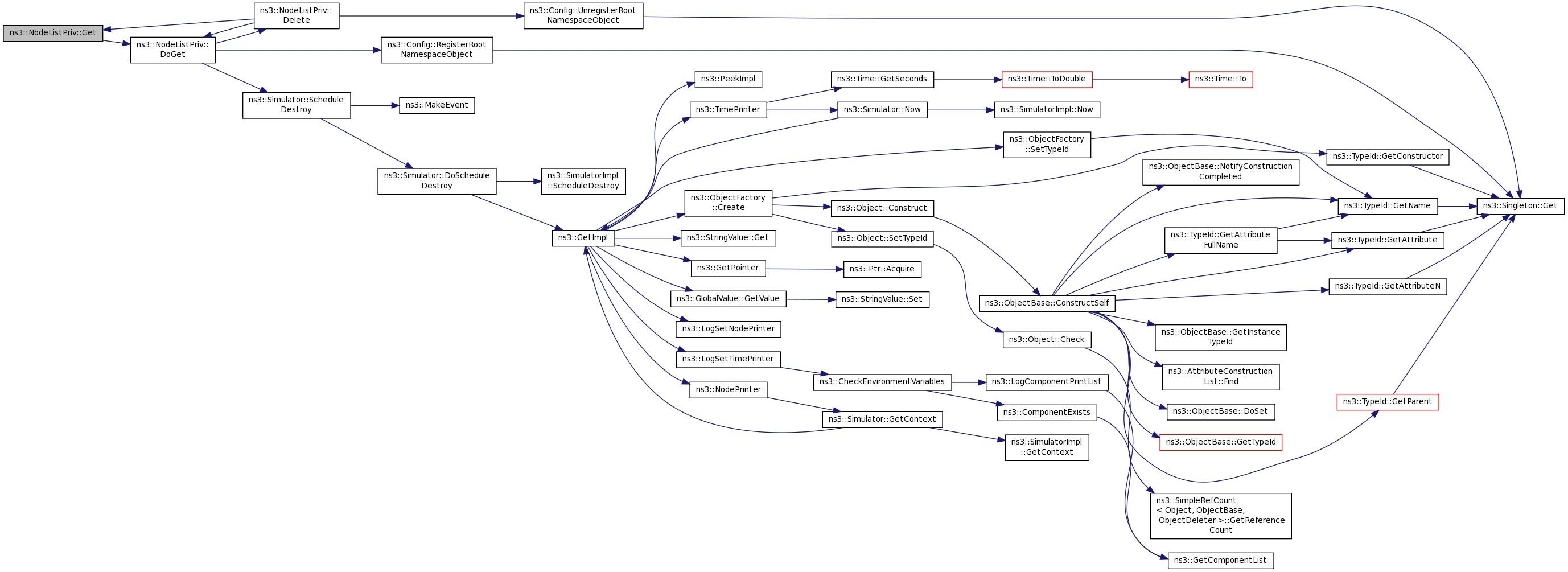

Here is the call graph for this function:

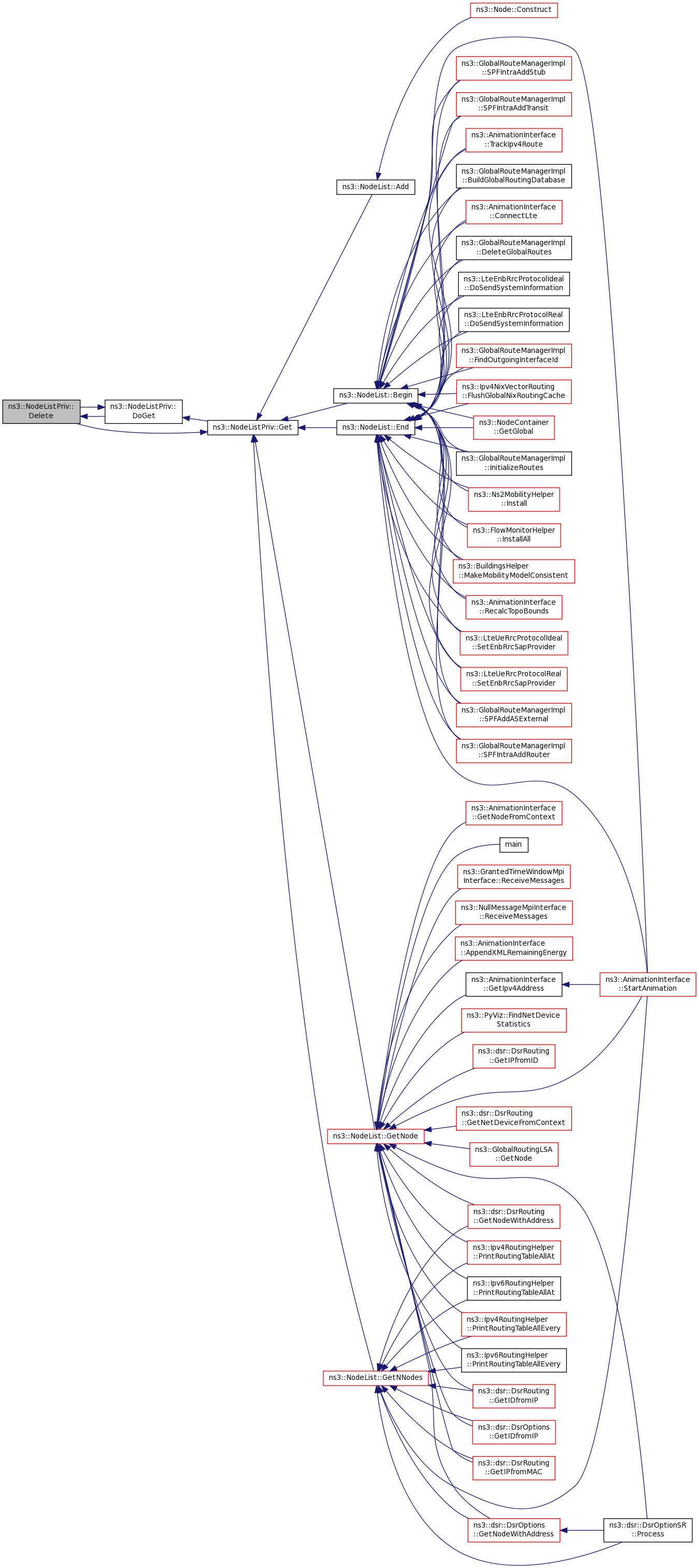

Here is the caller graph for this function:

NodeList::Iterator ns3::NodeListPriv::End

(

void

)

const

Returns

a C++ iterator located at the end of this list.

Definition at line 191 of file node-list.cc.

References m_nodes, and NS_LOG_FUNCTION.

Ptr< NodeListPriv > ns3::NodeListPriv::Get ( void  )

static

Get the node list object.

Returns

the node list

Definition at line 123 of file node-list.cc.

References DoGet(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::NodeList::Add(), ns3::NodeList::Begin(), Delete(), ns3::NodeList::End(), ns3::NodeList::GetNNodes(), and ns3::NodeList::GetNode().

Here is the call graph for this function:

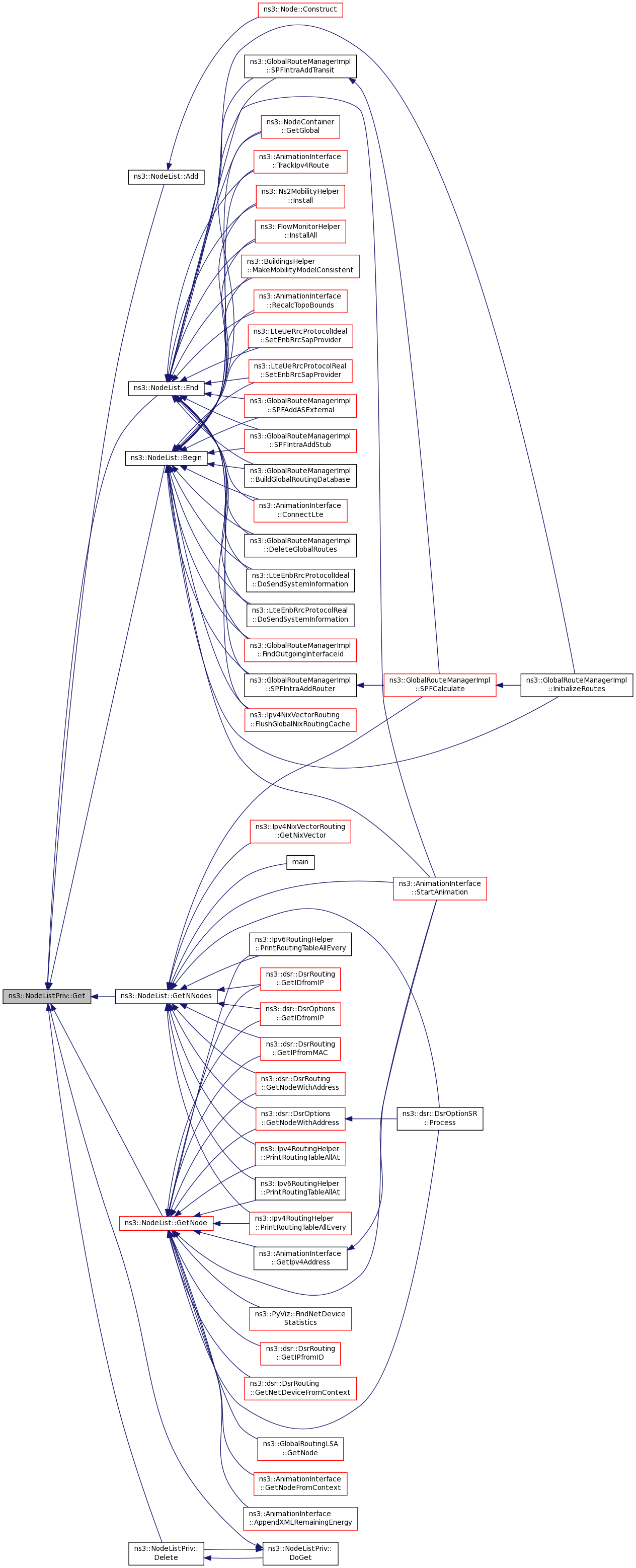

Here is the caller graph for this function:

uint32_t ns3::NodeListPriv::GetNNodes

(

void

)

Returns

the number of nodes currently in the list.

Definition at line 197 of file node-list.cc.

References m_nodes, and NS_LOG_FUNCTION.

Ptr< Node > ns3::NodeListPriv::GetNode

(

uint32_t

n

)

Parameters

n	index of requested node.

Returns

the Node associated to index n.

Definition at line 204 of file node-list.cc.

References m_nodes, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

TypeId ns3::NodeListPriv::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 110 of file node-list.cc.

References m_nodes, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

std::vector<Ptr<Node> > ns3::NodeListPriv::m_nodes

private

node objects container

Definition at line 104 of file node-list.cc.

Referenced by Add(), Begin(), DoDispose(), End(), GetNNodes(), GetNode(), and GetTypeId().

---

The documentation for this class was generated from the following file:

• src/network/model/node-list.cc
