Implements the SCHED SAP and CSCHED SAP for a Priority Set scheduler. More...

#include <pss-ff-mac-scheduler.h>

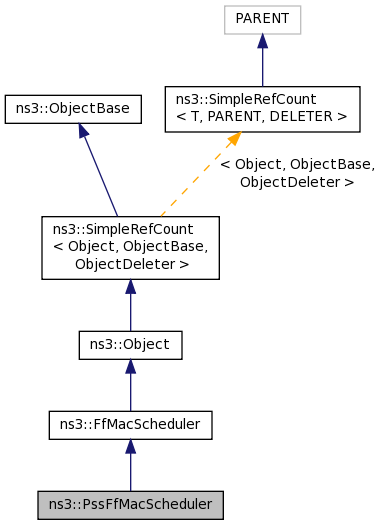

Inheritance diagram for ns3::PssFfMacScheduler:

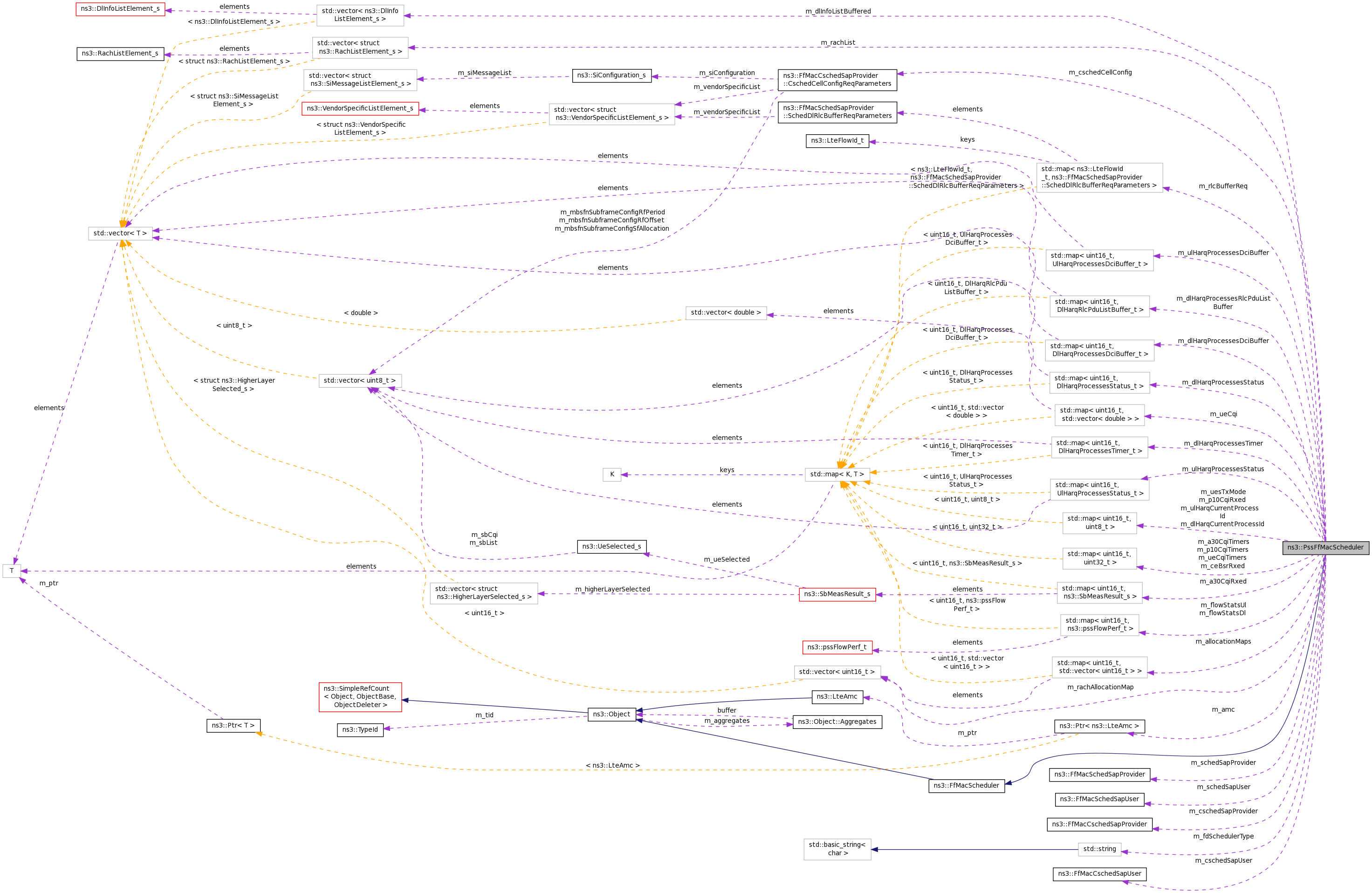

Collaboration diagram for ns3::PssFfMacScheduler:

Public Member Functions
	PssFfMacScheduler ()
	Constructor. More...

virtual	~PssFfMacScheduler ()
	Destructor. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual FfMacCschedSapProvider *	GetFfMacCschedSapProvider ()

virtual FfMacSchedSapProvider *	GetFfMacSchedSapProvider ()

virtual void	SetFfMacCschedSapUser (FfMacCschedSapUser *s)
	set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

virtual void	SetFfMacSchedSapUser (FfMacSchedSapUser *s)
	set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

void	TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)

Public Member Functions inherited from ns3::FfMacScheduler
	FfMacScheduler ()
	constructor More...

virtual	~FfMacScheduler ()
	destructor More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::FfMacScheduler
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)

void	DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)

void	DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)

void	DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)

void	DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)

void	DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)

void	DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)

void	DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)

void	DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)

void	DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)

void	DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)

void	DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)

void	DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)

void	DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)

void	DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)

void	DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)

double	EstimateUlSinr (uint16_t rnti, uint16_t rb)

int	GetRbgSize (int dlbandwidth)

uint8_t	HarqProcessAvailability (uint16_t rnti)
	Return the availability of free process for the RNTI specified. More...

int	LcActivePerFlow (uint16_t rnti)

void	RefreshDlCqiMaps (void)

void	RefreshHarqProcesses ()
	Refresh HARQ processes according to the timers. More...

void	RefreshUlCqiMaps (void)

void	UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)

uint8_t	UpdateHarqProcessId (uint16_t rnti)
	Update and return a new process Id for the RNTI specified. More...

void	UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)

Private Attributes
std::map< uint16_t, SbMeasResult_s >	m_a30CqiRxed

std::map< uint16_t, uint32_t >	m_a30CqiTimers

std::map< uint16_t, std::vector< uint16_t > >	m_allocationMaps

Ptr< LteAmc >	m_amc

std::map< uint16_t, uint32_t >	m_ceBsrRxed

uint32_t	m_cqiTimersThreshold

FfMacCschedSapProvider::CschedCellConfigReqParameters	m_cschedCellConfig

FfMacCschedSapProvider *	m_cschedSapProvider

FfMacCschedSapUser *	m_cschedSapUser

std::map< uint16_t, uint8_t >	m_dlHarqCurrentProcessId

std::map< uint16_t, DlHarqProcessesDciBuffer_t >	m_dlHarqProcessesDciBuffer

std::map< uint16_t, DlHarqRlcPduListBuffer_t >	m_dlHarqProcessesRlcPduListBuffer

std::map< uint16_t, DlHarqProcessesStatus_t >	m_dlHarqProcessesStatus

std::map< uint16_t, DlHarqProcessesTimer_t >	m_dlHarqProcessesTimer

std::vector< DlInfoListElement_s >	m_dlInfoListBuffered

std::string	m_fdSchedulerType

std::map< uint16_t, pssFlowPerf_t >	m_flowStatsDl

std::map< uint16_t, pssFlowPerf_t >	m_flowStatsUl

bool	m_harqOn
	m_harqOn when false inhibit te HARQ mechanisms (by default active) More...

uint16_t	m_nextRntiUl

uint32_t	m_nMux

std::map< uint16_t, uint8_t >	m_p10CqiRxed

std::map< uint16_t, uint32_t >	m_p10CqiTimers

std::vector< uint16_t >	m_rachAllocationMap

std::vector< struct RachListElement_s >	m_rachList

std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters >	m_rlcBufferReq

FfMacSchedSapProvider *	m_schedSapProvider

FfMacSchedSapUser *	m_schedSapUser

double	m_timeWindow

std::map< uint16_t, std::vector< double > >	m_ueCqi

std::map< uint16_t, uint32_t >	m_ueCqiTimers

std::map< uint16_t, uint8_t >	m_uesTxMode

uint8_t	m_ulGrantMcs

std::map< uint16_t, uint8_t >	m_ulHarqCurrentProcessId

std::map< uint16_t, UlHarqProcessesDciBuffer_t >	m_ulHarqProcessesDciBuffer

std::map< uint16_t, UlHarqProcessesStatus_t >	m_ulHarqProcessesStatus

Friends
class	PssSchedulerMemberCschedSapProvider

class	PssSchedulerMemberSchedSapProvider

Additional Inherited Members
Public Types inherited from ns3::FfMacScheduler
enum	UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }
	The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t	m_ulCqiFilter

Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Priority Set scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::PssFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::PssFfMacScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::PssFfMacScheduler

Attributes

CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: construct write read
PssFdSchedulerType: FD scheduler in PSS (default value is PFsch)
- Set with class: StringValue
- Underlying type:
- Initial value: PFsch
- Flags: construct write read
nMux: The number of UE selected by TD scheduler (default value is 0)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
HarqEnabled: Activate/Deactivate the HARQ [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::FfMacScheduler

UlCqiFilter: The filter to apply on UL CQIs received
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: ALL_UL_CQI
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 80 of file pss-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::PssFfMacScheduler::PssFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 219 of file pss-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, m_schedSapProvider, PssSchedulerMemberCschedSapProvider, and PssSchedulerMemberSchedSapProvider.

ns3::PssFfMacScheduler::~PssFfMacScheduler ( )

virtual

Destructor.

Definition at line 230 of file pss-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::PssFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters & params )

private

Definition at line 312 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.

Referenced by ns3::PssSchedulerMemberCschedSapProvider::CschedCellConfigReq().

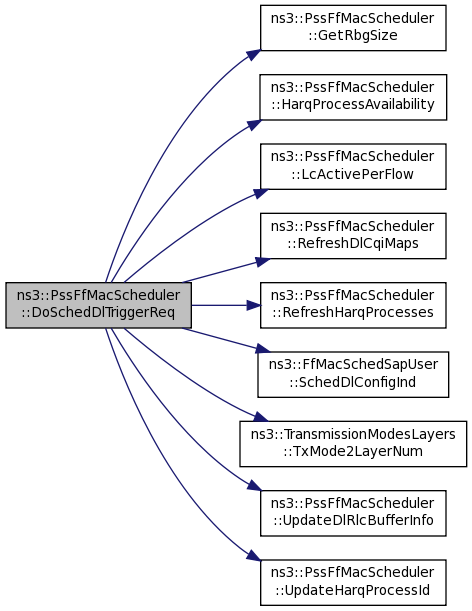

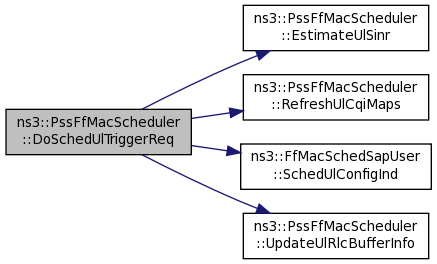

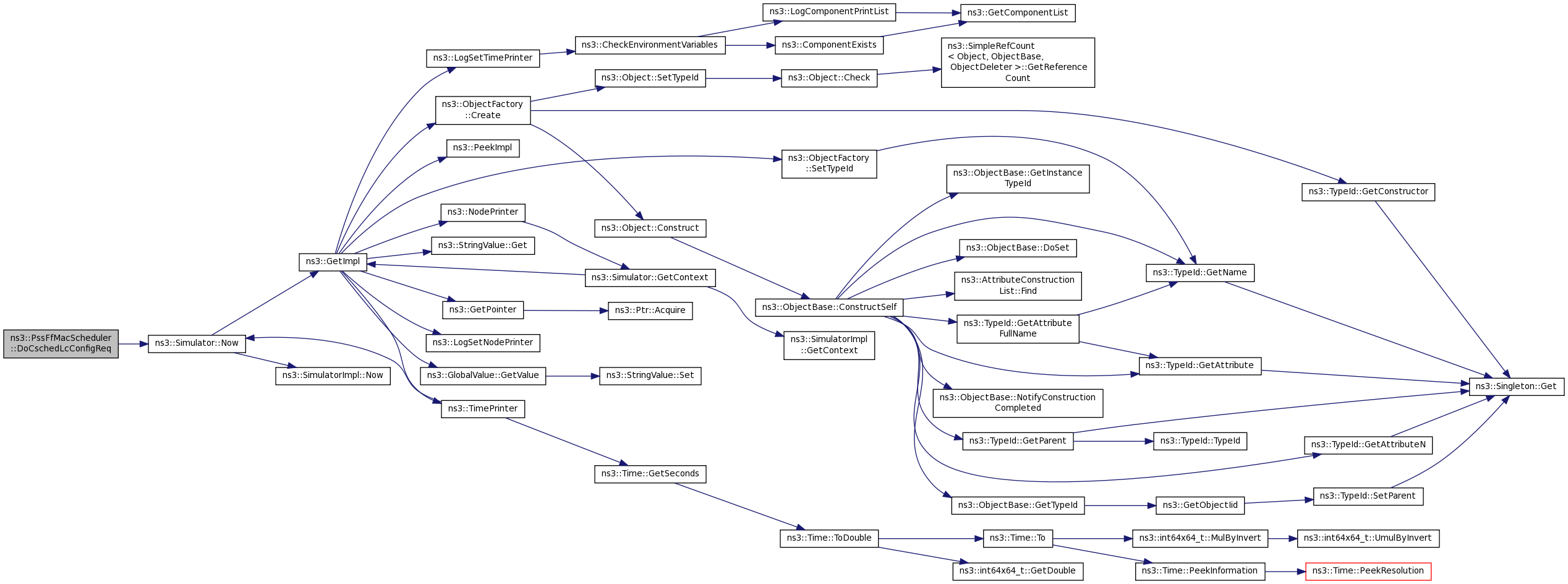

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters & params )

private

Definition at line 364 of file pss-ff-mac-scheduler.cc.

References ns3::pssFlowPerf_t::flowStart, ns3::pssFlowPerf_t::lastAveragedThroughput, ns3::pssFlowPerf_t::lastTtiBytesTransmitted, m_flowStatsDl, m_flowStatsUl, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_logicalChannelConfigList, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_rnti, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::pssFlowPerf_t::secondLastAveragedThroughput, ns3::pssFlowPerf_t::targetThroughput, and ns3::pssFlowPerf_t::totalBytesTransmitted.

Referenced by ns3::PssSchedulerMemberCschedSapProvider::CschedLcConfigReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters & params )

private

Definition at line 409 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberCschedSapProvider::CschedLcReleaseReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters & params )

private

Definition at line 325 of file pss-ff-mac-scheduler.cc.

References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberCschedSapProvider::CschedUeConfigReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters & params )

private

Definition at line 434 of file pss-ff-mac-scheduler.cc.

References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedUeReleaseReqParameters::m_rnti, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberCschedSapProvider::CschedUeReleaseReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 236 of file pss-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

void ns3::PssFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

private

Definition at line 1644 of file pss-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::CqiListElement_s::P10.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters & params )

private

Definition at line 507 of file pss-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedDlMacBufferReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters & params )

private

Definition at line 499 of file pss-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters & params )

private

Definition at line 1634 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRachInfoReqParameters::m_rachList, m_rachList, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedDlRachInfoReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters & params )

private

Definition at line 475 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters & params )

private

Todo:: check correct value according the DCIs txed

Definition at line 660 of file pss-ff-mac-scheduler.cc.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedDlTriggerReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

private

Definition at line 2146 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacScheduler::ALL_UL_CQI, ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf, ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacScheduler::m_ulCqiFilter, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters & params )

private

Definition at line 2102 of file pss-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters & params )

private

Definition at line 2088 of file pss-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters & params )

private

Definition at line 2095 of file pss-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedUlSrInfoReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters & params )

private

Definition at line 1736 of file pss-ff-mac-scheduler.cc.

Referenced by ns3::PssSchedulerMemberSchedSapProvider::SchedUlTriggerReq().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::PssFfMacScheduler::EstimateUlSinr	(	uint16_t	rnti,
		uint16_t	rb
	)

private

Definition at line 1705 of file pss-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

FfMacCschedSapProvider * ns3::PssFfMacScheduler::GetFfMacCschedSapProvider ( )

virtual

Returns: the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 300 of file pss-ff-mac-scheduler.cc.

References m_cschedSapProvider.

FfMacSchedSapProvider * ns3::PssFfMacScheduler::GetFfMacSchedSapProvider ( )

virtual

Returns: the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 306 of file pss-ff-mac-scheduler.cc.

References m_schedSapProvider.

int ns3::PssFfMacScheduler::GetRbgSize ( int dlbandwidth )

private

Definition at line 515 of file pss-ff-mac-scheduler.cc.

References ns3::PssType0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

TypeId ns3::PssFfMacScheduler::GetTypeId ( void )

static

Definition at line 251 of file pss-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_fdSchedulerType, m_harqOn, m_nMux, m_ulGrantMcs, and ns3::TypeId::SetParent().

Here is the call graph for this function:

uint8_t ns3::PssFfMacScheduler::HarqProcessAvailability ( uint16_t rnti )

private

Return the availability of free process for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 553 of file pss-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

int ns3::PssFfMacScheduler::LcActivePerFlow ( uint16_t rnti )

private

Definition at line 530 of file pss-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::RefreshDlCqiMaps ( void )

private

Definition at line 2294 of file pss-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::RefreshHarqProcesses ( )

private

Refresh HARQ processes according to the timers.

Definition at line 627 of file pss-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::RefreshUlCqiMaps ( void )

private

Definition at line 2347 of file pss-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser * s )

virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 288 of file pss-ff-mac-scheduler.cc.

References m_cschedSapUser, and s.

void ns3::PssFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser * s )

virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 294 of file pss-ff-mac-scheduler.cc.

References m_schedSapUser, and s.

void ns3::PssFfMacScheduler::TransmissionModeConfigurationUpdate	(	uint16_t	rnti,
		uint8_t	txMode
	)

Definition at line 2454 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PssFfMacScheduler::UpdateDlRlcBufferInfo	(	uint16_t	rnti,
		uint8_t	lcid,
		uint16_t	size
	)

private

Definition at line 2377 of file pss-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

uint8_t ns3::PssFfMacScheduler::UpdateHarqProcessId ( uint16_t rnti )

private

Update and return a new process Id for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 586 of file pss-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::PssFfMacScheduler::UpdateUlRlcBufferInfo	(	uint16_t	rnti,
		uint16_t	size
	)

private

Definition at line 2429 of file pss-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class PssSchedulerMemberCschedSapProvider

friend

Definition at line 105 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler().

friend class PssSchedulerMemberSchedSapProvider

friend

Definition at line 106 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler().

Member Data Documentation

std::map<uint16_t,SbMeasResult_s> ns3::PssFfMacScheduler::m_a30CqiRxed

private

Definition at line 219 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::PssFfMacScheduler::m_a30CqiTimers

private

Definition at line 223 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t, std::vector <uint16_t> > ns3::PssFfMacScheduler::m_allocationMaps

private

Definition at line 229 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

Ptr<LteAmc> ns3::PssFfMacScheduler::m_amc

private

Definition at line 188 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and PssFfMacScheduler().

std::map<uint16_t,uint32_t> ns3::PssFfMacScheduler::m_ceBsrRxed

private

Definition at line 243 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

uint32_t ns3::PssFfMacScheduler::m_cqiTimersThreshold

private

Definition at line 260 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::PssFfMacScheduler::m_cschedCellConfig

private

Definition at line 253 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().

FfMacCschedSapProvider* ns3::PssFfMacScheduler::m_cschedSapProvider

private

Definition at line 248 of file pss-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacCschedSapProvider(), and PssFfMacScheduler().

FfMacCschedSapUser* ns3::PssFfMacScheduler::m_cschedSapUser

private

Definition at line 246 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

std::map<uint16_t, uint8_t> ns3::PssFfMacScheduler::m_dlHarqCurrentProcessId

private

Definition at line 273 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::PssFfMacScheduler::m_dlHarqProcessesDciBuffer

private

Definition at line 279 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::PssFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer

private

Definition at line 280 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::PssFfMacScheduler::m_dlHarqProcessesStatus

private

Definition at line 277 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesTimer_t> ns3::PssFfMacScheduler::m_dlHarqProcessesTimer

private

Definition at line 278 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

std::vector<DlInfoListElement_s> ns3::PssFfMacScheduler::m_dlInfoListBuffered

private

Definition at line 281 of file pss-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

std::string ns3::PssFfMacScheduler::m_fdSchedulerType

private

Definition at line 264 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t, pssFlowPerf_t> ns3::PssFfMacScheduler::m_flowStatsDl

private

Definition at line 199 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

std::map<uint16_t, pssFlowPerf_t> ns3::PssFfMacScheduler::m_flowStatsUl

private

Definition at line 204 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().

bool ns3::PssFfMacScheduler::m_harqOn

private

m_harqOn when false inhibit te HARQ mechanisms (by default active)

Definition at line 272 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

uint16_t ns3::PssFfMacScheduler::m_nextRntiUl

private

Definition at line 258 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

uint32_t ns3::PssFfMacScheduler::m_nMux

private

Definition at line 266 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t,uint8_t> ns3::PssFfMacScheduler::m_p10CqiRxed

private

Definition at line 210 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::PssFfMacScheduler::m_p10CqiTimers

private

Definition at line 214 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::vector<uint16_t> ns3::PssFfMacScheduler::m_rachAllocationMap

private

Definition at line 293 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::vector<struct RachListElement_s> ns3::PssFfMacScheduler::m_rachList

private

Definition at line 292 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::PssFfMacScheduler::m_rlcBufferReq

private

Definition at line 193 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().

FfMacSchedSapProvider* ns3::PssFfMacScheduler::m_schedSapProvider

private

Definition at line 249 of file pss-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacSchedSapProvider(), and PssFfMacScheduler().

FfMacSchedSapUser* ns3::PssFfMacScheduler::m_schedSapUser

private

Definition at line 247 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

double ns3::PssFfMacScheduler::m_timeWindow

private

Definition at line 256 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq().

std::map<uint16_t, std::vector <double> > ns3::PssFfMacScheduler::m_ueCqi

private

Definition at line 234 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

std::map<uint16_t, uint32_t> ns3::PssFfMacScheduler::m_ueCqiTimers

private

Definition at line 238 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

std::map<uint16_t,uint8_t> ns3::PssFfMacScheduler::m_uesTxMode

private

Definition at line 262 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

uint8_t ns3::PssFfMacScheduler::m_ulGrantMcs

private

Definition at line 294 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t, uint8_t> ns3::PssFfMacScheduler::m_ulHarqCurrentProcessId

private

Definition at line 283 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::PssFfMacScheduler::m_ulHarqProcessesDciBuffer

private

Definition at line 288 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::PssFfMacScheduler::m_ulHarqProcessesStatus

private

Definition at line 287 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

The documentation for this class was generated from the following files:

src/lte/model/pss-ff-mac-scheduler.h
src/lte/model/pss-ff-mac-scheduler.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::FfMacScheduler

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
