Generates a 2D map of the SINR from the strongest transmitter in the downlink of an LTE FDD system. More...

#include <radio-environment-map-helper.h>

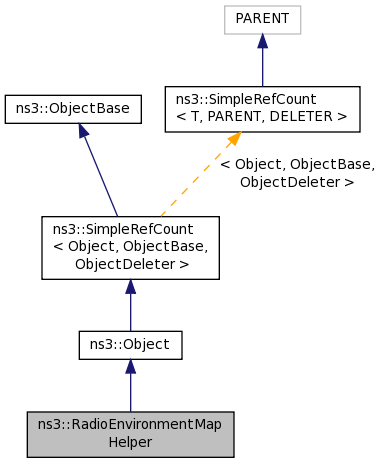

Inheritance diagram for ns3::RadioEnvironmentMapHelper:

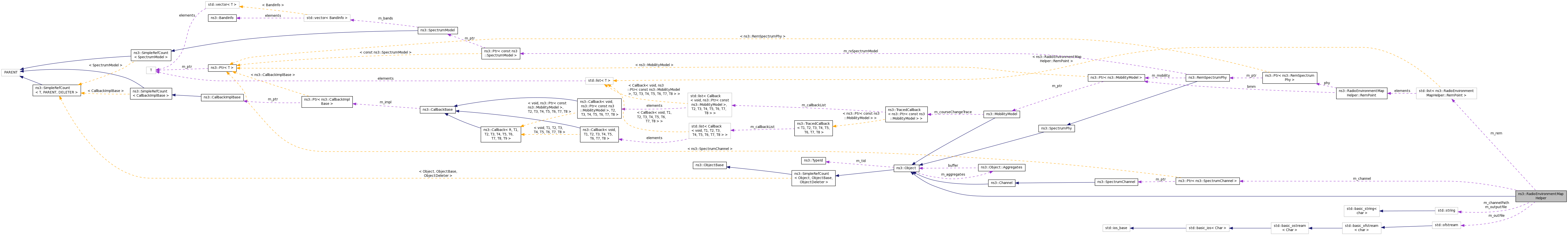

Collaboration diagram for ns3::RadioEnvironmentMapHelper:

Classes
struct	RemPoint

Public Member Functions
	RadioEnvironmentMapHelper ()

virtual	~RadioEnvironmentMapHelper ()

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

uint8_t	GetBandwidth () const

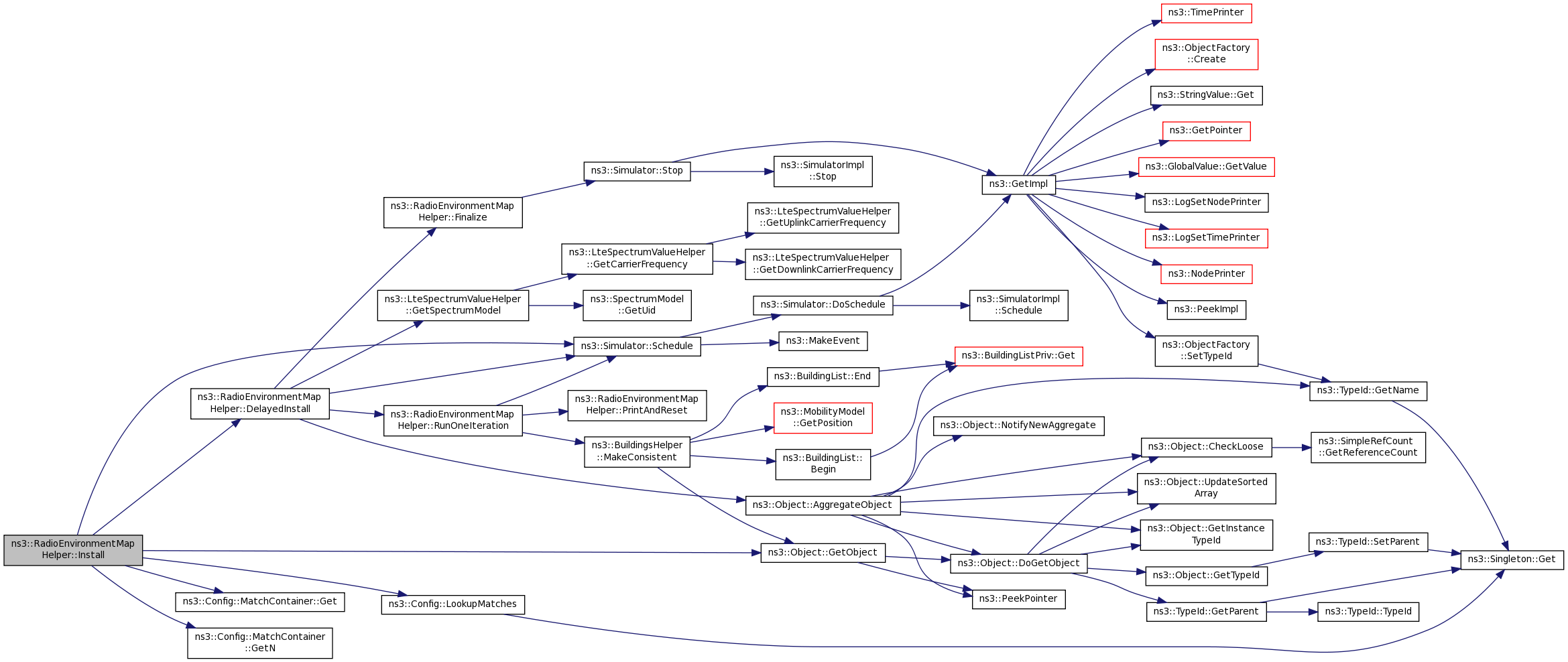

void	Install ()
	Deploy the RemSpectrumPhy objects that generate the map according to the specified settings. More...

void	SetBandwidth (uint8_t bw)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DelayedInstall ()

void	Finalize ()

void	PrintAndReset ()

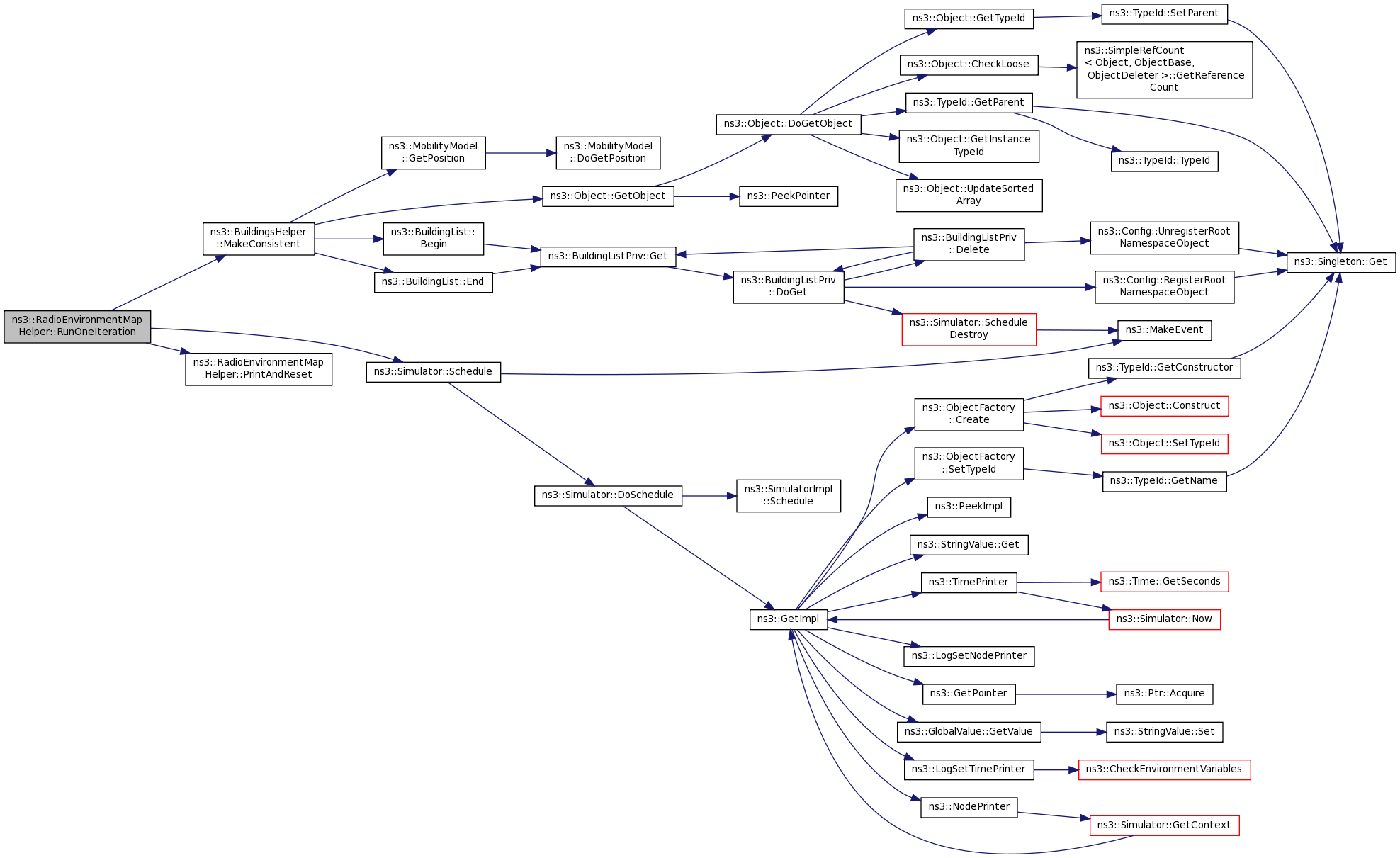

void	RunOneIteration (double xMin, double xMax, double yMin, double yMax)

Private Attributes
uint16_t	m_bandwidth

Ptr< SpectrumChannel >	m_channel

std::string	m_channelPath

uint16_t	m_earfcn

uint32_t	m_maxPointsPerIteration

double	m_noisePower

std::ofstream	m_outFile

std::string	m_outputFile

std::list< RemPoint >	m_rem

bool	m_stopWhenDone

double	m_xMax

double	m_xMin

uint16_t	m_xRes

double	m_xStep

double	m_yMax

double	m_yMin

uint16_t	m_yRes

double	m_yStep

double	m_z

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Generates a 2D map of the SINR from the strongest transmitter in the downlink of an LTE FDD system.

Doxygen introspection did not find any typical Config paths.

Attributes

ChannelPath: The path to the channel for which the Radio Environment Map is to be generated
- Set with class: StringValue
- Underlying type:
- Initial value: /ChannelList/0
- Flags: construct write read
OutputFile: the filename to which the Radio Environment Map is saved
- Set with class: StringValue
- Underlying type:
- Initial value: rem.out
- Flags: construct write read
XMin: The min x coordinate of the map.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
YMin: The min y coordinate of the map.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
XMax: The max x coordinate of the map.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
YMax: The max y coordinate of the map.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
XRes: The resolution (number of points) of the map along the x axis.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 2:65535
- Initial value: 100
- Flags: construct write read
YRes: The resolution (number of points) of the map along the y axis.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 2:65535
- Initial value: 100
- Flags: construct write read
Z: The value of the z coordinate for which the map is to be generated
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
StopWhenDone: If true, Simulator::Stop () will be called as soon as the REM has been generated
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
NoisePower: the power of the measuring instrument noise, in Watts. Default to a kT of -174 dBm with a noise figure of 9 dB and a bandwidth of 25 LTE Resource Blocks
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.423e-13
- Flags: construct write read
MaxPointsPerIteration: Maximum number of REM points to be calculated per iteration. Every point consumes approximately 5KB of memory.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 1:4294967295
- Initial value: 20000
- Flags: construct write read
Earfcn: E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 100
- Flags: construct write read
Bandwidth: Transmission Bandwidth Configuration (in number of RBs) over which the SINR will be calculated
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 25
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 43 of file radio-environment-map-helper.h.

Constructor & Destructor Documentation

ns3::RadioEnvironmentMapHelper::RadioEnvironmentMapHelper ( )

Definition at line 51 of file radio-environment-map-helper.cc.

ns3::RadioEnvironmentMapHelper::~RadioEnvironmentMapHelper ( )

virtual

Definition at line 56 of file radio-environment-map-helper.cc.

Member Function Documentation

void ns3::RadioEnvironmentMapHelper::DelayedInstall ( )

private

Definition at line 199 of file radio-environment-map-helper.cc.

References ns3::Object::AggregateObject(), ns3::RadioEnvironmentMapHelper::RemPoint::bmm, Finalize(), ns3::LteSpectrumValueHelper::GetSpectrumModel(), m_bandwidth, m_channel, m_earfcn, m_maxPointsPerIteration, m_rem, m_xMax, m_xMin, m_xRes, m_xStep, m_yMax, m_yMin, m_yRes, m_yStep, NS_LOG_FUNCTION, ns3::RadioEnvironmentMapHelper::RemPoint::phy, RunOneIteration(), ns3::Simulator::Schedule(), and sample-rng-plot::x.

Referenced by Install().

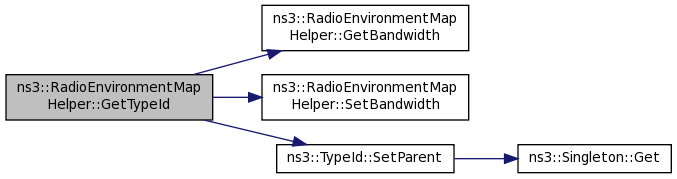

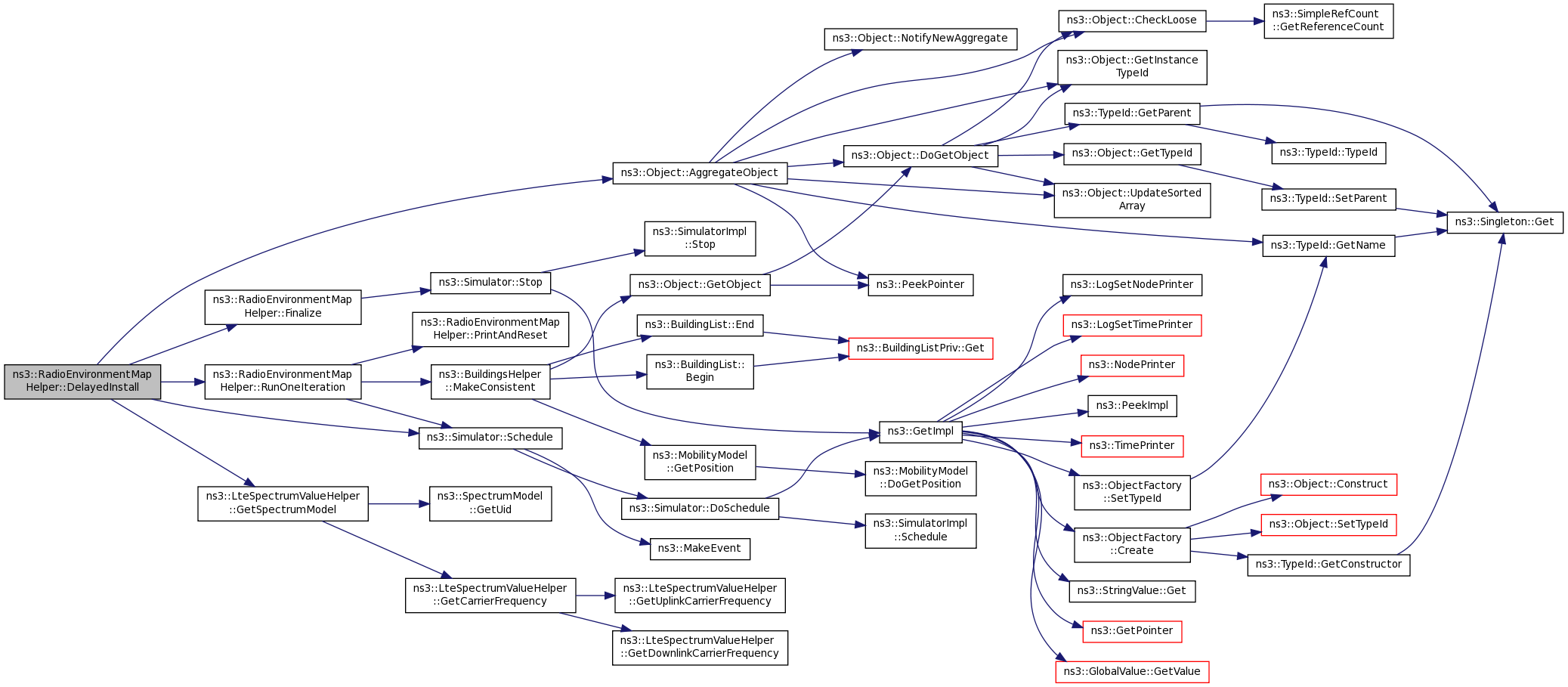

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioEnvironmentMapHelper::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 63 of file radio-environment-map-helper.cc.

References NS_LOG_FUNCTION.

void ns3::RadioEnvironmentMapHelper::Finalize ( )

private

Definition at line 322 of file radio-environment-map-helper.cc.

References m_outFile, m_stopWhenDone, NS_LOG_FUNCTION, and ns3::Simulator::Stop().

Referenced by DelayedInstall().

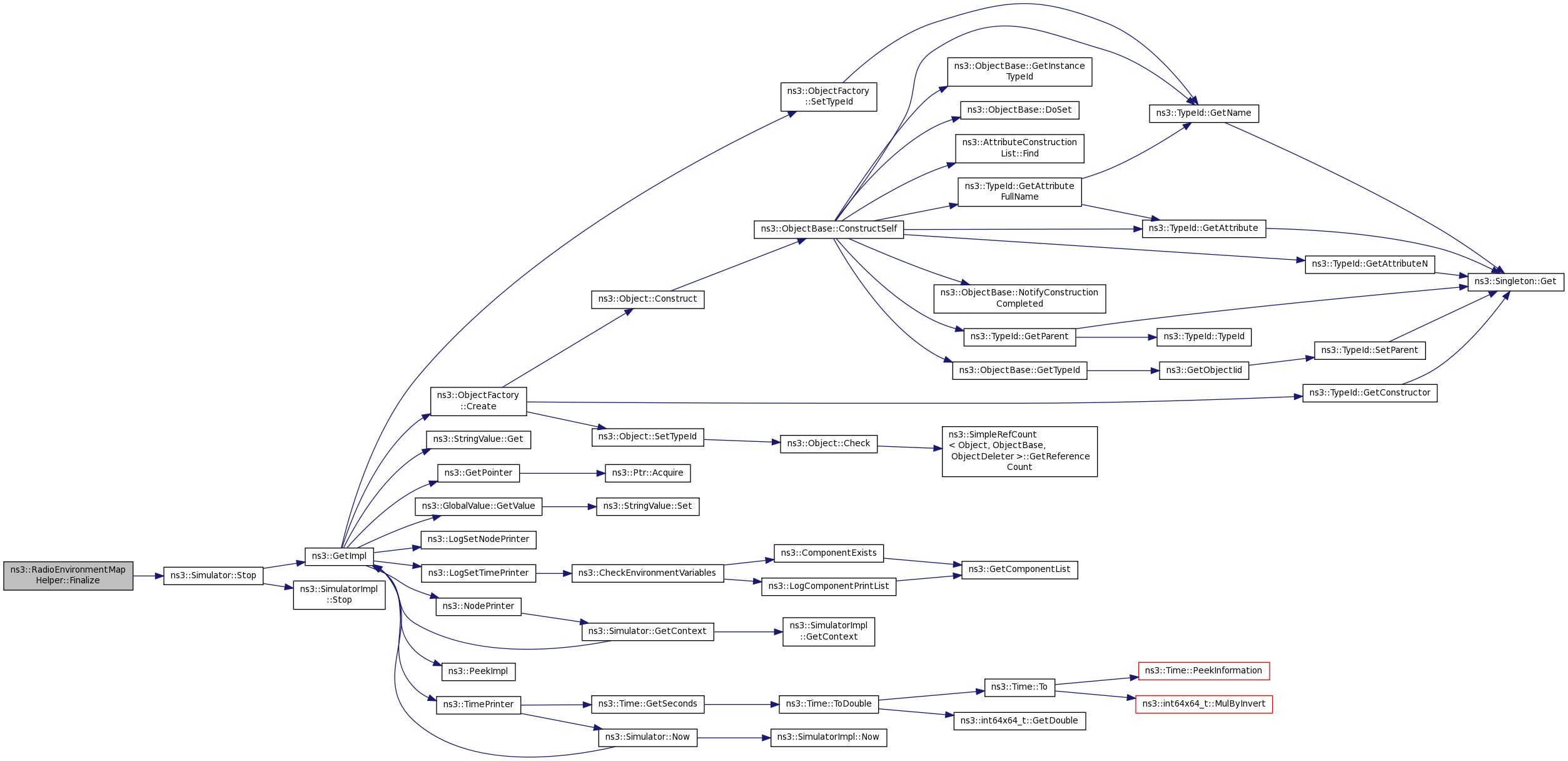

Here is the call graph for this function:
