RipNg Routing Table Entry (RTE) - see RFC 2080 More...

#include <ripng-header.h>

Inheritance diagram for ns3::RipNgRte:

Collaboration diagram for ns3::RipNgRte:

Public Member Functions
	RipNgRte (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

Ipv6Address	GetPrefix (void) const
	Get the prefix. More...

uint8_t	GetPrefixLen (void) const
	Get the prefix length. More...

uint8_t	GetRouteMetric (void) const
	Get the route metric. More...

uint16_t	GetRouteTag (void) const
	Get the route tag. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetPrefix (Ipv6Address prefix)
	Set the prefix. More...

void	SetPrefixLen (uint8_t prefixLen)
	Set the prefix length. More...

void	SetRouteMetric (uint8_t routeMetric)
	Set the route metric. More...

void	SetRouteTag (uint16_t routeTag)
	Set the route tag. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_metric
	route metric More...

Ipv6Address	m_prefix
	prefix More...

uint8_t	m_prefixLen
	prefix length More...

uint16_t	m_tag
	route tag More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

RipNg Routing Table Entry (RTE) - see RFC 2080

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 37 of file ripng-header.h.

Constructor & Destructor Documentation

ns3::RipNgRte::RipNgRte ( void )

Definition at line 31 of file ripng-header.cc.

Member Function Documentation

uint32_t ns3::RipNgRte::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 69 of file ripng-header.cc.

References GetSerializedSize(), m_metric, m_prefix, m_prefixLen, m_tag, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and ns3::Ipv6Address::Set().

Referenced by ns3::RipNgHeader::Deserialize().

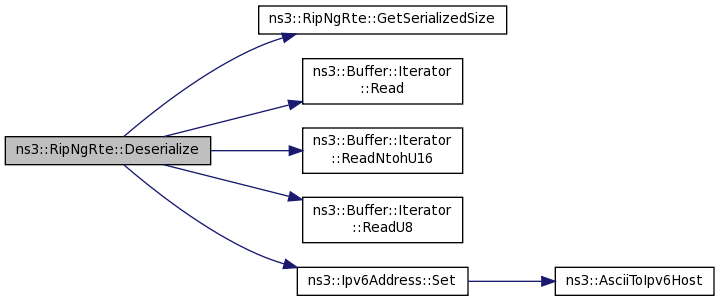

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::RipNgRte::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 42 of file ripng-header.cc.

References GetTypeId().

Here is the call graph for this function:

Ipv6Address ns3::RipNgRte::GetPrefix ( void ) const

Get the prefix.

Returns: the prefix

Definition at line 87 of file ripng-header.cc.

References m_prefix.

uint8_t ns3::RipNgRte::GetPrefixLen ( void ) const

Get the prefix length.

Returns: the prefix length

Definition at line 97 of file ripng-header.cc.

References m_prefixLen.

uint8_t ns3::RipNgRte::GetRouteMetric ( void ) const

Get the route metric.

Returns: the route metric

Definition at line 117 of file ripng-header.cc.

References m_metric.

uint16_t ns3::RipNgRte::GetRouteTag ( void ) const

Get the route tag.

Returns: the route tag

Definition at line 107 of file ripng-header.cc.

References m_tag.

uint32_t ns3::RipNgRte::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 52 of file ripng-header.cc.

Referenced by Deserialize(), ns3::RipNg::DoSendRouteUpdate(), ns3::RipNgHeader::GetSerializedSize(), and ns3::RipNg::HandleRequests().

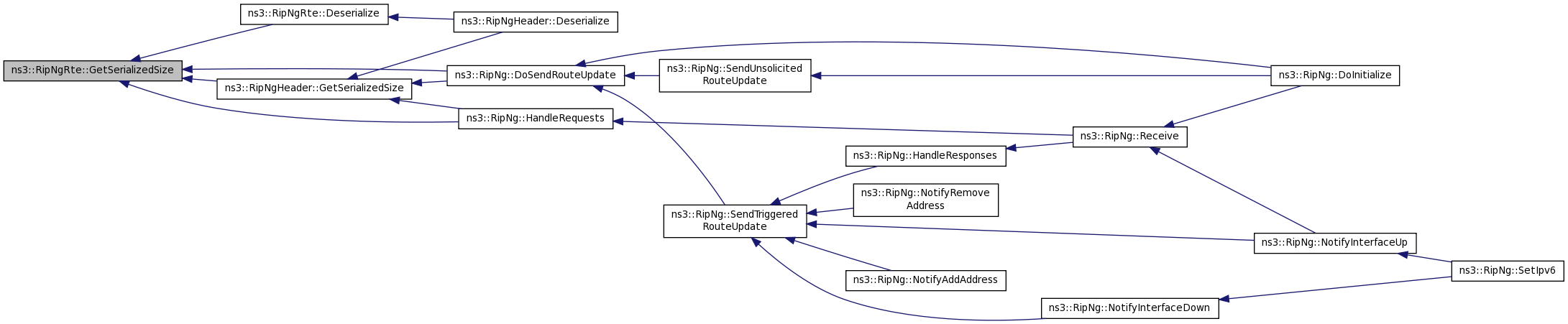

Here is the caller graph for this function:

TypeId ns3::RipNgRte::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file ripng-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNgRte::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 47 of file ripng-header.cc.

References m_metric, m_prefix, m_prefixLen, and m_tag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:
