A simple device energy model where current drain can be set by the user. More...

#include <simple-device-energy-model.h>

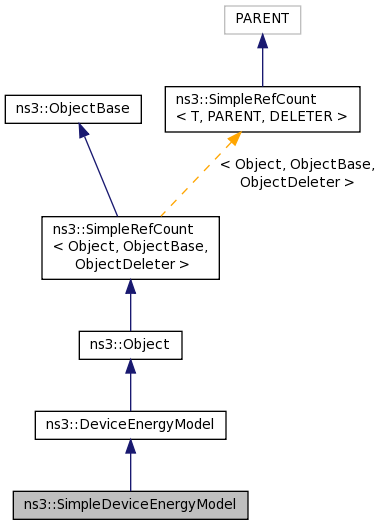

Inheritance diagram for ns3::SimpleDeviceEnergyModel:

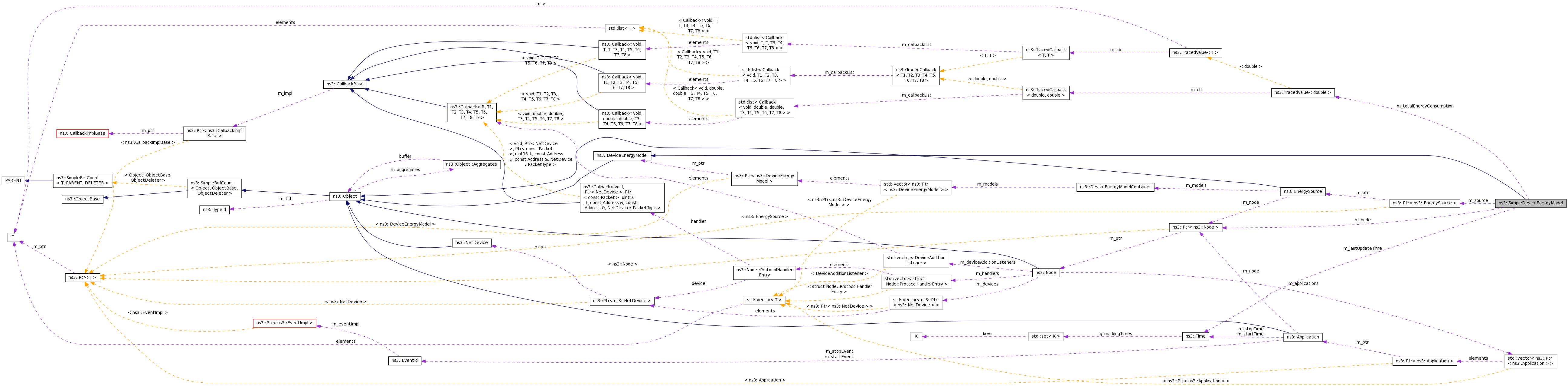

Collaboration diagram for ns3::SimpleDeviceEnergyModel:

Public Member Functions
	SimpleDeviceEnergyModel ()

virtual	~SimpleDeviceEnergyModel ()

virtual void	ChangeState (int newState)

virtual Ptr< Node >	GetNode (void) const
	Gets pointer to node. More...

virtual double	GetTotalEnergyConsumption (void) const

virtual void	HandleEnergyDepletion (void)
	Handles energy depletion. More...

void	SetCurrentA (double current)

virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node. More...

virtual void	SetNode (Ptr< Node > node)
	Sets pointer to node. More...

Public Member Functions inherited from ns3::DeviceEnergyModel
	DeviceEnergyModel ()

virtual	~DeviceEnergyModel ()

double	GetCurrentA (void) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::DeviceEnergyModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual double	DoGetCurrentA (void) const

Private Attributes
double	m_actualCurrentA

Time	m_lastUpdateTime

Ptr< Node >	m_node

Ptr< EnergySource >	m_source

TracedValue< double >	m_totalEnergyConsumption

Additional Inherited Members
Public Types inherited from ns3::DeviceEnergyModel
typedef Callback< void, int >	ChangeStateCallback
	Callback type for ChangeState function. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

A simple device energy model where current drain can be set by the user.

Doxygen introspection did not find any typical Config paths.

It is supposed to be used as a testing model for energy sources.

No Attributes are defined for this type.

TraceSources

TotalEnergyConsumption: Total energy consumption of the radio device.

Definition at line 38 of file simple-device-energy-model.h.

Constructor & Destructor Documentation

ns3::SimpleDeviceEnergyModel::SimpleDeviceEnergyModel ( )

Definition at line 46 of file simple-device-energy-model.cc.

References m_actualCurrentA, m_lastUpdateTime, m_source, and NS_LOG_FUNCTION.

ns3::SimpleDeviceEnergyModel::~SimpleDeviceEnergyModel ( )

virtual

Definition at line 54 of file simple-device-energy-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual void ns3::SimpleDeviceEnergyModel::ChangeState ( int newState )

inlinevirtual

Parameters

newState New state the device is in.

Not implemented

Implements ns3::DeviceEnergyModel.

Definition at line 84 of file simple-device-energy-model.h.

void ns3::SimpleDeviceEnergyModel::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 110 of file simple-device-energy-model.cc.

References m_source, and NS_LOG_FUNCTION.

double ns3::SimpleDeviceEnergyModel::DoGetCurrentA ( void ) const

privatevirtual
